2016 - 2021 Peugeot 108 Fuse Box Diagram

2018 Peugeot 108



Changing a fuse

The fuseboxes are located below the dashboard in the passenger compartment and beside the battery in the engine compartment.

Access to the tools

The extraction tweezers are attached to the fusebox under the bonnet.

Unclip the plastic cover, located at the bottom of the windscreen, by pressing on both tabs


When you unclip the plastic cover, make sure not to remove the seal.



Fuse Puller Location LHD , RHD



Unclip the cover of the fusebox by pressing on the right of the tab.
Remove the tweezers.



Changing a fuse



Good Fuse , Blown Fuse



Tweezers (Fuse Puller)

Before changing a fuse, it is necessary:
-  to identify the cause of the failure and rectify it,

- to switch off all electrical consumers,
- to immobilise the vehicle and turn the ignition off,
- to identify the defective fuse using the allocation tables and the diagrams on the following pages.

To work on a fuse, you must:

- use the special tweezers to extract the fuse from its location and check the condition of
its filament,
- always replace the failed fuse with a fuse of the same rating (same colour); using a different rating could cause a fault (risk of fire).


If the fuse fails again soon after replacement, have the vehicle's electrical system checked by
a PEUGEOT dealer or a qualified workshop.

Installing electrical accessories Your vehicle's electrical system is designed to operate with standard or optional equipment.

Before installing other electrical equipment or accessories on your vehicle, contact a  PEUGEOT dealer or a qualified workshop.

PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10 milliamperes.

 Dashboard Fuse Box

Fuses in the dashboard - Left Hand Drive

Fuses in the dashboard - Right Hand Drive

The fusebox is placed under the dashboard (driver's side).
Unclip the white plastic tab to access the fuses.
When you have finished, replace the cover carefully.



Dashboard Fuse Panel Diagram

Fuse N°  ... Rating (A)  ... Functions
1 5 Reversing lamp – Fuel injection system – Audio system – VSC system
2 15 Front and rear screenwash
3 5 Main supply unit – Instrument panel – Display screen – Air conditioning – Heated rear window and door mirrors – Heated seats – Electric fabric roof – Audio system
4 5 Electrical power steering – Stop & Start
5 15 Rear wiper
6 5 Fan assembly – ABS system – VSC system
7 25 Windscreen wipers
8 10 Heated door mirrors
9 15 12 V socket (max 120W) (Cigarette Lighter)
10 7.5 Door mirrors – Audio system – Stop & Start – Instrument panel – Display screen
11 5 Steering lock – Fuel injection system – ETG gearbox
12 7.5 Airbags
13 5 Instrument panel – Display screen -Stop & Start
14 15 Steering – Fuel injection system – Brake lamps
15 7.5 Fuel injection system – Stop & Start
16 7.5 Engine self-diagnosis
17 10 Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – ETG gearbox – "Keyless Entry and Starting" system

18 10 Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps – Lighting dimmer
19 40 Air conditioning
20 40 Air conditioning – Engine self-diagnosis – Sidelamps – License plate lamps – Rear foglamps – Front foglamps – Rear lamps – Lighting dimmer – Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – ETG gearbox – "Keyless Entry and Starting" system – Electric windows
21 30 Fuel injection system – Stop & Start – Main supply unit
22 7.5 Fuel injection system
23 20 Fuel injection system – Stop & Start
24 25 Main supply unit
25 30 Electric windows
26 25 Electric windows
27 10 Air conditioning
28 5 Rear foglamp



Engine compartment Fuse Block

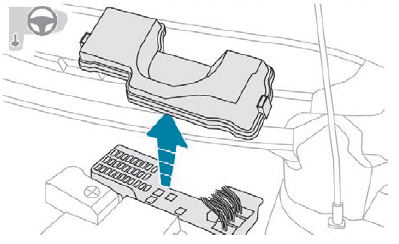

- Depending on the version, unclip the plastic cover located at the bottom of the windscreen, by pressing on both tabs.
- Unclip the cover of the fusebox by pressing on the right of the tab, to access the fuses.
When you have finished, close the cover carefully.



Engine Compartment Fuse Block Left Hand Drive



Engine Compartment Fuse Block Right Hand Drive



Engine Compartment Fuse Panel Diagram

Fuse N°  ... Rating (A)  ... Functions

1 10 Right dipped beam headlamp
2 10 Left dipped beam headlamp – Headlamp adjustment
3 7.5 Right main beam headlamp
4 7.5 Left main beam headlamp – Instrument panel – Display screen
9 7.5 Air conditioning
10 7.5 Fuel injection system – Brake lamps – Third brake lamp
11 5 Courtesy lamp – Boot lighting
12 10 Flashing indicators – Hazard warning lamps – Instrument panel – Display screen
13 10 Horn
14 30 Supply units
15 7.5 ETG gearbox
16 7.5 Fuel injection system
17 7.5 "Keyless Entry and Starting" system
18 7.5 Battery
19 25 Fuel injection system – Fan assembly
20 30 Starter
21 7.5 Steering lock
22 25 Front lamps
23 7.5 Fuel injection system
24 7.5 Fuel injection system – Starter – ETG Gearbox – Stop & Start
25 15 Audio system – "Keyless Entry and Starting" system
26 7.5 Instrument panel – Display screen
27 7.5 VSC system
28 60 Fusebox, passenger compartment
29 125* Demisting of the rear screen and door mirrors – Heated seats – Electric roof – ABS system – VSC system – Fan assembly – Front foglamps – LED Daytime running lamps
30 50 ETG gearbox
40 Stop & Start
31 50 Power steering
32 30 Fan assembly ; 40
33 50 ABS System – VSC (Vehicle Stability Control) system
37 20 Demisting of the rear screen and door mirrors
38 30 ABS System – VSC (Vehicle Stability Control) system
39 7.5 Front foglamps – Instrument panel – Display screen
40 7.5 LED daytime running lamps
41 15 Right heated seat
42 20 Electric fabric roof
43 15 Left heated seat

* This fuse must be replaced only by a PEUGEOT dealer or by a qualified workshop.
