2019- 2020 Ford Transit Fuse Specification Chart


2019 Ford Transit
2019 Ford Transit
Fuse Box Locations

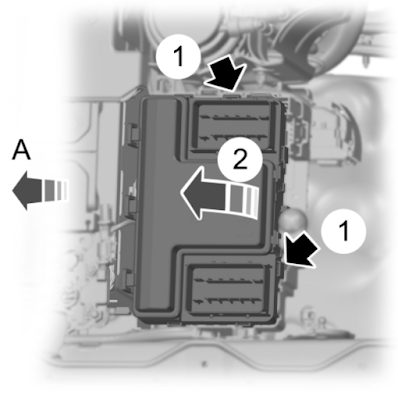

Engine Compartment Fuse Box
Engine Compartment Fuse Box Location
Engine Compartment Fuse Box Location

Driver Compartment Fuse Box
Driver Compartment Fuse Box Location
Driver Compartment Fuse Box Location
 The fuse box is behind the removable trim panel.
Body Control Module
Body Control Module Location
Body Control Module Location

Passenger Compartment Fuse Box
Passenger Compartment Fuse Box
Passenger Compartment Fuse Box

Pre-fuse Box
The fuse box is under the driver seat.



Fuse Specification Chart


Engine Compartment Fuse Box
Engine Compartment Fuse Box Panel
Engine Compartment Fuse Box Panel

Item   Fuse Rating   Protected Component
1   50 A   Wipers.
2   40 A   All-Wheel Drive.
3   40 A   Right-hand heated windshield element.
4   30 A   Parking lamps.
5   10 A   Reversing lamp.
6   -   Not used.
7   40 A   Front blower motor.
8   40 A   Left-hand heated windshield element.
9   15 A   Rear door latch.
10   -   Not used.
11   40 A   Auxiliary power point.   USB port.
12   20 A   Horn.
13   10 A   Selective catalytic reduction system.
14   15 A   Vehicle power 5.
15   -   Not used.
16   -   Not used.
17   10 A   Right-hand high-intensity discharge headlamps.
18   40 A   Rear window defroster.
19   20 A   Front fog lamps.
20   10 A   Power folding mirrors.
21   15 A   Vehicle power 4.
22   40 A   Rear blower motor.
23   20 A   Fuel pump.
24   40 A   Run/Start relay.
25   40 A   Auxiliary power points.
26   10 A   Left-hand high-intensity discharge headlamps.
27   -   Not used.
28   20 A   Vehicle power 1.
29   40 A   Fuel filter heater.
30   15 A   Coolant pump.
31   5 A   Anti-lock brake system.
32   15 A   Transmission control module.
33   30 A   Starter motor.
34   15 A   Selective catalytic reduction system.
35   15 A   Vehicle power 2.
36   5 A   Engine coolant bypass valve.
37   5 A   Glow plugs.   Powertrain control module.
38   60 A   Cooling fan.
39   15 A   Selective catalytic reduction system.
40   10 A   Vehicle power 3.
41   10 A   Controller glow plug.
42   15 A   Transmission control unit.
43   60 A   Anti-lock brake system pump.
44   25 A   Cooling fan.
45   30 A   Trailer socket.
46   40 A   Glow plugs.
47   40 A   Glow plugs.
48   50 A   Cooling fan.
49   15 A   Nitrogen oxides sensor.
50   5 A   Closed crankcase ventilation heater.
51   10 A   Air conditioning clutch.
52   50 A   Cooling fan.
53   -   Not used.
54   20 A   Backup alarm.
55   25 A   Transmission oil pump.
56   20 A   Fuel fired booster heater.
57   25 A   Anti-lock brake system with electronic stability control.
58   30 A   Trailer socket.
59   -   Cooling fan relay.

Driver Compartment Fuse Box

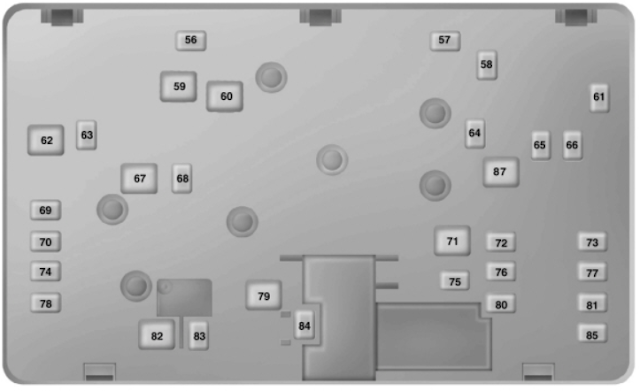

Driver Compartment Fuse Box Panel
Driver Compartment Fuse Box Panel
Item   Fuse Rating   Protected Component
1   5 A   USB port.
2   -   Not used.
3   5 A   USB port.
4   -   Not used.
5   -   Not used.
6   -   Not used.
7   -   Not used.
8   -   Not used.
9   10 A   Heated exterior mirrors.
10   5 A   Cooling fan.
11   -   Not used.
12   -   Not used.
13   -   Not used.
14   -   Not used.
15   -   Not used.
16   5 A   Rain sensor.
17   -   Not used.
18   -   Not used.
19   -   Not used.
20   -   Not used.
21   20 A   Heated rear window.
22   20 A   Heated rear window.
23   20 A   Auxiliary power point.
24   20 A   Auxiliary power point.
25   -   Not used.
26   25 A   Windshield wiper motor.
27   -   Not used.
28   30 A   Modified vehicle connections.
29   20 A   Fuel fired heater.
30   30 A   Power running boards.
31   -   Not used.
32   -   Not used.
33   -   Not used.
34   -   Not used.
35   -   Not used.
36   -   Not used.
37   -   Not used.
38   -   Not used.
39   -   Not used.
40   -   Not used.
41   25 A   Load shed relay.
42   40 A   Starter relay.
43   40 A   Upfitter relay.
44   40 A   Starter relay.
45   10 A   Upfitter interface module.
46   -   Not used.
47   -   Not used.
48   5 A   Modified vehicle connections.
49   10 A   Brake pedal switch.
50   30 A   Passenger power seat.
51   40 A   Modified vehicle connections.
52   30 A   Driver power seat.
53   60 A   Battery.
54   60 A   Power inverter.
55   50 A   Body control module.
56   10 A   Modified vehicle connections.
57   -   Not used.
58   10 A   Connector camper body interface.   Upfitter interface.   Secondary junction box.
59   10 A   Rear climate control.   Front view camera.   Rear view camera.   Adaptive cruise control module.   Blind spot information system.
60   10 A   Trailer brake control module.
61   -   Not used.
62   15 A   Enhanced cut off relay system module.
63   20 A   Auxiliary power point.
64   40 A   Modified vehicle connections.
65   -   Not used.
66   10 A   Enhanced cut off relay system.   Camper.   Load shed relay.
67   -   Not used.
68   5 A   Trailer tow module.
69   5 A   Steering wheel module.
70   -   Not used.
71   10 A   Passenger heated seat.
72   10 A   Driver heated seat.
73   20 A   Adaptive front lighting module.   Headlamp leveling.
74   -   Not used.
75   20 A   Engine compartment fuse box.
76   10 A   Power sliding door control switch.
77   5 A   Headlamp switch.
78   7.5 A   Modified vehicle connections.
79   5 A   Driver compartment fuse box relay.
80   -   Not used.
81   40 A   Trailer tow module.
82   30 A   Power sliding door.
83   30 A   Trailer brake control module.
84   50 A   Body control module.
85   30 A   Power sliding door.
86   50 A   Body control module.

Body Control Module
Body Control Module Panel
Body Control Module Panel
Item   Fuse Rating   Protected Component
1   -   Not used.
2   10 A   Power inverter.
3   7.5 A   Power window switch.   Power exterior mirrors.
4   20 A   Not used.
5   -   Not used.
6   10 A   Not used.
7   10 A   Not used.
8   5 A   Anti-theft alarm horn.
9   5 A   Intrusion sensor.   Rear air conditioning.
10   -   Not used.
11   -   Not used.
12   7.5 A   Climate control.
13   7.5 A   Data link connector.   Steering column.   Instrument cluster.
14   15 A   Battery energy control module - MHEV.
15   15 A   SYNC 3 module.
16   -   Not used.
17   7.5 A   Not used.
18   7.5 A   Not used.
19   5 A   Not used.
20   5 A   Ignition switch.
21   5 A   Positive temperature coefficient heater control.
22   5 A   Pedestrian alert control module.
23   30 A   Not used.
24   30 A   Not used.
25   20 A   Not used.
26   30 A   Not used.
27   30 A   Not used.
28   30 A   Not used.
29   15 A   Not used.
30   5 A   Not used.
31   10 A   Data link connector.   Remote key receiver.
32   20 A   Radio.   Telematics module.
33   -   Not used.
34   30 A   Message center.   Positive temperature coefficient heater.   Direct current/Alternating current inverter.   Lane keeping system camera.   Parking aid.   Steering column.
35   5 A   Not used.
36   15 A   Parking aid.   Lane keeping system camera.   Steering column control module.
37   20 A   Not used.
38   30 A   Power windows.

Passenger Compartment Fuse Box
Passenger Compartment Fuse Box Panel
Passenger Compartment Fuse Box Panel
Item   Fuse Rating   Protected Component
1   -   Relay 2.
2   -   Relay 3.
3   -   Relay 1.
4   -   Relay 4.
5   -   Relay 5.
6   -   Not used.
7   -   Not used.
8   -   Relay 7.
9   -   Relay 8.
10   -   Not used.
11   -   Not used.
12   -   Relay 9.
13   -   Relay 6.
14   5 A   Ignition.
15   5 A   Power supply.
16   -   Auxiliary switch 3 relay.
17   -   Auxiliary switch 3 relay.
18   -   Auxiliary switch 3 relay.
19   -   Auxiliary switch 4 relay.
20   -   Auxiliary switch 5 relay.
21   -   Auxiliary fuse box relay.
22   -   Auxiliary switch 7 relay.
23   -   Auxiliary switch 8 relay.
24   -   Auxiliary switch 9 relay.

Pre-fuse Box
Pre-fuse Box Panel
Pre-fuse Box Panel
Item   Fuse Rating   Protected Component
1   125 A   Body control module.
2   80 A   Electronic power assist steering.
3   150 A   Positive temperature coefficient heater.
4   -   Not used.
5   -   Not used.
6   150 A   Passenger compartment fuse box.
7   60 A   Camper.
8   -   Not used.
9   500 A   Starter motor.   Alternator.
10   300 A   Engine compartment fuse box.
11   250 A   Dual generators.
12   150 A   Driver compartment fuse box.
13   190 A   Load shed relay.
14   175 A   Auxiliary power point 1.
15   60 A   Auxiliary power point 2.



2020 Ford Ranger Fuse Panel


2020 Ford Ranger
2020 Ford Ranger

Fuse Box Locations - Left-Hand Drive
Fuse Box Locations - Left-Hand Drive
Fuse Box Locations - Left-Hand Drive

APre-fuse box.
B Engine compartment fuse box.
CPassenger compartment fuse box.
DHigh current fuse box.
Note The passenger compartment fuse box is on the right- hand side for right-hand drive vehicles.
Pre-fuse Box

Pre-fuse Box
Pre-fuse Box


Your vehicle has a pre-fuse box in the engine compartment attached to the positive battery post. This box contains several high current fuses. If replacement of these high current fuses is required, see an authorized dealer.

Engine Compartment Fuse Box
 Engine Compartment Fuse Box
Engine Compartment Fuse Box

  WARNING:  Always disconnect the battery before servicing high current fuses.
  WARNING:  To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The engine compartment fuse box has high-current fuses that protect your vehicle's main electrical systems from overloads.
When you disconnect and reconnect the battery, you need to reset some features.
Lift the release lever at the rear of the cover to remove it.

High Current Fuse Box
High Current Fuse Box
High Current Fuse Box
 Your vehicle has a pre-fuse box in the engine compartment below the engine compartment fuse box. This box contains several high current fuses. If replacement of these high current fuses is required, see an authorized dealer.
Passenger Compartment Fuse Box
Passenger Compartment Fuse Box
Passenger Compartment Fuse Box

The fuse box is behind the access cover on the outermost side of the steering column.

Fuse Specification Chart

Engine Compartment Fuse Box

WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.


The engine compartment fuse box has high-current fuses that protect your vehicle's main electrical systems from overloads. When you disconnect and reconnect the battery, you need to reset some features.
Engine Compartment Fuse Panel
Engine Compartment Fuse Panel

Fuse or Relay Number   Fuse Rating   Protected Component
1   15A1   Not used.
2   -   Starter motor solenoid relay.
3   5A2   Rain sensor.
4   -   Blower motor relay.
5   20A1   Auxiliary power point 3 - console rear.
6   -   Trailer park lamp relay.
7   20A2   Powertrain control module.
8   20A2   Cannister vent solenoid.   Fuel vapor shutoff valve.   Canister purge valve.   Variable cam timing valve 1 and 2.   Heated oxygen sensors.
9   -   Powertrain control module relay.
10   20A1   Auxiliary power point 1 - instrument panel.
11   15A3   Ignition coils.
12   15A3   A/C control drive.   Transaxle warmer.   Auxiliary water pump.   Aspirator valve control.   Fan clutch.   Oil pump.   Turbo bypass.
13   15A3   Not used (spare).
14   15A3   Not used (spare).
15   -   Run/start relay.
16   20A1   Auxiliary power point 2 - instrument panel.
17   20A1   Auxiliary power point - rear cargo area.
18   10A2   Not used (spare).
19   10A2   Electric power assist steering.
20   10A2   Lighting control switch.
21   5A2   Transmission Run/Start relay.
22   10A2   Air conditioning compressor.
23   7.5A2   Voltage quality module.
24   10A2   Not used (spare).
25   10A3   Anti-lock brake system.
26   10A3   Not used (spare).
27   -   Not used.
28   10A2   Powertrain control module.
29   7.5A2   USB charge port.
30   -   Not used.
31   -   Not used.
32   -   Fuel pump relay.
33   -   A/C clutch relay.
34   10A2   Trailer reverse lamp.
35   15A2   Not used (spare).
36   -   Not used.
37   10A2   Heated exterior mirror.
38   -   Trailer right turn and stop lamp relay.
39   -   Trailer left turn and stop lamp relay.
40   -   Trailer reverse lamp relay.
41   -   Horn relay.
42   -   motor no. 2 relay.
43   -   Not used.
44   -   Not used.
45   5A2   Not used (spare).
46   10A3   Not used (spare).
47   10A3   Brake pedal switch.
48   20A2   Horn.
49   15A2   Transmission control module. Oil pump.
50   10A2   Wiper park heater.
51   -   Not used.
52   -   Not used.
53   15A2   Rear differential lock.
54   -   Not used.
55   -   Not used.
86   -   motor no. 1 relay.

1M-type fuse.
2Micro 2 fuse.
3Micro 3 fuse.
 Power Distribution Box - Bottom
There are fuses on the bottom of the fuse box. To access the bottom of the fuse box:
 Power Distribution Box - Bottom
 Power Distribution Box - Bottom

A Towards the front side of the vehicle.

1. Release the two latches on both sides of the fuse box.
2. Raise the rear side of the fuse box from the cradle.
 Power Distribution Box - Bottom
 Power Distribution Box - Bottom


3. Move the fuse box toward the rear side of the engine compartment and rotate as shown.
4. Pivot the rear side of the fuse box to access the bottom side.
5. Release the two latches to open the fuse cover.
 Power Distribution Box - Bottom
 Power Distribution Box - Bottom


Fuse or Relay Number   Fuse Rating   Protected Component
56   15A4   Trailer left turn and stop.
57   -   Not used.
58   -   Not used.
59   -   Not used.
60   30A5   Fuel pump control module.
61   -   Not used.
62   50A5   Body control module 1 - lighting.
63   15A4   Trailer right turn and stop.
64   30A4   Trailer brakes.
65   20A4   Heated driver seat.
66   25A4   Four wheel drive.
67   50A5   Body control module 2 - lighting.
68   30A4   Rear window defroster.
69   30A4   Anti-lock brake system valves.
70   30A4   Passenger power seat.
71   25A5   Trailer park lamps.
72   -   Not used.
73   30A4   Trailer module.
74   30A4   Driver power seat.
75   -   Not used.
76   -   Not used.
77   -   Not used.
78   -   Not used.
79   40A5   Blower motor.
80   20A4   Heated passenger seat.
81   40A4   Inverter.
82   60A5   Anti-lock brake system pump.
83   30A4   Windshield wiper motor.
84   30A4   Starter motor solenoid.
85   -   Not used.
87   40A5   Trailer module.

4M-type fuse.
5LPJ-type fuse.
Battery Mounted Fuse Link
Battery Mounted Fuse Link
Battery Mounted Fuse Link
Fuse Number   Fuse Rating   Protected Component
1   225A   Alternator.
2   125A   Electronic power assist steering.

High Current Fuse Box
High Current Fuse Box
High Current Fuse Box

Fuse Number   Fuse Rating   Protected Component
1   -   Not used.
2   125A   Body control module.
3   50A   Voltage quality module (supplies rear lamp blind spot, rear view camera, head up display, 4x4 switch, image processing module and adaptive cruise control radar).
4   -   Busbar through to power distribution box.

Passenger Compartment Fuse Box
The fuse box is below and outboard of the steering column behind the access cover.
Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel

Passenger Compartment Fuse Table
Fuse or Relay Number   Fuse Rating   Protected Component
1   -   Not used.
2   7.5A6   Not used (spare).
3   20A6   Driver door lock.
4   5A6   Not used (spare).
5   20A6   Branded audio amplifier.
6   10A7   Not used (spare).
7   10A7   Not used (spare).
8   10A7   Anti-theft alarm horn.
9   10A7   Telematics.
10   5A7   Not used (spare).
11   5A7   Not used (spare).
12   7.5A7   Electronic control panel.   Climate control.
13   7.5A7   Instrument cluster.   Steering column control module.   Data link connector.
14   10A7   Extended power module (for Restraints module and Occupant module).
15   10A7   SYNC Module.   Data link connector.
16   15A6   Not used (spare).
17   5A7   Not used (spare).
18   5A7   Ignition switch.   Lock solenoid.   Push button start.
19   7.5A7   Extended power module (for Restraints module and Occupant module).
20   7.5A7   Not used (spare).
21   5A7   Humidity and in-car temperature sensor.
22   5A7   Not used (spare).
23   10A6   Inverter.   Door lock switch.
24   20A6   Central locking system.
25   30A6   Driver door power window.
26   30A6   Not used (spare).
27   30A6   Not used (spare).
28   20A6   Branded audio amplifier.
29   30A6   Not used (spare).
30   30A6   Not used (spare).
31   15A6   SYNC.
32   10A6   Radio transceiver module.   Door entry remote.
33   20A6   Audio unit.
34   30A6   Run/start relay.
35   5A6   Not used (spare).
36   15A6   Auto-dimming interior mirror.   Mirror adjustment control.
37   20A6   Not used (spare).
38   30A8   Power windows.

6Micro 2 fuse.
7Micro 3 fuse.
8PTC fuse.
