2017 - 2021 Dodge Ram ProMaster City Fuse Box Diagram

2021 Ram ProMaster City

Fuses and Relays

WARNING

- When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an  authorized dealer.

CAUTION
If it is necessary to wash the engine compartment, take care not to directly hit the fuse box, and the windshield wiper motors with water.

The fuses protect electrical systems against excessive current.
When a device does not work, you must check the fuse element inside the blade fuse for a
break/melt.
Also, please be aware that when using power outlets for extended periods of time with the  engine off may result in vehicle battery discharge.



Blade Fuse



1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade fuse with a bad/not functional fuse element (blown fuse)



Underhood Fuses

The Front Distribution Unit is located on the right side of the engine compartment, next to the battery. To access the fuses, remove fasteners and remove the cover.

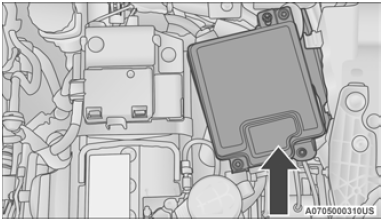

Front Distribution Unit



The ID number of the electrical component corresponding to each fuse can be found on the
back of the cover.




Cavity  ... Maxi Fuse  ... Mini Fuse  ... Description
F01 60 Amp Blue – Body Controller
F02 40 Amp Orange – Rear Power Windows, Fog Lamps, Front Heated Seats (If Equipped)
F02 30 Amp Green – Rear Power Windows, Front Heated Seats (If Equipped)
F02 30 Amp Green – Fog Lamps, Front Heated Seats (If Equipped)
F02 20 Amp Yellow – Front Heated Seats (If Equipped)
F03 20 Amp Yellow – Ignition Switch
F04 40 Amp Orange – BSM ( Blind Spot Monitoring) System Module
F06 20 Amp Yellow – Radiator Fan - Low Speed
F07 50 Amp Red – Radiator Fan - High Speed
F08 40 Amp Orange – Blower Motor
F10 – 15 Amp Blue Horn
F11 – 10 Amp Red Secondary Loads ECM
F14 – 15 Amp Blue High Beam
F15 – 15 Amp Blue IP Power Outlet 12 Volt (Cigarette Lighter)
F16 – 5 Amp Tan ECM and Transmission Shifter
F17 – 25 Amp Clear ECM Power Loads
F18 – 5 Amp Tan ECM Load, Main Relay
F19 – 7.5 Amp Brown Air Conditioning
F20 – 30 Amp Green Rear Defroster (If Equipped)
F21 – 5 Amp Tan Key Unlock
F22 – 10 Amp Red Primary ECM Loads
F23 – 20 Amp Yellow BSM System
F24 – 5 Amp Tan BSM System, Positive Key and Steering Angle Sensor
F30 – 15 Amp Blue 2nd Instrument Panel Power Outlet (Battery)
F83 20 Amp Yellow – Fuel Pump
F84 – 15 Amp Blue AT Module
F85 – 15 Amp Blue Rear Power Outlet 12 Volts (ACC/ON/RUN)
F86 – 15 Amp Blue IP Power Outlet 12 Volts (ACC/ON/RUN)
F87 – 5 Amp Tan IBS (Intelligent Battery Sensor)
F88 – 7.5 Amp Brown External Mirror Defrost (If Equipped)

Interior Fuses

The interior fuse panel is part of the Body Control Module (BCM) and is located on the driver's side under the instrument panel.

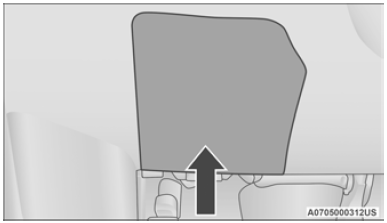

Fuse Panel Cover

Fuse Panel Cavity Locations

Interior Fuse Panel Diagram

Cavity ...  Mini Fuse  ... Description
F53 5 Amp Beige KL 30 (+30) - IPC, FTM
F38 20 Amp Yellow Central Doors Locking
F36 15 Amp Blue (2017 Model - 10 Amp Red)  KL 30 (+30) - TPMS, EOBD, HVAC, Radio, USB, SGW
F43 15 Amp Blue Bi-Directional Washer Pump
F48 20 Amp Yellow Passenger Power Windows
F50 7.5 Amp Brown KL 15 (+15) - Air-Bag
F51 7.5 Amp Brown KL 15 (+15) - External Mirror Adjustment Command, HVAC, RVC, HWB Coils
F37 5 Amp Beige KL 15 (+15) - Brake Pedal Switch (N.O.), IPC, Brake Pedal Switch (N.C.)
F49 5 Amp Beige KL 15 (+15) - PAM, CSS Lighting, TTM, SGW, and Heaters Light, ECM Backlighting
F31 5 Amp Beige KL 15a (INT A) - HWB, MCO
F47 20 Amp Yellow Driver Power Windows

Central Unit Fuse Panel

The central power fuse panel is located on the driver’s side under the instrument panel.



Fuse Panel Cover



Central Unit Fuse Panel Diagram

Cavity ...  Mini Fuse  ... Description
F1 10 Amp Red Front Heated Seat Passenger (If Equipped)
F2 10 Amp Red Front Heated Seat Driver (If Equipped)
F3 20 Amp Yellow Rear Power Window Driver side (If Equipped)
F4 20 Amp Yellow Rear Power Window Passenger side (If Equipped)
F5 15 Amp Blue Fog Lamps (If Equipped)
