| 2020 Renault Kangoo |
Instrument Panel Fuse box
 |

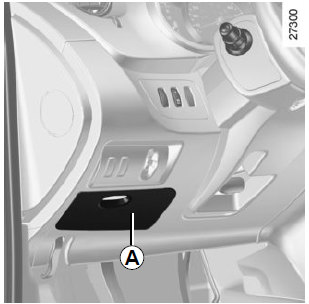

| Instrument Panel Fuse box Location |
If any electrical component does not work, check the condition of the fuses.
Unclip cover A.
Unclip cover A.
Tweezers (Fuse Puller) 1
 |
| Good Fuse Blown Fuse - Fuse Puller |
Remove the fuse using tweezers 1 (Fuse Puller), located at the back of cover A.
To remove the fuse from the tweezers, slide the fuse to the side.
To locate the fuses, please see the Fuse Panel Diagram below.
It is not advisable to use the free fuse locations.
Some functions are protected by fuses located in the engine compartment.
However, because of their reduced accessibility, it is recommended to have these fuses replaced by an authorised dealer.
Caution
To remove the fuse from the tweezers, slide the fuse to the side.
To locate the fuses, please see the Fuse Panel Diagram below.
It is not advisable to use the free fuse locations.
Some functions are protected by fuses located in the engine compartment.
However, because of their reduced accessibility, it is recommended to have these fuses replaced by an authorised dealer.
Caution
Check the fuse in question and replace it, if necessary, with a fuse of the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
To comply with local legislation, or as a precaution, you can obtain an emergency kit containing a set of spare bulbs and fuses from an approved Dealer.
Allocation of fuses
The presence and location of fuses depends on the vehicle equipment level.
 |
| Instrument Fuse Panel Diagram |
Number Allocation
1 Fuel pump
2 Not used
3 Passenger compartment engine cooling fan
4 Passenger compartment engine cooling fan
5 Rear windscreen wiper
6 Horn, diagnostic socket
7 Heated seats
8 Electric rear windows
9 Passenger compartment ECU (Electronic Control Unit)
10 Windscreen washer
11 Brake lights
12 Passenger compartment unit, ABS (Anti lock Brake System), ESP (Electronic Stability Programme)
13 Electric windows, child safety, heating and air conditioning system, ECO mode
14 Not used
15 Starter
16 Brake lights, additional equipment, navigation, ABS, ESP, boot light, tyre pressure warning light, interior lights, rain and light sensor
17 Radio, navigation system, display, alarm
18 Additional equipment
19 Heated door mirrors
20 Hazard lights, rear fog lights
21 Central locking of opening elements
22 Instrument panel
23 Rear accessories socket
24 ESC (Electronic Stability Control), radio, heating and air conditioning system, heated seats, stop lights
25 Front accessories socket (Cigarette Lighter)
26 Towbar
27 Electric front windows
28 Rear-view mirror control
29 De-icing the rear screen and rear view mirror
1 Fuel pump
2 Not used
3 Passenger compartment engine cooling fan
4 Passenger compartment engine cooling fan
5 Rear windscreen wiper
6 Horn, diagnostic socket
7 Heated seats
8 Electric rear windows
9 Passenger compartment ECU (Electronic Control Unit)
10 Windscreen washer
11 Brake lights
12 Passenger compartment unit, ABS (Anti lock Brake System), ESP (Electronic Stability Programme)
13 Electric windows, child safety, heating and air conditioning system, ECO mode
14 Not used
15 Starter
16 Brake lights, additional equipment, navigation, ABS, ESP, boot light, tyre pressure warning light, interior lights, rain and light sensor
17 Radio, navigation system, display, alarm
18 Additional equipment
19 Heated door mirrors
20 Hazard lights, rear fog lights
21 Central locking of opening elements
22 Instrument panel
23 Rear accessories socket
24 ESC (Electronic Stability Control), radio, heating and air conditioning system, heated seats, stop lights
25 Front accessories socket (Cigarette Lighter)
26 Towbar
27 Electric front windows
28 Rear-view mirror control
29 De-icing the rear screen and rear view mirror
