| 2016 Renault / Dacia Duster |
Passenger compartment fuses
 |
| Passenger compartment fuse box Location |
If any electrical component does not work, check the condition of the fuses. Unclip flap A using notch 1 to help you.
Depending on the vehicle, to identify the fuses, refer to the fuse allocation label located at the back of the flap A and shown on the following pages.
Tweezers 2
 |
| Good Fuse Blown Fuse - Fuse Puller |
Remove the fuse using tweezers 2 (Fuse Puller), located at the back of cover A.
To remove the fuse from the tweezers, slide the fuse to the side.
To locate the fuses, please see the Fuse Panel Diagram below.
It is not advisable to use the free fuse locations.
Some functions are protected by fuses located in the engine compartment.
However, because of their reduced accessibility, it is recommended to have these fuses replaced by an authorised dealer.
To remove the fuse from the tweezers, slide the fuse to the side.
To locate the fuses, please see the Fuse Panel Diagram below.
It is not advisable to use the free fuse locations.
Some functions are protected by fuses located in the engine compartment.
However, because of their reduced accessibility, it is recommended to have these fuses replaced by an authorised dealer.
Caution
Check the fuse in question and replace it, if necessary, with a fuse of the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
To comply with local legislation, or as a precaution, you can obtain an
emergency kit containing a set of spare bulbs and fuses from an
approved Dealer.If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
Fuses in engine compartment B
 |
Fuses in engine compartment B |
Some functions are protected by fuses located in the engine compartment (unit B).
However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved dealer.
However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved dealer.

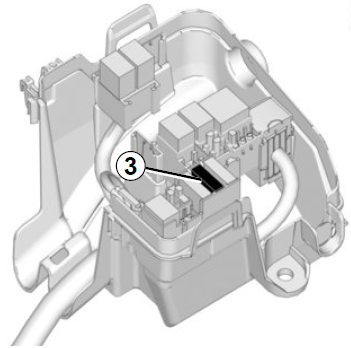

Special features of LPG versions
 |
| Special features of LPG versions |
The specific LPG circuit shut-off fuse 3 is located in the box B.
Caution
When working in the engine compartment, ensure that the windscreen wiper stalk is in the park position.
Caution
Deactivate the Stop and Start function for any operation performed in the engine compartment.
Allocation of fuses in the passenger compartment, left-hand drive vehicles
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)
 |
| Allocation of fuses in the passenger compartment, left-hand drive vehicles |
Number ... Allocation
A Driver’s side window winder
B 4-wheel drive (4WD) transmission
C LPG
D Rear accessories socket
E Passenger compartment ECU, starter
1 Front electric window
2 Left-hand main beam headlight
3 Right-hand main beam headlight
4 Left-hand dipped beam headlight
5 Right-hand dipped beam headlight
6 Rear lights
7 Front side lights
8 Rear electric windows
9 Rear fog lights
10 Horn
11 Automatic door locking
12 ABS-ESC, brake switch, clutch switch
13 Interior lights, boot light, glovebox light
14 Empty location
15 Windscreen wiper
16 Cruise control/Speed limiter, unfastened seat belt warning, parking distance control, multimedia, air conditioning, heated seats, automatic gearbox lever, UCH
17 Daytime running lights
18 Brake lights
19 Injection, instrument panel or dashboard, passenger compartment, sequential gearbox lever
20 Airbag
21 4-wheel drive transmission (4WD), LPG, automatic gearbox, sequential gearbox, reverse gear
22 Power-assisted steering
23 Heated rear windscreen, heated seats, seatbelt alarm, parking distance control, additional passenger compartment heating, cruise control/ speed limiter, heated windscreen
24 Passenger compartment ECU (Electronic Control Unit)
25 Passenger compartment ECU (Electronic Control Unit)
26 Direction indicator lights
27 and 29 Steering column control
28 Not used
30 Not used
31 Instrument panel
32 Radio, passenger compartment air conditioning control panel, passenger compartment ventilation, rear accessories socket
A Driver’s side window winder
B 4-wheel drive (4WD) transmission
C LPG
D Rear accessories socket
E Passenger compartment ECU, starter
1 Front electric window
2 Left-hand main beam headlight
3 Right-hand main beam headlight
4 Left-hand dipped beam headlight
5 Right-hand dipped beam headlight
6 Rear lights
7 Front side lights
8 Rear electric windows
9 Rear fog lights
10 Horn
11 Automatic door locking
12 ABS-ESC, brake switch, clutch switch
13 Interior lights, boot light, glovebox light
14 Empty location
15 Windscreen wiper
16 Cruise control/Speed limiter, unfastened seat belt warning, parking distance control, multimedia, air conditioning, heated seats, automatic gearbox lever, UCH
17 Daytime running lights
18 Brake lights
19 Injection, instrument panel or dashboard, passenger compartment, sequential gearbox lever
20 Airbag
21 4-wheel drive transmission (4WD), LPG, automatic gearbox, sequential gearbox, reverse gear
22 Power-assisted steering
23 Heated rear windscreen, heated seats, seatbelt alarm, parking distance control, additional passenger compartment heating, cruise control/ speed limiter, heated windscreen
24 Passenger compartment ECU (Electronic Control Unit)
25 Passenger compartment ECU (Electronic Control Unit)
26 Direction indicator lights
27 and 29 Steering column control
28 Not used
30 Not used
31 Instrument panel
32 Radio, passenger compartment air conditioning control panel, passenger compartment ventilation, rear accessories socket
33 Cigar lighter
34 Diagnostics and radio socket
35 Defrosting rearview mirror
36 Electric door mirrors
37 Passenger compartment ECU, starter
38 Front windscreen wiper
39 Passenger compartment ventilation
34 Diagnostics and radio socket
35 Defrosting rearview mirror
36 Electric door mirrors
37 Passenger compartment ECU, starter
38 Front windscreen wiper
39 Passenger compartment ventilation
Caution
Check the fuse in question and replace it, if necessary, with a fuse of the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
To comply with local legislation, or as a precaution, you can obtain an
emergency kit containing a set of spare bulbs and fuses from an
approved Dealer.If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
Allocation of fuses in the passenger compartment, right-hand drive vehicles
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)
 |
| Allocation of fuses in the passenger compartment, right-hand drive vehicles |
Number ... Allocation
A Driver’s side window winder
B 4-wheel drive (4WD) transmission
C Rear air conditioning
D Rear accessories socket
E Passenger compartment
ECU, starter
1 Front electric window
2 Left-hand main beam headlight
3 Right-hand main beam headlight
4 Left-hand dipped beam headlight
5 Right-hand dipped beam headlight
6 Rear lights
7 Front side lights
8 Rear electric windows
9 Rear fog lights
10 Horn
11 Automatic door locking
12 ABS-ESC, brake switch
13 Interior lights, boot light, glovebox light
14 Not used
15 Windscreen wiper
16 Multimedia
17 Daytime running lights
18 Brake lights
19 Injection, instrument panel or dashboard, passenger compartment, sequential gearbox lever
20 Airbag
21 4-wheel drive transmission (4WD), reverse gear
22 Power-assisted steering
23 Cruise control/Speed limiter, rear windscreen, unfastened seatbelt warning, parking distance control, additional passenger compartment heating
A Driver’s side window winder
B 4-wheel drive (4WD) transmission
C Rear air conditioning
D Rear accessories socket
E Passenger compartment
ECU, starter
1 Front electric window
2 Left-hand main beam headlight
3 Right-hand main beam headlight
4 Left-hand dipped beam headlight
5 Right-hand dipped beam headlight
6 Rear lights
7 Front side lights
8 Rear electric windows
9 Rear fog lights
10 Horn
11 Automatic door locking
12 ABS-ESC, brake switch
13 Interior lights, boot light, glovebox light
14 Not used
15 Windscreen wiper
16 Multimedia
17 Daytime running lights
18 Brake lights
19 Injection, instrument panel or dashboard, passenger compartment, sequential gearbox lever
20 Airbag
21 4-wheel drive transmission (4WD), reverse gear
22 Power-assisted steering
23 Cruise control/Speed limiter, rear windscreen, unfastened seatbelt warning, parking distance control, additional passenger compartment heating
24 Passenger compartment ECU (Electronic Control Unit)
25 Not used
26 Direction indicator lights
27 and 29 Steering column control
28 Not used
30 Not used
31 Instrument panel
32 Radio, passenger compartment air conditioning control panel, passenger compartment
ventilation, rear accessories socket
33 Cigar lighter
34 Diagnostics and radio socket
35 Defrosting rearview mirror
36 Electric door mirrors
37 Passenger compartment ECU, starter
38 Front windscreen wiper
39 Passenger compartment ventilation
25 Not used
26 Direction indicator lights
27 and 29 Steering column control
28 Not used
30 Not used
31 Instrument panel
32 Radio, passenger compartment air conditioning control panel, passenger compartment
ventilation, rear accessories socket
33 Cigar lighter
34 Diagnostics and radio socket
35 Defrosting rearview mirror
36 Electric door mirrors
37 Passenger compartment ECU, starter
38 Front windscreen wiper
39 Passenger compartment ventilation
Caution
Check the fuse in question and replace it, if necessary, with a fuse of the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
To comply with local legislation, or as a precaution, you can obtain an
emergency kit containing a set of spare bulbs and fuses from an
approved Dealer.If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
