2018 - 2021 Jeep Compass Fuse Table

2021 Jeep Compass



Fuses and Relays

WARNING
When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious  personal injury, fire and/or property damage.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an  authorized dealer.

CAUTION
If it is necessary to wash the engine compartment, take care not to directly hit the fuse box, and the windshield wiper motors with water.

The fuses protect electrical systems against excessive current. When a device does not work, you must check the fuse element inside the blade fuse for a break/melt. Also, please be aware that when using power outlets for extended periods of time with the engine off may result in vehicle battery discharge.

Blade Fuse

1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade fuse with a bad/not functional fuse element (blown fuse)

Fuse Box Location

The fuses are grouped into controllers located in the engine compartment.

Engine Compartment Fuses/Distribution Unit

The engine compartment fuse panel is located near the battery in the engine compartment.

Fuse Panel & Cover Location

Fuse Panel & Cover

1 — Cover Screw
2 — Fuse Cover
----------------------------------------------------------------------------------------------------

Removing Fuse Cover and Locking Screw

Proceed as follows:
1. Slowly turn the screw counterclockwise.
2. Slowly release the screw.
3. Remove the fuse cover by sliding it upward.


Mounting Fuse Cover and Locking Screw



Proceed as follows:
1. Properly secure the fuse cover to the box, slide completely from top to bottom.
2. Fully depress the screw, using the special screwdriver supplied, in the rear cargo area.
3. Slowly turn the screw clockwise.
4. Release the screw.

Battery Fuse Cover Location

1 — Fuse Cover Tabs
2 — Fuse Cover

-------------------------------------------------------------------------------------------------



Cavity  ... Maxi Fuse  ... Cartridge Fuse  .... Mini Fuse  ... Description
F01 70 Amp Tan – – Module Body Computer
F02 70 Amp Tan – – Module Body Computer, Rear Distribution Units
F03 –
30 Amp Pink with HID Lamps
20 Amp Blue without HID Lamps
– Supply Body Computer, HID Lamps

F04 – 40 Amp Tan – Brake Control Electronics Module
F05 – 40 Amp Tan – PTC (Positive Temperature Coefficient) Heater
F06 40 Amp Orange – – Starter Relay
F07 40 Amp Orange – – Rear Distribution Unit For Trailer Tow Usage
F08 – 30 Amp Pink – Supply For TCM, AGSM, Steering Control
F09 – – 7.5 Amp Brown ECM (Engine Control Module) , TCM (Transmission Control Module), Radiator Fan Control
F10 – – 20 Amp Yellow Horn

F11 – –
20 Amp Yellow – 1.4L Gas & Diesel Engines
25 Amp Clear – 2.4 L Engines/UREA
ECM/PCM/UREA Fuel Injectors

F14 – –
7.5 Amp Brown – Diesel Engine
15 Amp Blue – Gas Engine
Diesel Crankcase Heater Gasoline LTR Cooling Pump

F15 40 Amp Orange – – Brake Control Module Pump
F16 – – 10 Amp Red , Engine Control Module Power, Automatic Transmission
F17 – – 10 Amp Red Engine Secondary Loads
F18 – – 20 Amp Yellow 12 Volt Rear Cargo Outlet Ignition Powered
F19 – – 7.5 Amp Brown Air Conditioner Compressor
F20 – – 20 Amp Yellow Cigar Lighter
F21 – – 20 Amp Yellow , Fuel Pump

F22 – –
20 Amp Yellow – Gas Engine
15 Amp Blue – Diesel Engine
Gas - Ign Coil/Fuel Injector Diesel- Diesel Components

F23 – – 30 Amp Green Window Heater Grid
F24 – – 15 Amp Blue Electronic Unit Supply Automatic Transmission
F30 – – 20 Amp Yellow (Customer Selectable, Move From F18) , 12 Volt Rear Cargo Outlet Constant Battery Powered
F81 60 Amp Blue — Diesel Engine – – Glow Plug Module, DDCT SDU Battery Feed
F82 – 40 Amp Green – Diesel Fuel Filter Heater
F83 – 40 Amp Green – HVAC Fan

F84 – – 30 Amp Green Power Supply All Wheel Drive
F87 – – 5 Amp Tan Gear Selector Automatic Transmission
F88 – – 7.5 Amp Brown Heated Outside Mirrors
F89 – – 30 Amp Green Heated Rear Window
F90 – – 5 Amp Tan IBS Sensor (Battery State Of Charge)



Fxx – –
10 Amp Red Dual Battery Control Relay With NON DDCT Trans
7.5 Amp Brown Dual Battery Control Relay With DDCT Trans

2018 Model -  10 Amp Red Dual Battery Control Relay

The Fuse Box has additional ATO fuse holders installed on the bottom of the box.

Cavity  ... ATO / UNI-VAL  ... Fuse Description
F1 5 Amp Beige , Drivetrain Control Module (4x4/AWD)
F2 10 Amp Red , ECM — Start Diagnostic Sense
F3 2 Amp Grey , Mod Steering Control

Interior Fuse Box

The interior fuse panel is located in the driver compartment on the left side dash panel under the instrument panel.

Cavity ...  Blade Fuse ... Description
F31 7.5 Amp Brown , Occupant Restraint Controller
F33 20 Amp Yellow Window Motor Passenger
F34 20 Amp Yellow Window Motor Driver
F36 20 Amp Yellow Intrusion Module/Siren, Radio, UCI/USB Port, VSU, Climate Control, Electronic Steering Lock, Power Folding Mirrors, Security Gateway/DTV
F37 10 Amp Red Instrument Panel Cluster, Drivetrain Control Module, Adaptive Cruise, ECC (HVAC) Blower
F38 20 Amp Yellow Door Lock/Unlock, Liftgate Release
F42 7.5 Amp Brown Brake System Module, Electric Power Steering
F43 20 Amp Yellow Washer Pump Front And Rear
F47 20 Amp Yellow Rear Left Window Lifter
F48 20 Amp Yellow Rear Right Window Lifter
F49 7.5 Amp Brown , Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Electronic
Steering Lock, Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch
F50 7.5 Amp Brown Occupant Restraint Controller
F51 7.5 Amp Brown Electronic Climate Control, Occupant Classification, Rear View Camera,  Climate Control, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane Departure
F53 7.5 Amp Brown Keyless Ignition Node Module, Electric Park Brake, RF Hub, Cluster
F94 20 Amp Yellow , Lumbar Adjust Driver Seat, Power Outlets

Rear Cargo Fuse / Relay Distribution Unit

To access the fuses, remove the access door from the left rear panel of the rear cargo area.

Rear Cargo Fuse Panel Access Door



To remove fuse cover, press on the tabs and lift upward.



Rear Cargo Fuse Panel Cover

The fuses may be contained in two units. Fuse holder No. 1 is located closest to the rear of the vehicle and fuse holder No. 2 (if equipped with trailer towing) is located closest to the front of the vehicle.


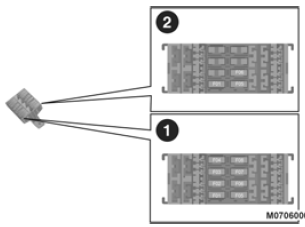

Rear Cargo Fuse Cavities

1 — Fuse Holder No. 1
2 — Fuse Holder No. 2

Fuse Holder No. 1

Cavity   ... Mini Fuse  ... Description
F1 30 Amp Green , Power Inverter
F2 30 Amp Green Memory Seat
F3 20 Amp  Yellow , Sun Roof – If Equipped
F4 30 Amp Green Power Seat (Passenger Side)
F5 30 Amp Green Power Seat (Driver Side)
F6 7.5 Amp Brown Power Lumbar (Power Seats)
F7 15 Amp Blue Heated Steering Wheel / Ventilated Seats
F8 20 Amp Yellow Heated Seats

Fuse Holder No. 2

Cavity   ... Mini Fuse  ... Description
F1 10 Amp Red TTM IGN Feed
F5 15 Amp Blue Controller Exterior Lighting Lights (Drivers Side)
F6 15 Amp Blue Controller Exterior Lighting Lights (Passenger Side)
F7 10 Amp Red , TTM Jumper Battery Feed

On the Rear Cargo Fuse/Relay Distribution Unit bracket, there is a Maxi Fuse holder for the Power Liftgate and an ATO / UNI-VAL fuse holder for the HIFI Audio System.

Cavity ...  Maxi Fuse ... Description
F01 30 Amp Green Power Liftgate

Cavity  ... ATO / UNI-VAL  ... Fuse Description
F02 25 Amp Clear HIFI Audio System
