2020 - 2021 Jeep Renegade Fuse Table

2021 Jeep Renegade
2021 Jeep Renegade

Fuses and Relays


General Information


WARNING
When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious  personal injury, fire and/or property damage.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an  authorized dealer.

CAUTION
If it is necessary to wash the engine compartment, take care not to directly hit the fuse box, and the windshield wiper motors with water.

The fuses protect electrical systems against excessive current. When a device does not work, you must check the fuse element inside the blade fuse for a break/melt. Also, please be aware that when using power outlets for extended periods of time with the engine off may result in vehicle battery discharge.

Blade Fuse
Blade Fuse
1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade fuse with a bad/not functional fuse element (blown fuse)


Access To The Fuses


The fuses are grouped into four controllers located in the engine compartment, under the
instrument panel and on the inside of the left side cargo trim panel.

Engine Compartment Fuses / Distribution Unit


The engine compartment fuse panel is located on the left side of the engine compartment.

Engine Compartment Fuse Cavities
Engine Compartment Fuse Cavities

Fuse Panel & Cover Location
Fuse Panel & Cover Location
1 — Mounting Screw
2 — Fuse Cover

----------------------------------------------------------------------------------------

Removing Fuse Cover and Locking Screw


Proceed as follows:
 - Slowly turn the screw counterclockwise.
 - Slowly release the screw.
 - Remove the fuse cover by sliding it upward.

Mounting Fuse Cover and Locking Screw


Proceed as follows:
 - Properly secure the fuse cover to the box, slide completely from top to bottom.
 - Fully depress the screw, using the special screwdriver supplied.
 - Slowly turn the screw clockwise.
 - Release the screw.

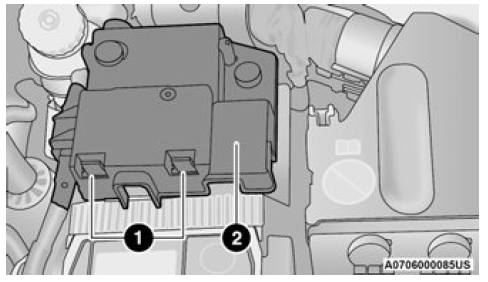

Battery Fuse Cover Location
Battery Fuse Cover Location
1 — Fuse Cover Tabs
2 — Fuse Cover
----------------------------------------------------------------------------------------------

Cavity  ... Maxi Fuse ... Cartridge Fuse ... Micro Fuse ... Description
F01 70 Amp Tan – – Module Body Computer
F02 70 Amp Tan – – Module Body Computer, Rear Distribution Unit
F03 – 20 Amp Blue – Controller Power Supply Body Computer
F04 – 30 Amp Pink – Brake Control Electronics Module
F05 70 Amp Tan – – Electric Power-Assisted Steering
F06 20 Amp Yellow – 2.4L Engine ; 70 Amp Tan – 1.3L Turbo Engine – – Engine Cooling Fan
F07 50 Amp Red – 2.4L Engine – – Engine Cooling Fan
F08 – 30 Amp Pink – Automatic Transmission, GSM
F09 – – 5 Amp Tan Control Module Engine
F10 – – 15 Amp Blue Horn

F11 – – 5 Amp Tan – 1.3L Turbo Engine  ; 25 Amp Clear – 2.4L Engine Supply Secondary  Loads
F14 – – 15 Amp Blue – 1.3L Turbo Engine WCAC Pump/Active Grille Shutters
F15 40 Amp Orange – – Brake Control Module Pump
F16 – – 5 Amp Tan Engine Control Module Power, Automatic Transmission
F17 – – 30 Amp Green – 1.3L Turbo Engine ; 15 Amp Blue – 2.4L Engine Supply Primary Loads
F18 – – 5 Amp Tan Intelligent Battery Sensor (IBS) 2.4L *
F19 – – 7.5 Amp Brown Air Conditioner Compressor
F20 – – 5 Amp Tan Electronic Power Four-Wheel Drive
F21 – – 15 Amp Blue Fuel Pump

F22 – – 10 Amp Red – 1.3L Turbo Engine ; 20 Amp Yellow – 2.4L Engine Power Control  Module Engine
F23 – – 30 Amp Green Heated Windshield *
F24 – – 15 Amp Blue Electronic Unit Supply Automatic Transmission
F82 – – 20 Amp Yellow – 1.3L Turbo Engine Power Control Module Engine
F83 – 40 Amp Green – Air Conditioning Fan
F84 – – 30 Amp Green Power Supply All Wheel Drive
F87 – – 5 Amp Tan Gear Selector Automatic Transmission
F88 – – 7.5 Amp Brown Heated Outside Mirrors
F89 – – 30 Amp Green Heated Rear Window
F90 – – 5 Amp Tan Intelligent Battery Sensor (IBS) 1.3L *

*If Equipped


 Body Computer Fuse Center


The controller is located at the left side of the steering column at the bottom of the instrument
panel.
For the fuse replacement see an authorized dealer.

Body Controller Fuse Cavities
Body Controller Fuse Cavities

Cavity  ... Mini Fuse  ... Description
F31 7.5 Amp Brown Flashes / Electrical Movement Front Seats/Fan Air Conditioning
F33 20 Amp Yellow Power Window Front (Passenger Side)
F34 20 Amp Yellow Power Window Front (Driver Side)
F36 15 Amp Blue Supply Uconnect System, Air Conditioning, USB Port, Rear Ceiling Lights (With Sunroof), E-Call, SGW (Security Gateway module)
F37 10 Amp Red System Power Forward Collision Warning Plus, All Wheel Drive (AWD), IPC, Brake Pedal Switch (NC)
F38 20 Amp Yellow Central Locking

F42 7.5 Amp Brown Power Under Lock and Key, Brake Control Electronics Module, Electric Power-Assisted Steering
F43 20 Amp Yellow Bi-directional Pump Washer
F47 20 Amp Yellow Power Rear Window (Driver Side)
F48 20 Amp Yellow Power Rear Window (Passenger Side)
F49 7.5 Amp Brown .. Supply ParkSense, SGW, Mirror, Heated Front Seats, Stabilizer Battery, ESC ( Electronic Stability Control) System, S&S Inhibition Command, Blind Spot, Rain/Light Sensor, Humidity Sensor
F50 7.5 Amp Brown Supply Air Bag
F51 7.5 Amp Brown .. Air Conditioning, Lane Departure Warning, Terrain Selector, Backup Lights Switch (MT), Trailer Tow Module, Compass Module, Rear View Camera
F53 7.5 Amp Brown Supply IPC/ Starter Device/ System Keyless Enter-N-Go
F94 15 Amp Blue Power Socket  (Cigarette Lighter)

Rear Cargo Fuse/Relay Distribution Unit


To access the fuses, remove the access door from the left rear panel of the rear cargo area.

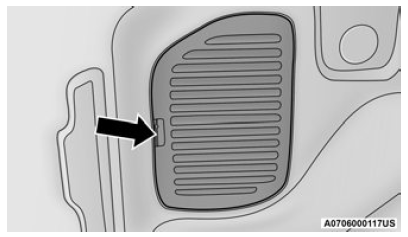

Rear Fuse Access Door
Rear Fuse Access Door Location

The fuses may be contained in two units. fuse holder No. 1 and fuse holder No. 2 (if equipped
with trailer towing) are located closest to the rear of the vehicle.

Rear Cargo Fuse Cavities
Rear Cargo Fuse Cavities

1 — Fuse Holder No. 1
2 — Fuse Holder No. 2

Fuse Holder No. 1

Cavity ...  Mini Fuse  ... Description
F1 30 Amp Blue Power Inverter
F2 20 Amp Yellow HIFI Audio System
F3 20 Amp Yellow MY SKY
F5 30 Amp Green Power Seat (Driver Side)
F6 7.5 Amp Brown Lumbar Adjustment Front Seat (Driver Side)
F8 20 Amp Yellow Heating Front Seats

On the controller there is also a 20 amp fuse for the sun visor of the retractable roof.

Fuse Holder No. 2

Cavity ...  Mini Fuse  ... Description
F1 10 Amp Red Controller Exterior Lighting On Trailer
F5 15 Amp Blue Controller Exterior Lighting Lights (Drivers Side)
F6 15 Amp Blue Controller Exterior Lighting Lights (Passenger Side)
