Fuses
WARNING
When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an authorized dealer.
CAUTION
If it is necessary to wash the engine compartment, take care not to directly hit the fuse box, and the windshield wiper motors with water.
The fuses protect electrical systems against excessive current. When a device does not work, you must check the fuse element inside the blade fuse for a break/melt. Also, please be aware that when using power outlets for extended periods of time with the engine off may result in vehicle battery discharge.
When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an authorized dealer.
CAUTION
If it is necessary to wash the engine compartment, take care not to directly hit the fuse box, and the windshield wiper motors with water.
The fuses protect electrical systems against excessive current. When a device does not work, you must check the fuse element inside the blade fuse for a break/melt. Also, please be aware that when using power outlets for extended periods of time with the engine off may result in vehicle battery discharge.
 |
| Blade Fuse |
1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade fuse with a bad/not functional fuse element (blown fuse)
2 — Blade Fuse with a good/functional fuse element
3 — Blade fuse with a bad/not functional fuse element (blown fuse)
Power Distribution Center (PDC)

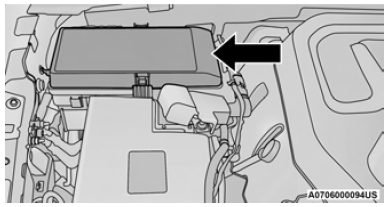

The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, mini fuses, and relays. The PDC top cover is labeled with each serviceable fuse/relay location, function, and size.
 |
| Power Distribution Center Location - Gas Engine |
 |
| Power Distribution Center Location — Diesel Engine |
Cavity ... Cartridge Fuse ... Micro Fuse .... Description
F01 – – Spare
F02 40 Amp Green – Starter
F03 – 5 Amp Tan Intelligent Battery Sensor (IBS)
F04 – 20 Amp Yellow Fuel Pump MTR/FPCM
F05 – 5 Amp Tan Security Gateway
F06 – – Spare
F07 – – Spare
F08 – 15 Amp Blue Trans Control Module TCM-8HP CYGNUS
F09 – – Spare
F10 – 15 Amp Blue Key Ignition Node (KIN)/Radio Frequency Hub (RF HUB)/ Electric Steering Column Lock (ESCL)
F11 – 10 Amp Red UCI Port (USB & AUX)
F12 – 25 Amp Clear HIFI Amplifier
F13 – – Spare
F14 – – Spare
F15 – 15 Amp Blue Instrument Panel Cluster (IPC)/Switch Bank-Heavy Duty Electrical Pkg (SWITCH BANK-HD ELEC)
F16 – – Spare
F17 – – Spare
F18 – 10 Amp Red Air Conditioning Clutch (AC CLUTCH)
F19 – – Spare
F20 30 Amp Pink – Central Body Controller (CBC) 1-INTERIOR LIGHTS
F21 – – Spare
F22 – 10 Amp Red Engine Control Module (ECM)/Powertrain Control Module
(PCM)
F23 – 10 Amp Red Powertrain Control Module (PCM)/Engine Control Module
(ECM)
F24 – – Spare
F25 – 10 Amp Red Module Shift By Wire (MOD_SBW)
F26 40 Amp Green – Central Body Controller (CBC) 2-EXTERIOR LIGHTS #1
F27 30 Amp Pink – Front Wipers
F28 40 Amp Green – Central Body Controller (CBC) 3-POWER LOCKS
F29 40 Amp Green – Central Body Controller (CBC) 4-EXTERIOR LIGHTS #2
F30 – – Spare
F31 – 10 Amp Red DIAGNOSTIC PORT
F32 – 10 Amp Red Heating Ventilation Air Conditioning Mod (HVAC CTRL MOD)/Steering Column Lock (SCL)/Occupant Classification Module (OCM)/Driver Presence Detection
Module (DPDM)
F33 – 10 Amp Red ParkTronics System (PTS)/Infrared Camera Module
(IRCM)/Airbag Disable Lamps (AIRBAG DISABLE LMPS)
F34 – 10 Amp Red Electronic Stability Control (ESC)/ Electric Hydraulic Power Steering (EHPS)/Smart Bar Control Module (SBCM) WAKE UP
F35 30 Amp Pink – BRAKE VAC PMP - If Equipped
F36 30 Amp Pink – TRAILER TOW MOD - If Equipped
F37 30 Amp Pink – TRAILER TOW CONN 7W - If Equipped
F38 20 Amp Blue – Engine Control Module (ECM)
F39 – – Spare
F40 – 15 Amp Blue Drivetrain Control Module (DTCM)/Axle Lock (AXLE LOC) FT_RR
F41 – 15 Amp Blue Instrument Cluster (IC)/Security GateWay (SGW) WAKE UP
F42 – 10 Amp Red Power Control Relay Control Feed (Electric Stop/Start)
F43 – – Spare
F44 – 10 Amp Red Infrared Camera (IRCAM) HEATERS
F45 – – Spare
F46
–
10 Amp Red AUTO HDLP LVL MOD/LVL MTR/HDLP SW
F47 – – Spare
F48 – – Spare
F49 – 10 Amp Red Occupant Restraint Controller (ORC)
F50 – 10 Amp Red HD ACC - If Equipped
F51 – 10 Amp Red Humidity Light Rain Sensor (HLRS)/Inverter 400W Wake Up/USB/InSide RearView Mirror (ISRVM)/Compass Module (CSGM)
F52 – 20 Amp Yellow Cigar Lighter (Cigarette Lighter)
F53 – 10 Amp Red Wireless Speaker - If Equipped
F54 – – Spare
F55 – 10 Amp Red Central Vision Processing Module (CVPM) or Parktronics Module
F56 – 10 Amp Red In-Car Temp Sensor/PTC Heater Coil Feed
F57 – 20 Amp Yellow Frt Drvr Htd Seat
F58 – 20 Amp Yellow Frt Pass Htd Seat
F59 – – Spare
F60 – 15 Amp Blue Comfort Steering Wheel Module (CSWM) (HTD STR WHEEL)
F61 – 10 Amp Red Left Blind Spot Sensor (LBSS)/Right Blind Spot Sensor (RBSS)
F62 – – Spare
F63 – 10 Amp Red Occupant Restraint Controller (ORC)
F64 – – Spare
F65 50 Amp Red – Power Inverter 400W
F66 40 Amp Green – HVAC BLOWER MTR FRT
F67 – – Spare
F68 – – Spare
F69 – – Spare
F70 – 25 Amp Clear INJ/IGN COIL (GAS)/GLO PLUG MOD (DSL)
F71 – – Spare
F72 – 10 Amp Red HD ELEC ACC PKG - If Equipped
F73 – – Spare
F74 – – Spare
F75 – – Spare
F76 – 20 Amp Yellow ECM (GAS)/PCM (DSL)
F77 – 10 Amp Red Heated Mirrors
F78 – – Spare
F79 – 20 Amp Yellow SMART BAR CTRL MOD
F80 – 15 Amp Blue Powertrain Control Module (PCM)/Solenoid 1 2 Block Shift
F81 30 Amp Pink – REAR DEFROSTER (EBL)
F82 30 Amp Pink – FUEL HTR - If Equipped
F83 60 Amp Yellow – GLOW PLUG - If Equipped
F84 30 Amp Pink – UREA HTR CTRL UNIT - If Equipped
F85 – 10 Amp Red PM SENSOR - If Equipped
F86 – – Spare
F87 – 10 Amp Red SUPPLY/PURGING PMP - If Equipped
F88 20 Amp Blue – NOx SENSOR #1/#2 - If Equipped
F89 – 10 Amp Red Steering Column Control Module (SCCM)/Cruise Control (CRUISE CTL)/ Digital TV (DTV)/Airbag Disable Lamp
F90 20 Amp Blue – TRAILER TOW PARK LMP - If Equipped
F91 – 20 Amp Yellow Horn
F92 40 Amp Green – HD ACCY #2 - If Equipped
F93 40 Amp Green – HD ACCY #1 - If Equipped
F94 – 10 Amp Red Tire Pressure Monitor (TPM)/RF Hub system (CORAX) (2022 Model - Spare - If Equipped)
F95 – – Spare - If Equipped
F96 – 10 Amp Red PWR MIRROR SW
F97 – 20 Amp Yellow RADIO/TBM
F98 – 10 Amp Red SW BANK-HD ELEC/OFF ROAD
F99 – – Spare - If Equipped
F100 30 Amp Pink – ESC-ECU & VALVES
F101 30 Amp Pink – Drivetrain Control Module (DTCM)
F102 – 15 Amp Blue DUAL USB PORT
F103 – 15 Amp Blue HD ACCY #3 - If Equipped
F104 – – Spare - If Equipped
F01 – – Spare
F02 40 Amp Green – Starter
F03 – 5 Amp Tan Intelligent Battery Sensor (IBS)
F04 – 20 Amp Yellow Fuel Pump MTR/FPCM
F05 – 5 Amp Tan Security Gateway
F06 – – Spare
F07 – – Spare
F08 – 15 Amp Blue Trans Control Module TCM-8HP CYGNUS
F09 – – Spare
F10 – 15 Amp Blue Key Ignition Node (KIN)/Radio Frequency Hub (RF HUB)/ Electric Steering Column Lock (ESCL)
F11 – 10 Amp Red UCI Port (USB & AUX)
F12 – 25 Amp Clear HIFI Amplifier
F13 – – Spare
F14 – – Spare
F15 – 15 Amp Blue Instrument Panel Cluster (IPC)/Switch Bank-Heavy Duty Electrical Pkg (SWITCH BANK-HD ELEC)
F16 – – Spare
F17 – – Spare
F18 – 10 Amp Red Air Conditioning Clutch (AC CLUTCH)
F19 – – Spare
F20 30 Amp Pink – Central Body Controller (CBC) 1-INTERIOR LIGHTS
F21 – – Spare
F22 – 10 Amp Red Engine Control Module (ECM)/Powertrain Control Module
(PCM)
F23 – 10 Amp Red Powertrain Control Module (PCM)/Engine Control Module
(ECM)
F24 – – Spare
F25 – 10 Amp Red Module Shift By Wire (MOD_SBW)
F26 40 Amp Green – Central Body Controller (CBC) 2-EXTERIOR LIGHTS #1
F27 30 Amp Pink – Front Wipers
F28 40 Amp Green – Central Body Controller (CBC) 3-POWER LOCKS
F29 40 Amp Green – Central Body Controller (CBC) 4-EXTERIOR LIGHTS #2
F30 – – Spare
F31 – 10 Amp Red DIAGNOSTIC PORT
F32 – 10 Amp Red Heating Ventilation Air Conditioning Mod (HVAC CTRL MOD)/Steering Column Lock (SCL)/Occupant Classification Module (OCM)/Driver Presence Detection
Module (DPDM)
F33 – 10 Amp Red ParkTronics System (PTS)/Infrared Camera Module
(IRCM)/Airbag Disable Lamps (AIRBAG DISABLE LMPS)
F34 – 10 Amp Red Electronic Stability Control (ESC)/ Electric Hydraulic Power Steering (EHPS)/Smart Bar Control Module (SBCM) WAKE UP
F35 30 Amp Pink – BRAKE VAC PMP - If Equipped
F36 30 Amp Pink – TRAILER TOW MOD - If Equipped
F37 30 Amp Pink – TRAILER TOW CONN 7W - If Equipped
F38 20 Amp Blue – Engine Control Module (ECM)
F39 – – Spare
F40 – 15 Amp Blue Drivetrain Control Module (DTCM)/Axle Lock (AXLE LOC) FT_RR
F41 – 15 Amp Blue Instrument Cluster (IC)/Security GateWay (SGW) WAKE UP
F42 – 10 Amp Red Power Control Relay Control Feed (Electric Stop/Start)
F43 – – Spare
F44 – 10 Amp Red Infrared Camera (IRCAM) HEATERS
F45 – – Spare
F46
–
10 Amp Red AUTO HDLP LVL MOD/LVL MTR/HDLP SW
F47 – – Spare
F48 – – Spare
F49 – 10 Amp Red Occupant Restraint Controller (ORC)
F50 – 10 Amp Red HD ACC - If Equipped
F51 – 10 Amp Red Humidity Light Rain Sensor (HLRS)/Inverter 400W Wake Up/USB/InSide RearView Mirror (ISRVM)/Compass Module (CSGM)
F52 – 20 Amp Yellow Cigar Lighter (Cigarette Lighter)
F53 – 10 Amp Red Wireless Speaker - If Equipped
F54 – – Spare
F55 – 10 Amp Red Central Vision Processing Module (CVPM) or Parktronics Module
F56 – 10 Amp Red In-Car Temp Sensor/PTC Heater Coil Feed
F57 – 20 Amp Yellow Frt Drvr Htd Seat
F58 – 20 Amp Yellow Frt Pass Htd Seat
F59 – – Spare
F60 – 15 Amp Blue Comfort Steering Wheel Module (CSWM) (HTD STR WHEEL)
F61 – 10 Amp Red Left Blind Spot Sensor (LBSS)/Right Blind Spot Sensor (RBSS)
F62 – – Spare
F63 – 10 Amp Red Occupant Restraint Controller (ORC)
F64 – – Spare
F65 50 Amp Red – Power Inverter 400W
F66 40 Amp Green – HVAC BLOWER MTR FRT
F67 – – Spare
F68 – – Spare
F69 – – Spare
F70 – 25 Amp Clear INJ/IGN COIL (GAS)/GLO PLUG MOD (DSL)
F71 – – Spare
F72 – 10 Amp Red HD ELEC ACC PKG - If Equipped
F73 – – Spare
F74 – – Spare
F75 – – Spare
F76 – 20 Amp Yellow ECM (GAS)/PCM (DSL)
F77 – 10 Amp Red Heated Mirrors
F78 – – Spare
F79 – 20 Amp Yellow SMART BAR CTRL MOD
F80 – 15 Amp Blue Powertrain Control Module (PCM)/Solenoid 1 2 Block Shift
F81 30 Amp Pink – REAR DEFROSTER (EBL)
F82 30 Amp Pink – FUEL HTR - If Equipped
F83 60 Amp Yellow – GLOW PLUG - If Equipped
F84 30 Amp Pink – UREA HTR CTRL UNIT - If Equipped
F85 – 10 Amp Red PM SENSOR - If Equipped
F86 – – Spare
F87 – 10 Amp Red SUPPLY/PURGING PMP - If Equipped
F88 20 Amp Blue – NOx SENSOR #1/#2 - If Equipped
F89 – 10 Amp Red Steering Column Control Module (SCCM)/Cruise Control (CRUISE CTL)/ Digital TV (DTV)/Airbag Disable Lamp
F90 20 Amp Blue – TRAILER TOW PARK LMP - If Equipped
F91 – 20 Amp Yellow Horn
F92 40 Amp Green – HD ACCY #2 - If Equipped
F93 40 Amp Green – HD ACCY #1 - If Equipped
F94 – 10 Amp Red Tire Pressure Monitor (TPM)/RF Hub system (CORAX) (2022 Model - Spare - If Equipped)
F95 – – Spare - If Equipped
F96 – 10 Amp Red PWR MIRROR SW
F97 – 20 Amp Yellow RADIO/TBM
F98 – 10 Amp Red SW BANK-HD ELEC/OFF ROAD
F99 – – Spare - If Equipped
F100 30 Amp Pink – ESC-ECU & VALVES
F101 30 Amp Pink – Drivetrain Control Module (DTCM)
F102 – 15 Amp Blue DUAL USB PORT
F103 – 15 Amp Blue HD ACCY #3 - If Equipped
F104 – – Spare - If Equipped
F105 – 10 Amp Red Integrated Center Stack (ICS)/Heat Ventilation Air Conditioning (HVAC)
F106 50 Amp Red – Electronic Speed Control (ESC)/PUMP MTR
F107 – 20 Amp Yellow TRAILER TOW STOP/TURN LT - If Equipped
F108 – 15 Amp Blue HD ACCY #4 - If Equipped
F109 – 20 Amp Yellow TRAILER TOW STOP/TURN RT - If Equipped
F110 – – Spare ( 2022 Model - 30 Amp Pink – Power Inverter 150W - If Equipped)
F111 20 Amp Blue – TRAILER TOW BACKUP - If Equipped
F106 50 Amp Red – Electronic Speed Control (ESC)/PUMP MTR
F107 – 20 Amp Yellow TRAILER TOW STOP/TURN LT - If Equipped
F108 – 15 Amp Blue HD ACCY #4 - If Equipped
F109 – 20 Amp Yellow TRAILER TOW STOP/TURN RT - If Equipped
F110 – – Spare ( 2022 Model - 30 Amp Pink – Power Inverter 150W - If Equipped)
F111 20 Amp Blue – TRAILER TOW BACKUP - If Equipped
CAUTION
- When installing the power distribution center cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the power distribution center and possibly result in an electrical system failure.
- When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.
- When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.
