2019 - 2020 Ford Fusion Fuse Panel Diagram

2020 Ford Fusion

Power Distribution Fuse Box

WARNING: Always disconnect the battery before servicing high-current fuses.

WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

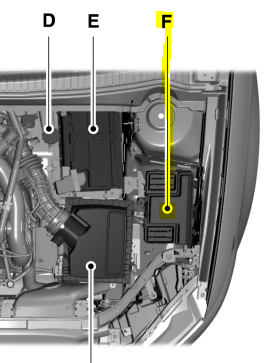

F - Power Distribution Fuse Block Location

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle's main electrical systems from overloads.

If the battery has been disconnected and reconnected, some features will need to be reset.

Power Distribution Box Fuse Panel Diagram

Fuse Specification Chart



Fuse or Relay Number	Fuse Rating	Protected Component
1	30A1	Panoramic moonroof.
2	—	Starter relay.
3	15A3	Rain sensor.
4	—	Blower motor relay.
5	20A 1	Power point 3 - Back of console.
6	—	Not used.
7	20A 3	Powertrain control module - vehicle power 1.   Powertrain control module power.
8	20A 3	Powertrain control module - vehicle power 2.   Emission components.
9	—	Powertrain control module relay.
10	20A 1	Power point 1 - driver front.
11	15A 2	Powertrain control module - vehicle power 4.   Ignition coils.
12	15A 2	Powertrain control module - vehicle power 3.   Non-emission components.
13	10A 2	Not used (spare).
14	10A 2	Not used (spare).
15	—	Run-start relay.
16	20A 1	Power point 2 - console.
17	20A 1	Not used (spare).
18	20A 3	Not used (spare).
19	10A 3	Run-start electronic power assist steering.
20	10A 3	Adaptive cruise control.
21	15A 3	Run/start transmission control.   Transmission oil pump start/stop.
22	10A 3	Air conditioner clutch solenoid.
23	15A 3	Run-start.   Blind spot information system.   Rear view camera.   Heads-up display.   Voltage stability module.   Gear shift actuator.
24	—	Not used.
25	10A 2	Run-start anti-lock brake system (ABS).
26	10A 2	Run-start powertrain control module.
27	10A1	Not used (spare).
28	—	Not used.
29	5A 3	Mass air flow monitor.
30	—	Not used.
31	—	Not used.
32	—	Electric fan 1 relay.
33	—	A/C clutch relay.
34	—	Not used.
35	—	Not used.
36	—	Not used.
37	—	Not used.
38	—	Electric fan 2 relay.
39	—	Electric fan coil 2 and 3 relay.
40	—	Horn relay.
41	—	Not used.
42	—	Fuel pump coil relay.
43	—	Not used.
44	20A 3	Left hand side headlamp ballast.
45	5A 3	Not used (spare).
46	—	Not used.
47	—	Not used.
48	—	Not used.
49	10A 3	Not used (spare).
50	20A 3	Horn.
51	—	Not used.
52	—	Not used.
53	10A 3	Not used (spare).
54	10A 2	Brake on off switch.
55	10A 2	ALT sensor.
86	30A 4	Not used (spare).



¹Micro 2 fuse.

²Micro 3 fuse.

³M case fuse.



Power Distribution Box - Bottom

There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:

Power Distribution Box - Bottom Location

1. Release the two latches, located on both sides of the fuse box.

2. Raise the inboard side of the fuse box from the cradle.

3. Move the fuse box toward the center of the engine compartment.

4. Pivot the outboard side of the fuse box to access the bottom side.

Power Distribution Box - Bottom Fuse Panel Diagram

Fuse Specification Chart

Fuse or Relay Number	Fuse Rating	Protected Component
56	—	Not used.
57	—	Not used.
58	30A 4	Fuel pump feed.
59	30A 5	Electric fan 3
60	30A 5	Electric fan 1 (1.5L, 2.0L, and 2.5L engines).
61	—	Not used.
62	50A 5	Body control module 1.
63	25A 4	Electric fan 2 (1.5L, 2.0L, and 2.5L engines).
64	30A 4	Not used (spare).
65	20A 4	Front heated seat.
66	15A 4	Not used (spare).
67	50A 5	Body control module 2.
68	40A 4	Heated rear window.
69	30A 4	Anti-lock brake system (ABS) valves.
70	30A 4	Passenger seat.
71	—	Not used.
72	20A 4	Trans oil pump.
73	20A 4	Rear heated seats.
74	30A 4	Driver seat module.
75	25A 4	Wiper motor 1.
76	30A 4	Not used (spare).
77	30A 4	Climate control seat module.
78	—	Not used.
79	40A 5	Blower motor.
80	25A 4	Wiper motor 2.
81	—	Not used.
82	—	Not used.
83	20A 4	TRCM shifter.
84	30A 4	Starter solenoid.
85	30A 4	Not used (spare).
87	60A 5	Anti-lock brake system (ABS) pump.



⁴M case fuse.

⁵J case fuse.



Passenger Compartment Fuse Panel

The fuse panel is located under the instrument panel to the left of the steering column.
Note: It may be easier to access the fuse panel if you remove the finish trim piece.

Passenger Compartment Fuse Panel Diagram

Fuse Specification Chart



Fuse or Relay Number	Fuse Rating	Protected Component
1	—	Not Used
2	7.5A 6	Lumbar.
3	20A 6	Driver door unlock.
4	5A 6	Not used (spare).
5	20A 6	Subwoofer amplifier.
6	10A 7	Not Used (spare).
7	10A 7	Not used (spare).
8	10A 7	Not used (spare).
9	10A 7	Not used (spare).
10	5A 7	Keypad.   Cellphone passport module.
11	5A 7	Not used (spare).
12	7.5A 7	Climate control.   Gear shift
13	7.5A 7	Steering wheel column lock.   Cluster.   Datalink logic.
14	10A 7	Extended power module.
15	10A 7	Datalink gateway module.
16	15A 6	Child lock.
17	5A 7	Not used (spare).
18	5A 7	Push button stop start switch.
19	7.5A 7	Extended power module.
20	7.5A 7	Adaptive headlamp.
21	5A 7	Humidity and in–car temperature sensor.
22	5A 7	Not used (spare).
23	10A 6	Delayed accessory (moonroof logic, driver master switch).
24	20A 6	Central lock/unlock.
25	30A 6	Driver door (window, mirror).
26	30A 6	Front passenger door (window, mirror).
27	30A 6	Moonroof.
28	20A 6	Amplifier.
29	30A 6	Rear driver side door (window).
30	30A 6	Rear passenger side door (window).
31	15A 6	Not used (spare).
32	10A 6	Global positioning system.   Display.   Voice control.   Radio frequency receiver.
33	20A 6	Radio.   Active noise control.
34	30A 6	Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker).
35	5A 6	Not used (spare).
36	15A 6	Auto-dimming rear view mirror.   Continuous control damping suspension.   Rear heated seats.
37	20A 6	Heated steering wheel.
38	30A	Not used.



⁶Micro 2 fuse.

⁷Micro 3 fuse.
