2013 - 2021 Mitsubishi Mirage /Space Star - Fuse Box Diagram

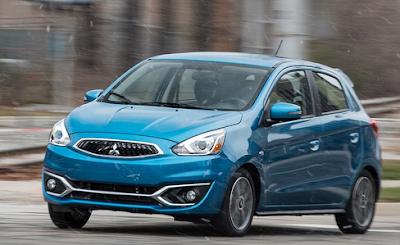

2017 Mitsubishi  Mirage (Space Star)

Fuse replacement

1. Before replacing a fuse, always turn off the electrical item connected to the fuse and turn the ignition switch to the “LOCK” position.
2. There is a fuse puller (A) in the engine compartment fuse block.



Fuse Puller Location

3. Clamp it on the fuse you wish to remove, and pull the fuse straight out from the fuse block.

4. Use the fuse location diagrams and the matching tables, to check the fuse that is related to the problem. If the fuse is not blown, something else must be causing the problem. Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the problem
checked.

B- Fuse is OK , C- Blown fuse

5. Insert a new fuse of the same capacity securely into the appropriate slot.

CAUTION

Never use a fuse with a capacity greater than the one listed or any substitute, such as wire,  foil etc. This would cause the circuit wiring to heat up and could cause a fire.

CAUTION
If the replacement fuse blows again after a short time, have the electrical system checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice to find and correct the cause.

Identification of fuse



Capacity .. Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A Green (fuse type)/Pink (fusible link type)
40 A Green



 Fuse Box Location



To prevent damage to the electrical system from short-circuiting or overloading, each  individual circuit is equipped with a fuse. The fuse blocks are located in the passenger compartment and in the engine compartment.

Passenger compartment



The fuse block in the passenger compartment is located in front of the driver’s seat at the
position shown in the illustration.



Passenger compartment Fuse Box



Engine compartment



In the engine compartment, the fuse block is located as shown in the illustration.
While pressing the tab (A or B), pull up the cover.

Engine compartment Fuse Boxes



Fuse load capacities



This fuse list shows the names of the electrical systems and their fuse capacities.
There are spare fuses in the fuse block in the engine compartment. Always replace a blown
fuse with one of the same capacity as the original.



Passenger compartment fuse location table



Passenger compartment Fuse Panel Diagram

No. .. Electrical system .. Capacity
1 Tail light (left) 7.5 A
2 Cigarette lighter 15 A
3 Ignition coil 10 A
4 Starter motor 7.5 A
5 — — —
6 — — —
7 Tail light (right) 7.5 A
8 Outside rearview mirrors 7.5 A
9 Engine control unit 7.5 A
10 Control unit 7.5 A
11 Rear fog light 10 A
12 Door lock 15 A
13 Interior light (Dome light) 15 A
14 Rear window wiper 15 A
15 Gauges 7.5 A
16 Relay 7.5 A
17 Heated seats 20 A
18 Option 10 A
19 Heated outside rearview mirrors 7.5 A
20 Windshield wiper 20 A
21 Back-up light 7.5 A
22 Defogger 30 A
23 Heater 30 A
24 — — —
25 Radio 10 A
26 Electronic controlled unit 15 A


 - Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
 - The table above shows the main equipment corresponding to each fuse.

Engine compartment fuse location table - Type A



Engine compartment Fuse Panel Diagram - Type A

No. ..  Electrical system .. Capacity
SBF1 Radiator fan motor 40 A*
SBF2 Anti-lock braking system (ABS) 30 A*
SBF3 Ignition switch 40 A*
SBF4 Power window control 40 A*
BF1 DC-DC (P/T) 30 A
BF2 DC-DC (AUDIO) 30 A

F1 Headlight (low beam) (left) Halogen 10 A , Discharge 20 A
F2 Headlight (low  beam) (right) Halogen 10 A ,  Discharge 20 A
F3 Headlight (high beam) (left) 10 A
F4 Headlight (high beam) (right) 10 A
F5 Horn 10 A
F6 Front fog lights 15 A
F7 Daytime running lights 10 A
F8 — — —
F9 — — —
F10 Battery current sensor 7.5 A (2013-2014 Models - Starter 7.5A)
F11 — — —
F12 Stop lights (Brake lights) 15 A
F13 Ignition coil 7.5 A
F14 Engine control 7.5 A
F15 Alternator 7.5 A
F16 Hazard warning flasher 10 A
F17 Automatic transaxle 15 A
F18 Air conditioning 10 A
F19 ETV 15 A
F20 Starter 7.5 A  (2013-2014 Models - Battery current sensor 7.5A)
F21 CVT oil/pump 15 A
F22 Fuel pump 15 A
F23 Engine 20 A
F24 Automatic transaxle 7.5 A
#1 — Spare fuse 20 A
#2 — Spare fuse 30 A

*: Fusible link


- Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.

-  The table above shows the main equipment corresponding to each fuse.

Engine compartment fuse location table - Type B



Engine compartment Fuse Panel Diagram - Type B



No. .. Electrical system .. Capacity
SBF1 PTC heater 40 A*
SBF2 PTC heater 40 A*
SBF3 PTC heater 40 A*

*: Fusible link

-  Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
-  The table above shows the main equipment corresponding to each fuse.

The fuse block does not contain spare 7.5 A, 10 A or 15 A fuses. If one of these fuses
burns out, substitute with the following fuse.
7.5 A: Outside rearview mirrors
10 A: Option
15 A: Cigarette lighter
When using a substitute fuse, replace with a fuse of the correct capacity as soon as possible.
