Fuses
Data on the replacement fuse must match the data on the defective fuse.
There are three fuse boxes in the vehicle:
● engine compartment
● instrument panel
● load compartment
Before replacing a fuse, turn off the respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.
● engine compartment
● instrument panel
● load compartment
Before replacing a fuse, turn off the respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractor
A fuse extractor may be located in the fuse box in the engine compartment.
 |

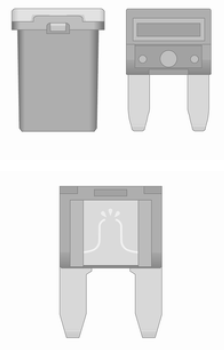

| Fuse extractor (Puller) |
Place the fuse extractor on the various types of fuse from the top or side, and withdraw fuse.
Engine compartment fuse box
 |
| Engine compartment fuse box |
The fuse box is in the front left of the engine compartment.
Disengage the cover and remove it.
Disengage the cover and remove it.
 |
| Engine compartment Fuse Panel Diagram |
No. .. Circuit
1 Starter
2 Starter
3 Exhaust sensor
4 Engine control module
5 Engine functions
6 Transmission control module
7 – (2019 Model - Forward collision alert / Adaptive Cruise Control)
8 Engine control module
9 Climate control system
10 Diesel exhaust system
11 Tailgate locking system, Transmission
12 Seat lumbar massage
13 After boil pump
14 Diesel exhaust system
15 Exhaust sensor
16 Fuel injection
17 Fuel injection
18 Diesel exhaust system
19 Diesel exhaust system
20 –
21 DC/AC Converter (2019 Model - --)
22 ABS (Anti-lock brake system)
23 Washer system for windscreen and rear window
24 – (2019 Model - Washer Headlamp)
25 Diesel fuel heating
26 Transmission control module
27 Power tailgate module
28 –
29 Heated rear window
30 Mirror defrost
31 – (2019 Model - Anti theft warning module)
32 DC transformer/LED display/ Electrical heater/Climate control/Glow plug controller
33 Anti theft warning
34 Horn
35 Power outlet load compartment
36 Right high beam (Halogen)/ Right low beam (LED)
37 Left high beam (Halogen)
38 LED headlight/Automatic headlight range adjustment
39 Front fog light
40 OnStar
41 Water in fuel sensor/Water pump
42 Manual headlight range adjustment
43 Fuel pump
44 Rear view camera/Inside rear view mirror/Trailer module
45 LED headlight left/Automatic headlight range adjustment left
No. Circuit
46 Instrument cluster
47 Steering column lock
48 Rear wiper
49 – (2019 Model - Outside rearview mirror)
50 LED headlight right/Automatic headlight range adjustment right
51 Left low beam (LED)
52 Engine control module/Transmission control module
53 – (2019 Model - Diesel exhaust system)
54 Windscreen wiper
55 Diesel exhaust system
56 –
57 –
1 Starter
2 Starter
3 Exhaust sensor
4 Engine control module
5 Engine functions
6 Transmission control module
7 – (2019 Model - Forward collision alert / Adaptive Cruise Control)
8 Engine control module
9 Climate control system
10 Diesel exhaust system
11 Tailgate locking system, Transmission
12 Seat lumbar massage
13 After boil pump
14 Diesel exhaust system
15 Exhaust sensor
16 Fuel injection
17 Fuel injection
18 Diesel exhaust system
19 Diesel exhaust system
20 –
21 DC/AC Converter (2019 Model - --)
22 ABS (Anti-lock brake system)
23 Washer system for windscreen and rear window
24 – (2019 Model - Washer Headlamp)
25 Diesel fuel heating
26 Transmission control module
27 Power tailgate module
28 –
29 Heated rear window
30 Mirror defrost
31 – (2019 Model - Anti theft warning module)
32 DC transformer/LED display/ Electrical heater/Climate control/Glow plug controller
33 Anti theft warning
34 Horn
35 Power outlet load compartment
36 Right high beam (Halogen)/ Right low beam (LED)
37 Left high beam (Halogen)
38 LED headlight/Automatic headlight range adjustment
39 Front fog light
40 OnStar
41 Water in fuel sensor/Water pump
42 Manual headlight range adjustment
43 Fuel pump
44 Rear view camera/Inside rear view mirror/Trailer module
45 LED headlight left/Automatic headlight range adjustment left
No. Circuit
46 Instrument cluster
47 Steering column lock
48 Rear wiper
49 – (2019 Model - Outside rearview mirror)
50 LED headlight right/Automatic headlight range adjustment right
51 Left low beam (LED)
52 Engine control module/Transmission control module
53 – (2019 Model - Diesel exhaust system)
54 Windscreen wiper
55 Diesel exhaust system
56 –
57 –
After having changed defective fuses, close the fuse box cover and press until it engages.
If the fuse box cover is not closed correctly, malfunction may occur.
Instrument panel fuse box
The fuse box is located behind a cover. |
| Instrument panel fuse box |
Pull the cover and remove.
Vehicles with power connector:
If the fuse cover has a power connector, it must be removed by using an adapter and a screwdriver.
The adapter is stowed in the glovebox . The screwdriver is stowed in the load compartment .
Vehicles with power connector:
If the fuse cover has a power connector, it must be removed by using an adapter and a screwdriver.
The adapter is stowed in the glovebox . The screwdriver is stowed in the load compartment .
 |
| Attach the adapter to the power connector. |
Attach the adapter to the power connector.
 |

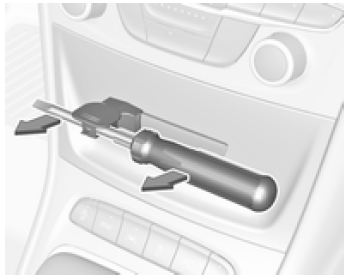

| Push the screwdriver through the recess in the adapter |
Push the screwdriver through the recess in the adapter. Remove the cover by pulling the screwdriver.
 |

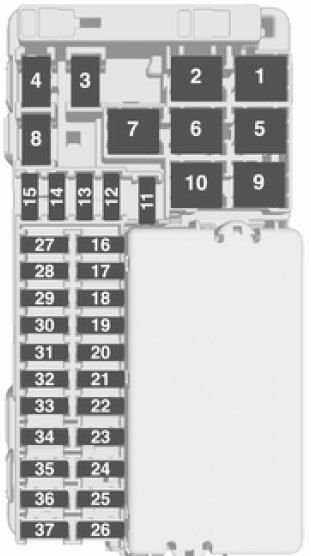

| Instrument panel fuse Panel Diagram |
No. ... Circuit
1 – (2019 Model - Rear seat heating (only for vehicles without alarm horn))
2 Climate control system, fan
3 Power seat driver side
4 Cigarette lighter/Power outlet front (2019 Model - Power seat passenger side)
5 –
6 Power window front
7 ABS (Anti-lock brake system)
8 Heated steering wheel
9 Body control module
10 Power window rear
11 Sunroof
12 Body control module
13 Seat heating (only on vehicles without alarm horn)
14 Exterior mirror
15 Body control module
16 Body control module
17 Body control module
18 Body control module
19 Data link connector
20 Airbag system
21 Climate control system
22 Central locking system, tailgate
23 Electronic key system
24 Power seat memory function
25 Airbag system steering wheel
26 Ignition switch/Steering column lock
27 Body control module
28 USB socket
29 – (2019 Model - Cigarette lighter/Power outlet front)
30 Selector lever
31 Rear window wiper
32 Transmission control module
33 Anti-theft alarm system/Power sounder
34 Parking assist/Side blind spot alert/Infotainment system/USB
socket
35 OnStar
36 Info display/Instrument cluster/ CD player
37 Infotainment system, radio
1 – (2019 Model - Rear seat heating (only for vehicles without alarm horn))
2 Climate control system, fan
3 Power seat driver side
4 Cigarette lighter/Power outlet front (2019 Model - Power seat passenger side)
5 –
6 Power window front
7 ABS (Anti-lock brake system)
8 Heated steering wheel
9 Body control module
10 Power window rear
11 Sunroof
12 Body control module
13 Seat heating (only on vehicles without alarm horn)
14 Exterior mirror
15 Body control module
16 Body control module
17 Body control module
18 Body control module
19 Data link connector
20 Airbag system
21 Climate control system
22 Central locking system, tailgate
23 Electronic key system
24 Power seat memory function
25 Airbag system steering wheel
26 Ignition switch/Steering column lock
27 Body control module
28 USB socket
29 – (2019 Model - Cigarette lighter/Power outlet front)
30 Selector lever
31 Rear window wiper
32 Transmission control module
33 Anti-theft alarm system/Power sounder
34 Parking assist/Side blind spot alert/Infotainment system/USB
socket
35 OnStar
36 Info display/Instrument cluster/ CD player
37 Infotainment system, radio
After having changed defective fuses, close the fuse box cover and press until it engages.
Vehicles with power connector:
Vehicles with power connector:
1. Apply the cover on the right side.
 |
| Fold the left side of the cover forwards. Take care that the securing clamp is guided as shown in the illustration |
2. Fold the left side of the cover forwards. Take care that the securing clamp is guided as shown in the illustration.
Load compartment fuse box
The fuse box is located on the left side of the load compartment behind a cover.
 |
| Remove the cover |
Remove the cover.
 |
| Disengage the fuse box cover and remove it. |
Disengage the fuse box cover and remove it.
 |
| Load compartment fuse Panel Diagram |
No. .. Circuit
1 –
2 DC/AC Inverter (2019 Model - --)
3 Trailer module
4 Power seat passenger side (2019 Model - --)
5 –
6 Distance warning module (2019 Model - --)
7 –
8 –
9 Rear seat heating (on vehicles without alarm horn) (2019 Model - --)
10 Service
11 –
12 Front seat heating (on vehicles with alarm horn)
13 Rear seat heating (on vehicles with alarm horn)
14 Ignition
15 Seat ventilation
16 Trailer outlet
17 Trailer outlet
18 –
19 –
20 –
21 Electrical rear seat folding (2019 Model - --)
22 Power tailgate (2019 Model - --)
After having changed defective fuses, close the fuse box cover and press until it engages.
Additional fuses are located near the vehicle battery.
1 –
2 DC/AC Inverter (2019 Model - --)
3 Trailer module
4 Power seat passenger side (2019 Model - --)
5 –
6 Distance warning module (2019 Model - --)
7 –
8 –
9 Rear seat heating (on vehicles without alarm horn) (2019 Model - --)
10 Service
11 –
12 Front seat heating (on vehicles with alarm horn)
13 Rear seat heating (on vehicles with alarm horn)
14 Ignition
15 Seat ventilation
16 Trailer outlet
17 Trailer outlet
18 –
19 –
20 –
21 Electrical rear seat folding (2019 Model - --)
22 Power tailgate (2019 Model - --)
After having changed defective fuses, close the fuse box cover and press until it engages.
Additional fuses are located near the vehicle battery.
 |
| Fuses near the Vehicle Battery |
No. .. Circuit
1 Fuel pump
2 Engine control module
3 Power supply
