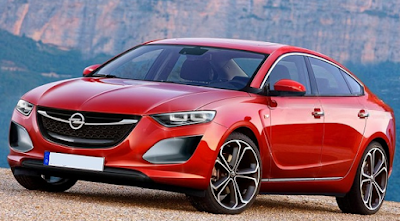

| 2016 Opel (Vauxhall) Insignia |
Fuses
Data on the replacement fuse must match the data on the defective fuse.
There are three fuse boxes in the vehicle:
■ in the front left of the engine compartment,
■ in left-hand drive vehicles, in the interior behind the storage compartment, or, in right-hand drive vehicles, behind the glovebox,
■ behind a cover on the left side of the load compartment.
Before replacing a fuse, turn off the respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractor
A fuse extractor may be located in the fuse box in the engine compartment. Place the fuse extractor on the various types of fuse from the top or side, and withdraw fuse.
 |
| Fuse Extractor |
Engine compartment fuse box
The fuse box is in the front left of the engine compartment. Disengage the cover, lift it upwards
and remove.
After changing of defective fuses close the fuse box cover and press until it engages. If the fuse box cover is not closed correctly, malfunctions may occur.
 |
| Location of Engine compartment fuse box |
 |
| Engine compartment fuse box Diagram |
Fuse coding of Engine compartment fuse box
No. Circuit
1 Transmission control module2 Engine control module
3 –
4 –
5 Ignition/Transmission control module/Engine control module
6 Windscreen wiper
7 –
8 Fuel injection/Ignition system
9 Fuel injection/Ignition system
10 Engine control module
11 Lambda probe
12 Starter
13 Sensor throttle heating
14 Lighting
15 Rear window wiper
16 Vacuum pump/Mass air flow meter/Water in fuel sensor/DC transformer
17 –
18 Adaptive forward lighting
19 Adaptive forward lighting
20 Fuel pump
21 Rear power windows
22 ABS
23 Variable effort steering
24 Front power windows
25 Power outlets
26 ABS
27 Electric parking brake
28 Heated rear window
29 Left power seat
30 Right power seat
31 Air conditioning system
32 Body control module
33 Heated front seats
34 Sunroof
35 Infotainment system
36 –
37 Right high beam
38 Left high beam
39 –
40 –
41 Vacuum pump
42 Radiator fan
43 Vehicle battery/DC transformer (only on vehicles with stop-start system)
44 Headlamp washer system
45 Radiator fan
46 Terminal 87/Main relay
47 Lambda probe
48 Fog lights
49 Right low beam
50 Left low beam
51 Horn
52 Ignition
53 Ignition/Ventilated front seats
54 Ignition
55 Power windows/Mirror folding
56 Windscreen washer
57 –
58 –
59 Diesel fuel heating/Emission control system
60 Mirror heating
61 Mirror heating
62 –
63 Rear window sensor
64 Adaptive forward lighting
65 Auxiliary pump (only on vehicles
with stop-start system)
66 Rear window washer system
67 Fuel system control module
68 –
69 Vehicle battery sensor
70 Rain sensor
71 Vehicle battery sensor
47 Lambda probe
48 Fog lights
49 Right low beam
50 Left low beam
51 Horn
52 Ignition
53 Ignition/Ventilated front seats
54 Ignition
55 Power windows/Mirror folding
56 Windscreen washer
57 –
58 –
59 Diesel fuel heating/Emission control system
60 Mirror heating
61 Mirror heating
62 –
63 Rear window sensor
64 Adaptive forward lighting
65 Auxiliary pump (only on vehicles
with stop-start system)
66 Rear window washer system
67 Fuel system control module
68 –
69 Vehicle battery sensor
70 Rain sensor
71 Vehicle battery sensor
Instrument panel fuse box
In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel.
Open compartment, compress the locking tabs, fold compartment down and remove.
 |
| Left-hand drive vehicles - Instrument panel fuse box Location |
In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.
 |
| Right - hand drive vehicles - Instrument panel fuse box Location |
 |
| Instrument panel fuse box - Schematic view |
Instrument panel fuse box - Fuse Coding
No. Circuit
1 Infotainment system/Info display (2017 Model - Infotainment system/Info display/Anti-theft alarm system)2 Body control unit
3 Body control unit
4 Infotainment system/Info display
5 Infotainment system/Info display
6 Cigarette lighter
7 Power outlet
8 Body control unit
9 Body control unit
10 Body control unit
11 Interior fan
12 –
13 –
14 Diagnostic connector
15 Airbag
16 Central locking system/Tailgate
17 Air conditioning system
18 Transportation fuse
19 Memory
20 –
21 Instrument
22 Ignition (2017 MOdel - Ignition/Central locking system/ Electronic key system)
23 Body control unit
24 Body control unit
25 – (2017 MOdel - Steering wheel control)
26 Power outlet load compartment
Power seats, No's. 12 and 13, have an overload protection. The circuit will be closed again after cooling down.
Load compartment fuse box
The fuse box is on the left side of the load compartment behind a cover.
Remove the cover.
 |
| Location of Load compartment fuse box |
 |
| Load compartment fuse box - Schematic view |
No. Circuit
1 Central locking system/Power tailgate2 Trailer module
3 –
4 –
5 Trailer socket
6 Steering wheel heating
7 Selective catalytic reduction system
8 Trailer socket
9 Sunroof
10 Central locking system/Tailgate
11 –
12 Selective catalytic reduction system
13 –
14 –
15 Power tailgate lock
16 Air conditioning system
17 Selective catalytic reduction system
18 Selective catalytic reduction system
19 Side obstacle detector
20 Side obstacle detector/Ventilated front seats
21 Active damping system/High beam assist/Cruise control/ Traffic sign assistant/Lane departure warning/Trailer module
22 Anti-theft alarm system
23 All-wheel drive/Anti-theft alarm system
24 –
25 –
26 –
27 –
28 –
29 Trailer module/Transportation fuse
30 Side obstacle detector
31 –
32 –
33 –
34 Sunroof
35 –
36 –
37 –
13 –
14 –
15 Power tailgate lock
16 Air conditioning system
17 Selective catalytic reduction system
18 Selective catalytic reduction system
19 Side obstacle detector
20 Side obstacle detector/Ventilated front seats
21 Active damping system/High beam assist/Cruise control/ Traffic sign assistant/Lane departure warning/Trailer module
22 Anti-theft alarm system
23 All-wheel drive/Anti-theft alarm system
24 –
25 –
26 –
27 –
28 –
29 Trailer module/Transportation fuse
30 Side obstacle detector
31 –
32 –
33 –
34 Sunroof
35 –
36 –
37 –
