| 2020 Peugeot 508 |
Accessing the tools
The extraction tweezers are located behind the fusebox cover. Depending on version: |
| Accessing the tools Left Hand Drive |

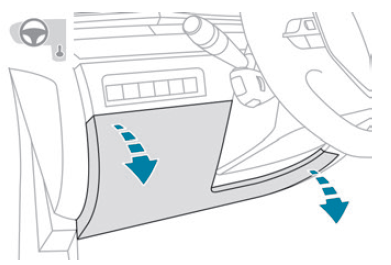

► Unclip the cover by pulling at the top left, then right.
► Remove the cover completely.
► Take the tweezers from their housing.
► Remove the cover completely.
► Take the tweezers from their housing.
 |
| Accessing the tools Right Hand Drive |

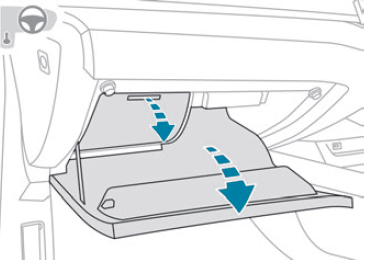

► Open the glove box.
► Press on the central handle of the fusebox cover.
► Lower the cover completely.
► Take the tweezers from their housing
► Press on the central handle of the fusebox cover.
► Lower the cover completely.
► Take the tweezers from their housing
Changing a fuse
Before changing a fuse:
► Identify the cause of the fault and fix it.
► Stop all power consumption.
► Immobilise the vehicle and switch the ignition off.
► Identify the defective fuse using the current
allocation tables and diagrams.
To replace a fuse, it is essential to:
► Use the special tweezers to extract the fuse from its housing and check the condition of its
filament.
► Always replace the failed fuse with a fuse of the same rating (same colour); use of a different rating may cause malfunctions - risk of fire!
If the fault recurs after replacing a fuse, have the electrical system checked by a PEUGEOT
dealer or a qualified workshop.
The fuse allocation tables and the corresponding diagrams are available from a PEUGEOT dealer or from a qualified workshop.
The replacement of a fuse not shown in the allocation tables may cause a serious malfunction of your vehicle. Contact a PEUGEOT dealer or a qualified workshop.
Installing electrical accessories Your vehicle's electrical system is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with specifications, in particular when the combined power consumption of all of the additional equipment connected exceeds 10 milliamperes.
Before installing other electrical equipment or accessories on your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with specifications, in particular when the combined power consumption of all of the additional equipment connected exceeds 10 milliamperes.
Fuses in the dashboard
The fusebox is located in the lower dashboard (left-hand side).
To access the fuses, follow the same procedure as described for accessing the fuse replacement tools.
To access the fuses, follow the same procedure as described for accessing the fuse replacement tools.
Box 1
 |

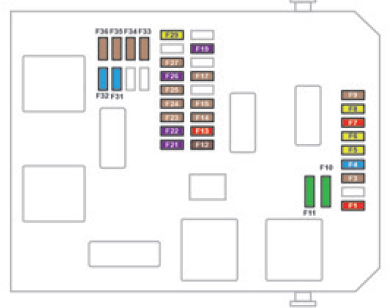

| Dashboard Fuse Panel - Box 1 |
Fuse N° ... Rating (A) ... Functions
F1 10 A "Electrochrome" mirrors.
F3 5 A Adaptive 3D rear lamps.
F4 15 A Horn.
F5 20 A Rear screenwash pump (SW).
F6 20 A Windscreen wash pump.
F7 10 A Rear USB ports.
F8 20 A Rear wiper (SW).
F10 30 A Central locking.
F11 30 A Tailgate locking/unlocking.
F14 5 A Emergency and assistance calls - Alarm control unit.
F24 5 A Hi-Fi amplifier.
F27 5 A Alarm siren.
F29 20 A Touch screen audio system.
F31 15 A Rear 12 V socket.
F32 15 A Cigarette Lighter / Front 12 V socket.
F1 10 A "Electrochrome" mirrors.
F3 5 A Adaptive 3D rear lamps.
F4 15 A Horn.
F5 20 A Rear screenwash pump (SW).
F6 20 A Windscreen wash pump.
F7 10 A Rear USB ports.
F8 20 A Rear wiper (SW).
F10 30 A Central locking.
F11 30 A Tailgate locking/unlocking.
F14 5 A Emergency and assistance calls - Alarm control unit.
F24 5 A Hi-Fi amplifier.
F27 5 A Alarm siren.
F29 20 A Touch screen audio system.
F31 15 A Rear 12 V socket.
F32 15 A Cigarette Lighter / Front 12 V socket.
Box 2
 |
| Dashboard Fuse Panel - Box 2 |
Fuse N° ... Rating (A) ... Functions
F2 10A Heated door mirrors.
F3 40 A Front one-touch windows.
F4 15 A Driver’s door control panel - Memorisation of electric seats.
F5 40 A Rear one-touch windows.
F6 15 A 12 V socket in boot.
F7 30 A Heated seats.
F10 20 A Trailer interface unit.
F12 25 A Hi-Fi amplifier.
F2 10A Heated door mirrors.
F3 40 A Front one-touch windows.
F4 15 A Driver’s door control panel - Memorisation of electric seats.
F5 40 A Rear one-touch windows.
F6 15 A 12 V socket in boot.
F7 30 A Heated seats.
F10 20 A Trailer interface unit.
F12 25 A Hi-Fi amplifier.
Passenger compartment fuse box
 |
| Passenger compartment fuse box Diagram |
Fuse N° ... Rating (A) ... Functions
F36 30 A Panoramic sunroof.
F37 30 A Panoramic sunroof blind.
F38 30 A Electric seats.
F39 30 A Motorised tailgate unit.
F40 25 A Additional heating.
F36 30 A Panoramic sunroof.
F37 30 A Panoramic sunroof blind.
F38 30 A Electric seats.
F39 30 A Motorised tailgate unit.
F40 25 A Additional heating.
Trailer interface unit
 |
| Trailer interface unit Fuse Panel Diagram |
Fuse N° ... Rating (A) ... Functions
F36 20 A Brake lamps - Reversing lamps (trailer).
F37 20 A Sidelamps - Direction indicators (trailer).
F38 20 A Interior lighting (caravan).
F40 2 A Audible signal (trailer).
F36 20 A Brake lamps - Reversing lamps (trailer).
F37 20 A Sidelamps - Direction indicators (trailer).
F38 20 A Interior lighting (caravan).
F40 2 A Audible signal (trailer).
Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.
 |
| Engine compartment fuse Box Location |
► Release the two latches A.
► Remove the cover.
► Replace the fuse.
► When you have finished, close the cover carefully, then engage the two latches A to ensure that the fusebox is properly sealed.
 |
| Engine compartment Fuse Panel Diagram |
Fuse tables
Fuse N° ... Rating (A) ... Functions
F5 50 A Right-hand direction indicators - Front right-hand sidelamps - Right-hand brake lamps - Left-hand reversing lamps - Right-hand foglamps.
F16 20 A Daytime running lamps.
F18 10 A Right-hand main beam headlamp.
F19 10 A Left-hand main beam headlamp.
F24 40 A Trailer interface unit.
F27 25 A Right-hand dipped beam headlamp - Right-hand reversing lamps - Left-hand foglamps - Rear left-hand sidelamps - Third brake lamp.
F29 40 A Windscreen wipers.
F32 80 A Left-hand dipped beam headlamp - Static cornering lamps - Direction indicator side repeaters - Left-hand direction indicators - Front left-hand and rear right-hand sidelamps - Left-hand brake lamps - Number plate lamps.
F5 50 A Right-hand direction indicators - Front right-hand sidelamps - Right-hand brake lamps - Left-hand reversing lamps - Right-hand foglamps.
F16 20 A Daytime running lamps.
F18 10 A Right-hand main beam headlamp.
F19 10 A Left-hand main beam headlamp.
F24 40 A Trailer interface unit.
F27 25 A Right-hand dipped beam headlamp - Right-hand reversing lamps - Left-hand foglamps - Rear left-hand sidelamps - Third brake lamp.
F29 40 A Windscreen wipers.
F32 80 A Left-hand dipped beam headlamp - Static cornering lamps - Direction indicator side repeaters - Left-hand direction indicators - Front left-hand and rear right-hand sidelamps - Left-hand brake lamps - Number plate lamps.
