Changing a Fuse
 |
| Blown Fuse |
CAUTION
■ Replace the faulty fuse with a new one of the same amperage.■ If a newly inserted fuse again blows after a short time, then seek assistance from a specialist garage.
■ “Do not repair” the fuses and do not replace them with stronger fuses - danger of fire and damage to another electrical system.
Note
■ We recommend always carrying replacement fuses in the vehicle.■ There can be several power consuming devices for one fuse. Multiple fuses may exist for a single power consuming device.
Fuses in the dash panel
 |
| Fuses in the dash panel Location |
The fuses are located underneath the steering wheel on the underside of the dash panel.
Replacing fuses
› Press securing tab A› Push the lid in the direction of the arrow.
› Remove bracket B .
› Place the bracket on the respective fuse and pull this out.
› Insert a new fuse.
› Replace the bracket at the original position.
› Fold the cover upwards against the direction of the arrow.
› Close the cover until it clicks into place.
› Remove bracket B .
› Place the bracket on the respective fuse and pull this out.
› Insert a new fuse.
› Replace the bracket at the original position.
› Fold the cover upwards against the direction of the arrow.
› Close the cover until it clicks into place.
Fuse allocation in the dash panel
 |
| Dash Panel Fuse Diagram |
No. Consumer
1 Air Conditioning, diagnostic connector
2 Operating the headlight range control, parking aid, positional adjustment
of the electric door mirrors (2018 Model - seat heating).
3 Automatic transmission, engine control unit, power steering, control lever under the steering wheel, instrument cluster
4 Airbag
5 Reversing light
6 Rear wiper, windscreen washer system
7 Main beam headlamp - left side
8 Main beam headlamp - right side
9 Not assigned
10 Electric exterior mirror heater
11 Not assigned (2018 Model - Daytime driving light)
12 Vehicle lighting (2018 Model - Not assigned)
13 Vehicle lighting - left side
14 Vehicle lighting- right side
15
Vehicle with START-STOPsystem: Radio
Vehicle without START-STOPsystem: Central Control Unit, heating, automatic transmission, light switch, license plate light
2 Operating the headlight range control, parking aid, positional adjustment
of the electric door mirrors (2018 Model - seat heating).
3 Automatic transmission, engine control unit, power steering, control lever under the steering wheel, instrument cluster
4 Airbag
5 Reversing light
6 Rear wiper, windscreen washer system
7 Main beam headlamp - left side
8 Main beam headlamp - right side
9 Not assigned
10 Electric exterior mirror heater
11 Not assigned (2018 Model - Daytime driving light)
12 Vehicle lighting (2018 Model - Not assigned)
13 Vehicle lighting - left side
14 Vehicle lighting- right side
15
Vehicle with START-STOPsystem: Radio
Vehicle without START-STOPsystem: Central Control Unit, heating, automatic transmission, light switch, license plate light
16 Vehicle lighting
17 Rear window wiper
18 Panoramic sunroof
19 Central locking system
20 Rear window heater
21 Reversing light (2018 Model - Fog light)
22 Horn
23 Voltage transformer
24 Headlamp flasher
25 Windscreen wipers
26 Radio
27 Turn signal lights, brake lights
28 Selector lever for the automatic transmission
29 Fuel pump
30 Engine control unit, instrument cluster, central control unit, rain sensor, control lever under the steering wheel, diagnostic connector
31 Vehicle lighting
32 Central control unit
33 Vehicle lighting
34 Indoor lighting
35 Vehicle lighting - right side (applies to vehicle without START-STOP system)
36 Vehicle lighting - - left side (applies to vehicle without START-STOP system)
37 ESC
38 Bar with buttons, DC-DC voltage converter (applies to vehicle with START-STOP system)
39 Lever under the steering wheel, windscreen washer system
40 Engine components - Lambda probe, radiator fan, gas valve, oil pressure valve, valve for activated charcoal filter
41 Brake pedal switch, cooling fan
42 Engine control unit
43 Fuel pump
44 Engine components
45 Engine components
46 12-volt power socket
47 Air blower for air conditioning/heating
48 Seat heaters
49 Electric power windows - right
50 Vehicle lighting
51 Electric power windows - Left
Fuses in the dash panel
On vehicles with the START-STOPsystem, the fuses are on the left side of the dash panel behind a cover.
Replacing fuses
› Insert a slotted screwdriver into the recess A in the cover.
› Loosen the cover and remove in the direction of the arrow.
› Replace the appropriate fuse.
› Close the cover until it clicks into place.
 |
| Dash Panel Diagram |
No. Consumer
1 ABS/ESP
2 Instrument cluster
3 Radio
4 DC-DC voltage converter, starter relay, bar with buttons
5 Air conditioning system
6 Not assigned
7 Not assigned
8 Not assigned
9 Vehicle lighting - right side
10 Vehicle lighting - left side
11 Starter
12 DC-DC voltage converter, ABS, instrument cluster, radio
Fuses in the Engine Compartment
 |
| Engine Compartment Fuse Box Location |

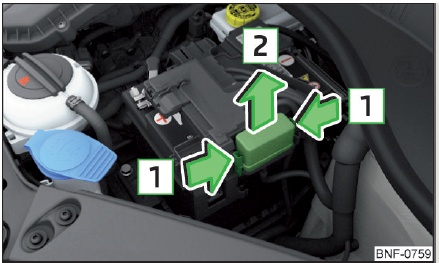

The fuses are located underneath a cover next to the vehicle battery.
› Push the cover in the direction of the arrow 2 .
› Replace the appropriate fuse.
› Insert the cover in the direction counter to the arrow.
› Close the cover until it clicks into place.
Replacing fuses
› Press the locking keys 1 of the cover .› Push the cover in the direction of the arrow 2 .
› Replace the appropriate fuse.
› Insert the cover in the direction counter to the arrow.
› Close the cover until it clicks into place.
Fuse allocation in the engine compartment
 |
| Engine Compartment Fuse Box Diagram |
No. Consumer
1 ABS/ESP
2 Radiator fan (2018 Model - blower fan for air conditioning)
3 Control unit for radiator fan, ignition
4 ABS/ESP
5 Central control unit, battery data module
6 Ignition lock, starter
