2018 - 2021 Peugeot 308 Fuse panel Diagram

308 2020 Peugeot



Accessing the tools



Extraction tweezers Location - Left hand, Right hand Steering

The extraction tweezers are fitted to the back of the dashboard fusebox cover.
► Unclip the cover by pulling at the top left, then right.
► Disengage the cover fully and turn it over.
► Remove the tweezers from the back of the cover that they are fitted to.



Changing a fuse

Before changing a fuse:
► Identify the cause of the fault and fix it.
► Stop all power consumption.
► Immobilise the vehicle and switch the ignition off.

► Identify the defective fuse using the current allocation tables and diagrams.


To replace a fuse, it is essential to:



► Use the special tweezers to extract the fuse from its housing and check the condition of its
filament.
► Always replace the failed fuse with a fuse of the same rating (same colour); use of a  different rating may cause malfunctions - risk of fire!
If the fault recurs after replacing a fuse, have the electrical system checked by a PEUGEOT
dealer or a qualified workshop.


The fuse allocation tables and the corresponding diagrams are available from a PEUGEOT dealer or from a qualified workshop.
The replacement of a fuse not shown in the allocation tables may cause a serious malfunction of your vehicle. Contact a PEUGEOT dealer or a qualified workshop.




Installing electrical accessories



Your vehicle's electrical system is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a  PEUGEOT dealer or a qualified workshop.

PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds 10
milliamperes.

Fuses in the Dashboard



The fusebox is located in the lower dashboard (left-hand side).

Accessing the fuses.

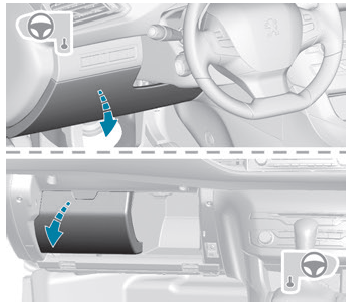

Dashboard Fuse Panel Location - Left hand, Right hand Steering

► Unclip the cover by pulling at the top left, then right.

Dashboard Fuse Panel Diagram Left hand Steering

Table of fuses



Fuse N° .. Rating (A) .. Functions
F9 5 Alarm, emergency and assistance calls.
F13 5 Reversing camera  and parking sensors.
F15 15 12V accessory socket.
F16 15 Cigarette lighter.
F18 20 Touch screen, CD player, audio and navigation system.
F19 5 Rain, sunshine sensor.
F20 5 Airbags.
F21 5 Instrument panel.
F22/F24 30 Internal/ external locks, front and rear.
F23 5 Glove box lamp,  courtesy mirror, front and rear courtesy lamps.
F25/F27 15 Front/rear screenwash pump.
F26 15 Horn.
F30 15 Rear wiper.

Dashboard Fuse Panel Diagram Right hand Steering

Fuses in the engine compartment

The fusebox is located in the engine compartment near the battery.

Engine compartment Fuse Box Location



Engine compartment Fuse Panel Diagram

► Unclip the cover.
► Change the fuse.
► After the operation, close the cover very carefully to ensure the fusebox is properly sealed.

Table of fuses



Fuse N°.. Rating (A) .. Functions
F13 5 Built-in systems interface.
F16 15 Front foglamps.
F18 10 Right-hand main beam headlamp.
F19 10 Left-hand main beam headlamp.
F25 40 Headlamp washer relay (retrofitting).
F27 25 Built-in systems interface.
F28 30 Diesel emissions control system (AdBlue®).
F29 30 Windscreen wiper motor.
F30 80 Pre-heat glow plugs (Diesel), additional programmable heating (retrofitting), headlamp wash pump.
