2017 - 2020 Chevrolet Sonic Fuse Panel Diagram

2017 Chevrolet Sonic
2017 Chevrolet Sonic

 Fuses and Circuit Breakers


The wiring circuits in the vehicle are protected from short circuits by a combination of fuses, circuit breakers, and fusible thermal links.
This greatly reduces the chance of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure you replace a bad fuse with a new one of the identical size and rating.

Engine Compartment Fuse Block

 1.8L Engines

Engine Compartment Fuse Block Location
Engine Compartment Fuse Block Location

The engine compartment fuse block is on the driver side of the vehicle, near the battery.

Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the  covers on any electrical component.

To access the fuses, press the clips together, and lift the cover. To reinstall the cover, push the cover until it is secure.

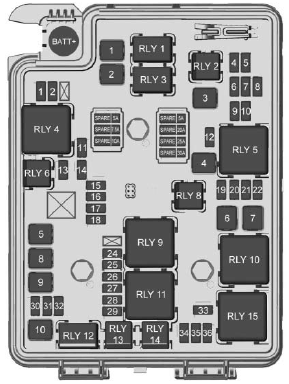

1.8L Engine Compartment Fuse Panel Diagram
1.8L Engine Compartment Fuse Panel Diagram

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Mini Fuses Usage
1 Antilock brake system (ABS) valve
2 Sunroof
4* Rear fog lamp
5 OSRVM/Power window switch
6 Automatic occupant sensing/ROS
7 Passive entry/ Passive start
8 Regulated voltage control (RVC)
10 –/IBS
11 Rear window defogger
12 ESCL
13* –/SAI valve
14 OSRVM HTD
15 Front heated seats
16 Fuel system control module 1
17 Canister vent
18 Washer
19* Fuel pump
20 Engine control module 5
21 Fuel system control module 2/Leveling
22 TCM 1/ DC DC converter
24 Engine control module 1
25 Coil
26 Engine control module 4
27 Engine control module 3
28 Engine control module 2
29 Injector/Ignition coil
30 ECM
31 A/C clutch
32 TCM
33 Horn
34 Front fog lamps
35 Left high-beam headlamp
36 Right high-beam headlamp
* = If equipped

J-Case Fuses ... Usage
1 Front wipers
2 ABS pump
3 Blower
4 Run/Crank IEC
6 Cooling fan K4
7 Cooling fan K5
8* SAI pump
9 EVP (Electric vacuum pump)
10 Start

* = If equipped

Relays


Relays ... Usage
RLY 1 Front wiper control
RLY 2* Rear fog lamp
RLY 3 Front wiper speed
RLY 4 Rear defogger
RLY 5 Run/Crank
RLY 6* –/SAI valve
RLY 8* Fuel pump
RLY 9* SAI pump
RLY 10 Cooling fan K3
RLY 11 P/T
RLY 12 Start
RLY 13 A/C clutch
RLY 14 High-beam headlamps
RLY 15 Cooling fan K1

* = If equipped

1.4L Engine

1.4L Engine Compartment Fuse Panel Diagram
1.4L Engine Compartment Fuse Panel Diagram


The vehicle may not be equipped with all of the fuses, relays, and features shown.

Mini Fuses Usage
1 Antilock brake system (ABS) valve
2 Sunroof
4* Rear fog lamp
5 OSRVM (Exterior rearview mirror)/Power window switch
6 Automatic occupant sensing/ROS
7 Passive entry/ Passive start
8 RVC (Regulated voltage control)
9 Rear wiper
10 –/IBS
11 Rear window defogger
12 ESCL (Electric steering column lock)
14 OSRVM HTD (Heated exterior rearview mirror)
15 Front heated seats
16 Fuel system control module 1
17 Canister vent
18 Washer
20 Engine control module 5
21 Fuel system control module 2/Leveling
22 Transmission control module (TCM) 1/ DC DC converter
24 Engine control module 1
25 Coil
26 Engine control module 4
27 Engine control module 3
28 Engine control module 2
29 Injector/Ignition coil
30 Engine control module (ECM)
31 A/C clutch
32 (Transmission control module) TCM
33 Horn
34 Front fog lamps
35 Left high-beam headlamp
36 Right high-beam headlamp
* = If equipped

J-Case .. Fuses Usage
1 Front wipers
2 Antilock brake system pump (ABS) pump
3 Blower
4 Run/Crank IEC
5 Power seat
6 Cooling fan K4
7 Cooling fan K5
9 EVP Electric vacuum pump
10 Start
* = If equipped

Relays Usage
RLY 1 Front wiper control
RLY 2* Rear fog lamp
RLY 3 Front wiper speed
RLY 4 Rear defogger
RLY 5 Run/Crank
RLY 9 Cooling fan K2
RLY 10 Cooling fan K3
RLY 11 P/T
RLY 12 Start
RLY 13 Air conditioning (A/C) clutch
RLY 14 High-beam headlamps
RLY 15 Cooling fan K1
* = If equipped

Instrument Panel Fuse Block


Instrument Panel Fuse Block  Location
Instrument Panel Fuse Block Location

The instrument panel fuse block is on the underside of the driver side instrument panel.

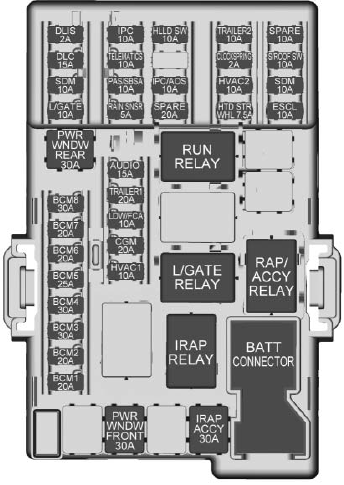

Instrument Panel Fuse Panel Diagram
Instrument Panel Fuse Panel Diagram

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses  ... Usage
DLIS Discrete logic ignition switch
DLC Data link connector
SDM Sensing and diagnostic module
L/GATE Liftgate
PWR WNDW REAR Rear power window
BCM8 Body control module 8
BCM7 Body control module 7
BCM6 Body control module 6
BCM5 Body control module 5
BCM4 Body control module 4
BCM3 Body control module 3
BCM2 Body control module 2
BCM1 Body control module 1
IPC Instrument panel cluster
TELEMATICS Telematics
PAS/SBSA Parking assist system/Side blind spot alert system
RAIN SNSR Rain sensing wiper
AUDIO Audio
TRAILER1 Trailer 1
LDW/FCA Lane departure warning/Front collision alert
CGM Central gateway module
HVAC1 HVAC 1
HLLD SW Automatic headlamp leveling switch
IPC/AOS Instrument panel cluster/Automatic occupant sensing display
SPARE –
RUN RELAY Run relay
L/GATE RELAY Liftgate relay
IRAP RELAY IRAP Relay
TRAILER2 Trailer hitch 2
CLOCKSPRING Clock spring
HVAC2 HVAC 2
HTD  STR WHL Heated steering wheel
SPARE –
S/ROOF SW Sunroof switch
CIGAR APO Cigar auxiliary power outlet (Cigarette Lighter)
ESCL Electric steering column lock
RAP/ACCY RELAY Retained accessory power/ Accessory Relay
PWR WNDW FRONT Front power windows
IRAP ACCY IRAP accessory
BATT CONNECTOR Battery connector
