2014 - 2016 Chevrolet Malibu Fuse Panel Diagram

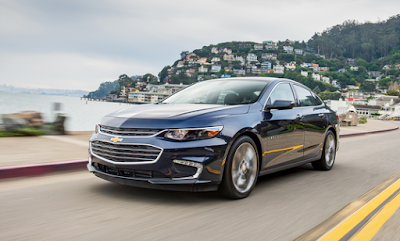

2016 Chevrolet Malibu

The wiring circuits in the vehicle are protected from short circuits by fuses. This greatly reduces the chance of damage caused by electrical problems.
To check a fuse, look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a new one of the identical size and rating.

Fuses of the same amperage can be temporarily borrowed from another fuse location, if a fuse goes out. Replace the fuse as soon as possible.

Engine Compartment Fuse Block



The engine compartment fuse block is on the driver side of the engine compartment, near the battery.

Caution - Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

Engine Compartment Fuse Box Diagram

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Mini Fuses  ... Usage


1 Transmission Control Module Battery
2 Engine Control Module Battery (LTG)/ Air Conditioning Compressor Clutch (LKW)
3 Air Conditioning Compressor Clutch (LTG)
4 Air Conditioning Compressor Clutch (LTG)
5 Engine Control Module Battery (LKW)
7 Engine Control Module Ignition (LKW)
8 Spare
9 Ignition Coils
10 Engine Control Module
11 Emissions
13 Transmission Module Ignition
14 Cabin Heater Coolant Pump
15 Spare
16 Aero Shutter (2014 Model - eAssist Ignition)
17 Spare (2014 Model - SDM Ignition)
18 R/C Dual Battery Isolator Module
20 Transmission Auxiliary Oil Pump (LKW)
23 Spare (LKW) (2014 - eAssist Module)
29 Left Seat Power Lumber Control
30 Right Seat Power Lumber Control
31 Chassis Control Module
32 Back-Up Lamps/ Interior Lamps
33 Front Heated Seats
34 Antilock Brake System (ABS) Valve
35 Amplifier
37 Right High Beam
38 Left High Beam
46 Cooling Fan
47 Emissions
48 Foglamp
49 Low Beam HID Headlamp Right
50 Low Beam HID Headlamp Left
51 Horn/Dual Horn
52 Cluster Ignition
53 Inside Rearview Mirror/Rear Camera/ Fuel Module Ignition
54 Heating, Ventilation, and Air Conditioning Module Ignition
55 Front Power Windows/Mirrors
56 Windshield Washer
57 Spare
60 Heated Mirror
62 Canister Vent Solenoid
66 Spare
67 Fuel Module
69 Battery Voltage Sensor
70 Lane Departure/Rear Parking Aid/Side Blind Zone Assist
71 PEPS BATT

J-Case Fuses ... Usage
6 Front Wiper
12 Starter 1
21 Rear Power Window
22 Sunroof
24 Front Power Window
25 PEPS MTR
26 Antilock Brake System (ABS) Pump
27 Not Used
28 Rear Defogger
41 Brake Vacuum Pump
42 Cooling Fan K2
44 Starter 2
45 Cooling Fan K1
59 Air Pump Emissions

Mini Relays ... Usage
7 Powertrain
9 Cooling Fan K2
13 Cooling Fan K1
15 Run/Crank
16 Spare
17 Window/Mirror Defogger

Micro Relays ... Usage

1 Air Conditioning Compressor Clutch
2 Starter Solenoid
4 Front Wiper Speed
5 Front Wiper On
6 Spare
8 Transmission Auxiliary Oil Pump (LKW)
10 Cooling Fan K3
11 Starter 2 Solenoid (LKW)
14 Headlamp Low Beam/DRL (Daytime running light)

Instrument Panel Fuse Block



Instrument Panel Fuse Block Location

The instrument panel fuse block is in the instrument panel, on the driver side of the vehicle. To access the fuses, open the fuse panel door by pulling down at the top.
Press in on the sides of the door to release it from the instrument panel.

Pull the door toward you to release it from the hinge.


Instrument Panel Fuse Box Diagram

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses  ... Usage
1 Steering Wheel Controls Backlight

2 Right Rear Turn Signal, Left Mirror Turn Signal, Left Front Turn Signal, Door Locks
3 Left Stoplamp, Left DRL (Daytime running light) Lamp, Headlamp Control, Right Taillamp, Right Park/Sidemarker
Lamps, Right Mirror Turn, Right Front Turn Signals
4 Radio
5 OnStar (If Equipped)
6 Front Accessory Power Outlet (Cigarette Lighter)
7 Console Bin Power Outlet
8 License Plate Lamp, Center High-Mounted Stoplamp, Rear Fog Lamps, Right Front  Park/Sidemarker Lamps, LED Indicator Dim, Washer Pump, Right Stoplamp, Trunk Release
9 Left Low-Beam Headlamp, DRL (Daytime running light)
10 Body Control Module 8 (J-Case Fuse), Power Locks
11 Front Heater Ventilation Air Conditioning/Blower (J-Case Fuse)
12 Passenger Seat (Circuit Breaker)
13 Driver Seat (Circuit Breaker)
14 Diagnostic Link Connector
15 Airbag, SDM
16 Trunk Release
17 Heater Ventilation Air Conditioning Controller
18 Audio Main
19 Displays
20 Passenger
Occupant Sensor
21 Instrument Cluster
22 Ignition Switch
23 Right Low-Beam Headlamp, DRL (Daytime running light)
24 Ambient Light, Switch Backlighting (LED), Trunk Lamp, Shift Lock, Key Capture
25 110V AC
26 Spare

Relays  ... Usage
K1 Trunk Release
K2 Not Used
K3 Power Outlet Relay
