| 2013 Skoda Superb |
Individual electrical circuits are protected by fuses.
› Before replacing a fuse, switch off the ignition and the appropriate consumer .
› Find out which fuse belongs to the component that is not operating
› Take the plastic clip (Fuse Puller) out of its fixture in the cover of the fuse box, place it on the relevant fuse and pull it out.
› A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse with a new one of the same amperage.
› Before replacing a fuse, switch off the ignition and the appropriate consumer .
› Find out which fuse belongs to the component that is not operating
› Take the plastic clip (Fuse Puller) out of its fixture in the cover of the fuse box, place it on the relevant fuse and pull it out.
› A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse with a new one of the same amperage.
Colour coding of fuses
Colour ... Maximum amperage
light brown 5
dark brown 7.5
red 10
blue 15
yellow 20
white 25
green 30
orange 40
red 50
WARNING
Always read and observe the warnings before completing any work in the engine compartment .
CAUTION
■ Never “repair” fuses and also do not replace them with a fuse of a higher amperage - risk of fire! This may also cause damage at another part of the electrical system.
■ Have the electrical system checked as quickly as possible by a ŠKODA specialist garage if a newly inserted fuse blows again after a short time.
■ When unlocking and locking the cover for the fuse box in the engine compartment, it must be pressed on the sides of the box, otherwise the locking mechanism can be damaged.
■ The cover for the fuse box in the engine compartment must always be applied correctly. Water can penetrate and cause damage to the vehicle if the cover was not applied correctly.
Note
■ We recommend always carrying replacement fuses in the vehicle. A box of replacement
fuses can be purchased from ŠKODA Original Accessories.
■ Multiple fuses may exist for a single power consuming device.
■ Multiple power consuming devices can share a single fuse.
■ Electrically adjustable seats are protected by automatic circuit breakers, which switch on again automatically after a few seconds after the overload has been eliminated.
Fuses in the dash panel
 |
| Fuses in the dash panel Location |
 |

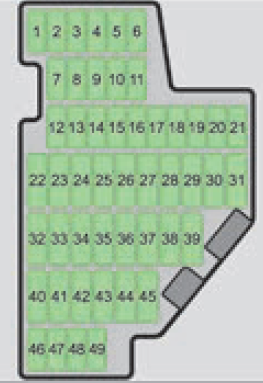

| Fuse box cover/ Schematic diagram of the fuse box |
The fuses are located on the left side of the dash panel behind a cover.
› Remove the cover for the fuse box using a screwdriver.
› Replace the cover once the fuse has been changed.
› Remove the cover for the fuse box using a screwdriver.
› Replace the cover once the fuse has been changed.
Fuse assignment in the dash panel
No. ... Power consumer
1 Diagnostic socket, engine control unit, fuel pump relay, fuel pump control unit
2 Control unit for ABS, ESC, switch for the tyre control display, brake sensor
3 Switch and airbag control unit
4 WIV, tail lights, dimming mirrors, pressure sensor, telephone preinstallation
5 Control unit for headlight beam adjustment and headlight swivel, control unit for parking aid, control unit for park assist
6 Instrument cluster, control unit for electromechanical power steering, Haldex, selector lever lock, power supply for data bus, AG
7 Valve heating, air mass meter
8 Control unit for trailer detection
9 Relay for auxiliary heating and ventilation
10 Adaptive left main headlight
11 Adaptive right main headlight
12 Not assigned
13 Diagnostic socket, light switch, rain sensor, clock
14 Central locking system and bonnet lid
15 Central control unit - interior lights
16 The air conditioning system
17 Not assigned
18 Phone
19 Instrument cluster, windscreen wiper lever, and turn signal lever
20 KESSY
21 KESSY ELV
22 Air blower for Climatronic
23 Front power window, central locking of the front doors
24 Selector lever lock, AG
25 Rear window heater, relay for auxiliary heating and ventilation
26 Power socket in the boot
27 Fuel pump relay, control unit for fuel pump, injection valves
28 Electric boot lid
29 AG, Haldex
30 Ventilated front seats
31 DVD pre-installation
32 Front power window, central locking system of the rear doors
33 Electric sliding/tilting roof
34 Alarm, spare horn
35 front and rear lighter
36 Headlight cleaning system
37 Heated front seats
38 Heated rear seats
39 Rear window wiper
40 Fan air-conditioning system, relay for auxiliary heating and ventilation
41 Not assigned
42 Light switch
43 Control unit for trailer detection
44 Control unit for trailer detection
45 Control unit for trailer detection
46 Switch for seat heating
47 Telephone preinstallation
48 Preparation for the aftermarket radio
49 Not assigned (2014-2015 Model - Only for START-STOP: Central control unit, DC-DC converter, the engine control unit)
5 Control unit for headlight beam adjustment and headlight swivel, control unit for parking aid, control unit for park assist
6 Instrument cluster, control unit for electromechanical power steering, Haldex, selector lever lock, power supply for data bus, AG
7 Valve heating, air mass meter
8 Control unit for trailer detection
9 Relay for auxiliary heating and ventilation
10 Adaptive left main headlight
11 Adaptive right main headlight
12 Not assigned
13 Diagnostic socket, light switch, rain sensor, clock
14 Central locking system and bonnet lid
15 Central control unit - interior lights
16 The air conditioning system
17 Not assigned
18 Phone
19 Instrument cluster, windscreen wiper lever, and turn signal lever
20 KESSY
21 KESSY ELV
22 Air blower for Climatronic
23 Front power window, central locking of the front doors
24 Selector lever lock, AG
25 Rear window heater, relay for auxiliary heating and ventilation
26 Power socket in the boot
27 Fuel pump relay, control unit for fuel pump, injection valves
28 Electric boot lid
29 AG, Haldex
30 Ventilated front seats
31 DVD pre-installation
32 Front power window, central locking system of the rear doors
33 Electric sliding/tilting roof
34 Alarm, spare horn
35 front and rear lighter
36 Headlight cleaning system
37 Heated front seats
38 Heated rear seats
39 Rear window wiper
40 Fan air-conditioning system, relay for auxiliary heating and ventilation
41 Not assigned
42 Light switch
43 Control unit for trailer detection
44 Control unit for trailer detection
45 Control unit for trailer detection
46 Switch for seat heating
47 Telephone preinstallation
48 Preparation for the aftermarket radio
49 Not assigned (2014-2015 Model - Only for START-STOP: Central control unit, DC-DC converter, the engine control unit)
Fuses in the engine compartment
 |
| Schematic diagram of the fuse box - version A |
 |
| Schematic diagram of the fuse box - version B |
 |
| Cover for the fuse box in the engine compartment |
On some vehicles, the battery cover must be removed before removing the cover for the fuse box.
Fuse assignment in the engine compartment - version A
No. ... Power consumer
F1 Front right main headlight, right tail light
F2 Valves for ABS
F3-4 Not assigned
F5 Horn
F6-12 Not assigned
F13 Control unit for automatic gearbox
F14 Not assigned
F15 Coolant pump
F16 Not assigned
F17 Instrument cluster, windscreen wiper lever, and turn signal lever
F18 Audio amplifier (sound system)
F19 Radio
F20-22 Not assigned
F23 Engine control unit
F24 Data bus control unit
F25-26 Not assigned
F27 Fuel dosage valve
F28 Engine control unit
F29 Main relay
F30 Auxiliary heating and ventilation control unit
F31 Windscreen wipers
F32-37 Not assigned
F38 Radiator fan, valves
F39 Clutch/brake pad sensor
F40 Lambda probe
F41 AKF valve
F42 Lambda probe
F43 Ignition
F44-46 Not assigned
F47 Front left main headlight, left tail light
F48 Pump for ABS
F49 Power supply for terminal 15 (ignition on)
F50-51 Not assigned
F52 Power supply relay - terminal X a)
F53 Accessories (2014-2015 Model - Power to the internal fuse carrier)
F54 Not assigned
a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.
Fuse assignment in the engine compartment - version B
No. .... Power consumer
F1 Not assigned
F2 Control unit for automatic gearbox DSG
F3 Measuring circuit
F4 Valves for ABS
F5 Control unit for automatic gearbox DSG
F6 Not assigned
F7 Power supply for terminal 15 (ignition on)
F8 Radio
F9 Not assigned
F10 Engine control unit, Main relay
F11 Auxiliary heating and ventilation control unit
F12 Data bus control unit
F13 Engine control unit
F14 Ignition
F15 Lambda probe (petrol engine), glow plug system relay and fuel pump (diesel engine)
F16 Front right main headlight, right tail light
F17 Horn
F18 Audio amplifier (sound system)
F19 Windscreen wipers
F20 Valve for fuel dosing Coolant pump
F21 Lambda probe
F22 Clutch pedal switch
F23 Relay, valves, high pressure pump
F24 Radiator fan
F25 Pump for ABS
F26 Left main headlight
F27 Control unit for glow plug system
F28 Windscreen heater
F29 Accessories (2014 Model - Power to the internal fuse carrier)
F30 Power supply relay - terminal X a) ( 2015 Model - Power supply for terminal 15 (ignition on))
a) In order not to drain the battery unnecessarily when starting the engine, the electrical components of this terminal are automatically switched off.
View / Download 2013 Skoda Superb Fuse OM
