| 2019 Hyundai Ioniq HEV (Hybrid Electric Vehicle) |
A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
If the electrical system does not work, first check the driver's side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.
This vehicle has 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
If the electrical system does not work, first check the driver's side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.
 |
| Fuses Types |
WARNING
NEVER replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly cause a fire.
• Do not install a wire or aluminum foil instead of the
proper fuse - even as a temporary repair. It may cause extensive wiring damage and
possibly a fire.
• A higher capacity fuse could cause damage and possibly cause a fire.
• Do not install a wire or aluminum foil instead of the
proper fuse - even as a temporary repair. It may cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
Instrument Panel Fuse Replacement
1. Turn the vehicle off.2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
5. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.
If the headlamps or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment.
If a fuse is blown, it must be replaced with the same rating.
If a fuse is blown, it must be replaced with the same rating.
 |

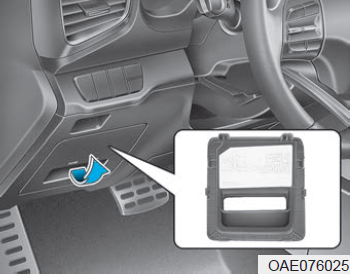

| Instrument Panel Fuse Box Location |
 |
| Engine compartment fuse panel |

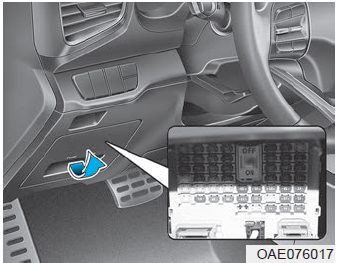

Fuse switch
Always, place the fuse switch to the ON position.If you move the switch to the OFF position, some items such as the audio system and digital clock must be reset and the smart key may not work properly.
 |
| Fuse switch |
Information
If the fuse switch is OFF, "Turn on FUSE SWITCH" or "Turn FUSE SWTICH On" message will appear.
If the fuse switch is OFF, "Turn on FUSE SWITCH" or "Turn FUSE SWTICH On" message will appear.
NOTICE
• Always place the fuse switch in the ON position while driving the vehicle.
• Do not move the fuse switch repeatedly. The fuse switch may be damaged.
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
1. Turn the vehicle off.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
• Do not move the fuse switch repeatedly. The fuse switch may be damaged.
Engine Compartment Panel Fuse Replacement
 |
| Blade type fuse |
 |
| Cartridge type fuse |
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
Multi fuse
If the multi fuse is blown, it must be removed as follows:1. Turn the vehicle off.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
 |
| Multi fuse |
Information
If the multi fuse is blown, consult an authorized HYUNDAI dealer
CAUTION
If the multi fuse is blown, consult an authorized HYUNDAI dealer
CAUTION
After checking the fuse box in the engine compartment securely close the fuse box cover inside the engine compartment, until it clicks.
If the fuse box is not closed properly, water may leak in side, possibly causing a malfunction
with the electrical system.
If the fuse box is not closed properly, water may leak in side, possibly causing a malfunction
with the electrical system.
Fuse/Relay Panel Description - Instrument panel fuse panel
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
 |
| Fuse/Relay Panel Description - Instrument panel fuse panel |
 |
| Fuse/Relay Panel Description - Instrument panel fuse panel |

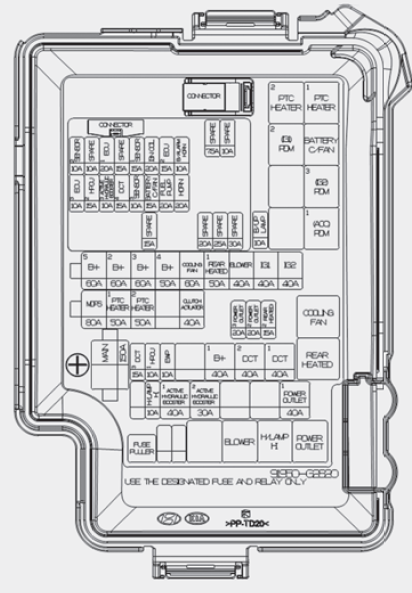

Engine compartment fuse panel
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
 |
| Engine compartment fuse panel |
 |
| Engine compartment fuse panel |
