| 2019 Hyundai Kona |
Fuses and Relays
A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
If the electrical system does not work, first check the driver's side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.
This vehicle has 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
If the electrical system does not work, first check the driver's side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.
 |

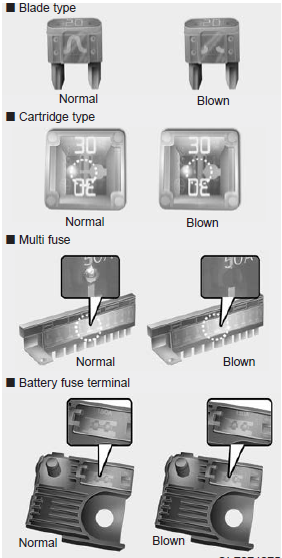

| Fuses Types - Normal , Blown |
WARNING
NEVER replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly cause a fire.
• Do not install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and possibly a fire.
• A higher capacity fuse could cause damage and possibly cause a fire.
• Do not install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and possibly a fire.
NOTICE
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
Instrument Panel Fuse Replacement
 |
| Instrument Panel Fuse Replacement |
1. Turn the engine off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
 |
| Instrument Panel Fuse Replacement |
5. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.
If the headlamps or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment.
If a fuse is blown, it must be replaced with the same rating.
Fuse switch
Always, place the fuse switch to the ON position.
If you move the switch to the OFF position, some items such as the audio system and digital clock must be reset and the smart key may not work properly.
 |
| Fuse switch |
Information
If the fuse switch is OFF, the above message will appear.
If the fuse switch is OFF, the above message will appear.
NOTICE
• Always place the fuse switch in the ON position while driving the vehicle.
• Do not move the fuse switch repeatedly. The fuse switch may be damaged.
• Do not move the fuse switch repeatedly. The fuse switch may be damaged.
Engine Compartment Panel - Fuse Replacement
1. Turn the engine off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
 |
| Blade type fuse |
 |
| Cartridge type fuse |
CAUTION
After checking the fuse box in the engine compartment securely close the fuse box cover
inside the engine compartment, until it clicks.
If the fuse box is not closed properly, water may leak in side, possibly causing a malfunction with the electrical system.
After checking the fuse box in the engine compartment securely close the fuse box cover
inside the engine compartment, until it clicks.
If the fuse box is not closed properly, water may leak in side, possibly causing a malfunction with the electrical system.
Main fuse
If the main fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
 |
| Main fuse |
Information
If the main fuse is blown, consult an authorized HYUNDAI dealer.
If the main fuse is blown, consult an authorized HYUNDAI dealer.
Multi fuse
If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
 |
| Multi fuse |
Information - If the multi fuse is blown, consult an authorized HYUNDAI dealer.
Instrument fuse panel Description
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
 | |
| Instrument panel fuse panel location |
 |

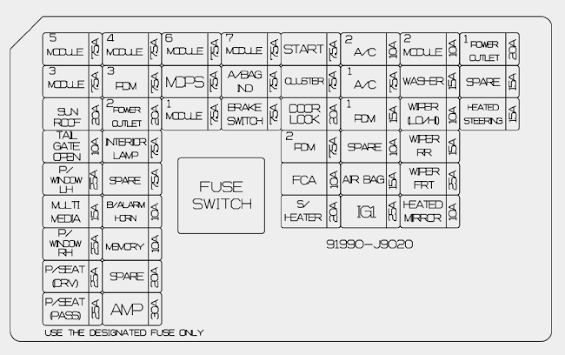

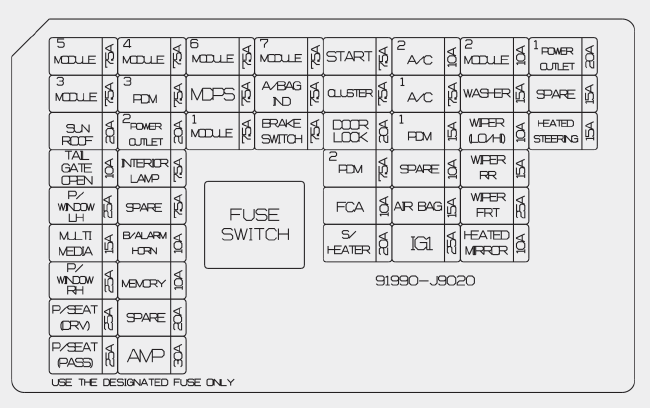

| Instrument fuse panel Diagram |
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
Fuse Name .. Fuse Rating ... Protected Component
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
Instrument panel fuse specification chart
Fuse Name .. Fuse Rating ... Protected Component
MODULE 5 7.5A ATM Shift Lever IND., Electro Chromic Mirror, AMP, A/V & Navigation Head Unit, A/C Control Module, Front Air Ventilation Seat Module, Front Seat Warmer Module
MODULE 3 7.5A Stop Lamp Switch, BCM, ATM Shift Lever
SUNROOF 20A Sunroof Unit
TAIL GATE OPEN 10A Tail Gate Relay
P/WINDOW LH 25A Power Window LH Relay, Driver Safety Power Window Module
MULTI MEDIA 15A A/V & Navigation Head Unit
P/WINDOW RH 25A Power Window RH Relay, Passenger Safety Power Window Module
P/SEAT (DRV) 25A Driver Seat Manual Switch
P/WINDOW LH 25A Power Window LH Relay, Driver Safety Power Window Module
MULTI MEDIA 15A A/V & Navigation Head Unit
P/WINDOW RH 25A Power Window RH Relay, Passenger Safety Power Window Module
P/SEAT (DRV) 25A Driver Seat Manual Switch
P/SEAT (PASS) 25A Passenger Seat Manual Switch
MODULE 4 7.5A Blind-Spot Collision Warning Unit LH/RH, Active Air Flap, BCM, Parking Distance Warning Buzzer, Lane Keeping Assist Unit (Line), 4WD ECM
PDM3 7.5A Smart Key Control Module, Immobilizer Module
POWER OUTLET 2 20A ICM Relay Box(Power Outlet Relay)
MODULE 4 7.5A Blind-Spot Collision Warning Unit LH/RH, Active Air Flap, BCM, Parking Distance Warning Buzzer, Lane Keeping Assist Unit (Line), 4WD ECM
PDM3 7.5A Smart Key Control Module, Immobilizer Module
POWER OUTLET 2 20A ICM Relay Box(Power Outlet Relay)
INTERIOR LAMP 7.5A Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Wiresess Charger Unit, Driver Console Switch, Luggage Lamp
B/ALARM HORN 10A ICM Relay Box(Burglar Alarm Horn Relay)
MEMORY 10A A/C Control Module, Head Up Display, Instrument Cluster, Electro Chromic Mirror AMP 30A AMP
MODULE 6 7.5A Smart Key Control Module, BCM
MDPS 7.5A MDPS Unit
MODULE 1 7.5A Active Air Flap, Ignition key Interlock Switch, BCM, Hazard Switch, Data Link Connector, Rain sensor
MODULE 7 7.5A Front Air Ventilation Seat Module, Front Seat Warmer Module
A/BAG IND 7.5A Instrument Cluster, A/C Control Modulee
BRAKE SWITCH 7.5A Stop Lamp Switch, Smart Key Control Module
START 7.5A Transaxle Range Switch(A/T), ECM, ICM Relay Box (Burglar Alarm Relay)
CLUSTER 7.5A Head Up Display, Instrument Cluster
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, ICM Relay Box(Two Turn Unlock Relay)
PDM 2 7.5A Start/Stop Button Switch, Immobilizer Module
FCA 10A Forward Collision Avoidance Assist Unit
S/HEATER 20A Front Seat Warmer Module, Front Air Ventilation Seat Module
A/C 2 20A A/C Control Module, Blower Motor, Blower Resistor, E/R Junction Block (Blower Relay)
A/C 1 7.5A A/C Control Module, E/R Junction Block(PTC Heater #2 Relay, Blower Relay, PTC Heater #1 Relay)
PDM 1 15A Smart Key Control Module
AIR BAG 15A SRS Control Module, Passenger Occupant Detection Sensor
IG1 25A PCB Block(FUSE : ABS 3, ECU 5, SENSOR 4, TCU 2)
MODULE2 10A Wiresess Charger Unit, Smart Key Control Module, BCM, A/V & Navigation Head Unit, ICM Relay Box(Power Outlet Relay), Power Outside Mirror Switch, AMP
WASHER 15A Muntifunction Switch
B/ALARM HORN 10A ICM Relay Box(Burglar Alarm Horn Relay)
MEMORY 10A A/C Control Module, Head Up Display, Instrument Cluster, Electro Chromic Mirror AMP 30A AMP
MODULE 6 7.5A Smart Key Control Module, BCM
MDPS 7.5A MDPS Unit
MODULE 1 7.5A Active Air Flap, Ignition key Interlock Switch, BCM, Hazard Switch, Data Link Connector, Rain sensor
MODULE 7 7.5A Front Air Ventilation Seat Module, Front Seat Warmer Module
A/BAG IND 7.5A Instrument Cluster, A/C Control Modulee
BRAKE SWITCH 7.5A Stop Lamp Switch, Smart Key Control Module
START 7.5A Transaxle Range Switch(A/T), ECM, ICM Relay Box (Burglar Alarm Relay)
CLUSTER 7.5A Head Up Display, Instrument Cluster
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, ICM Relay Box(Two Turn Unlock Relay)
PDM 2 7.5A Start/Stop Button Switch, Immobilizer Module
FCA 10A Forward Collision Avoidance Assist Unit
S/HEATER 20A Front Seat Warmer Module, Front Air Ventilation Seat Module
A/C 2 20A A/C Control Module, Blower Motor, Blower Resistor, E/R Junction Block (Blower Relay)
A/C 1 7.5A A/C Control Module, E/R Junction Block(PTC Heater #2 Relay, Blower Relay, PTC Heater #1 Relay)
PDM 1 15A Smart Key Control Module
AIR BAG 15A SRS Control Module, Passenger Occupant Detection Sensor
IG1 25A PCB Block(FUSE : ABS 3, ECU 5, SENSOR 4, TCU 2)
MODULE2 10A Wiresess Charger Unit, Smart Key Control Module, BCM, A/V & Navigation Head Unit, ICM Relay Box(Power Outlet Relay), Power Outside Mirror Switch, AMP
WASHER 15A Muntifunction Switch
WIPER (LO/HI) 10A BCM, PCB Block (Front Wiper (Low) Relay), Front Wiper Motor
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor
WIPER FRT 25A Front Wiper Motor, PCB Block(Front Wiper(Low) Relay)
HEATED MIRROR 10A Driver/Passenger Power Outside Mirror, A/C Control Module, ECM
POWER OUTLET 1 20A Cigarette Lighter
HEATED STEERING 15A BCM
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor
WIPER FRT 25A Front Wiper Motor, PCB Block(Front Wiper(Low) Relay)
HEATED MIRROR 10A Driver/Passenger Power Outside Mirror, A/C Control Module, ECM
POWER OUTLET 1 20A Cigarette Lighter
HEATED STEERING 15A BCM
Engine compartment fuse panel
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
 |
| Engine compartment fuse panel |
 |
| Engine compartment fuse panel Diagram |
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
Fuse Name ... Fuse Rating ... Protected Component
ALT 150A E/R Junction Block (Fuse - ABS 1, ABS 2, 4WD), Alternator
MDPS 80A MDPS Unit
B+5 60A PCB Block ((Fuse - HORN, H/LAMP HI, A/C, ECU 4, ECU 3), Engine Control Relay)
B+2 60A IGPM ((Fuse - S/HEATER), IPS0, IPS1, IPS2)
B+3 60A IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8)
B+4 50A IGPM (Fuse - P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN, SUNROOF, B/ALARM HORN, POWER OUTLET 2, AMP, P/SEAT (PASS),P/SEAT (DRV))
COOLING FAN 60A/50A E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay)
REAR HEATED 40A E/R Junction Block (Rear Defogger Relay)
BLOWER 40A E/R Junction Block (Blower Relay)
IG1 40A W/O Smark Key : Ignition Switch With Smark Key : E/R Junction Block (PDM #3 (IG1) Relay, PDM #2 (ACC) Relay)
IG2 40A W/O Smark Key : Ignition Switch, E/R Junction Block (Srart #1 Relay) With Smark Key : E/R Junction Block (PDM #4 (IG2) Relay, Srart #1 Relay)
PTC HEATER 1 50A E/R Junction Block (PTC Heater #1 Relay)
PTC HEATER 2 50A E/R Junction Block (PTC Heater #2 Relay)
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
Engine compartment fuse specification chart
Fuse Name ... Fuse Rating ... Protected Component
ALT 150A E/R Junction Block (Fuse - ABS 1, ABS 2, 4WD), Alternator
MDPS 80A MDPS Unit
B+5 60A PCB Block ((Fuse - HORN, H/LAMP HI, A/C, ECU 4, ECU 3), Engine Control Relay)
B+2 60A IGPM ((Fuse - S/HEATER), IPS0, IPS1, IPS2)
B+3 60A IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8)
B+4 50A IGPM (Fuse - P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN, SUNROOF, B/ALARM HORN, POWER OUTLET 2, AMP, P/SEAT (PASS),P/SEAT (DRV))
COOLING FAN 60A/50A E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay)
REAR HEATED 40A E/R Junction Block (Rear Defogger Relay)
BLOWER 40A E/R Junction Block (Blower Relay)
IG1 40A W/O Smark Key : Ignition Switch With Smark Key : E/R Junction Block (PDM #3 (IG1) Relay, PDM #2 (ACC) Relay)
IG2 40A W/O Smark Key : Ignition Switch, E/R Junction Block (Srart #1 Relay) With Smark Key : E/R Junction Block (PDM #4 (IG2) Relay, Srart #1 Relay)
PTC HEATER 1 50A E/R Junction Block (PTC Heater #1 Relay)
PTC HEATER 2 50A E/R Junction Block (PTC Heater #2 Relay)
TCU 1 15A TCM
VACUUM PUMP 20A Vacuum Pump
FUEL PUMP 20A E/R Junction Block (Fuel Pump Relay)
B+1 40A IGPM ((Fuse - BRAKE SWITCH, PDM 1, DOOR LOCK, MODULE 1, PDM 2), Leak Current Autocut Device)
DCT1 40A TCM
DCT2 40A TCM
4WD 20A 4WD ECM
ABS 1 40A ESC Control Module, Multipurpose Check Connector
ABS 2 30A ESC Control Module
FUEL PUMP 20A E/R Junction Block (Fuel Pump Relay)
B+1 40A IGPM ((Fuse - BRAKE SWITCH, PDM 1, DOOR LOCK, MODULE 1, PDM 2), Leak Current Autocut Device)
DCT1 40A TCM
DCT2 40A TCM
4WD 20A 4WD ECM
ABS 1 40A ESC Control Module, Multipurpose Check Connector
ABS 2 30A ESC Control Module
Engine compartment fuse panel - GAMMA 1.6L T-GDI
Fuse Name ... Fuse Rating ... Protected Component
SENSOR 2 10A PCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #1 Relay), Purge Control Solenoid Valve, RCV Control Solenoid Valve, Oil Control Valve #1~#2, Canister Close Valve
ECU 2 10A ECM
ECU 1 20A ECM
INJECTOR 15A -
SENSOR 1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A Ignition Coil #1~#4
ECU 3 15A ECM
A/C 10A PCB Block (A/CON Relay)
ECU 5 10A ECM
SENSOR 4 15A Vacuum Pump
ABS 3 10A ESC Control Module, Multipurpose Check Connector
TCU 2 15A TCM, Transaxle Range Switch
SENSOR 3 10A E/R Junction Block (Fuel Pump Relay)
ECU 4 15A ECM
H/LAMP HI 10A PCB Block (Head Lamp(High) Relay)
HORN 15A PCB Block (Horn Relay)
SENSOR 2 10A PCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #1 Relay), Purge Control Solenoid Valve, RCV Control Solenoid Valve, Oil Control Valve #1~#2, Canister Close Valve
ECU 2 10A ECM
ECU 1 20A ECM
INJECTOR 15A -
SENSOR 1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A Ignition Coil #1~#4
ECU 3 15A ECM
A/C 10A PCB Block (A/CON Relay)
ECU 5 10A ECM
SENSOR 4 15A Vacuum Pump
ABS 3 10A ESC Control Module, Multipurpose Check Connector
TCU 2 15A TCM, Transaxle Range Switch
SENSOR 3 10A E/R Junction Block (Fuel Pump Relay)
ECU 4 15A ECM
H/LAMP HI 10A PCB Block (Head Lamp(High) Relay)
HORN 15A PCB Block (Horn Relay)
Engine compartment fuse panel - NU 2.0L MPI
Fuse Name ... Fuse Rating ... Protected Component
SENSOR 2 10A PCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay), Purge Control Solenoid Valve, Electronic Thermostat, Variable Intake Solenoid Valve, Oil Control Valve #1~#3, Canister Close Valve
ECU 2 10A -
ECU 1 20A PCM
INJECTOR 15A Injector #1~#4
SENSOR 1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A Ignition Coil #1~#4
ECU 3 15A PCM
A/C 10A PCB Block (A/CON Relay)
ECU 5 10A PCM
SENSOR 4 15A -
ABS 3 10A Multipurpose Check Connector, ESC Control Module
TCU 2 15A Transaxle Range Switch
SENSOR 3 10A E/R Junction Block (Fuel Pump Relay)
ECU 4 15A PCM
H/LAMP HI 10A PCB Block (Head Lamp(High) Relay)
HORN 15A PCB Block (Horn Relay)
SENSOR 2 10A PCB Block (A/CON Relay), E/R Junction Block (Cooling Fan #2 Relay, Cooling Fan #1 Relay), Purge Control Solenoid Valve, Electronic Thermostat, Variable Intake Solenoid Valve, Oil Control Valve #1~#3, Canister Close Valve
ECU 2 10A -
ECU 1 20A PCM
INJECTOR 15A Injector #1~#4
SENSOR 1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A Ignition Coil #1~#4
ECU 3 15A PCM
A/C 10A PCB Block (A/CON Relay)
ECU 5 10A PCM
SENSOR 4 15A -
ABS 3 10A Multipurpose Check Connector, ESC Control Module
TCU 2 15A Transaxle Range Switch
SENSOR 3 10A E/R Junction Block (Fuel Pump Relay)
ECU 4 15A PCM
H/LAMP HI 10A PCB Block (Head Lamp(High) Relay)
HORN 15A PCB Block (Horn Relay)
Engine compartment fuse panel (Battery terminal cover)
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
 |
| Engine compartment fuse panel (Battery terminal cover) |
 |
| Engine compartment fuse panel (Battery terminal cover) |
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
NOTICE
After checking the fuse panel in the engine compartment, securely install the cover. If it is not securely latched, electrical failure may occur from water contact.
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
NOTICE
After checking the fuse panel in the engine compartment, securely install the cover. If it is not securely latched, electrical failure may occur from water contact.
No comments:
Post a Comment
