| 2018 Honda Jazz (Fit) |
If any electrical devices are not working, turn the ignition switch to LOCK (0*1 and check to see if any applicable fuse is blown.
Engine Compartment Fuse Box
Fuse Box A
Located near the brake fluid reserve tank.
Push the tabs to open the box.
Locate the fuse in question by the following image and table.
Push the tabs to open the box.
Locate the fuse in question by the following image and table.
 |
| Engine Compartment Fuse Box Location |
 |
| Engine Compartment Fuse Panel Diagram |
Circuit Protected ... Amps
1 Headlight Low Beam Main 20 A
2 Contactor* (30 A)
3 Hazard 10 A
4 DBW 15 A
5 Wiper* (30 A)
6 Stop 10 A
7 IGP 15 A
8 IG Coil 15 A
9 ECP* (10 A)
10 INJ (20 A)
11 DC/DC2* (30 A)
12 Main Fan 30 A
13 Starter SW* (30 A)
14 MG Clutch 7.5 A
15 Battery Sensor 7.5 A
16 – –
17 DRL (Daytime Running Lights) 7.5 A
18 Horn 10 A
19 Front Fog Lights* (15 A)
20 UB ECU 7.5 A
21*2 Back Up1 15 A (2016 - 2017 Model - Capacitor*1)
21*3 Back Up1 10 A (2016 - 2017 Model - DC/DC converter*1)
22 Interior Light 7.5 A
23 Sub Fan* (30 A)
24 DC/DC 1* 30 A
25 Starter* (7.5 A)
26 CAM SNSR (7.5 A)
27 – –
28 ST MG* (7.5 A) (2019 - 2020 Models --- None)
29*2 Back Up2 10 A (2016 - 2017 Model - Capacitor*1)
29*3 Back Up2 30 A (2016 - 2017 Model - DC/DC converter*1)
30 IGP LAF 10 A
31 IGPS 7.5 A
32 Right Headlight Low Beam 10 A
33 Left Headlight Low Beam 10 A
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
*2: Except SE and TREND models with continuously variable transmission.
*3: SE and TREND models with continuously variable transmission.
1 Headlight Low Beam Main 20 A
2 Contactor* (30 A)
3 Hazard 10 A
4 DBW 15 A
5 Wiper* (30 A)
6 Stop 10 A
7 IGP 15 A
8 IG Coil 15 A
9 ECP* (10 A)
10 INJ (20 A)
11 DC/DC2* (30 A)
12 Main Fan 30 A
13 Starter SW* (30 A)
14 MG Clutch 7.5 A
15 Battery Sensor 7.5 A
16 – –
17 DRL (Daytime Running Lights) 7.5 A
18 Horn 10 A
19 Front Fog Lights* (15 A)
20 UB ECU 7.5 A
21*2 Back Up1 15 A (2016 - 2017 Model - Capacitor*1)
21*3 Back Up1 10 A (2016 - 2017 Model - DC/DC converter*1)
22 Interior Light 7.5 A
23 Sub Fan* (30 A)
24 DC/DC 1* 30 A
25 Starter* (7.5 A)
26 CAM SNSR (7.5 A)
27 – –
28 ST MG* (7.5 A) (2019 - 2020 Models --- None)
29*2 Back Up2 10 A (2016 - 2017 Model - Capacitor*1)
29*3 Back Up2 30 A (2016 - 2017 Model - DC/DC converter*1)
30 IGP LAF 10 A
31 IGPS 7.5 A
32 Right Headlight Low Beam 10 A
33 Left Headlight Low Beam 10 A
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
*2: Except SE and TREND models with continuously variable transmission.
*3: SE and TREND models with continuously variable transmission.
Fuse Box B
 |
| Fuse Box B |
Pull up the cover on the + terminal, then remove it while pulling out the tab as shown.
Replacement of engine compartment fuses should be done by a dealer.
Circuit protected and fuse rating
a Battery Main 100 A
b RB Main 1 70 A
c RB Main 2 80 A
d CAP Main 70 A

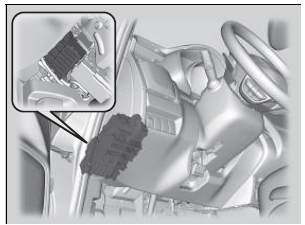

Driver Side Interior Fuse Box
Fuse Box A
Located behind the instrument panel.
Locate the fuse in question by the following image and table.
 |
| Driver Side Interior Fuse Box, Type A , Located behind the instrument panel. |
 |
| Driver Side Interior Fuse Panel Diagram |
Circuit Protected ... Amps
1 Door Lock 20 A
2 – –
3 Keyless Access System* (10 A) (2019 - 2020 Models - Smart* 10A)
4 Left (Driver) Side Door Unlock 15 A
5 Right (Passenger) Side Door Unlock 15 A
6 – – (2019 - 2020 Models - Driver Door Unlock (10 A))
7 – – (2019 - 2020 Models - Driver Door Lock (10 A))
8 Driver’s Power Window 20 A
9 Passenger’s Power Window 20 A
10 Rear Left Power Window 20 A
11 Rear Right Power Window 20 A
12 Left (Driver) Side Door Lock 15 A
13 Right (Passenger) Side Door Lock 15 A
14 Rear Fog Light 10 A (2019 - 2020 Models -- None)
15 Right Headlight High Beam 10 A
16 STS* (7.5 A)
17 – –
18 – – (2019 - 2020 Models - Moonroof* (20 A))
19 Front Heated Seat* (20 A)
20 – –
1 Door Lock 20 A
2 – –
3 Keyless Access System* (10 A) (2019 - 2020 Models - Smart* 10A)
4 Left (Driver) Side Door Unlock 15 A
5 Right (Passenger) Side Door Unlock 15 A
6 – – (2019 - 2020 Models - Driver Door Unlock (10 A))
7 – – (2019 - 2020 Models - Driver Door Lock (10 A))
8 Driver’s Power Window 20 A
9 Passenger’s Power Window 20 A
10 Rear Left Power Window 20 A
11 Rear Right Power Window 20 A
12 Left (Driver) Side Door Lock 15 A
13 Right (Passenger) Side Door Lock 15 A
14 Rear Fog Light 10 A (2019 - 2020 Models -- None)
15 Right Headlight High Beam 10 A
16 STS* (7.5 A)
17 – –
18 – – (2019 - 2020 Models - Moonroof* (20 A))
19 Front Heated Seat* (20 A)
20 – –
21 – –
22 Washer 15 A
23 Rear Wiper Main* (10 A)
24 A/C 7.5 A
25 Daytime Running Lights 7.5 A
26 Starter* (7.5 A) (2019 - 2020 Models - Starter Cut 7.5 A)
27 ABS/VSA 7.5 A
28 SRS1 10 A
29 Left Headlight High Beam 10 A
30 ACG 10 A
31 Power Window 10 A
32 Fuel Pump 15 A
33 SRS2 7.5 A
34 Meter 7.5 A
35 Mission SOL* (7.5 A)
36 Front ACC Socket 20 A (Cigarette Lighter)
37 ACC 7.5 A
38 ACC Key Lock (7.5 A)
39 Option 10 A
40 Rear Wiper 10 A
41 – –
42 – –
22 Washer 15 A
23 Rear Wiper Main* (10 A)
24 A/C 7.5 A
25 Daytime Running Lights 7.5 A
26 Starter* (7.5 A) (2019 - 2020 Models - Starter Cut 7.5 A)
27 ABS/VSA 7.5 A
28 SRS1 10 A
29 Left Headlight High Beam 10 A
30 ACG 10 A
31 Power Window 10 A
32 Fuel Pump 15 A
33 SRS2 7.5 A
34 Meter 7.5 A
35 Mission SOL* (7.5 A)
36 Front ACC Socket 20 A (Cigarette Lighter)
37 ACC 7.5 A
38 ACC Key Lock (7.5 A)
39 Option 10 A
40 Rear Wiper 10 A
41 – –
42 – –
* Not available on all models
Locate the fuse in question by the following image and table.
Type B
Remove the cover by putting the flat-tip screwdriver into the side slot as shown.Locate the fuse in question by the following image and table.
 |
| Driver Side Interior Fuse Box, Type B Location |
 |
| Driver Side Interior Fuse Box, Type B Panel Diagram |
Circuit protected and fuse rating
Circuit Protected ... Amps
1EPS 70 A
IG Main ... 50 A*1 , 30 A*2
Fuse Box Main 2 50 A
ABS/VSA Motor 40 A
Fuse Box Main 1 30 A
Fuse Box Main 3 40 A
2 – –
3 Heater 30 A
4*2 IG Main (30 A)
5 ABS/VSA FSR 30 A
6 ISA* (15 A)
7 – –
8 Super Lock* (20 A)
9 Small Light 10 A
10 Centre Accessory Socket* (20 A)
11 Rear Demister 30 A
12*1 Key ACC Lock (7.5 A)
13 Heated Door Mirror* (10 A)
14 A/C Blower SW (7.5 A)
15*1 Front Wiper (30 A)
*1: Models without the keyless access system
*2: Models with the keyless access system
3 Heater 30 A
4*2 IG Main (30 A)
5 ABS/VSA FSR 30 A
6 ISA* (15 A)
7 – –
8 Super Lock* (20 A)
9 Small Light 10 A
10 Centre Accessory Socket* (20 A)
11 Rear Demister 30 A
12*1 Key ACC Lock (7.5 A)
13 Heated Door Mirror* (10 A)
14 A/C Blower SW (7.5 A)
15*1 Front Wiper (30 A)
*1: Models without the keyless access system
*2: Models with the keyless access system
Left-hand drive type
Type C
Located near the steering column.
Fuse locations are shown on the label.
Locate the fuse in question by the fuse number and label number.
Located near the steering column.
Fuse locations are shown on the label.
Locate the fuse in question by the fuse number and label number.
 |
| Left-hand drive type , Type C , Located near the steering column |
Right-hand drive type
 |
| Right-hand drive type - Passenger Side Interior Fuse Box |
1. Open the glove box.
2. Disengage the two tabs by pushing on each side panel.
3. Pivot the glove box out of the way.
Fuse locations are shown on the label.
Locate the fuse in question by the fuse number and label number.
Locate the fuse in question by the fuse number and label number.
 |
| Fuse Label |
... Circuit Protected ... Amps
1 – – –
2 IG1-2 7.5 A
3 Power Oil Pump (10 A)
4 – – –
5 Accessory 7.5 A
6 IG1-1 7.5 A
7 Back Up 15 A
Inspecting and Changing Fuses
 |
| Inspecting and Changing Fuses |
1. Turn the ignition switch to LOCK (0*1. Turn headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuses on the battery in the engine compartment.
- If the fuse is blown, have it replaced by a dealer.
4. Inspect the small fuses in the engine compartment and the vehicle interior.
- If there is a blown fuse, remove it and replace it with a new one.
5. Check the large fuse in the vehicle interior.
3. Check the large fuses on the battery in the engine compartment.
- If the fuse is blown, have it replaced by a dealer.
4. Inspect the small fuses in the engine compartment and the vehicle interior.
- If there is a blown fuse, remove it and replace it with a new one.
5. Check the large fuse in the vehicle interior.
If the fuse is blown, use a phillips-head screwdriver to remove the screw and replace it with a new one.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.
NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
Replace fuse with a spare fuse of the same specified amperage.
Use the charts to locate the fuse in question and confirm the specified amperage.
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
Replace fuse with a spare fuse of the same specified amperage.
Use the charts to locate the fuse in question and confirm the specified amperage.
