2015 - 2016 Kia Sportage Fuse Box Diagram

2015 Kia Sportage



Fuses and Relays



A vehicle’s electrical system is protected from electrical overload damage by fuses.

This vehicle has 2 fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.

If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.

If the electrical system does not work, first check the driver’s side fuse panel.

Before replacing a blown fuse, disconnect the negative battery cable.

Always replace a blown fuse with one of the same rating.

If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.

Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and  multi fuse for higher amperage ratings.

WARNING - Fuse replacement

• Never replace a fuse with anything but another fuse of the same rating.

• A higher capacity fuse could cause damage and possibly a fire.

• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary  repair. It may cause extensive wiring damage and a possible fire.

CAUTION - Fuse replacement

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

WARNING - Electrical Fire

• When replacing a blown fuse or relay with a new one, make sure the new fuse or relay fits

tightly into the clips The incomplete fastening fuse or relay may cause the vehicle wiring and electric systems damage and a possible fire.

• Do not remove fuses, relays and terminals fastened with bolts or nuts. The fuses, relays and terminals may be fastened incompletely, and it may cause a possible fire. If fuses,  relays and terminals fastened with bolts or nuts are blown, we recommend that you consult with an authorized Kia dealer.

CAUTION - Fuse Replacement

Do not input any other objects except fuses or relays into fuse/relay terminals such as a driver or wiring. It may cause contact failure and system malfunction.

Inner panel fuse replacement



1.Turn the ignition switch and all other switches off.

2.Open the fuse panel cover.

3.Pull the suspected fuse straight out. Use the removal tool provided on the engine compartment fuse panel cover.

4.Check the removed fuse; replace it if it is blown. Spare fuses are provided in the engine compartment fuse panel.

5.Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized Kia dealer.

Inner panel fuse replacement



If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the power outlet fuse.

If the headlights or other electrical components do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.

Memory fuse



Your vehicle is equipped with a memory fuse to prevent battery discharge if your vehicle is parked without being operated for prolonged periods.

Use the following procedures before parking the vehicle for prolonged periods.

1.Turn off the engine.

2.Turn off the headlights and tail lights.

3.Open the driver’s side panel cover and pull out the memory fuse.

memory fuse raplacement

Engine compartment fuse replacement

1.Turn the ignition switch and all other switches off.

2.Remove the fuse panel cover by pressing the tab and pulling the cover up.

3.Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4.Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized Kia dealer

Engine compartment fuse replacement



Main fuse and multi fuse

If the main fuse and multi fuse is blown, it must be removed as follows:

1.Disconnect the negative battery cable.

2.Remove the nuts shown in the picture above.

3.Replace the fuse with a new one of the same rating.

4.Reinstall in the reverse order of removal.

Main fuse and multi fuse



Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.





Instrument panel fuse panel Cover



 Instrument fuse panel Diagram

Instrument fuse panel Diagram

Inner fuse Table



Fuse Name -  Fuse rating - Protected component

POWER CONNECTOR

    AUDIO 20A Audio

    RF_ANT 7.5A RF Receiver

A/BAG 15A SRS Control Module, Passenger Occupant Detection Sensor, Telltale & SBR Lamp

S/HEATER FRT 15A Driver/Passenger Seat Warmer Switch

S/HEATER RR 15A Rear Seat Warmer LH/RH

A/CON 7.5A A/C Control Module (Auto)

HTD MIRR 7.5A A/C Control Module, Driver/Passenger Power Outside Mirror

CLUSTER 10A Driver/Passenger Seat Warmer Switch, Driver CCS Control Module, Instrument Cluster, Tire Pressure Monitoring Module, Audio, Alternator, BCM, A/C Control Module, Telltale & SBR Lamp

IG2 A 10A BCM, Smart Key Control Module, IPS Control Module (IG2)

WIPER RR 15A Rear Wiper Motor, Multifunction Switch (Wiper), ICM Relay Box (Rear Wiper Relay)

IG2 B 10A Cluster Ionizer, A/C Control Module, Rain Sensor, Sunroof Motor, Electro Chromic Mirror, E/R Fuse & Relay Box (Blower Relay)

POWER OUTLET 2 20A Rear Power Outlet, Front Power Outlet LH, Front Cigarette Lighter

A/BAG IND 10A Instrument Cluster (A/Bag IND.)

SMART KEY 2 10A Smart Key Control Module

WIPER FRT 25A Front Wiper Motor, Multifunction Switch (Wiper), E/R Fuse & Relay Box (Front Wiper (Low) Relay, Wiper (Rain Sensor) Relay)

POWER OUTLET 1 15A Front Power Outlet RH

SMART KEY 1 10A BCM, Smart Key Control Module

ACC 10A Audio, Amp, Sunroof Control Module, Power Outside Mirror Switch

START 10A Burglar Alarm Relay (With Burglar Alarm), E/R Fuse & Relay Box (Start Relay : W/O Burglar Alarm & Smart Key), Smart Key Control Module (W/O Burglar Alarm & With Smart Key)

MODULE IG1 10A EPS Control Module, ATM Shift Lever ILL., 4WD ECM, Stop Lamp Switch, IPS Control Module (IG1)

UH_BOX 20A E/R Fuse & Relay Box (ECU 2 7.5A, ABS 7.5A, TCU 2 7.5A)

ROOM LP 10A BCM, Map Lamp, Room Lamp, Driver/Passenger Vanity Lamp, Electro Chromic Mirror, Luggage Lamp, Ignition Key ILL. & Door Warning Switch, Tire Pressure Monitoring Module, Instrument Cluster (MCU, IND.), A/C Control Module, IPS Control Module (B+)

PDM B 10A Start/Stop Button Switch, Smart Key Control Module

DR LOCK 15A Door Lock Relay, Door Unlock Relay, Tail Gate Relay, ICM Relay Box (Two Turn Unlock Relay)

HAZARD 15A BCM

FOG LP RR 10A (Not Used)

PDM A 25A Smart Key Control Module

ATM K/LOCK 7.5A ATM Shift Lever, Key Solenoid

CORNERING LAMP 10A (Not Used)

SEAT VENT 15A Driver CCS Seat Warmer

P/WDW RH 25A Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH

P/WDW LH 25A Rear Power Window Switch LH, Power Window Main Switch

SAFETY POWER WINDOW 20A Driver Safety Power Window Module

P/SEAT(DRV) 20A Driver Seat Manual Switch

MODULE B+ 10A Multipurpose Check Connector, Data Link Connector, Driver CCS Switch, Rear Parking Assist Buzzer

SUNROOF 15A Sunroof Motor, Sunroof Control Module

AMP 25A Amp

HTD_STRG 15A Heated steering wheel (2015 Model)

Engine compartment fuse panel

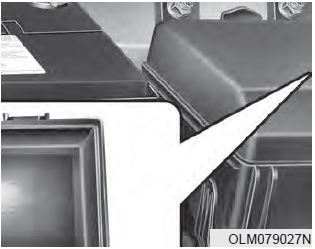

Engine compartment fuse panel Location

Engine compartment fuse panel Diagram

Engine Compartment Fuse Box Cover

Engine Compartment Fuse Box Cover schema

Engine compartment fuse Specification Chart



Fuse Name .. Fuse rating .. Protected component

MULTI FUSE
MDPS 80A EPS Control Module
B+1 60A I/P Junction Box (PDM A 25A, DR LOCK 15A, HAZARD 15A, IPS 4~7)
ABS 2 40A ESC Module
EMS 40A EMS Box (TCU 1 15A, ECU 30A, A/CON 10A, F/PUMP 15A)
ABS 1 40A ESC Module
BLOWER 40A Blower Relay
B+3 60A I/P Junction Box (P/SEAT(DRV) 20A, SAFETY POWER WINDOW 20A, PDM B 10A, ATM
K/LOCK 7.5A, SEAT VENT 15A, Power Connector (AUDIO 20A, RF_ANT 7.5A),
ROOM LP 10A)
B+2 60A I/P Junction Box (Power Window Relay, SUNROOF 15A, AMP 25A, MODULE B+ 10A, IPS 0~3, IPS 8~10)


FUSE
C/FAN (MPI engine) 40A Cooling Fan (High) Relay, Cooling Fan (Low) Relay
C/FAN (T-GDI engine) 50A Cooling Fan (High) Relay, Cooling Fan (Low) Relay
RR HTD 40A Rear Defogger Relay
IG 1 30A PDM Relay Box (IGN1/ACC Relay : With Smart Key), Ignition Switch (W/O Smart Key)
IG 2 40A PDM Relay Box (IGN2 Relay : With Smart Key), Ignition Switch (W/O Smart Key)
HORN 15A Horn Relay
DEICER 15A Front Wiper Deicer Relay
STOP LP 10A Stop Lamp Switch, Smart Key Control Module, ICM Relay Box (DBC Relay)
4WD 20A 4WD ECU
AMS 10A Battery Sensor
TCU 2 (MPI engine) 7.5A Transaxle Range Switch
TCU 2 (T-GDI engine) 7.5A Transaxle Range Switch, Vacuum Switch, Vacuum Pump Relay
ABS 7.5A ESC Module, ICM Relay Box (DBC Relay), Multi Switch
ECU 2 7.5A ATM P/N Relay, PCM, Multifunction Switch (Remote Control)
V_PUMP (T-GDI engine) 20A Vacuum Pump Relay



Engine compartment main fuse panel (EMS Box)



 Fuse Name .. Fuse rating .. Protected component

F/PUMP 15A Fuel Pump Relay
SENSOR 4 15A Fuel Pump Relay, PCM, Oxygen Sensor (Up)/(Down), E/R Fuse & Relay Box (Cooling Fan (High)/(Low) Relay)
SENSOR 3 10A A/CON Relay, Injector #1~#4
SENSOR 2 10A (Not Used)
TCU 1 15A PCM
A/CON 10A A/CON Relay
SENSOR 1 (MPI engine) 10A Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2Canister Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve
SENSOR 1 (T-GDI engine) 10A Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2Canister Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve, RCV
ECU 1 20A Ignition Coil #1~#4, Condenser
ECU 30A Engine Control Relay
