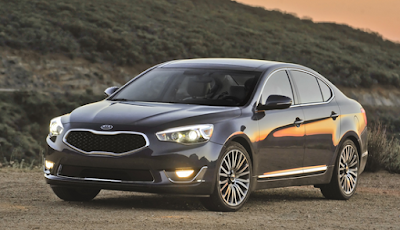

| 2015 Kia Cadenza |
Fuses Type
 |
| Fuses Types: Blade, Cartridge, Multi Fuse, Main Fuse - Nonmal and Blown |
A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
Before replacing a blown fuse, disconnect the negative battery cable.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia Premium dealer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
This vehicle has 2 fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
Before replacing a blown fuse, disconnect the negative battery cable.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia Premium dealer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
WARNING - Fuse replacement
• Never replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly a fire.
• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.
short circuit and damage the system.
2. Open the fuse panel cover.
3. Pull the suspected fuse straight out. Use the fuse puller provided in the engine compartment fuse panel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
• A higher capacity fuse could cause damage and possibly a fire.
• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.
CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a
short circuit and damage the system.

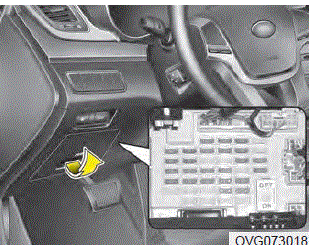

Instrument panel fuse replacement
1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
3. Pull the suspected fuse straight out. Use the fuse puller provided in the engine compartment fuse panel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
 |
| Instrument panel fuse replacement |
If it fits loosely, consult an authorized Kia Premium dealer. If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.
If the headlights or other electrical components do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.
Fuse switch
Always, put the fuse switch at the ON position.If you move the switch to the OFF position, some items such as audio and digital clock must be reset and transmitter (or smart key) may not work properly.
 |
| Fuse switch |

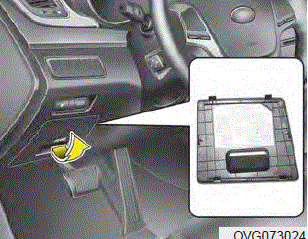

Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
 |
| Instrument fuse panel Location |
 |
| Instrument panel (Driver’s side fuse panel) |
Instrument Fuse panel Specification Chart (Driver’s side fuse panel)
NO. Fuse ... rating.... Description..... Protected componentMF1 10A MODULE 2 Tilt & Telescopic Module, Instrument cluster, Driver/Passenger Seat Warmer Module, Rear Seat Warmer Module LH/RH, IMS Control Module, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor LH/RH(Center), Driver/Passenger Door Module, LDWS Camera Module, Electro Chromic Mirror, Room Lamp, MTS Module, Driver/Passenger CCS Control Module, Head Lamp Leveling Device Switch, Auto Head Lamp Leveling Device Module, Front Parking Assist Sensor LH/RH, Head Lamp Leveling Device Actuator LH/RH, Console SW, BSD (Blind Spot Detection) Unit LH/RH Rear P/WDW HEATED Module
MF2 10A PDM 3 PDM, Smart Key Control Module
MF3 10A HTD MRR Driver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module
MF4 10A MEMORY 1 Auto Light & Photo Sensor, Data Link Connector, Driver/Passenger Foot Lamp, Instrument Cluster, Digital Clock, Rear Curtain Module, A/C Control Module, Room Lamp, Driver/Passenger Door Module
MF5 15A MULTI MEDIA MTS Module, Audio, A/V & Navigation Head Unit, Audio Monitor
MF6 10A MDPS MDPS_SIG
MF7 10A MEMORY 2 RF Receiver
MF8 15A SPARE SPARE
MF9 10A SPARE SPARE
MF10 15A SPARE SPARE
MF11 20A S/HEATER FRT Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module
MF12 10A A/BAG IND Instrument Cluster
MF13 15A HTD STRG Steering Wheel Heater
MF14 10A CURTAIN Rear Curtain Module, Driver/Passenger Door Module
MF15 25A P/SEAT PASS Passenger Manual Switch
MF16 25A AMP AMP
MF17 25A P/WDW RH Passenger Door Module, Rear Power Window Switch RH
MF18 25A P/WDW LH Driver Safety Power Window Switch, Rear Power Window Switch LH
MF19 15A A/BAG SRS Control Module
MF20 10A A/CON Ionizer, Ionizer (IND.), A/C Control Module, E/R Fuse & Relay Box (RLY. 14)
MF21 10A AUDIO Smart Key Control Module, Rear Audio Switch, Amp, Audio Monitor, Overhead Console Lamp Switch, PDM, MTS Module, Audio, A/V & Navigation Head Unit, digital clock
MF22 10A INTERIOR LAMP Garnish Lamp LH/RH/Conter, Room Lamp, Driver/Passenger Vanity Lamp Switch, Overhead Console Lamp Switch, Rear Door Mood Lamp LH/RH, Driver/Passenger Door Mood Lamp, Driver/Passenger Door Scuff Lamp, Driver/Passenger Door Lamp, Trunk Room Lamp
MF23 20A SUNROOF Panorama Sunroof
MF24 10A TRUNK Fuel Filler Door Switch, Trunk Lid Relay
MF25 20A S/HEATER RR Rear Seat Warmer Module LH/RH
MF26 10A MODULE 3 ESP Control Module, ABS Control Module, Electric Parking Brake Module, Steering Angle Sensor, ESP Off Switch, Console Switch
MF27 10A MODULE 1 PDM, ICM Relay Box (Head Lamp Washer Relay), Panorama Sunroof, Rear Curtain Module, Driver Active Seat Module, Rain Sensor
MF28 15A POWER OUTLET Console Power Outlet
MF29 25A PDM Smart Key Control Module, Fob Holder
MF30 15A P/HANDLE Key Solenoid, Tilt & Telescopic Module, Sport Mode Switch
MF31 10A BRAKE SWITCH PDM, Start Stop Button Switch
MF32 20A DR/LOCK Driver Door Module
MF33 20A IG1 E/R Fuse & Relay Box (F12 15A, F11 10A, F10 10A)
MF34 25A WIPER E/R Fuse & Relay Box (RLY. 11, RLY.12), Front Wiper Motor, Multifunction Switch
MF35 20A C/Lighter Front Cigarette Lighter
MF36 10A START Transaxle Range Switch, PCM
Engine compartment fuse replacement
Multi fuse
 |
| Multi fuse Location |
If the multi fuse is blown, it must be removed as follows:
1. Remove the fuse panel in the engine compartment.
2. Remove the nuts shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
2. Remove the nuts shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
✽ NOTICE
If the multi fuse is blown, consult an authorized Kia Premium dealer.
Engine compartment fuse panel
 |
| Engine compartment fuse panel Location |
 |
| Engine compartment fuse panel Diagram |
 |
| Engine room Battery Terminal Fuse Box Location |
 |
| Engine room Battery Terminal Fuse Panel Diagram |
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
Engine compartment main fuse panel
NO. Fuse rating Description Protected component
MULTI FUSE
F1 60A 2B+ IPM (F7, F8, F9, F10, F11, IPS1, IPS2, IPS3, IPS5, IPS7)
F2 60A 3B+ IPM (F14, F15, F17, F18, F25)
F3 40A IG1 W/O Smart Key : Ignition Switch / With Smart Key : E/R Fuse & Relay Box (RLY. 1, RLY. 9)
F4 40A 1ABS ABS Control,ESP Control
F5 40A RR HTD E/R Fuse & Relay Box (RLY. 2)
F6 40A BLOWER E/R Fuse & Relay Box (RLY. 14)
F7 60A 4B+ IPM (F4, F5, IPS 0, IPS 4, IPS 6)
F8 80A MDPS MDPS_PWR
F1 60A 2B+ IPM (F7, F8, F9, F10, F11, IPS1, IPS2, IPS3, IPS5, IPS7)
F2 60A 3B+ IPM (F14, F15, F17, F18, F25)
F3 40A IG1 W/O Smart Key : Ignition Switch / With Smart Key : E/R Fuse & Relay Box (RLY. 1, RLY. 9)
F4 40A 1ABS ABS Control,ESP Control
F5 40A RR HTD E/R Fuse & Relay Box (RLY. 2)
F6 40A BLOWER E/R Fuse & Relay Box (RLY. 14)
F7 60A 4B+ IPM (F4, F5, IPS 0, IPS 4, IPS 6)
F8 80A MDPS MDPS_PWR
FUSE (E/R Fuse & Relay Box)
F9 10A A/CON A/C Control Module
F10 10A STOP LAMP E/R Fuse & Relay Box (RLY. 8), Stop Lamp Switch, Multipurpose Check Connector
F11 10A IG1 Alternator, PCM
F12 15A T2TCU Transaxle Range Switch
F13 10A IDB IDB_LAG
F14 30A IG2
W/O Smart Key : E/R Fuse & Relay Box (RLY. 3), Ignition Switch
With Smart Key : E/R Fuse & Relay Box (RLY. 3, RLY. 10)
F15 50A C/FAN E/R Fuse & Relay Box (RLY. 4, RLY. 5)
F16 30A 1EPB Electric Parking Brake Module
F17 40A 3ECU EMS Box (F35, F36, F37, F38)
F18 30A 2ABS ABS Control, ESP Control
F19 30A 2EPB Electric Parking Brake Module
F20 10A WIPER IPM (IPS Control Module)
F9 10A A/CON A/C Control Module
F10 10A STOP LAMP E/R Fuse & Relay Box (RLY. 8), Stop Lamp Switch, Multipurpose Check Connector
F11 10A IG1 Alternator, PCM
F12 15A T2TCU Transaxle Range Switch
F13 10A IDB IDB_LAG
F14 30A IG2
W/O Smart Key : E/R Fuse & Relay Box (RLY. 3), Ignition Switch
With Smart Key : E/R Fuse & Relay Box (RLY. 3, RLY. 10)
F15 50A C/FAN E/R Fuse & Relay Box (RLY. 4, RLY. 5)
F16 30A 1EPB Electric Parking Brake Module
F17 40A 3ECU EMS Box (F35, F36, F37, F38)
F18 30A 2ABS ABS Control, ESP Control
F19 30A 2EPB Electric Parking Brake Module
F20 10A WIPER IPM (IPS Control Module)
F21 10A B/UP LAMP
MTS Module, A/V & Navigation Head Unit, Rear Curtain Module,
Electro Chromic Mirror, Rear Combination Lamp(In) LH/RH
F22 10A AMS Not Used
F23 20A - ICM Relay Box (Head Lamp Washer Realy)
F24 20A 1TCU PCM
F25 15A 1STOP LAMP E/R Fuse & Relay Box (RLY. 12), Stop Lamp Switch, Stop Lamp Signal Relay
F26 20A DEICER E/R Fuse & Relay Box (RLY. 7)
F27 10A CRUISE ASCC (Advanced Smart Cruise Control) Radar
F28 30A P/SEAT (DRV)
IMS Control Module, Driver Lumbar Support Switch, Driver Cushion Extension Switch,
Driver Manual Switch
F29 40A 1B+ IPM (F29, F30, F31, F32, IPS 11, Leak Current Autocut Device)
FUSE (EMS Box)
F30 20A IGN COIL
G4KE : Ignition Coil #1, #2, #3, #4, Condenser
G6DC : Ignition Coil #1, #2, #3, #4, #5, #6, Condenser #1, #2
F31 15A 1SENSOR
G4KE : Immobilizer Module, Camshaft Position Sensor #1, #2,
Variable Intake Manifold Valve, Crankshaft Position Sensor,
Oil Control Valve #1, #2, Canister Purge Control Solenoid Valve
G6DC : PCM, Immobilizer Module, Oxygen Sensor #1, #2, #3, #4
F32 15A 2SENSOR
G4KE : E/R Fuse & Relay Box (RLY. 5),Oxygen Sensor (Up, Down)
G6DC : Variable Intake Manifold Valve #1, #2, PCM,
E/R Fuse & Relay Box (RLY. 5), Oil Control Valve #1, #2,#3, #4,
Canister Purge Control Solenoid Valve,
F33 15A INJECTOR
G4KE : Injector #1, #2, #3, #4
G6DC : Injector #1, #2, #3, #4, #5, #6, PCM
F34 20A F/FUMP E/R Fuse & Relay Box (RLY. 16)
F35 10A 2ECU PCM
F36 15A HORN E/R Fuse & Relay Box (RLY. 13), EMS Box (RLY. 15)
F37 30A 1ECU EMS Box (RLY. 17)
F30 20A IGN COIL
G4KE : Ignition Coil #1, #2, #3, #4, Condenser
G6DC : Ignition Coil #1, #2, #3, #4, #5, #6, Condenser #1, #2
F31 15A 1SENSOR
G4KE : Immobilizer Module, Camshaft Position Sensor #1, #2,
Variable Intake Manifold Valve, Crankshaft Position Sensor,
Oil Control Valve #1, #2, Canister Purge Control Solenoid Valve
G6DC : PCM, Immobilizer Module, Oxygen Sensor #1, #2, #3, #4
F32 15A 2SENSOR
G4KE : E/R Fuse & Relay Box (RLY. 5),Oxygen Sensor (Up, Down)
G6DC : Variable Intake Manifold Valve #1, #2, PCM,
E/R Fuse & Relay Box (RLY. 5), Oil Control Valve #1, #2,#3, #4,
Canister Purge Control Solenoid Valve,
F33 15A INJECTOR
G4KE : Injector #1, #2, #3, #4
G6DC : Injector #1, #2, #3, #4, #5, #6, PCM
F34 20A F/FUMP E/R Fuse & Relay Box (RLY. 16)
F35 10A 2ECU PCM
F36 15A HORN E/R Fuse & Relay Box (RLY. 13), EMS Box (RLY. 15)
F37 30A 1ECU EMS Box (RLY. 17)
