2014 - 2015 Kia Optima Fuse Box Diagram

2015 Kia Optima



Fuses and Relays



A vehicle’s electrical system is protected from electrical overload damage by fuses.

This vehicle has 2 fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.

If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.

If the electrical system does not work, first check the driver’s side fuse panel.

Before replacing a blown fuse, disconnect the negative battery cable.

Always replace a blown fuse with one of the same rating.

If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.

Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and  multi fuse for higher amperage ratings.



WARNING - Fuse replacement

• Never replace a fuse with anything but another fuse of the same rating.

• A higher capacity fuse could cause damage and possibly a fire.

• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary  repair. It may cause extensive wiring damage and a possible fire.

CAUTION - Fuse replacement

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

WARNING - Electrical Fire

• When replacing a blown fuse or relay with a new one, make sure the new fuse or relay fits

tightly into the clips The incomplete fastening fuse or relay may cause the vehicle wiring and electric systems damage and a possible fire.

• Do not remove fuses, relays and terminals fastened with bolts or nuts. The fuses, relays and terminals may be fastened incompletely, and it may cause a possible fire. If fuses,  relays and terminals fastened with bolts or nuts are blown, we recommend that you consult with an authorized Kia dealer.

CAUTION - Fuse Replacement

Do not input any other objects except fuses or relays into fuse/relay terminals such as a driver or wiring. It may cause contact failure and system malfunction.

Instrument panel fuse replacement



1. Turn the ignition switch and all other switches off.

2. Open the fuse panel cover.

3. Pull the suspected fuse straight out. Use the fuse puller provided in the engine compartment fuse panel.

4. Check the removed fuse; replace it if it is blown.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized Kia dealer.

If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigar lighter fuse.

If the headlights or other electrical components do not work and the fuses are OK, check the fuse block in the engine compartment. If a fuse is blown, it must be replaced.

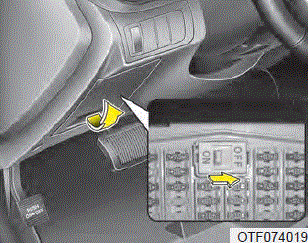

Fuse switch



Fuse switch



Always, put the fuse switch at the ON position.

If you move the switch to the OFF position, some items such as audio and digital clock must be reset and transmitter (or smart key) may not work properly.

Engine compartment panel - fuse replacement

1. Turn the ignition switch and all other switches off.

2. Remove the fuse box cover by pressing the tap and pulling up the cover.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer



Engine compartment panel fuse  replacement

Main fuse

Main fuse



If the main fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the nuts shown in the picture below.

4. Replace the fuse with a new one of the same rating.

5. Reinstall in the reverse order of removal.



Multi fuse

If the multi fuse is blown, it must be removed as follows:

1. Remove the fuse panel in the engine compartment.

2. Remove the nuts shown in the picture below.

3. Replace the fuse with a new one of the same rating.

4. Reinstall in the reverse order of removal

Multi fuse



Instrument Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

Instrument fuse panel

Instrument Fuse Panel Diagram

Description .. Fuse Rating .. Protected Component

MULTIMEDIA 15A ISG LDC AUDIO,AUDIO_UVO, AUDIO(PA30A,B), NAVI1.5, NAVI_3.0, NAVI_4.0, TMU

PDM 1 25A Smart Key Control Module (With Smart Key)

SPARE 10A -

PDM2 10A SMK UNIT, BUTTON START SW P/SEAT(PASS) 20A Passenger Seat Manual Switch

AMP 30A AMP

P/SEAT(DRV) 30A Driver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch (2WAY)

MEMORY 2 7.5A PIC_RF_RECEIVER

TRUNK 10A Trunk Lid Relay, Trunk Room Lamp

MODULE 7 10A SPORT_MODE_SW, RR POWER WINDOW SW

DR LOCK 20A Door Lock/Unlock Relay, Dead Lock Relay (RHD), Turn Signal Lamp Sound Relay

S/HEATER(RR) 20A Rear Seat Warmer Relay LH/RH

P/WDW(RH) 25A Driver Safety Power Window Module (RHD), Passenger Safety Power Window Module (LHD), Rear Safety Power Window Module RH, Power Window RH Relay

P/WDW(LH) 25A Driver Safety Power Window Module (LHD), Passenger Safety Power Window Module (RHD), Rear Safety Power, Window Module LH, Power Window LH Relay

MODULE 2 10A BCM, Panorama Sunroof, Rain Sensor

BRAKE SWITCH 10A Smart Key Control Module, Start Stop Button Switch, FOB Holder, Stop Lamp Switch

MEMORY 1 10A SEAT EXTN (IMS), DR_TRIM_EXTN (FOLD’G), CLUSTER, A/CON, ECM, AUTO FOLDING RLY, TPMS, POWER OUTLET, A_L_PHOTO_SNSR, MUT

SUNROOF 20A Panorama Sunroof
S/HEATER(FRT)

SEAT VERNT(FRT) 20A SEAT_EXTN (HEAT/VENT)

SPARE 10A -

A/BAG IND 10A Instrument Cluster

MODULE 3 10A Sport Mode Switch, Key Solenoid (W/O Smart Key)

MODULE 4 10A Driver/Passenger CCS Control Module (With CCS), Driver/Passenger Seat Warmer Module (W/O CCS), Front Seat Warmer & CCS Switch, Oil Pump Inverter, ISG Low DC-DC Converter, Tire Pressure Monitoring Module

A/BAG 15A A/BAG UNIT IG1 , WCS_PASS IG1

INTERIOR LAMP 10A

Driver/Passenger Smart Key Outside Handle (With Smart Key), Driver/Passenger Door Lamp, A/C Control Module, Ignition Key ILL. & Door Warning Switch (W/O Smart Key), RF Receiver (With Smart Key), Driver IMS Module, BCM, Data Link Connector, Driver/Passenger Door Scuff Lamp, Power Outside Mirror Switch, Auto Light & Photo Sensor (W/O B/Alarm), Lamp Auto Cut Relay, Instrument Cluster

CLUSTER 10A CLUSTER (IGN1)

MDPS 7.5A Crash Pad Switch, EPS Control Module (With MDPS), Steering Angle Sensor (W/O MDPS),ATM Lever Indicator, EPB Switch, EPB Control Module

PDM 3 7.5A Smart Key Control Module (With Smart Key)

EPB 10A EPB

SPARE 20A -

IG 1 25A E/R BOX IG1

SPARE 10A -

POWER OUTLET 20A Front Power Outlet

MODULE 1 10A Auto Head Lamp Leveling Device Module (Auto HLLD), Head Lamp Leveling Device Switch (Manual HLLD), Head Lamp Leveling Device Actuator LH/RH, BCM, Front Smart Parking Assist Sensor Module, Instrument Cluster, Electro Chromic Mirror, A/C Control Module, Driver IMS Module, Rear Parking Assist Buzzer, Lane Keeping Assist Module

START 7.5A B/ALARM RLY

HTD STRG 15A Steering Wheel Heater

MODULE 5 7.5A Smart Key Control Module (With Smart Key), Rear Seat, Warmer Relay LH/RH, E/R Fuse & Relay Box (RLY.2), Diesel Box (Fuel Filter Relay)

A/CON 7.5A A/C Control Module, E/R Fuse & Relay Box (RLY.14)

SPARE 15A -

WIPER 25A E/R BOX WIPER RLY

C/LIGHTER 20A Cigarette Lighter

MODULE 6 7.5A PANORAMA SUNROOF (IG2), IONIZER, DSL_BOX,  RR_SEAT_WARMER

HTD MIRR 10A Driver/Passenger Power Outside Mirror

Engine compartment fuse panel (for Theta 2.4 GDI)

 Engine compartment fuse panel Location (for Theta 2.4 GDI)

 Engine compartment fuse panel (for Theta 2.4 GDI)

 Description Fuse Rating Protected Component

RR HTD 40A E/R BOX RR HTD RLY COIL

HORN 15A HORN (LH, RH)

F/PUMP 20A FUEL PUMP MTR

ECU 3 15A PCU (GDI) BATT. DIRECT

SENSOR 1 15A DN O2 SENSOR (GDI), UP O2 SENSOR (GDI)

INJECTOR 10A E/R BOX F/PUMP RLY COIL

SENSOR 3 10A CMP1, 2 (GDI, TGDI), SMATRA IMMOBILIZER

SENSOR 2 10A CKP (GDI), VIS (GDI), OCV1, 2 (GDI), PCSV (GDI), CCV (GDI)

IGN COIL 20A ENGINE IG COIL

ECU 1 30A ECU RLY

SPARE 10A -

SPARE 15A -

SPARE 20A -

WIPER 10A BCM, RAIN SNSR, WIPER MTR

AMS 10A BATTERY SENSOR

TCU 1 20A TCU

STOP LAMP 15A RLY.10 (HAC Relay), STOP LAMP RELAY

DEICER 20A RLY.7 (Deicer Relay)

IG1 40A IGN SW

B+ 1 50A B+

B+ 2 60A B+

BLOWER 40A RLY.14 (Blower Relay)

IG 2 40A IGN SW, IG2 RLY

ESC 1 40A ESC UNIT MOTOR B+, DIAGNOSIS ABS A/B VALVE B+

ESC 2 40A ESC UNIT SOLENOID B+

RR HTD 40A RLY.1 (RR HTD Relay)

B+ 3 60A B+

MDPS 80A EPS Control Module

SPARE 25A -

C/FAN 50A E/R BOX C/FAN1 RLY SWITCH

INVERTER 50A O_P_INVERTER

EPB 2 30A EPB UNIT BATT2

EPB 1 30A EPB UNIT BATT1

ECU 2 40A EMS BOX (B+)

ECU 4 10A ENGINE ECU

TCU 2 15A SPEED SNSR, POSITION SW, O_P_INVERTER

ESC 3 10A ESC UNIT IGN1

B/UP LAMP 10A ELECTRO CHROMIC MIRROR, BCM, REAR COMBINATION LAMP (IN) LH/RH

A/CON 10A A/C CONTROL MODULE (Auto A/C)
