| 2015 Kia Rondo |
Fuses and Relays
A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 3 (or 4) fuse panels, one located in the driver’s side panel bolster, others in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted.
If the electrical system does not work, first check the driver’s side fuse panel.
Always replace a blown fuse with one of the same rating.
Before replacing a blown fuse, disconnect the negative battery cable.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
Instrument panel fuse replacement
1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
3. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
 |
| Instrument panel fuse replacement |
If it fits loosely, consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigar lighter fuse.
If the headlights or other electricalcomponents do not work and thefuses are OK, check the fuse block inthe engine compartment. If a fuse isblown, it must be replaced.
Fuse switch
Always, put the fuse switch at the ON position.
If you move the switch to the OFF position, some items such as audio and digital clock must be reset and transmitter (or smart key) may not work properly.
 |
| Fuse switch |
Instrument panel fuse panel
 |
| Instrument panel (Driver’s side fuse panel) |
 |

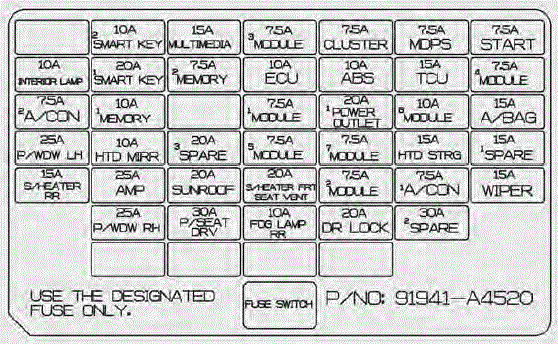

| Instrument panel (Driver’s side fuse panel Diagram) |
Instrument panel (Driver’s side fuse panel)
No.... Fuse rating ...Description... Protected component
1 30A P/SEAT DRV 4WAY : Driver Lumbar Support Switch , 6WAY : Driver Seat Manual Switch
2 25A P/WDW RH Power Window Relay RH, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module RH
3 25A P/WDW LH Power Window Relay LH (Left Hand), Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module LH
4 20A DR LOCK Door Lock/Unlock Relay, Two Turn Unlock Relay
5 15A SPARE 1 -
6 20A POWER OUTLET 1 Cigarette Lighter, Rear Power Outlet
7 30A SPARE 2 -
8 7.5A MODULE 3 Frt Seat Warmer Sw, Hlld Sw, Navigation, Amp, Rear Seat Warmer Ecu, Auto Hlld Ecu, Heater Control Unit
9 20A S/HEATER FRT SEAT VENT Driver/Passenger Seat Warmer Module
10 10A MODULE 6 A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Converter (With ISG), Digital Clock, Smart Key Control Module, BCM, Outside Mirror Switch, Outside Mirror
11 7.5A A/CON1 Cluster Ionizer, A/C Control Module, Blower Relay, PTC Relay
12 7.5A MODULE 5 Head Lamp Washer Relay, Portable Lamp, Passenger Seat Warmer Module, Rear Seat Warmer Module, Driver Seat Warmer Module
13 10A HTD MIRR Driver/Passenger Outside Mirror, ECU, A/C Control Module
14 10A INTERIOR LAMP Glove Box Lamp, Luggage Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Door Warning Sw, Foot Lamp LH/RH, Portable Lamp, Door Warning Sw, Puddle Lamp LH/RH, Personal Lamp LH/RH
15 10A SMART KEY 2 Immobilizer Module, Start Stop Button Switch
16 20A SUNROOF Panorama Sunroof
17 7.5A MODULE 1 Electric Parking Brake Module, Rear Parking Assist Sensor, Smart Parking Assist Control Module, Crash Pad Lower Switch, Rear Parking Assist Sensor Buzzer, Tire Pressure Monitoring System
18 15A HTD STRG Steering Wheel Heater
19 10A ECU Immobilizer Module, Smart Key Control Module, ECU, Speed Sensor
20 15A WIPER Front Washer Motor, Rear Wiper Motor, Rear Wiper Relay
21 7.5A MEMORY 2 Rf Receiver
22 10A MEMORY 1 Instrument Cluster, Tire Pressure Monitoring Module, BCM, A/C Control Module, Digital Clock, Data Link Connector, Buzzer
23 7.5A CLUSTER Instrument Cluster, DC-DC Converter (With ISG)
24 7.5A MDPS MDPS Unit
25 20A SPARE 3 -
26 7.5A START Start Relay, ECU, Ignition Lock Switch, Transaxle Range Switch, TCU, Smart Key Control Module
27 15A MULTI MEDIA A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Converter (With ISG)
28 20A SMART KEY 1 Smart Key Control Module
29 15A A/BAG SRS Control Module
30 7.5A MODULE 2 Rear Seat Warmer Sw, ICM BOX (Fold’g Rly), AT LEVER Key Sol, ICM BOX (Turn Signal Sound)
31 7.5A MODULE 4 Body Control Module
32 7.5A MODULE 7 Body Control Module, Smart Key Control Module
33 15A TCU M/T : F35 (B/UP LAMP), A/T : Transaxle Range Switch, TCM (D4HB)
34 10A ABS ESC Control Module, ABS Control Module
35 7.5A A/CON 2 A/C Control Module
36 15A S/HEATER RR Rear Seat Warmer LH/RH
37 25A AMP AMP, DC-DC Converter (With ISG)
38 10A FOG LAMP RR ICM Relay Box (Rear Fog Lamp Relay)
Engine compartment fuse Panel
 |
| Engine compartment fuse Panel Cover |
 |
| Engine compartment fuse Panel Diagram |
✽ NOTICE
The actual fuse/relay panel label may differ from equipped items.
Fuse rating ... Description ... Protected component
MULTI FUSE
80A MDPS MDPS Unit
60A IP_B+1 Inner Fuse Panel, S/Heater RR, Smart Key 1, 2, P/WDW LH/RH, IPS-1/Arisu-1 (H/Lamp Low RH, H/Lamp Hi RH, Turn FR/RR), IPS-2 (Int Tail Lamp), IPS-4 (Drl Lamp LH/RH), IPS-3 (Frt Fog Lamp LH/RH)
40A ABS_1 ESC Control Module, ABS Control Module
40A ABS_2 ESC Control Module, ABS Control Module, Multipurpose Check Connector
40A IGN_2 W/O Smart Key : Ignition Switch, START RELAY, Starter Fuse No: 26 With Smart Key : IG2 RELAY, START RELAY, IG2 Fuse No: 11, 12, 18, 20, 33
60A IP_B+2 Inner Fuse Panel, P/seat DRV, Spare3, Fog Lamp RR, IPS-5/Arisu-2 (H/Lamp Low LH, H/Lamp Hi LH, Turn FL/RL), IPS-6 (EXT Tail Lamp LH/RH)
40A RR HTD RR HTD RELAY RR HTD, MIRR HTD
40A BLOWER BLOWER RLY, BLOWER MOTOR
FUSE
40A IG1 W/O Smart Key : Ignition Switch With Smart Key : IG1 RELAY, ACC RELAY, INNER FUSE PANEL (ACC Fuse No: 5, 6,10 IG1 Fuse No: 8,17,19, 23, 24, 30, 32, 34, 35)
30A EPB_1 Electric Parking Brake Modul
30A EPB_2 Electric Parking Brake Module
50A C/FAN C/FAN LO RELAY, C/FAN HI RELAY, C/FAN MOTOR
15A DEICER DEICER RELAY
15A STOP LAMP SSEM,STOP LAMP
40A EMS EMS Box (FUSE No. - 1/2/3/4/5/6/7/8/9)
50A B+3 Inner Fuse Panel (Leak Current Autocut Device, Fuse No. - 4/9/14/16/21/22/25/27/31/38)
25A FRT_WIPER_LH FRT WIPER LH (Front Wiper Left Hand)
25A FRT_WIPER_RH FRT WIPER RH
10A B/UP LP M/T : Back-up Lamp Switch, A/T : Transaxle Range Switch, TCU
15A ECU4 ECU
50A B+4 FRT WIPER LH/RH , ECU4
10A BRAKE_SWITCH STOP SIGNAL
20A H/LP_WASHER Head Lamp Washer Relay, Head Lamp Washer
30A P/OUTLET 2 P/OUTLET RELAY 2
7.5A SPARE SPARE
Relay Name ... Type
COOLING FAN LOW RELAY .. H/C MICRO
COOLING FAN HIGH RELAY .. 3725
BLOWER RELAY ... H/C MICRO
REAR DEFOGGER RELAY ... H/C MICRO
B/START (IG1) RELAY ... H/C MICRO
B/START (IG2) RELAY ... H/C MICRO
START RELAY ... H/C MICRO
B/START (ACC) RELAY ... H/C MICRO
DEICER RLY ... ISO MICRO
F/PUMP RLY ... H/C MICRO
H/LP WASHER RLY .. ISO MICRO
P/OUTLET2 RLY ... ISO MICRO
Fuse rating .. Description ... Relay Name
10A B/A HORN B/ALARM HORN RLY
15A ECU3 ECU
15A HORN Horn
10A INJECTOR INJECTOR, ECU, FUEL PUMP RELAY
10A ECU2 ECU
20A IGN COIL Ignition Coil #1/#2/#3/#4, Condenser
10A SENSOR2 E/R Fuse & Relay Box (COOLING LOW RELAY), Oil Control Valve #1/#2
20A ECU1 ECU
10A SENSOR1 Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control
Solenoid Valve
10A SPARE SPARE
15A SPARE SPARE
20A SPARE SPARE
