If any electrical devices are not working, set the power mode to VEHICLE OFF (LOCK) and check to see if any applicable fuse is blown.

Engine Compartment Fuse Box

Located near the brake fluid reservoir. Push the tabs to open the box.

Engine Compartment Fuse Box - Located near the brake fluid reservoir

Fuse locations are shown on the fuse box cover.
Locate the fuse in question by the fuse number and box cover number.

Circuit protected and fuse rating

Circuit ... Protected Amps

1
EPS 70 A
Booster Motor 40 A
ABS/VSA Motor 30 A
ABS/VSA FSR 30 A
Wiper Motor 30 A
Main Fuse 100 A

2
IG Main 30 A
Fuse Box Main 60 A
Fuse Box Main 2 60 A
Headlight Main 30 A
ST MG 30 A
Rear Defogger 30 A
− −
Blower 40 A
− −
Sub Fan Motor 20 A
Main Fan Motor 20 A

3 − −
4 IG Coil 2 15 A
5 Starter DIAG, ST MG 7.5 A
6 IG Coil 1 15 A
7 − −
8 − −
9 − −
10 − −
11 Oil Level 7.5 A
12 LED Daytime Running Lights 10A
13 IMA 1 7.5 A
14 Hazard 10 A
15 FI Sub 15 A
16 IG Coil 20 A
17 Stop 15 A
18 Horn 10 A
19 IMA 2 10 A
20 Right Headlight Low Beam 15 A
21 IGP 15 A
22 DBW 15 A
23 Left Headlight Low Beam 15 A
24 Booster SOL 15 A
25 MG Clutch 7.5 A
26 Washer 15 A
27 SMALL 20 A
28 Interior Lights 7.5 A
29 Backup 10 A

Interior Fuse Box

Located under the dashboard.

Interior Fuse Box - Located under the dashboard

Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse number and label number.

Circuit protected and fuse rating

Circuit Protected .... Amps

1 − −
2 ACG 10 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Power Window 7.5 A
7 VB SOL 15 A
8 Door Lock Motor 2 (Unlock) 15 A
9 Door Lock Motor 1 (Unlock) 15 A
10 − −
11 − −
12 − −
13 − −
14 Seat Heaters* (15 A)

15
Driver’s Door Lock Motor
(Unlock)
(10 A)

16 − −
17 − −
18 − −
19 ACC 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 HAC 7.5 A
23 HAC (7.5 A)
24 ABS/VSA 7.5 A
25 ACC 7.5 A
26 − −
27 Accessory Power Socket (Cigarette Lighter) (Front) 20 A
28 − −
29 ODS 7.5 A

30 Driver’s Door Lock Motor (Lock) (10 A)

31 SMART 10 A
32 Door Lock Motor 2 (Lock) 15 A Circuit Protected Amps
33 Door Lock Motor 1 (Lock) 15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 − −
37 − −
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 − −
41 Door Lock 20 A
42 Driver’s Power Window 20 A

43 Rear Passenger’s Side , Power Window , (20 A)
44 Front Passenger’s Side , Power Window ,20 A
45 Rear Driver’s Side Power Window (20 A)
46 − −

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF (LOCK). Turn headlights and all accessories off.
2. Remove the fuse box cover.

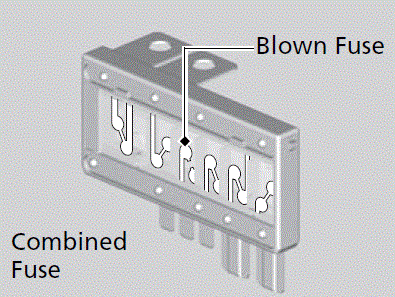

3. Check the large fuse in the engine compartment.
If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and replace it with a new one.
4. Inspect the small fuses in the engine compartment and the vehicle interior.
If there is a burned out fuse, remove it with the fuse puller and replace it with a new one.

Inspecting and Changing Fuses

NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
Replace fuse with a spare fuse of the same specified amperage.
Confirm the specified amperage using the corresponding charts.
There is a fuse puller on the back of the engine compartment fuse box cover.
