2022 - 2023 Dodge Ram ProMaster Fuse Box Diagram

2022 Ram ProMaster
2022 Ram ProMaster

Fuses and Relays


WARNING
- When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
- Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
- If the replaced fuse blows again, contact an authorized dealer.
- If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an authorized dealer.

CAUTION
If it is necessary to wash the engine compartment, take care not to directly hit the fuse box, and the windshield wiper motors with water.

General Information
The fuses protect electrical systems against excessive current.
When a device does not work, you must check the fuse element inside the blade fuse for a  break/melt.
Also, please be aware that when using power outlets for extended periods of time with the  engine off may result in vehicle battery discharge.

Blade Fuse
Blade Fuse

1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element
3 — Blade fuse with a bad/not functional fuse element (blown fuse)


Underhood Fuses


The Front Power Distribution Center is located on the driver’s side of the engine compartment.
To access the fuses, remove the cover.

Front Power Distribution Center Location
Front Power Distribution Center Location

Removal of the two cover screws is necessary before accessing the fuses.

Fuse Access Cover Screw Location
Fuse Access Cover Screw Location

The ID number of the electrical component corresponding to each fuse can be found on the
back of the cover.

Cavity  ... Maxi Fuse  ... Mini Fuse  .... Description
F01 50 Amp Red – Electronic Stability Control (ESC) Pump
F02 20 Amp Yellow (3.6 Gasoline Engine) – Starter Relay
F03 30 Amp Green – VSIM *
F04 50 Amp Red (3.6 Gasoline Engine) – Secondary Power Distribution Center (PDC) / Trans Power ECU / Vacuum Pump / KL30 for the Shifter Transmission Module [STM]
F05 50 Amp Red (3.6 Gasoline Engine) – EPB Valves & MOC
F06
40 Amp Orange (non A/C)
60 Amp Blue (A/C)
– Engine Cooling Fan - 2nd Speed
F07 50 Amp Red – Engine Cooling Fan - 1st Speed
F08 40 Amp Orange – Passenger Compartment Blower
F09 – 15 Amp Blue Rear Power Outlet
F10 – 15 Amp Blue Horn
F14 – 20 Amp Yellow Power Outlet
F15 – – Spare
F16 – 7.5 Amp Brown KL15 ECM/ KL15 Starter Relay Coil
F17 – 20 Amp Yellow Engine Control Module (ECM) / Injectors
F18 – 7.5 Amp Brown KL30 Engine Control Module (ECM) / KL30 Main Relay Coil
F19 – 7.5 Amp Brown A/C Compressor *
F20 – 30 Amp Green Windshield Wiper
F21 – 15 Amp Blue Fuel Pump
F22 – 20 Amp Yellow Engine Control Module (ECM) / Ignition Coils
F23 – 30 Amp Green TT MOD
F24 – 7.5 Amp Brown KL15 Vacuum Pump Relay Coil
F30 – 15 Amp Blue Heated Mirrors

Front PDC Additional Fuses


The additional fuse box is located inside the front PDC Box.

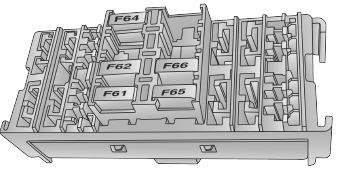

Front Power Distribution Center Additional Fuses
Front Power Distribution Center Additional Fuses

Cavity   ... Mini Fuse  .... Description
F61 30 Amp Green Vacuum Pump
F62 30 Amp Green Transmission Power RELE
F65 15 Amp Blue Trailer Tow Mod
F66 15 Amp Blue Trailer Tow Mod
F68 5 Amp Beige Shifter Transmission Module (STM)

Interior Fuses

The interior fuse panel is part of the Body Control Module (BCM) and is located on the driver's side under the instrument panel.
NOTE: Please contact an authorized dealer for BCM fuse replacement.

Interior Fuse Panel Location
Interior Fuse Panel Location

Fuse Panel Cavity Locations
Fuse Panel Cavity Locations

Cavity  .. Mini Fuse  .. Description
F31 5 Amp Beige INT/A
F33 7.5 Amp Brown +30 TTM
F34 7.5 Amp Brown Clearance Lights
F36 15 Amp Blue +30 (ACM / USB Power Out / USB Recharge / TBM / RRM / DLC)
F37 7.5 Amp Brown INT (IPC – DASM / AEB)
F38 20 Amp Yellow Central Locking
F42 5 Amp Beige INT (BSM / BRAKE NC) / EPS
F43 20 Amp Yellow Bi-Directional Washer Pump
F47 20 Amp Yellow Driver Power Window
F48 20 Amp Yellow Passenger Power Window
F49 5 Amp Beige INT (RRM / TTM / SBDU / XAN / JHC / RFX)
F50 7.5 Amp Brown INT (ORC)
F51 7.5 Amp Brown INT (REAR CAMERA-AUX) / HALF / DRVM/ PAM / CVPM / EMC / TCM / STM / ASS / HCPM / SGW
F53 5 Amp Beige +30 (IPC) + Keyless – GO / Passive Entry / Brake NO / EPB SW

Right Central Pillar Fuses


The right central pillar fuse panel is located on the interior side at the base of the passenger
side B-pillar.

Right Central Pillar Fuse Panel Location
 Right Central Pillar Fuse Panel Location

Right Central Pillar Fuse Panel Diagram
 Right Central Pillar Fuse Panel Diagram

Cavity  ... Mini Fuse  ... Description
F81 7.5 Amp Brown Seat Heater
F82 30 Amp Green Inverter Power Outlet
F83 20 Amp Yellow Rear Left Windows Heater
F84 20 Amp Yellow Rear Right Windows Heater
F86 20 Amp Yellow Auxiliary Switch (From Battery) — If Equipped
F87 20 Amp Yellow Auxiliary Switch (From Ignition) — If Equipped
