2011 - 2015 Chevrolet Volt Fuse Box Diagram

2015 Chevrolet Volt

Fuses and Relays

The vehicle has fuses and circuit breakers to protect against an electrical system overload.
When the current electrical load is too heavy, the circuit breaker opens and closes, protecting the circuit until the current load returns to normal or the problem is fixed. This greatly reduces the chance of circuit overload and fire caused by electrical problems.
Fuses and circuit breakers protect the following in the vehicle:
. Headlamp Wiring
. Windshield Wiper Motor
. Power Windows and other Power Accessories

Replace a bad fuse with a new one of the identical size and rating.
If there is a problem on the road and a fuse needs to be replaced, the same amperage fuse can be borrowed. Choose some feature of the vehicle that is not needed to use and replace it as soon as possible.

Headlamp Wiring

An electrical overload may cause the lamps to go on and off, or in some cases to remain off. Have the headlamp wiring checked right away if the lamps go on and off or remain off.

Windshield Wipers

If the wiper motor overheats due to heavy snow or ice, the windshield wipers will stop until the motor cools and the wiper control is turned off.
After removal of the blockage, the wiper motor will restart when the control is then moved to the desired operating position.
Although the circuit is protected from electrical overload, overload due to heavy snow or ice, may cause wiper damage. Always clear ice and heavy snow from the windshield before using the windshield wipers.
If the overload is caused by an electrical problem and not snow or ice, be sure to get it fixed.

Engine Compartment Fuse Block



Engine Compartment Fuse Box Location

To open the fuse block cover, press the clips at the front and back and rotate the cover up to the side.

Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the
covers on any electrical component.

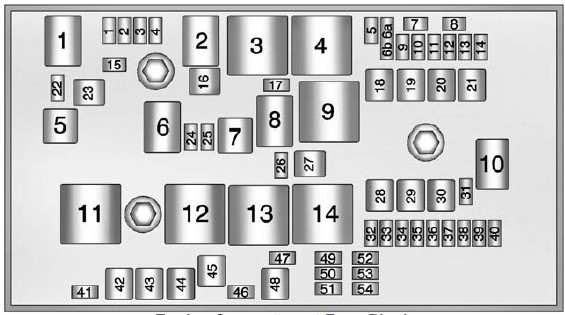

Engine Compartment Fuse Panel Diagram



A fuse puller is in the engine compartment fuse block. The vehicle may not be equipped with all of the fuses, relays, and features shown.

Mini Fuses  ... Usage
1 Engine Control Module – Switched Power
2 Emissions
3 Not Used
4 Ignition Coils/ Injectors
5 Not Used
6a Empty
6b Empty (2013 Model - Rear Defogger)
7 Empty
8 Empty
9 Heated Mirrors
10 Air Conditioning (A/C) Control Module
11 Traction Power Inverter Module – Battery
12 Not Used (2011 Model - Cabin Heater Pump and Valve)
13 Cabin Heater Pump and Valve (2011 Model - Empty)
14 Not Used
15 Traction Power Inverter Module and Transmission Control Module – Battery
17 Engine Control Module – Battery
22 Left High -Beam Headlamp
24 Empty
25 Empty
26 Not Used
31 Not Used
32 Run/Crank – Sensing Diagnostic Module (SDM), Instrument Cluster, Passenger Airbag  Display, Automatic Dimming Inside Rearview Mirror (If Equipped)
33 Run/Crank for Vehicle Integration Control Module
34 Vehicle Integration Control Module – Battery
35 Not Used
36 Power Electronics Coolant Pump
37 Cabin Heater Control Module
38 Rechargeable Energy Storage System (High Voltage Battery) Coolant Pump

39 Rechargeable Energy Storage  System (High Voltage Battery) Control Module
40 Front Windshield Washer
41 Right High-Beam
Headlamp
46 Empty
47 Empty
49 Empty
50 Run/Crank – Rear Vision Camera, Accessory Power Module
51 Run/Crank for ABS/ Rechargeable Energy Storage System (High Voltage Battery)
52 Engine Control Module/ Transmission Control Module – Run/Crank
53 Traction Power Inverter Module – Run/Crank
54 Run/Crank – Fuel System Control Module, Air Conditioning Control Module, On Board  Charger

J-Case Fuses ...  Usage
16 AIR Solenoid (PZEV Only)
18 Empty
19 Power Window – Front
20 Empty

21 Antilock Brake System (ABS) Electronic Control Unit
23 Empty
27 AIR Pump (PZEV Only)
28 Empty
29 Empty
30 Antilock Brake System (ABS) Motor
42 Cooling Fan – Right
43 Front Wipers
44 Charger
45 Empty
48 Cooling Fan – Left

Mini Relays ...  Usage
3 Powertrain
4 Heated Mirrors
7 Empty
9 AIR Pump (PZEV Only)
11 Empty
12 Empty
13 Empty
14 Run/Crank

Micro Relays ... Usage
1 Empty
2 AIR Solenoid (PZEV Only)
6 Empty
8 Empty
10 Empty

Ultra Micro Relays ... Usage
5 Empty (2011 - 2013 Models - Charge Port Door)

Instrument Panel Fuse Block (Left Side)


The left instrument panel fuse block is on the left side end of the instrument panel. To access the fuses, open the fuse panel door by pulling out.
To reinstall the door, insert the bottom tab first, then push the door back into its original location.

Instrument Panel Fuse Panel Diagram (Left Side)



A fuse puller is in the engine compartment fuse block.
The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses ... Usage
F1 Power Outlet – Top of IP Storage Bin
F2 Radio
F3 Instrument Cluster
F4 Infotainment Display
F5 Heating, Ventilation & Air Conditioning (HVAC) / Integrated Center Stack Switches
F6 Airbag (Sensing Diagnostic Module/ Passenger Sensing Module)
F7 Data Link Connector, Left (Primary)
F8 Empty
F9 OnStar (2011 Model - Empty)
F10 Body Control Module 1/Body Control Module Electronics/Keyless Entry/Power Moding/
Center High Mounted Stoplamp/ License Plate Lamps/Left Daytime Running Lamp/Left
Parking Lamps/ Hatch Release Relay Control/ Washer Pump Relay Control/Switch Indicator Lights
F11 Body Control Module 4/Left Headlamp
F12 Empty
F13 Empty
F14 Empty
F15 Power Outlet (Inside Floor Console/Rear of Floor Console)
F16 Empty
F17 Empty
F18 Empty

Relays  ... Usage
R1 Retained Accessory Power Relay for Power Outlets
R2 Empty
R3 Empty
R4 Empty



Diodes  ... Usage
DIODE Empty

Instrument Panel Fuse Block (Right Side)

The right instrument panel fuse block is on the right side end of the instrument panel. To access the fuses, open the fuse panel door by pulling out.
To reinstall the door, insert the bottom tab first, then push the door back into its original location.

Instrument Panel Fuse Panel Diagram (Right Side)

A fuse puller is in the engine compartment fuse block.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses  .... Usage
F1 Steering Wheel Switch Backlighting
F2 Empty
F3 Empty
F4 Body Control Module 3/Right Headlamp
F5 Body Control Module 2/Body Control Module Electronics/Hatch Lamp/Right Daytime
Running Lamp/ Shifter Lock/Switch Backlighting
F6 Empty
F7 Body Control Module 6/Map Lights/Courtesy Lights/Back– up Lamp
F8 Body Control Module 7/Left Front Turn Signal/Right Rear Stop and Turn Signal Lamp/Child
Security Lock Relay Control
F9 Body Control Module 8/Locks
F10 Data Link Connector, Right (Secondary)
F11 Universal Garage Door Opener (If Equipped)
F12 Blower Motor
F13 Empty
F14 Empty
F15 Empty
F16 Empty
F17 Empty
F18 Empty

Relays ..  Usage
R1 Empty
R2 Empty
R3 Empty
R4 Child Lockout Relay (2011 Model - Empty)

Diodes ..  Usage
DIODE Empty

Rear Compartment Fuse Block

The rear compartment fuse block is on the left side of the rear compartment
behind a removable cover. Open the latch to remove the cover and access
the fuse block.

Rear Compartment Fuse Panel Diagram

A fuse puller is in the engine compartment fuse block.

The vehicle may not have all of the fuses, relays, and features shown.

Fuses ...  Usage
F1 Empty
F2 Fuel System Control Module
F3 Passive Start/ Passive Entry Module
F4 Heated Seats (If Equipped)
F5 Driver Door Switches (Outside Rearview Mirror/ Charge Port Door Release/Refuel  Request/Driver Window Switch)

F6 Fuel (Diurnal Valve and Evap. Leak Check Module)
F7 Accessory Power Module Cooling Fan
F8 Amplifier (If Equipped)
F9 Empty
F10 Regulated Voltage Control/Front and Rear Parking Assist (If Equipped)
F11 Horn
F12 Rear Power Windows
F13 Electric Parking Brake
F14 Rear Defog
F15 Empty
F16 Hatch Release
F17 Empty
F18 Empty

Relays ..  Usage
R1 Rear Defog
R2 Hatch Release
R3 Empty
R4 Empty
R5 Empty
R6 Empty
R7/R8 Horn

Diodes  ... Usage
DIODE Empty
