| 2021 Peugeot 3008 |
Changing a fuse
Accessing the tools
The extraction tweezers are located behind the fusebox cover.
Depending on version:
 |
| Fuse Puller Location - Left Hand Drive (LHD) |
► Unclip the cover by pulling at the top left, then right.
► Remove the cover completely.
► Take the tweezers from their housing.
 |

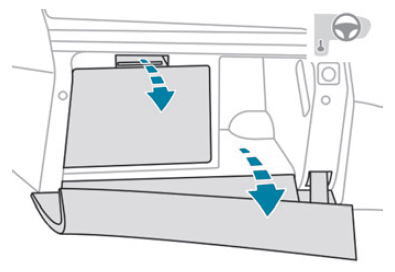

| Fuse Puller Location - Right Hand Drive (RHD) |
► Open the glove box.
► Press on the central handle of the fusebox cover.
► Lower the cover completely.
► Take the tweezers from their housing.
Changing a fuse
Before changing a fuse:
► Identify the cause of the fault and fix it.
► Switch off all power consumption.
► Immobilise the vehicle and switch off the ignition.
► Identify the defective fuse using the current allocation tables and diagrams.
To replace a fuse, it is essential to:
► Use the special tweezers to extract the fuse from its housing and check the condition of its
filament.
► Always replace the failed fuse with a fuse of the same rating (same colour); use of a different rating may cause malfunctions - risk of fire!
If the fault recurs soon after replacing a fuse, have the electrical system checked by a PEUGEOT dealer or a qualified workshop.
Complete fuse allocation tables and corresponding diagrams For more information, contact a PEUGEOT dealer or a qualified workshop. The replacement of a fuse not shown in the allocation tables could cause a serious malfunction of the vehicle.
Consult a PEUGEOT dealer or a qualified workshop.
 |
| Good Fuse, Bad Fuse , Fuse tweezers |
Installing electrical accessories The vehicle's electrical system is designed to operate with standard or optional equipment.
Before fitting other electrical equipment or accessories to your vehicle, contact a PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for the cost incurred in repairing the vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied or not recommended by PEUGEOT and not installed in accordance with its recommendations, in particular when the combined power consumption of all of the additional equipment connected exceeds 10 milliamperes.
Fuses in the dashboard
The fusebox is located in the lower dashboard (left-hand side).
To access the fuses, follow the same procedure as described for accessing the fuse replacement tools.
Fuse N° .. Rating (A) ... Functions
F1 3 A Keyless Entry and Starting
F2 5 A Multifunction screen
F5 5 A Reversing camera - Parking sensors
F7 10 A Hi-Fi amplifier
F8 20 A Rear wiper
F10 30 A Locks
F11 30 A Locks
F17 10 A Boot 12 V accessory socket
F18 5 A Emergency and assistance calls
F22 3 A Glove box lighting
F26 3 A Seat belts not fastened warning lamps display
F27 3 A Rain/sunshine sensor
F31 5 A Airbags.
F33 15 A Front 12 V accessory socket
F35 5 A Instrument panel
F36 20 A Touch screen - Audio/navigation system
To access the fuses, follow the same procedure as described for accessing the fuse replacement tools.
Fuse N° .. Rating (A) ... Functions
F1 3 A Keyless Entry and Starting
F2 5 A Multifunction screen
F5 5 A Reversing camera - Parking sensors
F7 10 A Hi-Fi amplifier
F8 20 A Rear wiper
F10 30 A Locks
F11 30 A Locks
F17 10 A Boot 12 V accessory socket
F18 5 A Emergency and assistance calls
F22 3 A Glove box lighting
F26 3 A Seat belts not fastened warning lamps display
F27 3 A Rain/sunshine sensor
F31 5 A Airbags.
F33 15 A Front 12 V accessory socket
F35 5 A Instrument panel
F36 20 A Touch screen - Audio/navigation system
Box 2
Fuse N° Rating (A) Functions
F17 10 A Memorisation of driving positions
Version 2 (Eco)
Fuse N° Rating (A) Functions
F4 15 A Horn
F5 20 A Windscreen wash pump
F6 20 A Rear screenwash pump
F8 20 A Rear wiper
F10 30 A Locks
F11 30 A Locks
F14 5 A Alarm siren
F17 5 A Instrument panel
F22 3 A Rain/sunshine sensor
F24 5 A Reversing camera - Parking sensors
F25 5 A Airbags
F27 5 A Alarm
F28 5 A Emergency and assistance calls
F29 20 A Touch screen - Audio/navigation system
F32 15 A Cigarette lighter
F36 5 A Glove box lighting
Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.
Accessing the fuses
 |
| Engine Compartment Fuse Box |
► Release the two latches A.
► Remove the cover.
► Replace the fuse.
► When you have finished, close the cover carefully, then engage the two latches A to
ensure that the fusebox is properly sealed.
► Remove the cover.
► Replace the fuse.
► When you have finished, close the cover carefully, then engage the two latches A to
ensure that the fusebox is properly sealed.
Version 1 (Full)
Box 1
Fuse N° .. Rating (A) .. Functions
F14 15 A Screenwash pump.
F15 5 A Power steering.
F20 25 A Screenwash pump.
F22 15 A Horn.
F23 15 A Right-hand main beam headlamp.
F24 15 A Left-hand main beam headlamp.
Box 1
Fuse N° .. Rating (A) .. Functions
F14 15 A Screenwash pump.
F15 5 A Power steering.
F20 25 A Screenwash pump.
F22 15 A Horn.
F23 15 A Right-hand main beam headlamp.
F24 15 A Left-hand main beam headlamp.
Box 2
Fuse N° .. Rating (A) .. Functions
F8 30 A Diesel emissions control system (AdBlue)
F12 15 A Automatic gearbox.
F14 5 A Automatic gearbox.
Version 2 (Eco)
Fuse N° .. Rating (A) .. Functions
F18 10 A Right-hand main beam headlamp
F19 10 A Left-hand main beam headlamp
