2011 - 2020 Dodge Journey Fuse Table

2017 Dodge Journey



Fuses and Relays

WARNING
• When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating.  Never replace a blown fuse with metal wires or any other material. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
• Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
• If the replaced fuse blows again, contact an authorized dealer.
• If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, gearbox system) or steering system blows, contact an authorized dealer.

Interior Fuses

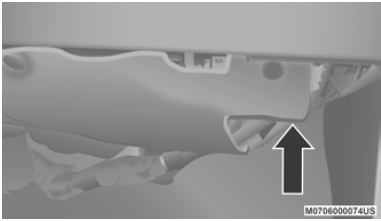

The interior fuse panel is located on the passenger side under the instrument panel.



Interior Fuse Panel Location

Cavity  ... Cartridge Fuse ..  Description

F100 30 Amp Pink – 110V AC Inverter – If Equipped
F116 30 Amp Pink Rear Defroster (EBL)


Cavity ..  Mini-Fuse .. Description

F101  10 Amp Red Interior Lights
F102  20 Amp Yellow Cigar Lighter in Instrument Panel/Left Rear Power Outlet
F103  20 Amp Yellow Power Outlet in Console Bin/Power Outlet in Rear of Console
F105  20 Amp Yellow Heated Seats – If Equipped
F106  20 Amp Yellow Rear Power Outlet
F107  10 Amp Red Rear Camera – If Equipped
F108  15 Amp Blue Instrument Panel
F109  10 Amp Red Climate Control/ (Heating, ventilation, and air conditioning) HVAC
F110  10 Amp Red Occupant Restraint Controller
F112  10 Amp Red Spare
F114 20 Amp Yellow Rear HVAC (Heating, ventilation, and air conditioning) Blower/ Motor
F115  20 Amp Yellow Rear Wiper Motor

F117  10 Amp Red Heated Mirrors
F118  10 Amp Red Occupant Restraint Controller
F119  10 Amp Red Steering Column Control Module
F120  10 Amp Red All Wheel Drive – If Equipped
F121  15 Amp Blue Wireless Ignition Node
F122  25 Amp Clear Driver Door Module
F123  25 Amp Clear Passenger Door Module
F124  10 Amp Red Mirrors
F125  10 Amp Red Steering Column Control Module
F126  25 Amp Clear Audio Amplifier
F127  20 Amp Yellow Trailer Tow – If Equipped
F128  15 Amp Blue Radio
F129  15 Amp Blue Video/DVD – If Equipped
F130  15 Amp Blue Climate Control/ Instrument Panel
F131  10 Amp Red Passenger Assistance/Hands Free System – If Equipped
F132  10 Amp Red Tire Pressure Module
F133  10 Amp Red Spare (2018 - 2020 Models - Cyber Security Gateway)

Underhood Fuses / Power Distribution Center

The power distribution center is located in the engine compartment.

Power distribution center



Cavity ... Cartridge Fuse ... Description



F101 60 Amp Yellow – Interior Power Distribution Center Rail
F102 60 Amp Yellow – Interior Power Distribution Center Rail
F103 60 Amp Yellow – Interior Power Distribution Center Rail
F105 60 Amp Yellow – Interior Power Distribution Center Rail Ignition Run Relay
F106 60 Amp Yellow – Interior Power Distribution Center Rail Run/ Accessory Relays
F139 40 Amp Green – Climate Control System Blower
F140 30 Amp Pink – Power Locks
F141 40 Amp Green – Anti-Lock Brake System (ABS)
F142 40 Amp Green – Glow Plugs – If Equipped
F143 40 Amp Green – Exterior Lights 1
F144 40 Amp Green – Exterior Lights 2
F145 30 Amp Pink – To Body Computer – Lamp
F146 30 Amp Pink – Spare
F147 30 Amp Pink – Spare
F148 40 Amp Green – Radiator Fan Motor
F149 30 Amp Pink – Starter Solenoid
F151 30 Amp Pink – Headlamp Washer Motor – If Equipped
F162 40 Amp Red/20 Amp Lt. Blue – Cabin Heater #1/Vacuum Pump – If Equipped
F163 50 Amp Red – Cabin Heater #2 – If Equipped
F169 40 Amp Green – Emissions – Partial Zero Emissions Vehicle Motor
F181 100 Amp Blue – Electrohydraulic Steering (EHPS) – If Equipped
F182 50 Amp Red – Cabin Heater #3 – If Equipped
F184 30 Amp Pink – Front Wiper Motor

Cavity  ...  Mini-Fuse ... Description


F150 – 25 Amp Clear Powertrain Control Modules
F152 – 25 Amp Clear Diesel Fuel Heater – If Equipped
F153 – 20 Amp Yellow Fuel Pump
F156 – 10 Amp Red Brake/ Electronic Stability Control Module
F157 – 10 Amp Red Power Transfer Unit Module – If Equipped
F158 – 10 Amp Red Active Hood Module – If Equipped
F159 – 10 Amp Red Spare
F160 – 20 Amp Yellow Interior Lights
F161 – 20 Amp Yellow Horn

F164 – 25 Amp Clear Powertrain Auto Shutdown
F165 – 20 Amp Yellow Powertrain Shutdown
F166 – 20 Amp Yellow Spare
F167 – 30 Amp Green Powertrain Shutdown
F168 – 10 Amp Red Air Conditioner Clutch
F170 – 15 Amp Blue Emissions – Partial Zero Emissions Vehicle Actuators
F172 – 20 Amp Yellow Spare
F173 – 25 Amp Clear Anti Lock Brake Valves
F174 – 20 Amp Yellow Siren – If Equipped
F175 – 30 Amp Green Spare
F176 – 10 Amp Red Powertrain Control Modules
F177 – 20 Amp Yellow All Wheel Drive Module – If Equipped
F178 – 25 Amp Clear Sunroof – If Equipped
F179 – 10 Amp Red Battery Sensor



Power Outlet Fuses

Power Outlet (Cogarette Lighter) Fuses

1 — F103 20 A Yellow Power Outlet Console Bin & Power Outlet Console Rear
2 — F102 20 A Yellow Cigar Lighter Instrument Panel & Power Outlet Left Rear Cargo Area
