Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).

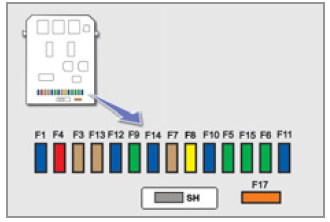

Dashbpard Fuse panel Diagram |
Fuse tables
Fuse N° .. Rating .. Functions
G39 20 A Not used.
G40 20 A Driver and passenger heated seats.
G39 20 A Not used.
G40 20 A Driver and passenger heated seats.
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Airbags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket, electrochromatic rear view mirror, air conditioning, steering wheel angle sensor, particle emission filter pump (Diesel).
F5 30 A Electric windows, rear one-touch electric windows, panoramic sunroof (SW).
F6 30 A Front one-touch electric windows, folding mirrors supply.
F7 5 A Front and rear courtesy lamps, map reading
F8 20 A Audio equipment, audio/telephone, multifunction screen, clock, steering wheel controls, trailer fusebox.
F9 30 A Front 12 V socket, rear 12 V socket (SW).
F10 15 A Not used.
F11 15 A Diagnostic socket, low current ignition switch, automatic gearbox control unit.
F12 15 A Rain/sunshine sensor, amplifi er, trailer fusebox, driving school module.
F13 5 A Engine fusebox, ABS relay, dual-function brake switch.
F14 15 A Instrument panel, seat belt warning lamps panel, headlamp adjustment, air conditioning, Bluetooth system, rear parking sensors control unit, airbags.
F15 30 A Locking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.
F2 - Not used.
F3 5 A Airbags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket, electrochromatic rear view mirror, air conditioning, steering wheel angle sensor, particle emission filter pump (Diesel).
F5 30 A Electric windows, rear one-touch electric windows, panoramic sunroof (SW).
F6 30 A Front one-touch electric windows, folding mirrors supply.
F7 5 A Front and rear courtesy lamps, map reading
F8 20 A Audio equipment, audio/telephone, multifunction screen, clock, steering wheel controls, trailer fusebox.
F9 30 A Front 12 V socket, rear 12 V socket (SW).
F10 15 A Not used.
F11 15 A Diagnostic socket, low current ignition switch, automatic gearbox control unit.
F12 15 A Rain/sunshine sensor, amplifi er, trailer fusebox, driving school module.
F13 5 A Engine fusebox, ABS relay, dual-function brake switch.
F14 15 A Instrument panel, seat belt warning lamps panel, headlamp adjustment, air conditioning, Bluetooth system, rear parking sensors control unit, airbags.
F15 30 A Locking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.
Engine compartment fuses

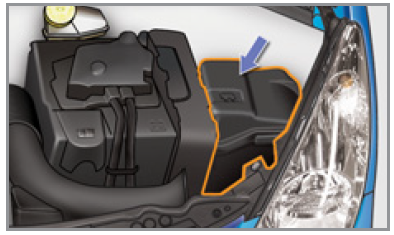

The fusebox is placed in the engine compartment, near the battery (lefthand side).
Unclip the cover.
Replace the fuse (refer to the corresponding paragraph).
When you have fi nished, carefully close the cover carefully to ensure correct sealing of the fusebox.
Fuse N° .. Rating .. Functions
F1 20 A Engine control unit and fan assembly control relay supply, timing and canister electrovalves (1.6 litre 16V THP), air fl ow sensor (Diesel), injection pump (Diesel), water in diesel sensor (Diesel), EGR electrovalves, air heating (Diesel).
F2 15 A Horn.
F3 10 A Front and rear screenwash.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol), Turbo electrovalves (1.6 l 16V THP).
F6 10 A Vehicle speed sensor, automatic gearbox.
F7 10 A Electric power steering, switching and protection unit (Diesel).
F8 25 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition coils, electrovalves, oxygen sensors, injectors, heaters, electronic thermostat) (Diesel: electrovalves, heaters).
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Diesel heater (Diesel).
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
Maxi-fuse table
Fuse N° .. Rating .. Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A Additional fan assembly (1.6 litre 16V THP).
MF7 * 80 A Dashboard fusebox.
MF8 * 30 A Not used.
Box 2
MF9 * 80 A Heating unit (Diesel).
MF10 * 80 A Electric power steering.
MF11 * 40 A Valvetronic electric motor (1.6 litre 16V THP).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer or a qualifi ed workshop.
