| 2008 Peugeot 207 |
Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
 |

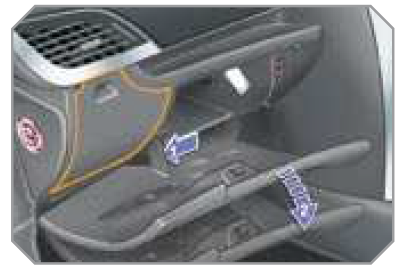

| Access to the tools |
 |
| Dashbpard Fuse Panel Location |
Access to the fuses
The extraction pliers are positioned on the back of the fascia fuse box cover.
To gain access to them:
Open the glove box lid,
To gain access to them:
Open the glove box lid,
Push the opening guide to the left to go beyond the fi rst notch,
Open the glove box lid fully,
Unclip the fuse box cover pulling at the top,
Remove the cover completely,
Open the glove box lid fully,
Unclip the fuse box cover pulling at the top,
Remove the cover completely,
Remove the pliers.
To close the glove box, take care to push the opening guide back to the left to go beyond the fi rst notch.
To close the glove box, take care to push the opening guide back to the left to go beyond the fi rst notch.
 |
| Dashbpard Fuse panel Diagram |
Fuse tables
Fuse N° .. Rating .. Functions
G39 20 A Hi-Fi amplifier.
G40 - Not used.
F1 15 A Rear wiper
F2 - Not used.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket, electrochromatic interior mirror, air conditioning, steering wheel angle sensor, particle emission fi lter pump (Diesel).
F5 30 A Electric windows, rear one-touch electric windows, sunroof, panoramic roof shutter (SW).
F6 30 A Front one-touch electric windows, folding mirrors supply.
F7 5 A Front and rear courtesy lights, map reading lights, sun visor lighting, glove box lighting, clock.
F8 20 A Audio equipment, audio/telephone, CD changer, multifunction display, clock, steering wheel controls, tyre under-infl ation detection, trailer fuse box.
F9 30 A Front 12 V socket, rear 12 V socket (SW). (Cigarette Lighter)
F10 15 A Alarm siren, alarm control unit, directional headlamps.
F11 15 A Diagnostic socket, low current ignition switch, automatic gearbox control unit.
F12 15 A Rain/brightness sensor, amplifi er, trailer fuse box, driving school module.
F13 5 A Engine fuse box, ABS relay, dual-function brake switch, "2 Tronic" gearbox gear lever.
F14 15 A Instrument panel, seat belt warning lights bar, headlamp adjustment, air conditioning, hands-free kit, rear parking assistance control unit, air bags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and exterior mirrors de-icing.
SH - PARC shunt.
G40 - Not used.
F1 15 A Rear wiper
F2 - Not used.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket, electrochromatic interior mirror, air conditioning, steering wheel angle sensor, particle emission fi lter pump (Diesel).
F5 30 A Electric windows, rear one-touch electric windows, sunroof, panoramic roof shutter (SW).
F6 30 A Front one-touch electric windows, folding mirrors supply.
F7 5 A Front and rear courtesy lights, map reading lights, sun visor lighting, glove box lighting, clock.
F8 20 A Audio equipment, audio/telephone, CD changer, multifunction display, clock, steering wheel controls, tyre under-infl ation detection, trailer fuse box.
F9 30 A Front 12 V socket, rear 12 V socket (SW). (Cigarette Lighter)
F10 15 A Alarm siren, alarm control unit, directional headlamps.
F11 15 A Diagnostic socket, low current ignition switch, automatic gearbox control unit.
F12 15 A Rain/brightness sensor, amplifi er, trailer fuse box, driving school module.
F13 5 A Engine fuse box, ABS relay, dual-function brake switch, "2 Tronic" gearbox gear lever.
F14 15 A Instrument panel, seat belt warning lights bar, headlamp adjustment, air conditioning, hands-free kit, rear parking assistance control unit, air bags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and exterior mirrors de-icing.
SH - PARC shunt.
Engine compartment fuses
The fusebox is placed in the engine compartment, near the battery (lefthand side).
 |
| Engine compartment Fuse Box |
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the corresponding paragraph).
When you have fi nished, carefully close the cover carefully to ensure correct sealing of the fusebox.
 |
| Engine compartment Fuse Panel Diagram |
Fuse table
Fuse N° .. Rating .. Functions
F1 20 A Engine control unit and fan assembly control relay supply, timing and canister solenoid valves (1.6 l 16V THP), air fl ow sensor (Diesel), injection pump (Diesel), water in diesel sensor (Diesel), EGR solenoid valves, air heating (Diesel).
F2 15 A Horn
F3 10 A Front and rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol), Turbo solenoid valves (1.6 l 16V THP).
F6 10 A Vehicle speed sensor, automatic gearbox.
F7 10 A Electric power steering, directional headlamps, directional headlamps control relay, switching and protection unit (Diesel).
F8 25 A Starter control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition coils, solenoid valves, oxygen sensors, injectors, heaters, controlled thermostat) (Diesel: solenoid valves, heaters).
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Diesel heater (Diesel).
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
Fuse N° .. Rating .. Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A Additional fan assembly (1.6 litre 16V THP).
MF7 * 80 A Dashboard fusebox.
Box 2
F2 15 A Horn
F3 10 A Front and rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol), Turbo solenoid valves (1.6 l 16V THP).
F6 10 A Vehicle speed sensor, automatic gearbox.
F7 10 A Electric power steering, directional headlamps, directional headlamps control relay, switching and protection unit (Diesel).
F8 25 A Starter control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition coils, solenoid valves, oxygen sensors, injectors, heaters, controlled thermostat) (Diesel: solenoid valves, heaters).
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Diesel heater (Diesel).
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
Maxi-fuse table
Fuse N° .. Rating .. Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A Additional fan assembly (1.6 litre 16V THP).
MF7 * 80 A Dashboard fusebox.
Box 2
MF8 * 30 A Not used.
MF9 * 80 A Heating unit (Diesel).
MF10 * 80 A Electric power steering.
MF11 * 40 A Valvetronic electric motor (1.6 litre 16V THP).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer or a qualifi ed workshop.
MF9 * 80 A Heating unit (Diesel).
MF10 * 80 A Electric power steering.
MF11 * 40 A Valvetronic electric motor (1.6 litre 16V THP).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer or a qualifi ed workshop.
