2010 - 2012 Subaru Legacy Fuse Panel Diagram

2011 Subaru Legacy

Fuses

CAUTION
Never replace a fuse with one having a higher rating or with material other than a fuse because serious damage or a fire could result.

The fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment. The fuses are located in two fuse boxes.

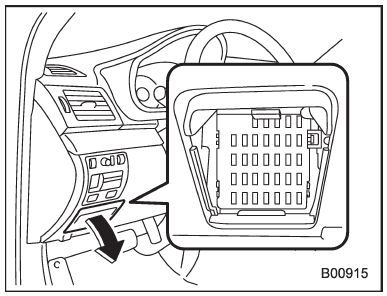

Instrument Panel Fuse Box Location

One is located under the instrument panel behind the fuse box cover on the driver’s seat side. To remove the cover, pull it out.

Engine Compartment Fuse Box Location

The other one (main fuse box) is housed in the engine compartment.

Spare Fuses Location

The spare fuses are stored in the main fuse box cover in the engine compartment.


Fuse Puller Location

The fuse puller is stored in the main fuse box in the engine compartment.

1) Good  Fuse  ,  2) Blown Fuse



If any lights, accessories or other electrical controls do not operate, inspect the corresponding fuse. If a fuse has blown, replace it.

1. Turn the ignition switch to the “LOCK”/ “OFF” position and turn off all electrical accessories.
2. Remove the cover.
3. Determine which fuse may be blown.

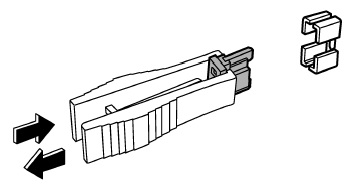

Fuse Puller

4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a spare fuse of the same rating.
6. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs.

Fuse panel located in the passenger compartment

Passenger Compartment Fuse Panel Diagram





Fuse panel .. Fuse rating .. Circuit

1 15A . Trailer hitch connector
2 20A . Rear power window (left side)
3 20A . Power window (driver’s side)
4 7.5A . Navigation system . Front wiper deicer . Moonroof
5 7.5A . Combination meter
6 7.5A . Remote control rear view mirrors
7 7.5A . Integrated unit
8 15A . Stop light
9 15A . Seat heater relay
10 7.5A . Power supply (battery)
11 7.5A . Turn signal unit
12 15A . Integrated unit . Automatic transmission unit

13 20A . Socket
14 Empty
15 20A . Rear power window (right side)
16 Empty
17 15A . Front wiper deicer
18 7.5A . Back-up light
19 7.5A . Electronic parking brake unit . Hill Holder system unit
20 10A . Accessory power outlet
21 7.5A . Starter relay
22 15A . Air conditioner
23 Empty
24 15A . Audio . Navigation system
25 15A . SRS airbag system
26 7.5A . Main fan
27 30A . Power window relay
28 Empty
29 20A . Power window (passenger’s side)
30 Empty
31 7.5A . Automatic air conditioner unit
32 Empty
33 7.5A . ABS/Vehicle dynamics control unit . Power steering

Fuse panel located in the engine compartment

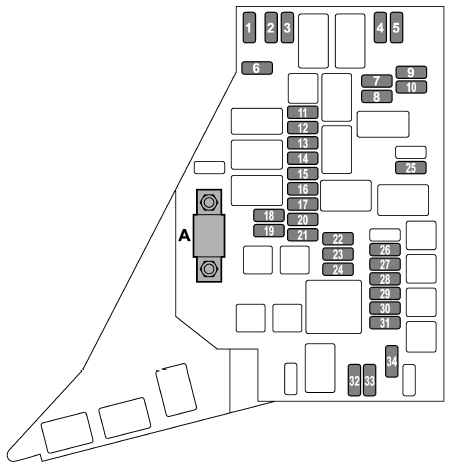

Engine Compartment Fuse Panel Diagram , A - Main Fuse



Fuse panel .. Fuse rating .. Circuit

1 7.5A . CVT control unit
2 7.5A . Horn LO
3 7.5A . Horn HI
4 15A . Low beam headlight (right side)
5 15A . Low beam headlight (left side)
6 20A . Fuel pump
7 10A . High beam headlight (left side)
8 10A . High beam headlight (right side)
9 20A . Continuously variable transmission control unit
10 7.5A . Alternator
11 20A . Moonroof
12 7.5A . Engine control unit

13 15A . Engine control unit
14 15A . Ignition coil
15 15A . Engine control unit
16 15A . Engine control unit
17 15A . Automatic transmission control unit
18 10A . Illumination
19 10A . Rear combination light
20 15A . Turn and hazard warning flasher (body control unit)
21 20A . Door lock (body control unit)
22 15A . Rear wiper . Rear washer
23 10A . Front washer
24 30A . Front wiper
25 25A . Rear window defogger . Mirror heater . Front wiper deicer
26 15A . Blower fan
27 15A . Blower fan
28 25A . Audio unit
29 25A . Sub fan
30 25A . Main fan
31 30A . ABS/Vehicle dynamics control unit
32 10A . Fog light (right side)
33 10A . Fog light (left side)
34 10A . Back-up (body control unit)
