Fuses and Relays
CAUTION
Never replace a fuse with one having a higher rating or with material other than a fuse because serious damage or a fire could result.
The fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment. The fuses are located in two fuse boxes. One is located under the instrument panel behind the fuse box cover on the driver’s seat side.
Open the lid that is located above the hood release knob and pull it toward you to remove it.

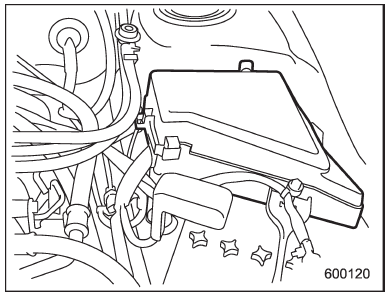

The other one is housed in the engine compartment.
Spare Fuses
Spare Fuses |
The spare fuses are stored in the main fuse box cover in the engine compartment.

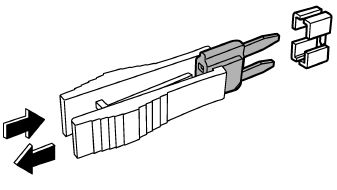

Fuse Puller
Fuse Puller Location |
The fuse puller is stored in the main fuse box in the engine compartment.
1) Good , 2) Blown |
If any lights, accessories or other electrical controls do not operate, inspect the corresponding fuse. If a fuse has blown, replace it.
1. Turn the ignition switch to the “LOCK” position and turn off all electrical accessories.
2. Remove the cover.
3. Determine which fuse may be blown.
4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a spare fuse of the same rating.
6. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs.
5. Inspect the fuse. If it has blown, replace it with a spare fuse of the same rating.
6. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs.
Main fuse
The main fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment. Check the main fuses if any electrical component fails to operate (except the starter motor) and other fuses are good. A melted main fuse must be
replaced. Use only replacements with the same specified rating as the melted main fuse. If a main fuse blows after it is replaced, have the electrical system checked by your nearest SUBARU dealer.
replaced. Use only replacements with the same specified rating as the melted main fuse. If a main fuse blows after it is replaced, have the electrical system checked by your nearest SUBARU dealer.
Passenger Compartment Fuse Panel
Passenger compartment Fuse Panel Diagram |
Fuse panel .. Fuse rating .. Circuit
1 20A . Cargo fan . Trailer hitch connector
2 Empty
3 15A . Door locking
4 15A . Front wiper deicer relay . Moonroof
5 15A . Combination meter
6 7.5A . Remote control rear view mirrors . Seat heater relay . Vanity mirror light
7 15A . Combination meter . Integrated unit
8 20A . Stop light
9 20A . Mirror heater . Front wiper deicer
10 7.5A . Power supply (battery)
11 7.5A . Turn signal unit . Clock
12 15A . Automatic transmission unit . Engine control unit . Integrated unit
13 20A . Cargo socket
14 15A . Position light . Tail light . Rear combination light
15 Empty
16 10A . Illumination
17 15A . Seat heaters
18 10A . Back-up light
19 7.5A . Headlight right side relay
20 10A . Cigarette lighter socket
21 7.5A . Starter relay
22 15A . Air conditioner . Rear window defogger relay coil
23 15A . Rear wiper . Rear window washer
24 15A . Audio unit . Clock
25 15A . SRS airbag system
26 7.5A . Power window relay
27 15A . Blower fan
28 15A . Blower fan
29 15A . Fog light
30 30A . Front wiper . Front wiper washer
31 7.5A . Auto air conditioner unit . Integrated unit
32 7.5A . Headlight left side relay
33 7.5A . ABS (Anti-lock brake system)/ Vehicle dynamics control unit
1 20A . Cargo fan . Trailer hitch connector
2 Empty
3 15A . Door locking
4 15A . Front wiper deicer relay . Moonroof
5 15A . Combination meter
6 7.5A . Remote control rear view mirrors . Seat heater relay . Vanity mirror light
7 15A . Combination meter . Integrated unit
8 20A . Stop light
9 20A . Mirror heater . Front wiper deicer
10 7.5A . Power supply (battery)
11 7.5A . Turn signal unit . Clock
12 15A . Automatic transmission unit . Engine control unit . Integrated unit
13 20A . Cargo socket
14 15A . Position light . Tail light . Rear combination light
15 Empty
16 10A . Illumination
17 15A . Seat heaters
18 10A . Back-up light
19 7.5A . Headlight right side relay
20 10A . Cigarette lighter socket
21 7.5A . Starter relay
22 15A . Air conditioner . Rear window defogger relay coil
23 15A . Rear wiper . Rear window washer
24 15A . Audio unit . Clock
25 15A . SRS airbag system
26 7.5A . Power window relay
27 15A . Blower fan
28 15A . Blower fan
29 15A . Fog light
30 30A . Front wiper . Front wiper washer
31 7.5A . Auto air conditioner unit . Integrated unit
32 7.5A . Headlight left side relay
33 7.5A . ABS (Anti-lock brake system)/ Vehicle dynamics control unit

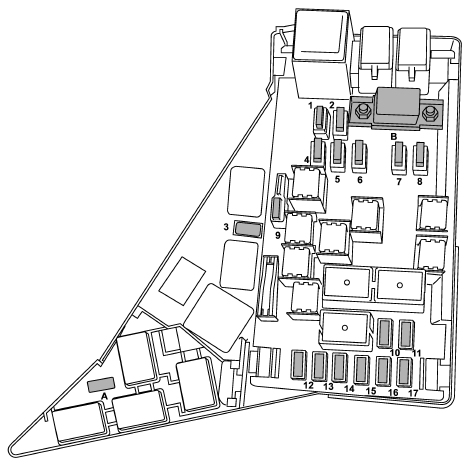

Engine Compartment Fuse Panel
Engine Compartment Fuse Panel Diagram |
Fuse panel .. Fuse rating .. Circuit
1 30A . ABS unit . Vehicle dynamics control unit
2 25A . Main fan (3.0 L models)
3 10A . Secondary air combination valve (turbo models)
4 25A . Sub fan (except 3.0 L models)
5 25A . Main fan
6 20A . Audio
7 15A . Headlight (right side)
8 15A . Headlight (left side)
9 20A . Back-up light
10 15A . Horn
11 25A . Rear window defogger
12 15A . Fuel pump
13 15A . Automatic transmission control unit
14 7.5A . Engine control unit
15 15A . Turn and hazard warning flasher
16 20A . Parking switch
17 7.5A . Alternator
1 30A . ABS unit . Vehicle dynamics control unit
2 25A . Main fan (3.0 L models)
3 10A . Secondary air combination valve (turbo models)
4 25A . Sub fan (except 3.0 L models)
5 25A . Main fan
6 20A . Audio
7 15A . Headlight (right side)
8 15A . Headlight (left side)
9 20A . Back-up light
10 15A . Horn
11 25A . Rear window defogger
12 15A . Fuel pump
13 15A . Automatic transmission control unit
14 7.5A . Engine control unit
15 15A . Turn and hazard warning flasher
16 20A . Parking switch
17 7.5A . Alternator
