2018 - 2023 Chevrolet Traverse Fuse Box Diagram

2018 Chevrolet Traverse



Fuses and Circuit Breakers

The wiring circuits in the vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of damage caused by electrical problems.

Danger
Fuses and circuit breakers are marked with their ampere rating.
Do not exceed the specified amperage rating when replacing fuses and circuit breakers. Use of an oversized fuse or circuit breaker can result in a vehicle fire. You and others could be seriously injured or killed.

To check a fuse, look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a new one of the identical size and rating. Fuses of the same amperage can be temporarily borrowed from another fuse location, if a fuse goes out. Replace the fuse as soon as possible.

Engine Compartment Fuse Block

The underhood fuse block is in the engine compartment, on the driver side of the vehicle.

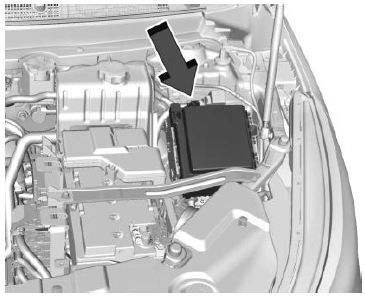

Engine Compartment Fuse Block Location

Caution
Do not pull the engine compartment fuse block lever, since it is intended only for service purposes. If pulled, vehicle malfunction may occur. To remove the fuse block cover, press the clips on the cover and lift it straight up.

Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the
covers on any electrical component. To remove fuses, use the fuse puller and pull straight out.

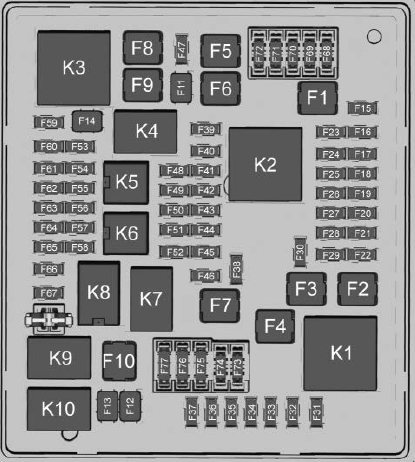

Engine Compartment Fuse Block Diagram

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses ... Usage

F1 Antilock brake system (ABS) pump
F2 Starter 1
F3 DC DC transformer 1
F4 –
F5 DC DC transformer 2
F6 –
F7 –
F8 –
F9 Vacuum pump
F10 Front wiper
F11 –
F12 –
F13 Starter 2
F14 –
F15 Rear wiper
F16 –
F17 –
F18 –
F19 –
F20 –
F21 –
F22 Electronic brake control module
F23 Parking/Trailer lamps
F24 Right trailer stoplamp/Turnlamp
F25 Steering column lock
F26 –
F27 Left trailer stoplamp/ Turnlamp
F28 –
F29 –
F30 Washer pump
F31 –
F32 Left low – beam headlamp
F33 Front fog lamps
F34 Horn
F35 –
F36 –
F37 Right low – beam headlamp
F38 Automatic headlamp leveling motor (if equipped)
F39 Transmission control module
F40 Left rear bus electrical center/ Ignition
F41 Instrument cluster
F42 Heating, ventilation, and air conditioning
F43 Head-up display (if equipped)
F44 Communication gateway module/ Run/Crank (if equipped)
F45 –
F46 –
F47 –
F48 –
F49 Interior rearview mirror
F50 Fuel system control module  (2022 Model - Fuel Tank Zone Module/ Shifter Interface   Board/ Run/Crank)
F51 Heated steering wheel
F52 Folding seats switch
F53 – (2022 Model - Coolant Pump)
F54 Coolant pump (2022 Model - -- )
F55 Air conditioning clutch
F56 Integrated chassis control module (2022 Model - -- )
F57 Engine control module/Ignition
F58 Transmission control module/ Ignition
F59 Engine control module battery
F60 – (2022 Model - -- )
F61 O2 sensor 1/MAF/ Aeroshutter (2020 Model - O2 sensor 1/ Air flow)
F62 Engine control module – even 1 (2020, 2022 Models -  --)
F63 O2 sensor 2/ Canister/Engine oil/ Turbo (2020 Model - O2 sensor 2/ Canister/Engine oil/  Turbo)
F64 Engine control module – even 2 (2020 , 2022 Models - Aeroshutter)
F65 Engine control module powertrain 1
F66 Engine control module powertrain 2
F67 Engine control module – odd
F68 –
F69 –
F70 –
F71 –
F72 –
F73 –
F74 –
F75 –
F76 –
F77 –

Relays ... Usage
K1 Starter 1
K2 Run/Crank
K3 Vacuum pump
K4 –
K5 Air conditioning
K6 Coolant pump
K7 Engine control module
K8 Folding seats
K9 –
K10 Starter 2

Instrument Panel Fuse Block

Instrument Panel Fuse Block Location

The instrument panel fuse block is inside the center console on the passenger side of the vehicle.
Remove the fuse access door by inserting a coin or tool into the slot of the access door.
To remove a fuse, use the fuse puller located in the Engine Compartment Fuse block.

Instrument Panel Fuse Box Diagram

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses ... Usage
F1 Body control module 6
F2 Diagnostic link
F3 Electric steering column lock
F4 Rear USB
F5 – (2021 Model - Rear sunshade/Park/ Reverse/Neutral/ Drive/Low)
F6 Heating, ventilation, and air conditioning
F7 Body control module 3
F8 – (2021 Model - Adaptive front lighting system)

F9 Right front heated seat
F10 Airbag
F11 - --  (2018 - 2020 Models - Electronic precision shift )
F12 Amplifier
F13 Body control module 7
F14 Left front heated seat
F15 –
F16 Sunroof
F17 Communication gateway module (if equipped)
F18 Instrument cluster
F19 Body control module 1
F20 Wireless charger module
F21 Body control module 4
F22 Infotainment
F23 Body control module 2
F24 –
F25 Parking assist
F26 Communications integration module
F27 Video
F28 Radio/Heating, ventilation, and air conditioning display
F29 Radio
F30 Steering wheel controls
F31 Front blower
F32 DC AC inverter
F33 Driver power seat
F34 Passenger power seat
F35 Feed/Body control module 4
F36 Electric power steering
F37 Power outlet/ Wireless charger/ Accessory
F38 Body control module 8
F39 Steering wheel controls backlighting

Circuit Breakers ... Usage
F40 –
F41 –
F42 Auxiliary power outlet (CB) /Lighter (Minifuse)

Rear Compartment Fuse Block

Rear Compartment Fuse Block Location



The rear compartment fuse block is behind a trim panel on the driver side of the rear storage
compartment.
The trim panel is removed by prying along the top edge of the trim panel at two notched locations. Remove the trim panel to access the fuse block.
The fuse block label is on the back of the access door in the driver side rear trim panel.

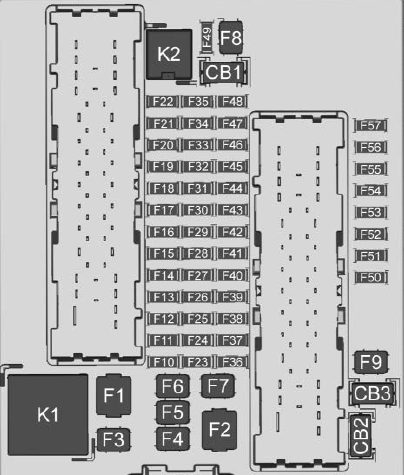

Rear Compartment Fuse Panel Diagram

Fuses Usage
F1 –
F2 Trailer
F3 Folding seats
F4 Rear blower
F5 Rear drive control
F6 –
F7 Right window
F8 Rear defogger
F9 Left window
F10 –
F11 Trailer reverse
F12 USB/Third row seats
F13 –
F14 –
F15 –
F16 –
F17 Camera
F18 –
F19 Ventilated seats
F20 –
F21 –
F22 –
F23 –
F24 Lumbar
F25 –
F26 Trailer brake lamps
F27 –
F28 Passive entry/ Passive start
F29 –
F30 Canister vent
F31 –
F32 Heated mirrors
F33 USB/Second row seats
F34 Liftgate module
F35 Fuel system control module
F36 –
F37 –
F38 Window module
F39 Rear closure
F40 Memory seat module
F41 Automatic occupancy sensor
F42 –
F43 –
F44 –
F45 Liftgate motor
F46 Rear heated seats
F47 –
F48 –
F49 –
F50 –
F51 –
F52 Semi-active dampening system  module
F53 –
F54 External object calculating remote system/ Blind zone alert
F55 –
F56 Universal garage door opener/ Overhead console
F57 Hands free closure release

Circuit Breakers ... Usage
CB1 –
CB2 –
CB3 Rear auxiliary power outlet

Relays ... Usage
K1 –
K2 –
