| 2016 Ram 1500 |
Fuses and Relays
WARNING!
• When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
• Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
• If the replaced fuse blows again, contact an authorized dealer.
• If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, gearbox system) or steering system blows, contact an authorized dealer.
Power Distribution Center
The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component (Diagram) may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.
 |

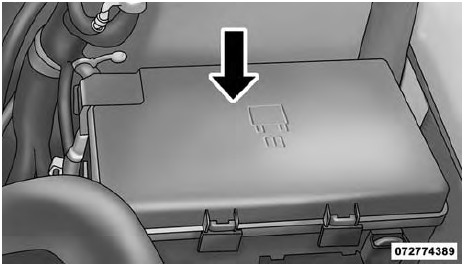

| Power Distribution Center Location |
Cavity .. Cartridge Fuse .. Description
F01 80 Amp Black – Rad Fan Control Module – If equipped
F03 60 Amp Yellow – Rad (Radiator) Fan – If Equipped
F05 40 Amp Green – Compressor for Air Suspension – If Equipped
F06 40 Amp Green – Antilock Brakes/Electronic Stability Control Pump
F07 40 Amp Green – Starter Solenoid
F08 20 Amp Blue (1500 LD/Cummins Diesel) – Emissions Diesel – If Equipped
F09 40 Amp Green (Special Services Vehicle & Cummins Diesel) 30 Amp Pink (1500 LD Diesel) – Diesel Fuel Heater – If Equipped
F10 40 Amp Green – Body Controller / Exterior Lighting #2
F10 50 Amp Red – Body Controller / Exterior Lighting #2 – If Equipped with Stop/Start
F11 30 Amp Pink – Integrated Trailer Brake Module – If Equipped
F12 40 Amp Green – Body Controller #3 / Interior Lights
F13 40 Amp Green – Blower Motor
F14 40 Amp Green – Body Controller #4 / Power Locks
F15 30 Amp Pink Electric Park Brake Right Side – If Equipped
F16 30 Amp Pink – Smart Bar – If Equipped
F19 20 Amp Blue (1500 LD Diesel) 30 Amp Pink (Cummins Diesel) – SCR – If Equipped
F20 30 Amp Pink – Passenger Door Module
F21 30 Amp Pink – Drive Train Control Module
F22 20 Amp Blue 30 Amp Pink (Cummins Diesel) – Engine Control Module
F23 30 Amp Pink – Body Controller #1
F24 30 Amp Pink – Driver Door Module
F25 30 Amp Pink – Front Wiper
F26 30 Amp Pink – Antilock Brakes / Stability Control Module / Valves
F28 20 Amp Blue – Trailer Tow Backup Lights – If Equipped
F29 20 Amp Blue – Trailer Tow Parking Lights – If Equipped
F30 30 Amp Pink – Trailer Tow Receptacle
F31 30 Amp Pink (1500 LD Diesel) – Urea Heater Control – If Equipped
F32 – – Spare Fuse (2013 - 2015 Model - 30 Amp Pink Drive Train Control Module – If Equipped)
F33 20 Amp Blue – Special Services Vehicle Only (2013 - 2014 Model - Diesel Fuel Heater #1 – If Equipped / Rear Blower – If Equipped)
F34 30 Amp Pink – Vehicle System Interface Module #2 – If Equipped
F35 30 Amp Pink – Sunroof – If Equipped
F36 30 Amp Pink – Rear Defroster – If Equipped
F37 30 Amp Pink – Cummins Diesel Fuel Heater #2 – If Equipped
F38 30 Amp Pink – Power Inverter 115V AC – If Equipped
F39 20 Amp Blue – Power Outlet – Special Services Only (2013 - 2015 Model - 30 Amp Pink Vehicle System Interface Module #1– If Equipped)
F16 30 Amp Pink – Smart Bar – If Equipped
F19 20 Amp Blue (1500 LD Diesel) 30 Amp Pink (Cummins Diesel) – SCR – If Equipped
F20 30 Amp Pink – Passenger Door Module
F21 30 Amp Pink – Drive Train Control Module
F22 20 Amp Blue 30 Amp Pink (Cummins Diesel) – Engine Control Module
F23 30 Amp Pink – Body Controller #1
F24 30 Amp Pink – Driver Door Module
F25 30 Amp Pink – Front Wiper
F26 30 Amp Pink – Antilock Brakes / Stability Control Module / Valves
F28 20 Amp Blue – Trailer Tow Backup Lights – If Equipped
F29 20 Amp Blue – Trailer Tow Parking Lights – If Equipped
F30 30 Amp Pink – Trailer Tow Receptacle
F31 30 Amp Pink (1500 LD Diesel) – Urea Heater Control – If Equipped
F32 – – Spare Fuse (2013 - 2015 Model - 30 Amp Pink Drive Train Control Module – If Equipped)
F33 20 Amp Blue – Special Services Vehicle Only (2013 - 2014 Model - Diesel Fuel Heater #1 – If Equipped / Rear Blower – If Equipped)
F34 30 Amp Pink – Vehicle System Interface Module #2 – If Equipped
F35 30 Amp Pink – Sunroof – If Equipped
F36 30 Amp Pink – Rear Defroster – If Equipped
F37 30 Amp Pink – Cummins Diesel Fuel Heater #2 – If Equipped
F38 30 Amp Pink – Power Inverter 115V AC – If Equipped
F39 20 Amp Blue – Power Outlet – Special Services Only (2013 - 2015 Model - 30 Amp Pink Vehicle System Interface Module #1– If Equipped)
Cavity .. Micro Fuse .. Description
F41 – 10 Amp Red Active Grill Shutter – If Equipped
F42 – 20 Amp Yellow Horn
F42 – 20 Amp Yellow Horn
F43 10 Amp Red Snow Plow (Left) – If Equipped
F44 – 10 Amp Red Diagnostic Port
F46 – 10 Amp Red Upfitter – If Equipped (2013 - 2015 Model - Tire Pressure Monitor)
F44 – 10 Amp Red Diagnostic Port
F46 – 10 Amp Red Upfitter – If Equipped (2013 - 2015 Model - Tire Pressure Monitor)
F47 10 Amp Red Snow Plow (Right) – If Equipped
F49 – 10 Amp Red Instrument Panel Cluster
F50 – 20 Amp Yellow Air Suspension Control Module – If Equipped
F51 – 10 Amp Red Ignition Node Module / Keyless Ignition
F52 – 5 Amp Tan Battery Sensor
F53 – 20 Amp Yellow Trailer Tow – Left Turn/Stop Lights
F54 – 20 Amp Yellow Adjustable Pedals
F56 – 15 Amp Blue Additional Diesel Content – If Equipped
F57 – 20 Amp Yellow Transmission
F58 – 20 Amp Yellow Spare Fuse
F59 – 10 Amp Red SCR Relay – If Equipped
F60 – 15 Amp Blue Underhood Lamp
F61 – 10 Amp Red (1500 LD Diesel & Cummins Diesel) PM Sensor – If Equipped
F62 – 10 Amp Red Air Conditioning Clutch
F63 – 20 Amp Yellow Ignition Coils (Gas), Urea Heater (Cummins Diesel)
F64 – 25 Amp Clear Fuel Injectors / Powertrain
F65 – 10 Amp Red USB interface
F66 – 10 Amp Red Sunroof / Passenger Window Switches / Rain Sensor
F67 – 10 Amp Red CD / DVD / Bluetooth Hands-free Module – If Equipped
F69 – 15 Amp Blue Mod SCR 12V (Cummins Diesel) – If Equipped
F70 – 30 Amp Green Fuel Pump Motor
F71 – 25 Amp Clear Amplifier
F72 – 10 Amp Red PCM – If Equipped
F73 – 20 Amp Yellow Fuel Transfer Pump (HD Only) – If Equipped
F74 – 20 Amp Yellow (Gas Engine & 1500 LD Diesel) Brake Vacuum Pump Gas/Diesel – If
Equipped
F75 – 10 Amp Red Coolant Temperature Valve Actuator
F76 – 10 Amp Red Antilock Brakes / Electronic Stability Control
F77 – 10 Amp Red Drivetrain Control Module/Front Axle Disconnect Module
F78 – 10 Amp Red Engine Control Module / Electric Power Steering
F79 – 15 Amp Blue Clearance Lights
F80 – 10 Amp Red Universal Garage Door Opener / Compass
F81 – 20 Amp Yellow Trailer Tow Right Turn / Stop Lights
F82 – 10 Amp Red Steering Column Control Module / Cruise Control
F84 – 15 Amp Blue Switch Bank / Instrument Cluster
F85 – 10 Amp Red Airbag Module
F86 – 10 Amp Red Airbag Module
F87 – 10 Amp Red Air Suspension – If Equipped / Trailer Tow / Steering Column Control Module
F88 – 15 Amp Blue Instrument Panel Cluster
F90/F91 – 20 Amp Yellow Power Outlet (rear seats) Customer Selectable
F93 – 20 Amp Yellow Cigar Lighter
F94 – 10 Amp Red Shifter / Transfer Case Module
F95 – 10 Amp Red Rear Camera / Park Assist
F96 – 10 Amp Red Rear Seat Heater Switch
F97 – 25 Amp Clear Rear Heated Seats & Heated Steering Wheel – If Equipped
F98 – 25 Amp Clear Front Heated Seats – If Equipped
F99 – 10 Amp Red Climate Control
F100 – 10 Amp Red Upfitters – If Equipped
F101 – 15 Amp Blue Electrochromatic Mirror / Smart High Beams – If Equipped
F104 – 20 Amp Yellow Power Outlets (Instrument Panel / Center Console)
CAUTION!
• When installing the power distribution center cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the power distribution center and possibly result in an electrical system failure.
• When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.
F49 – 10 Amp Red Instrument Panel Cluster
F50 – 20 Amp Yellow Air Suspension Control Module – If Equipped
F51 – 10 Amp Red Ignition Node Module / Keyless Ignition
F52 – 5 Amp Tan Battery Sensor
F53 – 20 Amp Yellow Trailer Tow – Left Turn/Stop Lights
F54 – 20 Amp Yellow Adjustable Pedals
F56 – 15 Amp Blue Additional Diesel Content – If Equipped
F57 – 20 Amp Yellow Transmission
F58 – 20 Amp Yellow Spare Fuse
F59 – 10 Amp Red SCR Relay – If Equipped
F60 – 15 Amp Blue Underhood Lamp
F61 – 10 Amp Red (1500 LD Diesel & Cummins Diesel) PM Sensor – If Equipped
F62 – 10 Amp Red Air Conditioning Clutch
F63 – 20 Amp Yellow Ignition Coils (Gas), Urea Heater (Cummins Diesel)
F64 – 25 Amp Clear Fuel Injectors / Powertrain
F65 – 10 Amp Red USB interface
F66 – 10 Amp Red Sunroof / Passenger Window Switches / Rain Sensor
F67 – 10 Amp Red CD / DVD / Bluetooth Hands-free Module – If Equipped
F69 – 15 Amp Blue Mod SCR 12V (Cummins Diesel) – If Equipped
F70 – 30 Amp Green Fuel Pump Motor
F71 – 25 Amp Clear Amplifier
F72 – 10 Amp Red PCM – If Equipped
F73 – 20 Amp Yellow Fuel Transfer Pump (HD Only) – If Equipped
F74 – 20 Amp Yellow (Gas Engine & 1500 LD Diesel) Brake Vacuum Pump Gas/Diesel – If
Equipped
F75 – 10 Amp Red Coolant Temperature Valve Actuator
F76 – 10 Amp Red Antilock Brakes / Electronic Stability Control
F77 – 10 Amp Red Drivetrain Control Module/Front Axle Disconnect Module
F78 – 10 Amp Red Engine Control Module / Electric Power Steering
F79 – 15 Amp Blue Clearance Lights
F80 – 10 Amp Red Universal Garage Door Opener / Compass
F81 – 20 Amp Yellow Trailer Tow Right Turn / Stop Lights
F82 – 10 Amp Red Steering Column Control Module / Cruise Control
F84 – 15 Amp Blue Switch Bank / Instrument Cluster
F85 – 10 Amp Red Airbag Module
F86 – 10 Amp Red Airbag Module
F87 – 10 Amp Red Air Suspension – If Equipped / Trailer Tow / Steering Column Control Module
F88 – 15 Amp Blue Instrument Panel Cluster
F90/F91 – 20 Amp Yellow Power Outlet (rear seats) Customer Selectable
F93 – 20 Amp Yellow Cigar Lighter
F94 – 10 Amp Red Shifter / Transfer Case Module
F95 – 10 Amp Red Rear Camera / Park Assist
F96 – 10 Amp Red Rear Seat Heater Switch
F97 – 25 Amp Clear Rear Heated Seats & Heated Steering Wheel – If Equipped
F98 – 25 Amp Clear Front Heated Seats – If Equipped
F99 – 10 Amp Red Climate Control
F100 – 10 Amp Red Upfitters – If Equipped
F101 – 15 Amp Blue Electrochromatic Mirror / Smart High Beams – If Equipped
F104 – 20 Amp Yellow Power Outlets (Instrument Panel / Center Console)
CAUTION!
• When installing the power distribution center cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the power distribution center and possibly result in an electrical system failure.
• When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.
