2013 - 2016 Chevrolet Trax Fuse Box Diagram

2016 Chevrolet Trax



Fuses and Circuit Breakers

The wiring circuits in the vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of damage caused by electrical problems.
To check a fuse, look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a new one of the identical size and rating.
Fuses of the same amperage can be temporarily borrowed from another fuse location, if a fuse goes out. Replace the fuse as soon as possible.



Engine Compartment Fuse Block

Engine Compartment Fuse Block



To remove the fuse block cover, squeeze the clip and lift it up.


Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the
covers on any electrical component.



Engine Compartment Fuse Panel Diagram

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Mini Fuses  ... Usage

1 Sunroof
2 Outside Rearview Mirror Switch
3 Canister Vent Solenoid (1.4L Only)
4 Not Used
5 Electronic Brake Control Module Valve
6 Not Used
7 Not Used
8 Transmission Control Module Battery
9 Not Used
10 Fuel System Control Module R/C (1.4L Only)/Headlamp Leveling
11 Rear Wiper
12 Rear Window Defogger
13 Not Used
14 Outside Rearview Mirror Heater
15 Fuel System Control Module Battery (1.4L Only)
16 Heated Seat Module
17 Transmission Control Module R/C
18 Engine Control Module R/C
19 Fuel Pump (1.8L Only)
20 Not Used
21 Fan Relay (Auxiliary Fuse Block – 1.4L)/ Fan 3 Relay
85 (1.8L)
22 Cold Start Pump (1.8L Only)
23 Ignition Coil/Injectors
24 Washer Pump
25 Not Used

26 Canister Purge Solenoid/Water Valve Solenoid/ Oxygen Sensors – Pre and Post/Turbo
Wastegate Solenoid (1.4L)/Turbo Bypass Solenoid (1.4L)/ IMTV Solenoid (1.8L)
27 Not Used
28 Not Used
29 Engine Control Module Powertrain Ignition 1/Ignition 2
30 Mass Air Flow Sensor
31 Left High-Beam Headlamp
32 Right High-Beam Headlamp
33 Engine Control Module Battery
34 Horn
35 Air Conditioning Compressor Clutch
36 Front Fog Lamps

J-Case Fuses .. Usage
1 Electronic Brake Control Module Pump
2 Front Wiper
3 Blower Motor
4 IEC R/C
5 Not Used
6 Not Used
7 Not Used
8 Cooling Fan Low/ Mid (1.4L)/Cooling Fan Low (1.8L)
9 Cooling Fan High
10 EVP
11 Starter Solenoid

U-Micro Relays ... Usage

2 Fuel Pump (1.8L Only)
4 Spare

HC-Micro Relays .. Usage
7 Starter

Mini Relays ... Usage

1 Run Crank
3 Cooling Fan Mid (1.4L Only)
5 Powertrain Relay
8 Cooling Fan Low

HC-Mini Relays .. Usage
6 Cooling fan – high



Auxiliary Fuse Block

Auxiliary Fuse Block

To remove the fuse block cover, squeeze the clips and lift it up.

Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the
covers on any electrical component.

Auxiliary Fuse Panel Diagram



The vehicle may not be equipped with all of the relays and features shown.

Relays .. Usage
01 Electric vacuum pump
02 Cooling fan control 1
03 Cooling fan control 2
04 Trailer (1.4L only)



Instrument Panel Fuse Block

Instrument Panel Fuse Block Location

The instrument panel fuse block is on the underside of the driver side instrument panel. To access the fuses, remove the storage compartment. To remove the storage compartment, open the compartment and pull it out.

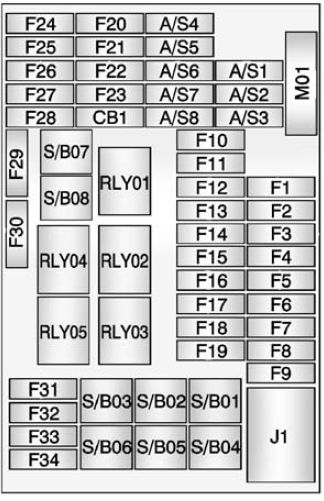

Instrument Fuse Panel Diagram



The vehicle may not be equipped with all of the fuses, relays, and features shown.



Mini Fuses .. Usage
1 Body Control Module 1
2 Body Control Module 2
3 Body Control Module 3
4 Body Control Module 4
5 Body Control Module 5
6 Body Control Module 6
7 Body Control Module 7
8 Body Control Module 8
9 Discrete Logic Ignition Switch
10 Sensing Diagnostic Module Battery
11 Data Link Connector

12 Heater, Ventilation, and Air Conditioning MDL
13 Liftgate Relay
14 UPA Module
15 Inside Rearview Mirror
16 Not Used
17 Driver Power Window Switch
18 Rain Sensor
19 Body Control Module Regulated Voltage Control
20 Steering Wheel Switch Backlighting
21 A/C Accessory Power Outlet
22 Cigar Lighter / DC Accessory Power Outlet  (Cigarette Lighter)

23 Spare (Extra Fuse)
24 Spare

25 Spare
26 Automatic Occupant Sensing Display
27 IPC/Compass Module
28 Headlamp Switch// DC Converter/Clutch Switch
29 Spare
30 Spare
31 IPC Battery
32 Radio/Chime
33 Display
34 OnStar (If Equipped)/VLBS



S/B Fuses .. Usage
1 PTC 1
2 PTC 2
3 Power Window Motor Front
4 Power Window Motor Rear
5 Logistic Mode Relay
6 Spare
7 Front Power Windows
8 Rear Power Windows



Circuit Breaker ... Usage
CB1 Spare

Midi .. Fuse Usage
M01 PTC

Relays .. Usage
01 Accessory/Retained Accessory Power
02 Liftgate
03 Spare
04 Blower Relay
05 Logistic Mode

Rear Compartment Fuse Block



Rear Compartment Fuse Block

The rear compartment fuse block is behind a cover on the driver side of the rear   compartment. To access the fuses, remove the cover.
The vehicle may not be equipped with all of the fuses, relays, and features shown.

Rear Compartment Fuse Panel Diagram

Mini Fuses .. Usage
1 Driver Seat Power Lumbar Switch
2 Passenger Seat Power Lumbar Switch
3 Amplifier
4 Trailer Socket
5 All-Wheel Drive Module
6 Automatic Occupant Sensing Module
7 Spare/LPG Module Battery (2013 Model - Spare)
8 Trailer Parking Lamps
9 Spare
10 Spare/Side Blind Zone Alert Module (2013 Model - Spare)
11 Trailer Module
12 Nav Dock
13 Heated Steering Wheel
14 Trailer Socket
15 EVP Switch
16 Water In Fuel Sensor
17 Inside Rearview Mirror/Regulated Voltage Control
18 Spare/LPG Module Run/Crank

S/B Fuses .. Usage
1 Driver Power Seat Switch/Memory Module
2 Passenger Power Seat Switch
3 Trailer Module
4 A/C-D/C Inverter
5 Battery
6 Headlamp Washer
7 Spare
8 Spare
9 Spare

Relays .. Usage

1 Ignition Relay
2 Run Relay
