2016 Citroen C4 Picasso |
Access to the tools
The extraction tweezer is located in the dashboard fusebox compartment.
For access to it:
For access to it:
- Open the glove box,
- unclip the cover by pulling at the top left, then right,
- disengage the cover completely, by carefully pulling in the direction indicated by the arrow,
- remove the tweezer
Changing a fuse
Before changing a fuse:
- disengage the cover completely, by carefully pulling in the direction indicated by the arrow,
- remove the tweezer
Changing a fuse
Before changing a fuse:
- the cause of the failure must be identified and rectified,
- all electrical consumers must b switched off,
- the vehicle must be immobilised with the ignition off,
- identify the failed fuse using the tables and layout drawings in the following pages.
To replace a fuse, you must:
- all electrical consumers must b switched off,
- the vehicle must be immobilised with the ignition off,
- identify the failed fuse using the tables and layout drawings in the following pages.
To replace a fuse, you must:
- use the special tweezer to extract the fuse from its housing and check the condition of its filament.
- always replace the failed fuse with a fuse of the same rating (same colour); using a different rating could cause faults (risk of fire).
- always replace the failed fuse with a fuse of the same rating (same colour); using a different rating could cause faults (risk of fire).
If
the fuse fails again soon after replacement, have the vehicle's
electrical system checked by a CITROËN dealer or a qualified workshop.
Good Fuse , Failed Fuse , Tweezer |
!
The replacement of a fuse not shown in the tables below may cause a
serious malfunction of your vehicle. Contact a CITROËN dealer or a
qualified workshop.
Dashboard fuses
The two fuseboxes are located in the lower dashboard (left-hand side).Access to the fuses
- Refer to "Access to the tools".
Fuse tables

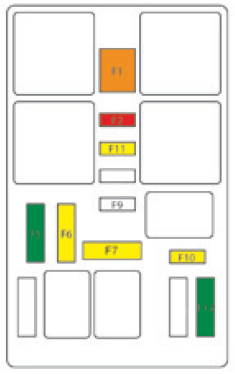

Fusebox 1
Fuse N° ... Rating ... Functions
F1 40 A Heated rear screen.
F2 20 A Electric door mirrors.
F5 30 A Panoramic sunroof blind
F6 20 A 12 V socket, rear multimedia.
F7 20 A 230 V socket.
F9 25 A Heated seats.
F10 20 A Trailer interface unit.
F11 20 A Air conditioning fan.
F12 30 A Electric window motors.
Fusebox 2
Fusebox 1
Fuse N° ... Rating ... Functions
F1 40 A Heated rear screen.
F2 20 A Electric door mirrors.
F5 30 A Panoramic sunroof blind
F6 20 A 12 V socket, rear multimedia.
F7 20 A 230 V socket.
F9 25 A Heated seats.
F10 20 A Trailer interface unit.
F11 20 A Air conditioning fan.
F12 30 A Electric window motors.
Fusebox 2
Dashboard fuse box 2 Panel Diagram |
Fuse N° .. Rating .. Functions
F7 10 A Boot 12 V socket, rear multimedia.
F8 20 A Rear wiper.
F10 30 A Locks.
F17 5 A Instrument panel.
F18 5 A Automatic gearbox gear selector.
F21 3 A START/STOP button.
F22 3 A Rain and sunshine sensor, windscreen camera.
F24 5 A Parking sensors, panoramic visual aid.
F27 5 A Automatic gearbox.
F29 20 A Audio and telematic systems.
F32 15 A 12 V sockets.
F35 5 A Headlamp beam height adjustment, heated rear screen, radar.
F36 5 A Interior lighting: glove box, central storage, reading lamps, courtesy lamps.
F7 10 A Boot 12 V socket, rear multimedia.
F8 20 A Rear wiper.
F10 30 A Locks.
F17 5 A Instrument panel.
F18 5 A Automatic gearbox gear selector.
F21 3 A START/STOP button.
F22 3 A Rain and sunshine sensor, windscreen camera.
F24 5 A Parking sensors, panoramic visual aid.
F27 5 A Automatic gearbox.
F29 20 A Audio and telematic systems.
F32 15 A 12 V sockets.
F35 5 A Headlamp beam height adjustment, heated rear screen, radar.
F36 5 A Interior lighting: glove box, central storage, reading lamps, courtesy lamps.
Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.Engine compartment fuse Box Location |
Access to the fuses
- Unclip the cover, by pushing the two red latches towards the rear of the vehicle.
- Change the fuse.
- When you have finished, close the cover carefully to ensure correct sealing of the fusebox.
- When you have finished, close the cover carefully to ensure correct sealing of the fusebox.
Engine compartment fuse Panel Diagram |
Fuse table
Fuse N° ... Rating ... Functions
F16 20 A Headlamp wash.
F18 10 A Right hand main beam.
F19 10 A Left hand main beam.
F29 40 A Wipers.
