2015 - 2021 Mazda 2 - Fuse Panel Diagram

2015 Mazda 2
2015 Mazda 2

Your vehicle's electrical system is protected by fuses.
If any lights, accessories, or controls do not work, inspect the appropriate circuit protector. If a fuse has blown, the inside element will be melted.
If the same fuse blows again, avoid using that system and consult an expert repairer, we recommend an Authorised Mazda Repairer as soon as possible.


Replacing the fuses on the vehicle's left side


If the electrical system does not work, firrst inspect the fuses on the vehicle's left side.
1. Make sure the ignition is switched off, and other switches are off.
2. Open the fuse panel cover.


Left side Fuse Box Location
Left side Fuse Box Location


3. Pull the fuse straight out with the fuse puller provided on the fuse block located in the engine compartment.

Fuse Puller
Fuse Puller

4. Inspect the fuse and replace it if it is blown.

Left Side - Norma Fuse Blown Fuse
Left Side - Norma Fuse Blown Fuse

5. Insert a new fuse of the same amperage rating, and make sure it fits tightly. If it does not fit tightly, have an expert install it. We recommend an Authorised Mazda Repairer.
If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the AUDIO or OUTLET circuit.

CAUTION
Always replace a fuse with a genuine Mazda fuse or equivalent of the same rating. Otherwise you may damage the electric system.

6. Reinstall the cover and make sure that it is securely installed.

Replacing the fuses under the bonnet


If the headlights or other electrical components do not work and the fuses in the cabin are normal, inspect the fuse block under the bonnet. If a fuse is blown, it must be replaced. Follow these steps:
1. Make sure the ignition is switched off, and other switches are off.
2. Remove the fuse block cover.

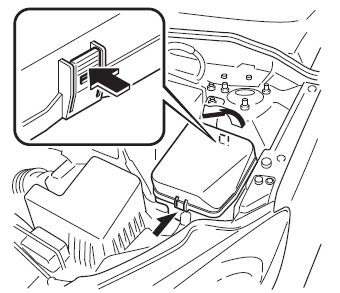

Engine compartment Fuse Box Location
Engine compartment Fuse Box Location

If any fuse but the MAIN fuse is blown, replace it with a new one of the same amperage rating

Engine compartment - Blown Fuse Normal Fuse
Engine compartment - Blown Fuse Normal Fuse

WARNING
Do not replace the main fuse and multiplex slow blow fuse by yourself.
Have an Authorised Mazda Repairer perform the replacement:
Replacing these fuses by yourself is dangerous because they are high current fuses. Incorrect replacement could cause an electrical shock or a short circuit resulting in a fire.

4. Reinstall the cover and make sure that it is securely installed.

Fuse block (Engine compartment)

Engine compartment Fuse Block Diagram
Engine compartment Fuse Block Diagram

Engine compartment Fuse Specification Chart


DESCRIPTION  ... FUSE RATING  ... PROTECTED COMPONENT
1 C/U IG1 15 A For protection of various circuits
2 ENGINE IG1 7.5 A Engine control system
3 SUNROOF 10 A —
4 INTERIOR 15 A Overhead light
5 ENG+B 7.5 A Engine control system
6 AUDIO2 15 A Audio system
7 METER1 10 A Instrument cluster
8 SRS1 7.5 A Air bag
9 METER2 7.5 A Instrument cluster *
10 RADIO 7.5 A Audio system
11 ENGINE3 15 A Engine control system
12 ENGINE1 15 A Engine control system
13 ENGINE2 15 A Engine control system
14 AUDIO1 25 A Audio system
15 A/C MAG 7.5 A Air conditioner *
16 AT PUMP 15 A Transaxle control system *
17 AT 15 A Transaxle control system *
18 D.LOCK 25 A Power door locks
19 H/L RH 20 A Headlight (RH)
20 7.5 A Engine control system
21 TAIL 20 A Tail lights, Number plate lights, Position lights
22 — — —  , (ST.HEATER 15 A - 2017-2020 Model)
23 ROOM 25 A Overhead light
24 FOG 15 A Front fog lights *
25 H/CLEAN 20 A Headlight washer *
26 STOP 10 A Brake lights, Rear fog light *
27 HORN 15 A Horn
28 H/L LH 20 A Headlight (LH)
29 ABS/DSC S 30 A ABS, Dynamic stability control system *
30 HAZARD 15 A Hazard warning 􀃀 ashers, Direction indicator lights
31 FUEL PUMP 15 A Fuel system *
32 FUEL WARM 25 A Fuel warmer *
33 WIPER 20 A Front window wiper
34 50 A For protection of various circuits
35 FAN2 30 A Cooling fan *
36 FUEL PUMP 30 A —
37 ABS/DSC M 50 A ABS, Dynamic stability control system *
38 EVVT 20 A Engine control system *
39 — — —
40 FAN1 30 A Cooling fan *
41 FAN3 40 A Cooling fan *
42 ENG.MAIN 40 A Engine control system
43 EPS 60 A Power steering system *
44 DEFOG 40 A Rear window defogger
45 IG2 30 A For protection of various circuits
46 INJECTOR 30 A Engine control system *
47 HEATER 40 A Air conditioner
48 P.WINDOW1 30 A Power windows
49 DCDC DE 40 A For protection of various circuits *

*Some models.

Fuse block (Left side)



Left Side Fuse Block Diagram
Left Side Fuse Block Diagram

Left Side Fuse Specification Chart


DESCRIPTION  ... FUSE RATING  ... PROTECTED COMPONENT
1 — — —
2 — — —
3 — — —
4 — — —
5 F.OUTLET 15 A Accessory sockets (Cigarette Lighter)
6 — — —
7 AT IND 7.5 A AT shift indicator *
8 MIRROR 7.5 A Power control mirror
9 — — —
10 P.WINDOW2 25 A Power windows
11 R.WIPER 15 A Rear window wiper and washer
12 — — —
13 — — —
14 SRS2/ESCL 15 A Electronic steering lock
15 SEAT WARM 20 A Seat warmer *
16 M.DEF 7.5 A Mirror defogger *
