2011 - 2014 Ford Edge Fuse Box Diagram

2014 Ford Edge

Changing a Fuse



WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.


If electrical components in your vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.

blown fuse

Standard Fuse Amperage Rating and Color



COLOR
Fuse link cartridge	Cartridge maxi fuses	Maxi fuses	Standard fuses	Mini fuses	Fuse rating
- -	- -	- -	Grey	Grey	2A
- -	- -	- -	Violet	Violet	3A
- -	- -	- -	Pink	Pink	4A
- -	- -	- -	Tan	Tan	5A
- -	- -	- -	Brown	Brown	7.5A
- -	- -	- -	Red	Red	10A
- -	- -	- -	Blue	Blue	15A
Blue	Blue	Yellow	Yellow	Yellow	20A
Natural	Natural	- -	Natural	Natural	25A
Pink	Pink	Green	Green	Green	30A
Green	Green	Orange	- -	- -	40A
Red	Red	Red	- -	- -	50A
Yellow	Yellow	Blue	- -	- -	60A
Brown	- -	Tan	- -	- -	70A
Black	Black	Natural	- -	- -	80A

Power Distribution Box



WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.



G - Engine Compartment Fuse Box Location



Power Distribution Fuse Box Diagram

Fuse or relay number ... Fuse amp rating  ... Protected components

1 — Not used
2 — Not used
3 — Not used
4 30A** Wipers
5 40A** Anti-lock brake system (ABS) pump
6 — Not used
7 30A** Power liftgate
8 20A** Moonroof
9 20A** Power point #2 (console rear)
10 — Not used
11 — Rear window defroster and heated mirror relay
12 — Not used
13 — Starter relay
14 — Not used
15 — Fuel pump relay
16 — Not used
17 — Not used
18 40A** Blower motor
19 30A** Starter motor
20 20A** Power point #1 (console bin)
21 20A** Cargo area power point
22 — Not used
23 30A** Driver seat module
24 — Not used
25 — Not used
26 40A** Rear window defroster
27 20A** Front power point or lighter (Cigarette Lighter)
28 30A** Climate controlled seats
29 — Not used
30 — Not used
31 — Not used
32 — Not used
33 — Not used
34 — Blower motor relay
35 — Not used
36 — Rear seat relay
37 — Right trailer tow stop/turn lamps relay
38 — Not used
39 40A** Cooling fan (vehicles with trailer tow)
60A** Cooling fan (vehicles without trailer tow)
40 40A** Cooling fan (trailer tow only)
41 — Not used
42 30A** Passenger seat
43 25A** Anti-lock brake system (ABS) valves
44 — Rear washer relay
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirror
51 — Not used
52 — Stop lamp relay
53 — Left trailer tow stop/turn lamps relay
54 — Not used
55 — Wiper relay
56 15A* Transmission control module (2.0L engine)
57 20A* Left high-intensity discharge headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 15A* Stop lamps
61 10A* Rear seat release
62 10A* Air conditioner clutch
63 15A* Trailer tow stop/turn lamps relay
64 20A* Rear wiper motor
65 15A* Fuel pump
66 — Powertrain control module relay
67 20A* Vehicle power #2
68 15A* Vehicle power #4
69 15A* Vehicle power #1 (3.5/3.7L engines)
      20A* Vehicle power #1 (2.0L engine)
70 10A* Air conditioner relay, Vehicle power #3, All-wheel drive module (3.5/3.7L engines), Active grille shutter (2.0L engine)
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — Air conditioner clutch diode (3.5/3.7L engines)
76 — Not used
77 — Trailer tow park lamps relay
78 20A* Right high-intensity discharge headlamps
79 5A* Adaptive cruise control
80 — Not used
81 — Not used
82 15A* Rear washer
83 — Not used
84 20A* Trailer tow park lamps
85 — Not used
86 7.5A* Powertrain control module relay, Powertrain control module keep-alive (3.5/3.7L engines)
87 5A* Run/start relay
88 — Run/start relay
89 — Not used
     5A* Headlamp leveling motors (China only)
90 10A* Powertrain control module (PCM), Transmission Control Module (2.0L engine)
91 10A* Adaptive cruise control (3.5/3.7L engines)
      5A* Automatic transmission warm-up (2.0L engine)
92 10A* Anti-lock brake system (ABS) module
93 5A* Blower motor/rear defroster relay
94 30A** Passenger compartment fuse panel run/start
95 — Not used
96 — Canister purge solenoid diode (2.0L engine)
97 — Automatic transmission warm-up diode (2.0L engine)
98 — Air conditioner (A/C) clutch relay

* Mini Fuses
** Cartridge Fuses



Passenger Compartment Fuse Panel

The fuse panel is located behind a trim panel on the left side of the driver’s footwell near the parking brake. To remove the trim panel, slide the release lever to the right then pull the trim panel out.
To remove the fuse panel cover, press in the tabs on both sides of the cover, then pull the cover off.
To reinstall the fuse panel cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until it clicks into place. Gently pull on the cover to make sure it is secure.
To reinstall the trim panel, align the tabs on the bottom of the panel with the grooves, push the panel shut and slide the release lever to the left to secure the panel.
To remove a fuse, use the fuse puller tool provided on the fuse panel cover.

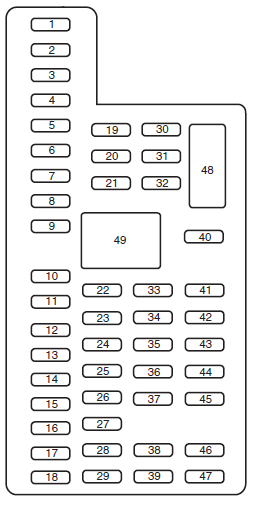

Passenger Compartment Fuse Panel Diagram



Passenger Compartment Fuse Specification Chart

Fuse or relay number .... Fuse amp rating ... Protected components
1 30A Driver front smart window
2 15A Not used (spare)
3 30A Not used (spare)
4 10A Demand lamps relay
5 20A Not used (spare)
6 5A Radio frequency (RF) module
7 7.5A Power mirror switch, Memory seat switch, Driver seat module
8 10A Not used (spare)
9 10A Power liftgate
10 10A Run/accessory relay
11 10A Instrument panel cluster, Heads-up display
12 15A Interior lighting, Puddle lamps, Backlighting
13 15A Right turn signals
14 15A Left turn signals
15 15A Reverse lamps, Stop lamps, High-mounted stop lamps
16 10A Low beam headlamps (right)
17 10A Low beam headlamps (left)
18 10A Keypad illumination, Brake shift interlock, Start button LED, Passive anti-theft system,
Powertrain control module wake-up, Second row power enable
19 20A Amplifier (Sony)
20 20A Lock/unlock relays – vehicles without intelligent access
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control, Intelligent access, Headlamp switch
24 15A On-board diagnostics
25 15A Liftgate release
26 5A Global positioning system module
27 20A Intelligent access
28 15A Ignition switch (without intelligent access), Key inhibit solenoid, Push button start
(with intelligent access)
29 20A Radio, Multi-function display screen, Electronic finish panel, SYNC module
30 15A Front park lamps, Auxiliary park lamps
31 5A Not used (spare)
32 15A Lock switch backlighting, Moonroof, Power windows (driver front), Compass/auto-dimming rear view mirror
33 10A Not used (spare)
34 10A Reverse sensing system, Rearview camera, Blind spot monitor 35 5A Heads-up  display, Headlamp leveling
36 10A Not used (spare)
37 10A Climate control (3.5L/3.7L engines)
38 10A Not used (spare)
39 15A High beam headlamps
40 10A Rear park lamps, license plate lamps
41 7.5A Occupant classification sensor, Restraints control module
42 5A Grade assist control switch (2.0L engine)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control
47 15A LED signal mirrors
48 30A Circuit Breaker ... Power windows
49 — Delayed accessory relay
