| 2017 Hyunda Sonata |
A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
 |
| Fuses Types: Battery Fuse, Blade Fuse, Cartridge Fuse, Multi Fuse |
If the electrical system does not work, first check the driver’s side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer
Information
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and fusible link for higher amperage ratings.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer
Information
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and fusible link for higher amperage ratings.
WARNING
NEVER replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly cause a fire.
• Do not install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and possibly a fire.
CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
• A higher capacity fuse could cause damage and possibly cause a fire.
• Do not install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and possibly a fire.
CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
Instrument panel fuse replacement
 |
| Instrument panel fuse replacement Location |
1. Turn the hybrid system off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
 |
| Engine compartment Fuse panel Location |
5. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuses panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.
If the headlamps or other electrical components do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the
same rating.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.
If the headlamps or other electrical components do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the
same rating.
Fuse switch
 |
| Hyunda Sonata 2017 - Fuse switch location |
Always, place the fuse switch to the ON position.
If you move the switch to the OFF position, some items such as the audio system and digital clock must be reset and the smart key may not work properly.
If you move the switch to the OFF position, some items such as the audio system and digital clock must be reset and the smart key may not work properly.
Information
 |
| Fuse Switch |
If the fuse switch is OFF, the above message will appear.
NOTICE
• Always place the fuse switch in the ON position while driving the vehicle.
• Do not move the fuse switch repeatedly. The fuse switch may be damaged.
• Do not move the fuse switch repeatedly. The fuse switch may be damaged.
Engine compartment panel Fuse replacement
 |
| Engine compartment panel - Fuse replacement |
1. Turn the hybrid system off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
Main fuse
 |
| Main fuse |
If the main fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the main fuse is blown, consult an authorized HYUNDAI dealer.
Multi fuse
 |
| Multi fuse |
If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the multi fuse is blown, consult an authorized HYUNDAI dealer.

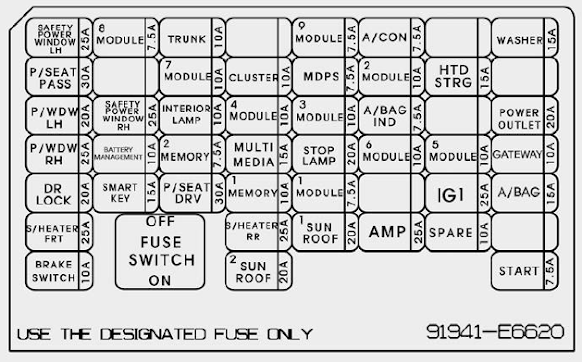

Fuse/relay panel description - Instrument panel fuse (Hybrid)
 |
| Fuse/relay panel description - Instrument panel fuse (Hybrid) |
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
 |
| Fuse/relay panel description - Instrument panel fuse (Hybrid) |
Instrument panel fuse (Hybrid)
Fuse Name .... Fuse rating .... Protected Component
SAFETY WINDOW LH 25A Driver Safety Power Window Module
P/SEAT PASS 30A Passenger Seat Manual Switch
P/WDW LH 20A Power Window Main Switch, Rear Power Window Module LH
P/WDW RH 25A Power Window Main Switch, Rear Power Window Module RH, Passenger Door Module, Passenger Power Window Switch
DR LOCK 20A Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
S/HEATER FRT 25A Front Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE SWITCH 10A Stop Lamp Switch, Immobilizer Module, Smart Key Control Module
8MODULE 7.5A BCM, Smart Key Control Module
SAFETY POWER WINDOW RH 25A Passenger Safety Power Window Module
BATTERY MANAGEMENT 10A BMS Control Module
SMART KEY 15A Smart Key Control Module
TRUNK 10A Trunk Lid Relay, Fuel Filler Door & Trunk Lid Switch
7MODULE 10A Driver/Passenger Door Module, Rear Parking Assist Sensor, Electric Parking Brake Module, Digital Clock, Blind Spot Detection Radar
INTERIOR LAMP 10A Glove Box Lamp, Foot Lamp IND., Driver/Passenger Foot Lamp, Front Vanity Lamp Switch LH/RH, Overhead Console Lamp, Room Lamp, Rear Personal Lamp LH/RH, Trunk Room Lamp, Driver/Passenger Door Lamp
2MEMORY 7.5A Electro Chromic Mirror
P/SEAT DRV 30A Driver Seat Manual Switch, Driver IMS Module
CLUSTER 10A Instrument Cluster
4MODULE 10A Smart Key Control Module
MULTI MEDIA 15A Audio, A/V & Navigation Head Unit, TMU Unit
1MEMORY 10A Driver/Passenger Door Module, Driver Ims Module, A/C Control Module, Auto Light & Photo Sensor, Rear Curtain Unit, Data Link Connector, Instrument Cluster, Rain Sensor, Tire Pressure Monitoring Module, BCM, Digital Clock, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
S/HEATER RR 25A Rear Seat Warmer Module
2SUN ROOF 20A Panorama Sunroof Motor
9MODULE 7.5A Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module, Rear Curtain Unit
MDPS 7.5A MDPS Unit
3MODULE 10A BCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP 20A Stop Signal Electronic Module
1MODULE 7.5A Natural Vacuum Leak Detection, Active Air Flap, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror, Driver/Passenger Door Module
1SUN ROOF 20A Panorama Sunroof Motor
A/CON 7.5A A/C Control Module, E/R Junction Block (RLY. 3 - Blower Relay), Electronic A/C Compressor
2MODULE 10A Audio, A/V & Navigation Head Unit, TMU Unit, Digital Clock, BCM, AMP, Power Outside Mirror Switch, Digital Clock, Smart Key Control Module, Overhead Console Lamp
A/BAG IND 7.5A Instrument Cluster
6MODULE 10A Multipurpose Check Connector, TMU Unit, A/C Control Module, Vess Unit, Electro Chromic Mirror, Rear Seat Warmer Module, A/T Shift Lever Ind., Front Air Ventilation Seat Module, Front Seat Warmer Module, Auto Head Lamp Leveling Device Module, Head Lamp LH/RH, Crash Pad Switch, A/V & Navigation Head Unit, Driver Ims Module
AMP 25A AMP (JBL/MOBIS)
HTD STRG 15A BCM
5MODULE 10A Front Console, Switch Fuel Filler Door & Trunk Lid Switch, Front Parking Assist Sensor, Tire Pressure Monitoring Module, Lane Departure Warning Unit, Smart Cruise Control Unit, Active Air Flap, BMS Control Module
IG1 25A PCB Block (Fuse - F1/F2/F7/F8/F15/F16)
WASHER 15A Multifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET 20A Front Power Outlet
A/BAG 15A SRS Control Module, Occupant Detection Sensor
START 7.5A Transmission Range Switch, HPCU
Instrument panel fuse (Plug-in hybrid)
 |
| Instrument panel fuse (Plug-in hybrid) |
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
 |
| Instrument panel fuse (Plug-in hybrid) |
Fuse rating ... Fuse Name ... Protected Component
SAFETY POWER WINDOW LH 25A Driver Safety Power Window Module
P/SEAT PASS 30A Passenger Seat Manual Switch
P/WDW LH 20A Power Window Main Switch, Rear Power Window Module LH
P/WDW RH 25A Power Window Main Switch, Rear Power Window Module RH, Passenger Door Module, Passenger Power Window Switch
DR LOCK 20A Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
S/HEATER FRT 25A Front Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE SWITCH 10A Stop Lamp Switch, Smart Key Control Module
8MODULE 7.5A BCM, Smart Key Control Module
SAFETY POWER WINDOW RH 25A Passenger Safety Power Window Module
BATTERY MANAGEMENT 10A BMS Control Module
SMART KEY 15A Smart Key Control Module
TRUNK 10A Trunk Lid Relay, ICM Relay Box (Fuel Filler Relay)
7MODULE 10A Driver/Passenger Door Module, Rear Parking Assist Sensor, Digital Clock,
Electric Parking Brake Module, Blind Spot Detection Radar LH/RH
INTERIOR LAMP 10A Glove Box Lamp, Front Vanity Lamp Switch LH/RH, Room Lamp, Overhead Console Lamp, Rear Personal Lamp LH/RH, Trunk Room Lamp, Driver/Passenger Door Lamp
2MEMORY 7.5A Not Used
Fuse rating ... Fuse Name ... Protected Component
P/SEAT
DRV 30A Driver Seat Manual Switch, Driver IMS Module
CLUSTER 10A Instrument Cluster
4MODULE 10A Smart Key Control Module
MULTI MEDIA 15A Audio, A/V & Navigation Head Unit, TMU Unit
1MEMORY 10A Driver/Passenger Door Module, Driver IMS Module, A/C Control Module, Auto Light & Photo Sensor, Data Link Connector, Instrument Cluster, Rain Sensor, Tire Pressure Monitoring Module, BCM, Digital Clock
S/HEATER RR 25A Rear Seat Warmer Module
2 SUNROOF 20A Panorama Sunroof Motor
9 MODULE 7.5A Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module
MDPS 7.5A MDPS Unit
3MODULE 10A BCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP 20A Stop Signal Electronic Module
1MODULE 7.5A
Active Air Flap, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror, Driver/Passenger Door Module
1SUNROOF 20A Panorama Sunroof Motor
A/CON 7.5A A/C Control Module, E/R Junction Block (Blower Relay, PTC Heater 1/2 Relay), Electronic A/C Compressor
2MODULE 10A Audio, A/V & Navigation Head Unit, TMU Unit, Overhead Console Lamp BCM, AMP, Power Outside Mirror Switch, Digital Clock, Smart Key Control Module
A/BAG IND 7.5A Instrument Cluster
Fuse rating ... Fuse Name ... Protected Component
6MODULE 10A Multipurpose Check Connector, TMU Unit, A/C Control Module, Vess Unit, Electro Chromic Mirror, Rear Seat Warmer Module, A/T Shift Lever IND., Front Air Ventilation Seat Module, Front Seat Warmer Module, Driver IMS Module, ICM Relay Box (IG3 #1 Relay) AMP 25A AMP (JBL/MOBIS)
HTD STRG 15A BCM
5 MODULE 10A
Front Console, Switch Fuel Filler Door & Trunk Lid Switch, Active Air Flap Tire Pressure Monitoring Module, Lane Departure Warning Unit, Smart Cruise Control Unit
IG1 25A PCB Block (Fuse - TCU 2/HEV ECU 2/OPCU 2/AHB 3)
WASHER 15A Multifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET 20A Cigarette Lighter
GATEWAY 10A Gateway
A/BAG 15A SRS Control Module, Occupant Detection Sensor
IG3 15A ICM Relay Box (IG3 #1/2/3 Relay)
START 7.5A Transaxle Range Switch, HPCU
Engine compartment fuse panel (Hybrid)
 |
| Engine compartment fuse panel (Hybrid) |
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
 |
| Engine compartment fuse panel (Hybrid) |
Fuse Name ... Fuse rating ... Protected Component
MULTI FUSE (TYPE A)
IG2 30A IGPM (Fuse - F8/F25/F31/F38/F42)
BLOWER 40A RLY. 9 (Blower Relay)
2AHB 40A Integrated Brake Actuation Unit
1AHB 40A Integrated Brake Actuation Unit
REAR HEATED 50A RLY. 12 (Rear Heated Relay)
3B+ 50A IGPM (IPS2 (4CH), IPS3 (4CH), Fuse - F28/F29)
5B+ 50A PCM Block (Fuse - F4/F5/F6/F13/F14/F18/F22, Engine Control Relay)
EEWP 60A Electric Water Pump
1MDPS 80A MDPS Unit
MULTI FUSE (TYPE B)
IG1 40A IGPM (Fuse - F14/F19/F20/F26/F27/F33/F34/F40/F41/F47/F46)
POWER OUTLET 40A RLY. 10 (Power Outlet Relay)
2B+ 50A IGPM (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), Fuse - F36/F42)
1B+ 60A IGPM (Fuse - F1/F2/F10/F13/F17/F18/F23/F24/F30, Power Window Relay)
COOLING FAN 60A RLY.2 (Cooling Fan Relay)
Fuse Name .... Fuse rating ... Protected Component
DEICER 20A RLY. 6 (Deicer Relay)
1OPCU 20A Electric Oil Pump Unit
1HEV ECU 10A HPCU
H/LAMP HI 20A RLY. 7 (Head Lamp High Relay)
4B+ 40A IGPM (Leak Current Autocut Device Fuse - F15/F16/F21/F22, Fuse - F5/F6/F7/F11/F12)
2EPB 30A Electric Parking Brake Module
1EPB 30A Electric Parking Brake Module
HEATED MIRROR 10A A/C Control Module, Drover/Passenger Power Outside Mirror
3ECU 10A PCM
2HEV ECU 10A HPCU
1POWER OUTLET 20A Cigarette Lighter
FUEL PUMP 20A Fuel Pump Relay
HORN 20A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 30A Front Wiper (Low) Relay, Front Wiper (High) Relay
2TCU 15A Transmission Range Switch, Electric Water Pump
3AHB 10A Integrated Brake Actuation Unit
2POWER OUTLET 20A Rear Power Outlet
B/UP LAMP 10A Transmission Range Switch, PCM, Audio, Electro Chromic Mirror, Back-Up Lamp LH/RH, Rear Curtain Unit
1SENSOR 15A Oxygen Sensor (Up/Down)
2SENSOR 10A E/R Junction Block (RLY. 2 - Cooling Fan Relay), Mass Air Flow Sensor,
Oil Control Valve #1/#2, Purge Control Solenoid Valve, Canister Close Valve, Camshaft Position Sensor #1/#2, Fuel Pump Relay
2ECU 10A PCM
1TCU 10A PCM
1OPCU 10A Electric Oil Pump Unit
EWP 10A Electric Water Pump
BATTERY C/FAN 15A E/R Junction Block (RLY. 5 (Battery C/FAN))
1ECU 20A PCM
IGN COIL 20A Ignition Coil #1/#2/#3/#4
AMS 10A Battery Sensor
Engine compartment main fuse panel (Plug-in hybrid)
 |
| Engine compartment main fuse panel (Plug-in hybrid) |
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
 |
| Engine compartment main fuse panel (Plug-in hybrid) |
Fuse Name ... Fuse rating .... Protected Component
MULTI FUSE (TYPE A)
IG2 30A PCB Block (IG2 Relay)
BLOWER 40A Blower Relay
2AHB 40A Integrated Brake Actuation Unit, Multipurpose Check Connector
1 AHB 40A Integrated Brake Actuation Unit, Multipurpose Check Connector
REAR HEATED 50A Rear Heated Relay
3 B+ 50A IGPM (IPS2 (4CH), IPS3 (4CH), Fuse - STOP LAMP/MODULE 1)
5 B+ 50A PCM Block (Fuse - WIPER/HORN/BATTERY C/FAN/AMS/TCU 1/ECU 2/FUEL PUMP, Engine Control Relay)
EEWP 60A Electric Water Pump
MDPS 80A MDPS Unit
MULTI FUSE (TYPE B)
IG1 40A PCB Block (IG1 Relay)
3 POWER OUTLET 40A Power Outlet Relay
2 PTC HEATER 50A PTC Heater 2 Relay
1 PTC HEATER 50A PTC Heater 1 Relay
2 B+ 50A IGPM (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), Fuse - IG3/AMP)
1 B+ 60A IGPM (Fuse - P/SEAT DRV/P/SEAT PASS/S/HEATER RR/SUNROOF 1/
SUNROOF 2/SAFETY POWER WINDOW LH/ SAFETY POWER WINDOW RH/TRUNK,
Power Window Relay)
COOLING FAN 60A Cooling Fan Relay
Fuse Name ... Fuse rating ... Protected Component
2 IG3 10A IGPM (Gateway), Instrument Cluster, BMS Control Module (Main/Sub), Battery
Expansion Module Sensor Swtich (Main), Transaxle Range Switch, PCM, HPCU,
Charge Indicator, A/V & Navigation Head Unit
1 IG3 10A Electric Water Pump (HEV)
OBC 10A OBC Unit
DEICER 20A Deicer Relay
1 OPCU 20A Electric Oil Pump Unit
1 HEV ECU 10A HPCU
H/LAMP HI 20A Head Lamp Hi Relay
4 B+ 40A IGPM (Leak Current Autocut Device Fuse - INTERIOR LAMP/MEMORY 1/MEMORY 2/ MULTI MEDIA, Fuse -BRAKE SWITCH/SMART KEY/S/HEATER FRT/
BATTERY MANAGEMENT/DR LOCK)
2 EPB 30A Electric Parking Brake Module
1 EPB 30A Electric Parking Brake Module
3 IG3 10A OBC Unit
HEATED MIRROR 10A A/C Control Module, Drover/Passenger Power Outside Mirror
2 HEV ECU 10A HPCU
1 POWER OUTLET 20A Front Power Outlet
FUEL PUMP 20A Fuel Pump Relay
HORN 20A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 30A Front Wiper (Low) Relay, Front Wiper (High) Relay
2 TCU 15A Electric Water Pump
3 AHB 10A Integrated Brake Actuation Unit
2 POWER OUTLET 20A Rear Power Outlet
B/UP LAMP 10A Transaxle Range Switch, PCM, Audio, Electro Chromic Mirror, Back-Up Lamp LH/RH
IG1 40A PCB Block (IG1 Relay)
3 POWER OUTLET 40A Power Outlet Relay
2 PTC HEATER 50A PTC Heater 2 Relay
1 PTC HEATER 50A PTC Heater 1 Relay
2 B+ 50A IGPM (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), Fuse - IG3/AMP)
1 B+ 60A IGPM (Fuse - P/SEAT DRV/P/SEAT PASS/S/HEATER RR/SUNROOF 1/
SUNROOF 2/SAFETY POWER WINDOW LH/ SAFETY POWER WINDOW RH/TRUNK,
Power Window Relay)
COOLING FAN 60A Cooling Fan Relay
Fuse Name ... Fuse rating ... Protected Component
2 IG3 10A IGPM (Gateway), Instrument Cluster, BMS Control Module (Main/Sub), Battery
Expansion Module Sensor Swtich (Main), Transaxle Range Switch, PCM, HPCU,
Charge Indicator, A/V & Navigation Head Unit
1 IG3 10A Electric Water Pump (HEV)
OBC 10A OBC Unit
DEICER 20A Deicer Relay
1 OPCU 20A Electric Oil Pump Unit
1 HEV ECU 10A HPCU
H/LAMP HI 20A Head Lamp Hi Relay
4 B+ 40A IGPM (Leak Current Autocut Device Fuse - INTERIOR LAMP/MEMORY 1/MEMORY 2/ MULTI MEDIA, Fuse -BRAKE SWITCH/SMART KEY/S/HEATER FRT/
BATTERY MANAGEMENT/DR LOCK)
2 EPB 30A Electric Parking Brake Module
1 EPB 30A Electric Parking Brake Module
3 IG3 10A OBC Unit
HEATED MIRROR 10A A/C Control Module, Drover/Passenger Power Outside Mirror
2 HEV ECU 10A HPCU
1 POWER OUTLET 20A Front Power Outlet
FUEL PUMP 20A Fuel Pump Relay
HORN 20A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 30A Front Wiper (Low) Relay, Front Wiper (High) Relay
2 TCU 15A Electric Water Pump
3 AHB 10A Integrated Brake Actuation Unit
2 POWER OUTLET 20A Rear Power Outlet
B/UP LAMP 10A Transaxle Range Switch, PCM, Audio, Electro Chromic Mirror, Back-Up Lamp LH/RH
1 SENSOR 15A Oxygen Sensor (Up/Down)
2 SENSOR 10A
E/R Junction Block (FTIV Relay, Cooling Fan Relay), Mass Air Flow Sensor, Oil Control Valve #1/#2,
Purge Control Solenoid Valve, Fuel Pump Relay ELCM (Evaporative Leak Check Module),
Camshaft Position Sensor #1/#2
2 ECU 10A PCM
1 TCU 10A PCM
2 OPCU 10A Electric Oil Pump Unit
BATTERY C/FAN 15A E/R Junction Block (Battery C/FAN Relay)
1 ECU 20A PCM
IGN COIL 20A Ignition Coil #1/#2/#3/#4
AMS 10A Battery Sensor
Click here to view / download the 2017 Hyundai Sonata Fuses owner manual
2 SENSOR 10A
E/R Junction Block (FTIV Relay, Cooling Fan Relay), Mass Air Flow Sensor, Oil Control Valve #1/#2,
Purge Control Solenoid Valve, Fuel Pump Relay ELCM (Evaporative Leak Check Module),
Camshaft Position Sensor #1/#2
2 ECU 10A PCM
1 TCU 10A PCM
2 OPCU 10A Electric Oil Pump Unit
BATTERY C/FAN 15A E/R Junction Block (Battery C/FAN Relay)
1 ECU 20A PCM
IGN COIL 20A Ignition Coil #1/#2/#3/#4
AMS 10A Battery Sensor
Click here to view / download the 2017 Hyundai Sonata Fuses owner manual
No comments:
Post a Comment
