2015 - 2017 Ford F-150 Fuse Box Diagram

2015 Ford F-150

 CHANGING A FUSE

Blown Fuse



 WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing  any electrical components.

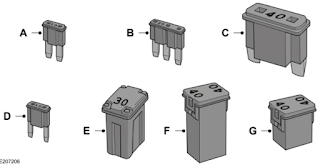

Fuse Types

Fuse Types

Callout	Fuse Type
A	Micro 2
B	Micro 3
C	Maxi
D	Mini
E	M Case
F	J Case
G	J Case Low Profile

Standard Fuse Amperage Rating and Color



COLOR
Fuse link cartridge	Cartridge maxi fuses	Maxi fuses	Standard fuses	Mini fuses	Fuse rating
- -	- -	- -	Grey	Grey	2A
- -	- -	- -	Violet	Violet	3A
- -	- -	- -	Pink	Pink	4A
- -	- -	- -	Tan	Tan	5A
- -	- -	- -	Brown	Brown	7.5A
- -	- -	- -	Red	Red	10A
- -	- -	- -	Blue	Blue	15A
Blue	Blue	Yellow	Yellow	Yellow	20A
Natural	Natural	- -	Natural	Natural	25A
Pink	Pink	Green	Green	Green	30A
Green	Green	Orange	- -	- -	40A
Red	Red	Red	- -	- -	50A
Yellow	Yellow	Blue	- -	- -	60A
Brown	- -	Tan	- -	- -	70A
Black	Black	Natural	- -	- -	80A



Power Distribution Box Fuse Panel

WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle's main electrical systems from overloads.
If you disconnect and reconnect the battery, you will need to reset some features.



B - Power distribution Fuse box - Under Hood Overview - 2.7L EcoBoost



Power Distribution Fuse Box Diagram

Fuse or relay number	Fuse amp rating	Protected components
1	—	Not used.
2	—	Not used.
3	—	Not used.
4	—	Telescoping side-view mirror.
5	40A*	Rear window defroster.
6	—	Not used.
7	—	Not used.
8	—	Telescoping side-view mirror.
9	—	Not used.  (Fuel Pump - 2017 Model)
10	—	Not used.   (Charge air cooler fans - Raptor only - 2017 Model)
11	60A*	Automatic brake system motor.
12	50A*	Body control module 1.
13	60A*	Body control module 2.
14	20A**	Amplifier.
15	25A**	4x4.
16	10A**	Spot light module.
17	15A**	Heated seat.
18	10A**	Steering-column lock.
19	10A**	Power seats.
20	15A**	Snow plow.   Rear heated seats.
21A	—	Not used.
21B	—	Not used.
22	30A*	Windshield wiper motor.
23	15A*	Rain sensor.
24	25A*	Series fan feed.
25	—	Not used.
26	30A*	Driver seat motors.
27	30A*	Passenger power seat.
28	30A*	Climate controlled seat.
29	—	Not used.   (Upfitter fuses 94, 96, 98 and 100 - Raptor only- 2017 Model)
30	—	Air conditioner clutch relay.
31	—	Not used.
32	—	Not used.
33	50A*	Electric fan 3.
34	25A*	Trailer tow park lamps.
35	20A*	Trailer tow stop-turn relay fuse.
36	25A*	Trailer tow lamps module.
37	50A*	Electric fan 1.
38	10A**	Alt A sensor.
39	10A**	Integrated wheel end solenoid.
40	15A**	E-locker.
41	10A**	Telescoping mirror.
42	30A**	Transmission fluid pump.
43	25A**	Horn.
44	10A**	Air conditioner clutch.
45	10A**	Powertrain control module relay coil.
46	10A**	Wiper relay coil.
47	—	Not used.   (Upfitter 1 - Raptor only- 2017 Model)
48	—	Not used.   (Upfitter 2 - Raptor only- 2017 Model)
49	30A*	Trailer brake control module.
50	30A*	Power running boards.
51	—	Fuel pump relay.
52	—	Not used.
53	—	Not used.   (Upfitter 5 relay - Raptor only- 2017 Model)
54	30A*	Voltage quality module.   Body-control-module voltage-quality-module feed.
55	40A*	Body control module RP2 feed.
56	20A*	Fuel pump.
57	30A*	Right-hand EPB actuator.
58	30A*	Left-hand EPB actuator.
59	30A*	Starter.
60	40A*	Blower motor.
61	30A*	Brake control module.   Automatic brake system valves.
62	—	Power seat relay.
63	15A**	Heated mirrors.
64	—	Not used.   (Upfitter 6 relay - Raptor only- 2017 Model)
65	—	Starter relay.
66	—	Powertrain control module relay.
67	—	Windshield wiper relay.
68	—	Blower motor relay.
69	—	Power sliding back window relay.
70	—	Electric fan 1 relay.
71	—	Not used.
72	25A*	4x4.
73	—	Not used.
74	30A*	PDRG motor.
75	—	Horn relay.
76	—	Not used.
77	—	Steering column lock relay.
78	—	Not used.
79	—	Trailer tow parking lamp relay.
80	—	Rear window defroster relay.
81	—	Not used.   ( Upfitter 1 relay - Raptor only- 2017 Model)
82	—	PDRG close relay.
83	—	Not used.   (Upfitter 2 relay - Raptor only- 2017 Model)
84	—	Not used.
85	—	Not used.
86	—	Not used.
87	10A*	Trailer tow backup lamps.
88	—	Not used.
89	20A**	Cigar lighter power point 1.
90	20A**	Power point 2.
91	20A**	Power point 3.
92	20A**	Power point 4.
93	25A**	GTDI vehicle power 1.
	10A**	PFI vehicle power 1.
94	—	Not used.   (Upfitter 3 - Raptor only- 2017 Model)
95	25A**	Vehicle power 2.
96	—	Not used.   (Upfitter 4 - Raptor only- 2017 Model)
97	10A**	Vehicle power 3.
98	—	Not used.   (Upfitter 5 - Raptor only- 2017 Model)
99	20A**	Vehicle power 4 (PFI).
	15A**	Vehicle power 4 (GTDI).
100	—	Not used.   (Upfitter 6 - Raptor only- 2017 Model)
101	—	Not used.
102	—	Snow plow relay.
103	—	Not used.   (Charge air cooler fan - Raptor only- 2017 Model)
104	—	Electic fan 3 relay.
105	10A**	Power steering.
106	—	Not used.
107	10A**	Anti-lock brakes.
108	—	Not used.
109	10A**	Powertrain control module.
110	10A**	4x4 run/start.   Adaptive cruise control.
111	10A**	Transmission pump run-start.
112	—	Not used.  (Charge air cooler relay coil run-start - Raptor only- 2017 Model)
113	7.5A**	Blind spot information system.   Rear view camera.   Front view camera.   Voltage quality module.
114	—	Electric fan 2 relay.
115	—	Not used.  (Upfitter 3 relay - Raptor only- 2017 Model)
116	—	Not used.  (Upfitter 4 relay - Raptor only- 2017 Model)

*Cartridge fuses
**Mini fuses


Passenger Compartment Fuse Panel

The fuse panel is in the right-hand side of the passenger footwell behind a trim panel.

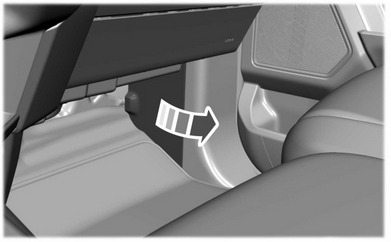

To remove the trim panel, pull it toward you and swing it away from the side. To reinstall it, line up the tabs with the grooves on the panel, and then push it shut.
To remove the fuse panel cover, press in the tabs on both sides of the cover, and then pull it off.
To reinstall the fuse panel cover, place the top part of the cover on the fuse panel and push the bottom part until it latches. Gently pull on the cover to make sure it has latched properly.



Accessing the Body Control Module Fuse Box



Passenger Compartment Fuse Panel Diagram

Fuse or relay number	Fuse amp rating	Protected components
1	10A	Demand lamp relay.   Power seats relay.   Glove box.   Vanity lamps.   Overhead console.   Dome.   Courtesy.   Map lamps.
2	7.5A	Memory module logic.   Memory seat switches.   Lumbar motor.
3	20A	Driver door lock motor.
4	5A	Trailer brake control.
5	20A	Not used.
6	10A	Not used.
7	10A	Not used.
8	10A	Not used.
9	10A	Not used.
10	5A	Not used (spare).
11	5A	Combined sensor module.
12	7.5A	Climate head module.   Smart datalink converter.
13	7.5A	Cluster.   SCCM.
14	10A	Brake.
15	10A	Smart datalink converter.
16	15A	Tailgate release.
17	5A	HUD.
18	5A	Ignition switch and passive-entry passive-start start stop switch.   Key inhibit solenoid.
19	7.5A	Tow haul (O/D) cancel for floor or column shifter.
20	7.5A	Not used.
21	5A	HUD.   In car temperature with humidity sensor.
22	5A	EPB.   Power seat.
23	10A	PDRG switch.   Inverter.   Driver side window.   Moonroof.
24	20A	Central lock/unlock.
25	30A	Driver door control module.
26	30A	Passenger door control module.
27	30A	Vista roof.   Moonroof.
28	20A	Not used.
29	30A	Not used.
30	30A	Not used.
31	15A	Adjustable pedal switch and motor.
32	10A	Multi-function display.   Global position system.   Sync 1.   Sync 2.   Radio frequency receiver.
33	20A	Radio.
34	30A	Run-start relay.
35	5A	Restraints module.
36	15A	360 camera module.   Heated steering wheel module.   Rear-view mirror.   Rear heated seats.
37	15A	Power distribution box run-start relay.
38	30A Circuit breaker.	Rear window switches and motors.
