2016 - 2019 Ford F-650, F-750 Fuse Box Diagram

2019 Ford F-650
2019 Ford F-650

Changing a Fuse


WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in your vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
blown fuse
blown fuse

Fuse Types

Fuses Types
Fuses Types

Callout  Fuse Type
Micro 2
Micro 3
Maxi
Mini
M Case
J Case
J Case Low Profile


Standard Fuse Amperage Rating and Color



COLOR

Fuse link

cartridge

Cartridge

maxi

fuses

Maxi

fuses

Standard

fuses

Mini

fuses

Fuse

rating

- -

- -

- -

Grey

Grey

2A

- -

- -

- -

Violet

Violet

3A

- -

- -

- -

Pink

Pink

4A

- -

- -

- -

Tan

Tan

5A

- -

- -

- -

Brown

Brown

7.5A

- -

- -

- -

Red

Red

10A

- -

- -

- -

Blue

Blue

15A

Blue

Blue

Yellow

Yellow

Yellow

20A

Natural

Natural

- -

Natural

Natural

25A

Pink

Pink

Green

Green

Green

30A

Green

Green

Orange

- -

- -

40A

Red

Red

Red

- -

- -

50A

Yellow

Yellow

Blue

- -

- -

60A

Brown

- -

Tan

- -

- -

70A

Black

Black

Natural

- -

- -

80A


Fuses – Frequently Asked Questions


When do I need to check a fuse?
If electrical components in the vehicle are not working.
When do I need to replace a fuse?
If a fuse has blown.
How do I identify a blown fuse?
You can identify a blown fuse by a broken wire within the fuse.


Power Distribution Box

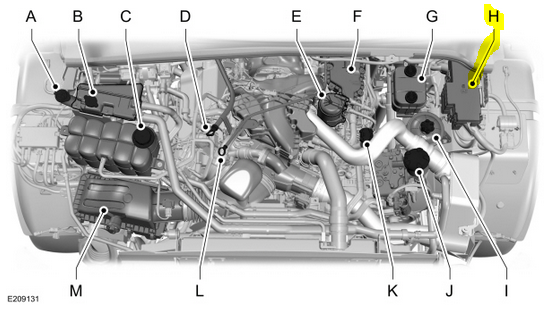

H - Engine compartment Fuse Box Location
H - Engine compartment Fuse Box Location


WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle's main electrical systems from overloads.
If you disconnect and reconnect the battery, you will need to reset some features.

Power Distribution Fuse Box Diagram
Power Distribution Fuse Box Diagram

Fuse or Relay Number   Fuse Rating   Protected Component
1   Relay   Blower motor.
2   Relay   Trailer tow and body builder stop lamps.
3   Relay   Urea heaters (diesel engine).
4   Relay   Driver air ride seat compressor.
5   Relay   Heated mirrors.
6   —   Not used.
7   —   Not used.
8   20A1   Passenger air ride seat compressor.
9   —   Not used.
10   —   Not used.
11   —   Not used.
12   —   Not used.
13   Resistor   Terminating resistor (120 ohm).
14   —   Not used.
15   —   Not used.
16   —   Not used.
17   —   Not used.
18   —   Not used.
19   10A2   Brake on/off isolation relay.
20   —   Not used.
21   —   Not used.
22   30A1   Trailer tow electric brake controller.
23   40A1   Blower motor.
24   —   Not used.
25   30A1   Wipers.
26   30A1   Trailer tow park lamps.
27   25A1   Urea heaters (diesel engine).
29   Relay   Trailer tow park lamps.
30   Relay   A/C clutch.
31   Relay   Wipers.
32   —   Not used.
33   20A2   Vehicle power 1.
34   20A2   Vehicle power 2.
35   10A2   Vehicle power 3.
36   20A2   Vehicle power 4.
37   10A2   Vehicle power 5 (diesel engine).
38   Relay   Powertrain control module.
39   —   Not used.
40   15A2   Heated mirrors.
41   —   Not used.
42   20A2   Trailer tow and body builder stop lamps.
43   —   Not used.
44   20A2   Ancillary translator module.
45   10A2   Run/start relay coil.
46   10A2   Transmission control module keep-alive power (diesel engine).
47   10A2   A/C (Air Conditioner) clutch.
48   Relay   Run/start.
49   20A2   Air dryer.
50   10A2   Blower motor relay coil.
51   —   Not used.
52   10A2   Powertrain control module run/start (diesel engine).   Transmission control module run/start (diesel engine).
53   —   Not used.
54   10A2   Anti-lock brake system (ABS) run/start.
55   10A2   Seat compressor relay coil.   Chassis solenoids relay coil.   Heated mirror relay coil.
56   20A2   Passenger compartment fuse panel run/start feed.
57   Relay   Fuel pump.
58   5A2   Wiper relay.
59   5A2   Chassis solenoid relay.   Air ride seat compressor relay.
60   —   Not used.
61   —   Not used.
62   —   Not used.
63   10A2   Chassis solenoids.
64   —   Not used.
65   10A2   Cargo box lamp.
66   30A2   Fuel pump.
67   —   Not used.
68   10A2   Fuel pump relay coil.
69   —   Not used.
70   10A2   Trailer tow or body builder backup lamps.
71   —   Not used.
72   10A2   Powertrain control module relay coil.   Keep-alive power.
73   5A2   Hydromax monitor.
74   Relay   Chassis solenoids.
75   —   Not used.
76   —   Not used.
77   Relay   Brake switch isolation (hydraulic brakes).
78   —   Not used.
79   —   Not used.
80   —   Not used.
81   —   Not used.
82   20A1   Auxiliary power point #2.
83   20A1   Auxiliary power point #1.
84   20A1   Driver air ride seat compressor.
85   60A1   Hydromax pump.
86   30A1   Anti-lock brake system (ABS) modulator valves.
87   —   Not used.
88   —   Not used.
89   40A1   Starter motor
90   30A1   Trailer battery feed (air brakes).   Trailer tow battery charge (hydraulic brakes).
91   Relay   Cargo box lamp.
92   —   Not used.
93   —   Not used.
94   25A1   Upfitter relay #1.
95   25A1   Upfitter relay #2.
96   60A1   Anti-lock brake system (ABS) pump (hydraulic brakes).
97   —   Not used.
98   —   Not used.
99   40A1   Instrument panel 110 volt power inverter.
100   30A1   Trailer tow turn lamp relays.
101   Relay   Starter.
102   Relay   Trailer tow battery charge relay (U-Haul).   Trailer tow battery feed (air brakes).
103   Relay   Trailer tow right hand side turn and stop lamps.
104   Relay   Trailer tow left hand side turn and stop lamps.
105   —   Not used.
106   Relay   Trailer tow backup lamps.
107   Relay   Passenger air ride seat compressor.

1J-case fuse.
2Mini fuse.


Passenger Compartment Fuse Panel


The fuse panel is in the passenger footwell. Remove the panel cover to access the fuses.
Pull the fuse panel cover toward you to remove it. When the clips of the panel disengage, let the panel fall easily.
Use the provided fuse puller tool to remove a fuse. It is on the fuse panel cover.

Passenger Compartment Fuse Panel Diagram
Passenger Compartment Fuse Panel Diagram


Fuse or Relay Number   Fuse Rating   Protected Component
1   30A   Left front window motor.
2   15A   Upfitter relay #4.
3   30A   Right front window motor.
4   10A   Interior lamps.
5   20A   Not used (spare).
6   5A   Not used (spare).
7   7.5A   Power mirror switch.
8   10A   Not used (spare).
9   10A   Upfitter relay #3.
10   10A   Not used (spare).
11   10A   Ford telematics battery feed.
12   15A   Interior lighting.
13   15A   Right turn and brake lamps.
14   15A   Left turn and brake lamps.
15   15A   Center high-mounted stop lamp.   Backup lamps.
16   10A   Right headlamp low beam.
17   10A   Left headlamp low beam.
18   10A   Powertrain control module wakeup.   Brake shift interlock.
19   20A   Not used (spare).
20   20A   Power door locks.
21   10A   Brake on/off switch.
22   20A   Horn.
23   15A   Instrument cluster.
24   15A   Diagnostic connector.   Power fold mirror relay.   Steering wheel control module.   Remote keyless entry.   Fleet Telematics Modem and Ford Pass Connect.
25   15A   Not used (spare).
26   5A   Steering wheel control module.
27   20A   Not used (spare).
28   15A   Ignition switch.
29   20A   Radio.   SYNC.
30   15A   Parking lamps.   Trailer tow parking lamps relay coil.
31   5A   Customer access trailer brake on/off switch.
32   15A   Delayed accessory power.   Driver and passenger door lock switch illumination.   110 volt power inverter module.   Telescoping mirror switch.
33   10A   Not used (spare).
34   10A   Ancillary translator module run/start.
35   5A   Tow/Haul run/start.
36   10A   Fuel tank select switch.
37   10A   Auxiliary heater.
38   10A   Delayed accessory power.   AM/FM base radio.
39   15A   Left and right headlamp high beam.
40   10A   Rear parking lamps.   Clearance lamps.
41   7.5A   Not used (spare).
42   5A   Ford telematics run/start.
43   10A   Power Distribution Box run/accessory fuses.   Wiper relay coil.
44   10A   Customer access upfitter switch power.   Ancillary translator module run/accessory sense.
45   5A   Not used (spare).
46   10A   Climate control module.
47   15A   Fender direction indicator lamps.
48   30A Circuit breaker   Power windows switch (crew cab).
49   Relay   Delayed accessory power.
