2019 - 2023 Chevrolet Blazer Fuse Panel Diagram

2019 Chevrolet Blazer

Fuses and Circuit Breakers

The wiring circuits in the vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of damage caused by electrical problems.

Danger

Fuses and circuit breakers are marked with their ampere rating. Do not exceed the specified amperage rating when replacing fuses and circuit breakers. Use of an oversized fuse or circuit breaker can result in a vehicle fire. You and others could be seriously injured or killed.
To check a fuse, look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a new one of the identical size and rating.

Fuses of the same amperage can be temporarily borrowed from another fuse location, if a fuse goes out. Replace the fuse as soon as possible.

Engine Compartment Fuse Block



 The underhood fuse block is in the engine compartment, on the driver side of the vehicle.



Engine Compartment Fuse Block Location

Caution
Do not pull the engine compartment fuse block lever, since it is intended only for service purposes. If pulled, vehicle malfunction may occur.
To remove the fuse block cover, press the clips on the cover and lift it straight up.

 Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the
covers on any electrical component.
To remove fuses, use the fuse puller and pull straight out.

Engine Compartment Fuse Block Diagram

Fuses Usage
F1 Antilock brake system (ABS) pump
F2 Starter 1
F3 DC DC transformer 1
F4 –
F5 DC DC transformer 2
F6 –
F7 Electronic brake control module (2020 - 2021 Models - Front blower)
F8 Starter 3
F9 –
F10 –
F11 –
F12 Front wiper
F13 – (2020 - 2021 Models - Starter 2)
F14 –
F15 Rear wiper
F16 –
F17 –
F18 –
F19 –

F20 –
F21 –
F22 Electronic brake control module
F23 Parking/Trailer lamps
F24 Right trailer stoplamp/Turnlamp
F25 Steering column lock
F26 –
F27 Left trailer stoplamp/Turnlamp
F28 –
F29 –
F30 Washer pump
F31 Spare/Right low-beam headlamp
F32 Left low-beam headlamp

F33 High-beam headlamp shutter/ Fog lamps
F34 Horn
F35 –
F36 Right low-beam/ Left high-beam headlamp
F37 Spare/Right high-beam headlamp
F38 Automatic headlamp leveling motor
F39 Transmission control module
F40 Left rear bus electrical center/DC DC ignition
F41 Instrument cluster

F42 Heating, ventilation, and air conditioning (HVAC)/ Central gateway module run/crank
F43 Reflective light alert display
F44 Electronic brake control module/ Electric brake booster/Run/crank
F45 –
F46 –
F47 –
F48 –
F49 Interior rearview mirror
F50 Fuel system control module/Fuel tank zone module run/ crank
F51 Heated steering wheel

F52 Air conditioning clutch
F53 – (2022 Model - Coolant pump)
F54 Coolant pump (2022 Model - Empty)
F55 –
F56 –
F57 Engine control module/Ignition
F58 Transmission control module/ Ignition
F59 Engine control module battery
F60 –
F61 O2 sensor 1/ Aeroshutter/Mass air flow sensor
F62 Engine control module – odd
F63 O2 sensor 2
F64 Engine control module – even

F65 Engine control module powertrain 1
F66 Engine control module powertrain 2
F67 Engine control module powertrain 3
F68 –
F69 –
F70 –
F71 –
F72 –
F73 –
F74 –
F75 –
F76 –
F77 –

Relays Usage
K1 Starter 1
K2 Run/Crank
K3 Starter 3
K4 –
K5 –
K6 Coolant pump (2022 Model - Empty)
K7 Engine control module
K8 Air conditioning
K9 –
K10 – (2020 - 2022 Model - Starter 2)

Instrument Panel Fuse Block



Instrument Panel Fuse Block Location



The instrument panel fuse block is inside the center console on the passenger side of the vehicle.
Remove the fuse access door by inserting a coin or tool into the slot of the access door.
To remove a fuse, use the Fuse Puller located in the Engine Compartment Fuse block.

Instrument Panel Fuse Block Diagram



The vehicle may not be equipped with all of the fuses, relays, and features shown.

Fuses .. Usage
F1 Body control module (BCM) 6
F2 Diagnostic link/ Central gateway module
F3 Electric steering column lock
F4 –
F5 –
F6 Heating, ventilation, and air conditioning (HVAC)
F7 Body control module 3
F8 –
F9 Right front heated seat
F10 Airbag/Seatbelt
F11 –
F12 Amplifier/Noise control module
F13 Body control module 7

F14 Left front heated seat
F15 –
F16 Sunroof
F17 –
F18 Instrument panel cluster
F19 Body control module 1
F20 Rear seat entertainment
F21 Body control module 4
F22 Infotainment USB data/Aux jack
F23 Body control module 2
F24 USB charger/ Wireless charging
F25 Park assist
F26 CIM (Communications integration module)
F27 –

F28 Heating, ventilation, and air conditioning/ Information communication system display
F29 Radio
F30 Steering wheel adjustment controls
F31 Front blower
F32 DC AC inverter
F33 Driver power seat
F34 Passenger power seat
F35 Battery IEC 1 feed
F36 Electric power steering
F37 Rear seat entertainment/USB charge/Wireless charging module/ Auxiliary power  outlet/Lighter

F38 Body control module 8
F39 –

Circuit Breakers / MiniFuse.. Usage
F40 –
F41 –
F42 Auxiliary power outlet/ Lighter (minifuse) (cigarette Lighter)

Rear Compartment Fuse Block



Rear Compartment Fuse Block Location



The rear compartment fuse block is behind a trim panel on the driver side of the rear storage compartment.
The trim panel is removed by prying along the top edge of the trim panel at two notched locations. Remove the trim panel to access the fuse block.
The fuse block label is on the back of the access door in the driver side rear trim panel.

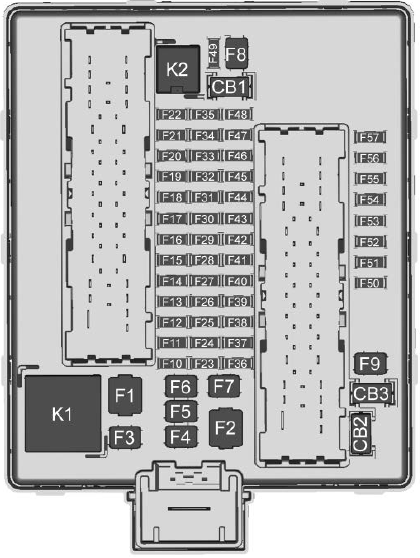

Rear Compartment Fuse Block Diagram

Fuses Usage
F1 –
F2 Trailer battery
F3 –
F4 Spare / Rear blower
F5 Rear drive control 1
F6 –
F7 Right window
F8 Rear window defogger
F9 Left window
F10 –
F11 Trailer reverse
F12 –
F13 –
F14 –
F15 –
F16 –
F17 –
F18 –
F19 –
F20 Glove box door/ Trailer stoplamp
F21 –

F22 –
F23 –
F24 –
F25 –
F26 Trailer brake
F27 Driver ventilated seat/Lumbar
F28 Passive entry/ Passive start
F29 –
F30 Canister vent
F31 –
F32 Heated mirrors
F33 –
F34 Liftgate module
F35 Fuel system control module/Fuel tank zone module
F36 Passenger ventilated seat/ Lumbar
F37 –

F38 Window module
F39 Rear closure
F40 Memory seat module
F41 Automatic occupancy sensor
F42 –
F43 –
F44 –
F45 Liftgate motor
F46 Rear heated seats
F47 –
F48 –
F49 –
F50 –
F51 –
F52 Rear drive control 2/ Semi-active dampening system module
F53 Video

F54 External object calculating/Side blind zone alert
F55 –
F56 Universal remote/ Rain sensor
F57 Alarm overhead console/Theft deterrent



Circuit Breakers .. Usage
CB1 –
CB2 –
CB3 Rear auxiliary power outlet



Relays .. Usage
K1 –
K2 –
