| 2016 Hyundai i10 |
Fuse and Relays
A vehicle’s electrical system is protected from electrical overload damage by fuses.

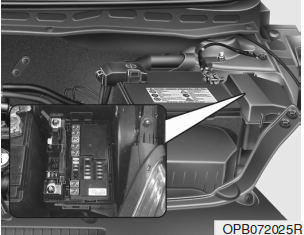

This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories,or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
Before replacing a blown fuse, disconnect the negative battery cable.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and we recommend that you consult a HYUNDAI authorised repairer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories,or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
Before replacing a blown fuse, disconnect the negative battery cable.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and we recommend that you consult a HYUNDAI authorised repairer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
Instrument panel fuse replacement
1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
3. Pull the suspected fuse straight out.
3. Pull the suspected fuse straight out.
Use the removal tool provided in the engine compartment fuse panel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, we recommend that you consult a HYUNDAI authorised repairer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.
If the headlights or other electrical components do not work and the fuses are OK, check the fuse block in the engine compartment. If a fuse is blown, it must be replaced.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.
If the headlights or other electrical components do not work and the fuses are OK, check the fuse block in the engine compartment. If a fuse is blown, it must be replaced.
 |
| Instrument panel fuse replacement - Hyundai i10 |
Fuse switch
Always, put the fuse switch at the ON position.
If you move the switch to the OFF position, some items must be reset and transmitter (or smart key) may not work properly.
If you move the switch to the OFF position, some items must be reset and transmitter (or smart key) may not work properly.
 |
| Fuse switch |
Engine compartment panel fuse replacement
1. Turn the ignition switch and all other switches off.
2. Remove the fuse box cover by pressing the tap and pulling the cover up.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, we recommend that you consult a HYUNDAI authorised repairer.
2. Remove the fuse box cover by pressing the tap and pulling the cover up.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, we recommend that you consult a HYUNDAI authorised repairer.
 |
| Engine compartment panel fuse replacement - Hyundai i10 |
Main fuse (multi fuse)
If the main fuse is blown, it must be removed as follows:
1. Disconnect the negative battery cable.
2. Remove the nuts shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
 |
| Main fuse (multi fuse) |
Fuse/relay panel description
Inner fuse panel Diagram
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity. | |
| Inner fuse panel Diagram |

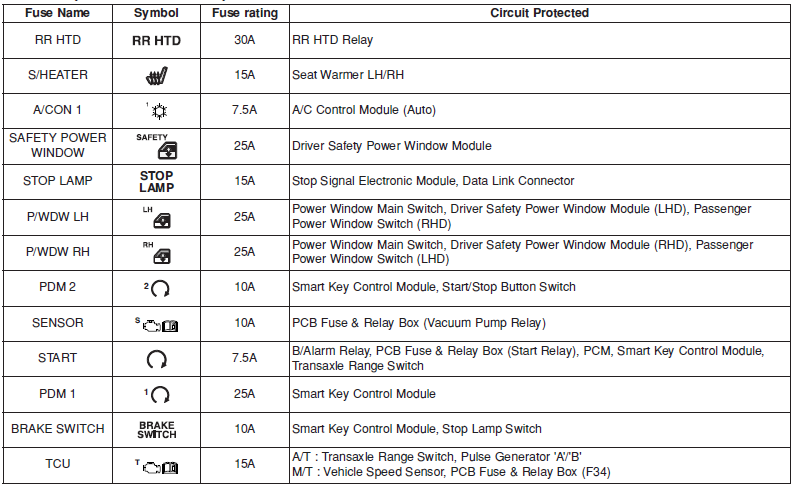

Instrument panel (Driver’s side fuse panel)
Engine compartment main fuse panel
NO. ... Relay Name ....Type
1 BLOWER RELAY PCB MICRO
2 MAIN (ENGINE CONTROL) RELAY PCB MICRO
3 F/PUMP 1 RELAY PCB MINI
4 H/LAMP HI RELAY PCB MICRO
5 H/LAMP LO RELAY PCB MICRO
6 VACUUM PUMP RELAY PCB MINI
7 B/ALARM HORN RELAY PCB MINI
8 A/CON RELAY PCB MINI
9 HORN RELAY PCB MINI
10 C/FAN LO RELAY PCB MICRO
11 C/FAN HI RELAY PCB MICRO
12 START RELAY PCB MICRO
