| 2017 Mazda 5 |
Fuses
Your vehicle's electrical system is protected by fuses.
If any lights, accessories, or controls don't work, inspect the appropriate circuit protector. If a fuse has blown, the inside element will be melted.
If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible.
If any lights, accessories, or controls don't work, inspect the appropriate circuit protector. If a fuse has blown, the inside element will be melted.
If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible.
Fuse Replacement
Replacing the fuses on the passenger's side
If the electrical system does not work, first inspect the fuses on the passenger's side.
1. Make sure the ignition is switched off, and other switches are off.
2. Remove the cover.
CAUTION
Pulling the cover off sideways may break the retaining tabs off.
 |
| Fuses cover on the passenger side |
3. Locate the position of the suspected fuse by using the chart inside the fuse block cover.
4. Pull the fuse straight out with the fuse puller provided on the inside of the engine compartment fuse block cover.
5. Inspect the fuse and replace it if it's blown.
 |

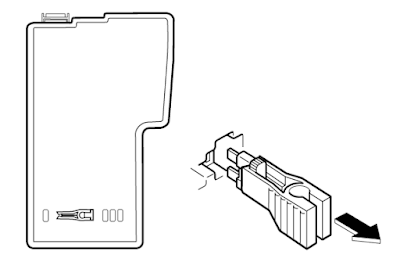

| Mazda 5 - Fuse puller location |
 |

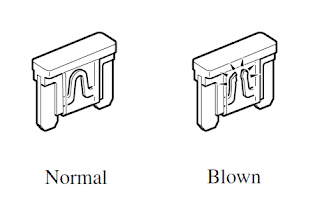

| Blown Fuse - Normal Fuse |
6. Insert a new fuse of the same amperage rating, and make sure it fits tightly. If it does not fit tightly, have an expert install it. We recommend an Authorized Mazda Dealer. If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the AUDIO or CIGAR circuit.
CAUTION - Always replace a fuse with one of the same rating. Otherwise you may damage the electric system.
7. Reinstall the cover and make sure that it is securely installed.
Fuse block Panel Description (Passenger's side)
 |
Fuse block Diagram Description (Passenger's side)
|
DESCRIPTION ... FUSE RATING .... PROTECTED COMPONENT
1 P/W 30A Power window
2 M.DEF ― ―
3 STARTER 10 A Engine control system
4 ENG3 20 A Engine control system
5 P/W ― ―
6 P.OUTLET 15 A Accessory sockets (Cargo compartment)
7 SHIFT/L 5 A Transaxle control system
8 CIGAR 15 A Accessory sockets (Dashboard)
9 MIRROR 7.5 A Power control mirror
10 A/C 10 A Air conditioner
11 F.WIP 25 A Front window wiper and washer
12 R.WIP 15 A Rear window wiper
13 ENG ― ―
14 METER 10 A Instrument cluster
15 SAS 10 A Air bag
16 S.WARM 15 A Seat warmer *
17 ABS/DSC ― ―
18 EHPAS 5 A Power assist steering
19 ENG2 15 A Engine control system
* Some Models
Replacing the fuses under the hood
If the headlights or other electrical components do not work and the fuses in the cabin are normal, inspect the fuse block under the hood. If a fuse is blown, it must be replaced. Follow these steps:
1. Make sure the ignition is switched off, and other switches are off.
2. Remove the fuse block cover.
 |

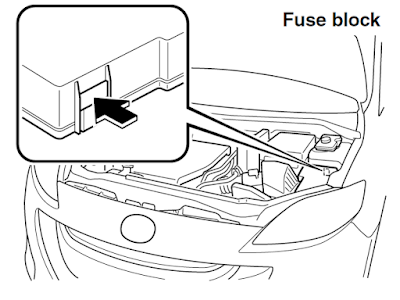

| Replacing the fuses under the hood |
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the same amperage rating.
WARNING
Do not replace the main fuse by yourself. Have an Authorized Mazda Dealer perform the replacement:
Replacing the fuse by yourself is dangerous because the MAIN fuse is a high current fuse. Incorrect replacement could cause an electrical shock or a short circuit resulting in a fire.
Main fuse
4. Reinstall the cover and make sure that it is securely installed.
 |
| Mazda 5 - Main Fuse |
Fuse Panel Description - Fuse block (Engine compartment)
 |
| Engine compartment - Fuse Panel Description |
DESCRIPTION ... FUSE RATING ... PROTECTED COMPONENT
1 IG KEY1 50A For protection of various circuits
2 AD FAN 30 A Cooling fan
3 GLOW2 , HEATER2, FAN1 - 30A Air conditioner
4 EGI MAIN 40 A Engine control system
5 INJ, FAN2 ― ―
6 ABS P 40 A ABS, DSC
7 P.SLIDE L ― ―
8 TCM, EVVT 20 A Transaxle control system
9 HEATER1 40 A Air conditioner
10 DCDC2 ― ―, GLOW1 / HEATER3 30A Air conditioner
11 BTN 60 A For protection of various circuits
12 IG KEY2 40A For protection of various circuits
13 FAN1 30 A Cooling fan, AT PUMP ― ―
14 P.SLIDE R ― ―
15 EHPAS 80A Power assist steering
16 FOG 15 A Fog lightsÃ
17 D.LOCK 20 A Power door lock
18 P.WIND 20 A Power window
19 AT PUMP ― ―, TCM ― ―
20 HEAD HI 20 A Headlight high beam
21 10 A Engine control system
22 STOP 10 A Brake lights
23 F.WARMER FUEL PUMP 20A Fuel system
24 HAZARD 10 A Hazard warning flasher, Turn signal lights
25 ROOM 15 A Overhead lights
26 TAIL, ENG FAN
15 A Taillights, Parking lights, License plate lights
27 A/C MAG 10 A Air conditioner
28 ABS V 20A ABS, Dynamic stability control system / HORN ― ―
29 SUN ROOF 20 A Moonroof * / AUDIO1 ― ―
30 H/CLEAN ― ― / DCDC3 ― ―
31 HORN 15 A Horn, ABS V ― ―
32 TAIL ― ―
33 ILLUMI 7.5 A Instrument panel illumination
34 ENG INJ 25 A Engine control system
35 ENG BAR 15 A Engine control system
36 ― ― ―
37 M.DEF 7.5 A Mirror defogger
38 DEFOG 25 A Rear window defogger
39 HEAD LO L 15 A Headlight low beam (LH)
40 HEAD LO R 15 A Headlight low beam (RH)
25 ROOM 15 A Overhead lights
26 TAIL, ENG FAN
15 A Taillights, Parking lights, License plate lights
27 A/C MAG 10 A Air conditioner
28 ABS V 20A ABS, Dynamic stability control system / HORN ― ―
29 SUN ROOF 20 A Moonroof * / AUDIO1 ― ―
30 H/CLEAN ― ― / DCDC3 ― ―
31 HORN 15 A Horn, ABS V ― ―
32 TAIL ― ―
33 ILLUMI 7.5 A Instrument panel illumination
34 ENG INJ 25 A Engine control system
35 ENG BAR 15 A Engine control system
36 ― ― ―
37 M.DEF 7.5 A Mirror defogger
38 DEFOG 25 A Rear window defogger
39 HEAD LO L 15 A Headlight low beam (LH)
40 HEAD LO R 15 A Headlight low beam (RH)
