2011 - 2014 Hyundai Sonata Fuse Box Diagram

2013 Hyundai Sonata



Fuses and Relays



This vehicle has 2 fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted.
If the electrical system does not work, first check the driver’s side fuse panel.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.

Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.

✽ NOTICE

The actual fuse/relay panel label may differ from equipped items.

WARNING - Fuse replacement

• Never replace a fuse with anything but another fuse of the same rating.

• A higher capacity fuse could cause damage and possibly a fire.

• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.

CAUTION

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

Instrument panel fuse replacement

 Instrument panel fuse replacement

1. Turn the ignition switch and all other switches off.

2. Open the fuse panel cover.

3. Pull the suspected fuse straight out. Use the removal tool (Fuse Puller) provided in the engine  compartment fuse panel.

4. Check the removed fuse; replace it if it is blown.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized HYUNDAI dealer.

If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.

If the headlights or other electrical components do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.

Memory fuse



Memory fuse



Your vehicle is equipped with a memory fuse to prevent battery discharge if your vehicle is parked without being operated for prolonged periods. Use the following procedures before parking the vehicle for prolonged periods.

1. Turn off the engine.

2. Turn off the headlights and tail lights.

3. Open the driver’s side panel cover and pull up the memory fuse.

✽ NOTICE

• If the memory fuse is pulled up from the fuse panel, the warning chime, audio, clock and interior lamps, etc., will not operate. Some items must be reset after replacement.

• Even though the memory fuse is pulled up, the battery can still be discharged by operation of the headlights or other electrical devices.

Engine compartment fuse replacement



Engine compartment fuse replacement



1. Turn the ignition switch and all other switches off.

2. Remove the fuse panel cover by pressing the tab and pulling up.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized HYUNDAI dealer

CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover. If not, electrical failures may occur from water contact.



Multi fuse



Multi fuse



If the multi fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the fuse panel on the right side in the engine compartment.

4. Remove the nuts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

✽ NOTICE

If the multi fuse is blown, consult an authorized HYUNDAI dealer.

Fuse / relay panel description



Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay  name and capacity.

 Fuse/relay panel description - Inner Panel & Engine compartment

 ✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle.

It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.



Instrument Fuse panel (Driver’s side fuse panel)

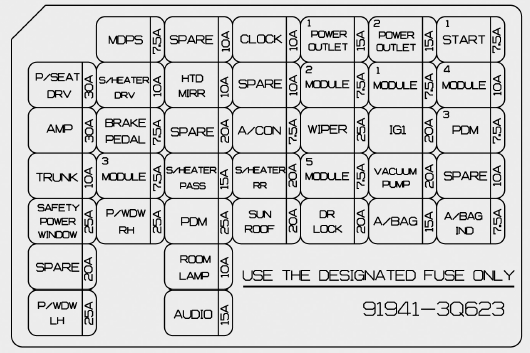

 Instrument Fuse panel Diagram (Driver’s side fuse panel)



Description ... Fuse rating ... Protected component

P/SEAT DRI 30A Driver Manual Switch

AMP 30A AMP, JBL AMP

TRUNK 10A Trunk Lid Relay, Trunk Room Lamp, Fuel Filler Door & Trunk Lid Switch

SAFETY POWER WINDOW 25A Safety Power Window Module

P/WDW ASST 20A Passenger Power Window Switch

P/WDW LH 25A Power Window Main Switch, Rear Power Window Switch LH

SPARE 7.5A -

SPARE 10A -

PDM 2 7.5A FOB Holder, Start Stop Button Switch, PDM, Smart Key Module

MODULE 3 7.5A Key Solenoid, Sport Mode Switch

P/WDW RH 25A Power Window Main Switch, Rear Power Window Switch RH

SPARE 10A -

HTD MIRR 10A Driver/Passenger Power Outside Mirror

P/SEAT ASST 20A -

S/HEATER FRT 15A Driver/Passenger Seat Warmer Module

PDM 25A PDM

ROOM LP (POWER CONNECTOR) 10A Instrument Cluster, Driver/Passenger Door Lamp, Ignition Key ILL. & Door Warning Switch, BCM, Tire Pressure Monitoring Module, A/C Control Module, Room Lamp, Front Monitor, Glove Box Lamp, Data Link Connector, Vanity Lamp LH/RH, Auto Light & Photo Sensor, RF Receiver, Overhead Console Lamp, Clock

AUDIO (POWER CONNECTOR) 15A Audio, A/V & Navigation Head Unit

CLOCK 10A BCM, Clock, Front Monitor, Smart Key Module, PDM, Audio, Power Outside Mirror Switch, AMP, JBL AMP, Overhead Console Lamp, Rear Camera Module, A/V & Navigation Head Unit

SPARE 10A -

A/CON 7.5A E/R Fuse & Relay Box (Blower Relay), A/C Control Module

S/HEATER RR 20A Rear Seat Warmer Switch LH/RH

SUN ROOF 20A Sunroof Motor

POWER OUTLET 1 15A Front Power Outlet #1 (cigarette Lighter)

MODULE 2 7.5A BCM, Rear Camera Module, Electro Chromic Mirror, Sunroof Motor

WIPER 25A E/R Fuse & Relay Box(Wiper Relay), Front Wiper Motor, Multifunction Switch(Wiper)

MODULE 5 7.5A PDM

DR LOCK 20A Door Lock/Unlock Relay

POWER OUTLET 1 15A Front Power Outlet #2 (cigarette Lighter)

MODULE 1 7.5A Instrument Cluster(ON/START Input), Clock, Sport Mode Switch IND., Audio, Driver/Passenger Seat Warmer Module, BCM

IG 1 20A E/R Fuse & Relay Box (Fuse - ESC 3 10A, ECU 4 10A, B/UP LP 10A, TCU 2 10A)

SPARE 20A -

A/BAG 15A SRS Control Module, Telltale Lamp, Passenger Weight Classification Sensor

START 1 7.5A W/O Smart Key-Ignition Lock Switch, Burglar Alarm Relay, E/R Fuse & Relay Box (Start 1 Relay) With Smart Key-PDM

MDPS 10A Yaw Rate Sensor, ESP Off Switch, EPS Control Module

PDM 3 7.5A PDM, Smart Key Module

SPARE 10A -

A/BAG IND. 7.5A Instrument Cluster(IND.)

VACUUM PUMP 20A Vacuum pump

Engine compartment - MULTI FUSE

Description .... Fuse rating .... Protected component

C/FAN HI (2.0 TGDI) 60A C/Fan High Relay

B+ 3 60A I/P Junction Box (Fuse - P/WDW ASST 20A, P/WDW LH 25A, P/WDW RH 25A , TRUNK 10A, S/HEATER FRT 15A, PDM 25A, MODULE 3 7.5A, SAFETY POWER WINDOW 25A, Power Connector - AUDIO 15A, Power Window Relay)

IGN 1 40A W/O Smart Key - Ignition Switch, With Smart Key - ACC Relay, IG1 Relay

ESC 1 40A ESC Module, Multipurpose Check Connector

RR HTD 40A RR HTD Relay

BLOWER 40A Blower Relay

B+ 4 60A I/P Junction Box (Fuse - P/SEAT DRIV 30A, AMP 30A, PDM 2 7.5A, IPS 2 /IPS 3 /IPS 5 /IPS 8)

MDPS 80A EPS Control Module



Engine compartment main fuse panel



   Engine compartment main Fuse Panel Diagram

B+ 2 50A I/P Junction Box (Fuse - SUNROOF 20A, DR LCOK 20A, IPS 1 /IPS 4 /IPS 6 /IPS 7 /IPS 9, Power Connector - ROOM LP 10A)

A/CON 10A A/C Control Module (Auto)

B/UP LP 10A Back-up Lamp Switch (M/T), B/UP LP Relay (A/T)

ESC 3 10A ESC Module, Multipurpose Check Connector

TCU 2 15A Vehicle Speed Sensor (M/T), Transaxle Range Switch (A/T), Start2 Relay

ECU 4 10A Stop Lamp Switch, PCM

IGN 2 30A W/O Smart Key - Ignition Switch, Start1 Relay, With Smart Key - Start 1 Relay, IG 2 Relay

EMS 40A EMS Box (Fuse - HORN 15A, ECU 3 10A, ECU 1 30A, F/PUMP 20A)

ESC 2 30A ESC Module, Multipurpose Check Connector

WIPER 10A PCM

RR HTD IND 10A A/C Control Module

AMS 15A Battery Sensor

TCU 1 20A PCM

STOP LP 15A Stop Lamp Switch

DEICER 20A Deicer Relay

SPARE 20A -

C/FAN (2.4 GDI) 40A C/Fan Low Relay, C/Fan High Relay

C/FAN LO (2.0 TGDI) 40A C/Fan Low Relay

IGN COIL 20A Ignition Coil #1 /#2 /#3 /#4, Condenser

SENSOR 1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)

SENSOR 2 15A Immobilizer Module, Camshaft Position Sensor #1 /#2, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Crankshaft Position Sensor, Oil Control Valve #1 /#2, Canister Close Valve

INJECTOR 15A F/Pump Relay

F/PUMP 20A F/Pump Relay

ECU 3 10A PCM

HORN 15A Horn Relay, B/Horn Relay

ECU 1 30A ECU Relay

SPARE 25A -

SPARE 20A -

SPARE 15A -

SPARE 10A -
