2011 - 2014 Ford Expedition Fuse Box Diagram

2014 Ford Expedition
2014 Ford Expedition

Changing a Fuse


WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

If electrical components in your vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse.
Check the appropriate fuses before replacing any electrical components.

Blown Fuse
Blown Fuse

Standard Fuse Amperage Rating and Color



COLOR

Fuse link

cartridge

Cartridge

maxi

fuses

Maxi

fuses

Standard

fuses

Mini

fuses

Fuse

rating

- -

- -

- -

Grey

Grey

2A

- -

- -

- -

Violet

Violet

3A

- -

- -

- -

Pink

Pink

4A

- -

- -

- -

Tan

Tan

5A

- -

- -

- -

Brown

Brown

7.5A

- -

- -

- -

Red

Red

10A

- -

- -

- -

Blue

Blue

15A

Blue

Blue

Yellow

Yellow

Yellow

20A

Natural

Natural

- -

Natural

Natural

25A

Pink

Pink

Green

Green

Green

30A

Green

Green

Orange

- -

- -

40A

Red

Red

Red

- -

- -

50A

Yellow

Yellow

Blue

- -

- -

60A

Brown

- -

Tan

- -

- -

70A

Black

Black

Natural

- -

- -

80A



Power Distribution Box


Engine Compartment Fuse Panel Diagram
Engine Compartment Fuse Panel Diagram

WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power  distribution box before reconnecting the battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
If the battery has been disconnected and reconnected, see Changing the Vehicle Battery in the Maintenance chapter.

The high-current fuses are coded as follows:

Fuse or relay location ... Fuse amp rating .... Protected circuits
1 — Powertrain control module (PCM) relay
2 — Starter relay
3 — Blower motor relay
4 — Trailer tow (TT) battery charge relay
5 — Fuel pump relay
6 — Electronic fan 1 relay
7 — Rear window defroster/heated mirror relay
8 — Electronic fan 3 relay
9 — Run/start (R/S) relay
10 — Not used (2011 - 2012 Models - Rear air suspension (RAS) relay)
11 40A** Power running board
12 40A** Run/start (RS) relay
13 30A ** Starter relay
14 40A** Electronic fan
15 — Not used
16 40A** Electronic fan
17 — Not used
18 30A** Trailer brake
19 — Not used (2011 - 2012 Models - Rear air suspension (RAS) relay feed)
20 20A** 4x4 module
21 30A** Trailer tow battery charge relay
22 30A** Passenger power seat
23 — Air conditioner clutch relay
24 — Trailer tow park lamp relay
25 — Not used
26 — Not used (2011 Model - Transmission control module (TCM) keep-alive power)
27 20A* 4x4
28 25A* Trailer tow park lamp relay
29 20A* Backup lamps, Integrated wheel end solenoid
30 10A* Air conditioner clutch relay
31 — Not used
32 40A** Blower motor relay

33 40A** 110–volt AC power point
34 30A** Auxiliary blower motor
35 30A** Powertrain control module relay
36 30A** Power liftgate
37 — Trailer tow left hand stop/turn relay
38 — Trailer tow right hand stop/turn relay
39 — Backup lamps relay
40 — Electronic fan 2 relay
41 10A* Powertrain control module keep-alive power
42 — Not used
43 5A* Brake on/off switch
44 20A* Fuel pump relay
45 25A* Trailer tow stop/turn lamps relay
46 — Not used
47 — Not used
48 — Not used (2011 - 2012 Models - Rear air suspension (RAS) module)
49 — Not used
50 30A** Front wiper motor relay
51 40A** Rear window defroster and heated mirror relay
52 10A* Anti-lock brake system (ABS)  run/start (R/S) feed
53 — Not used (2012 Model - Rear air suspension module)
54 — Not used
55 5A* Fuel pump relay coil run/start feed
56 30A* Passenger compartment fuse panel run/start feed
57 10A* Blower motor relay coil

58 15A* Trailer tow backup lamps
59 15A* Heated mirrors
60 — Not used
61 — Fuel pump diode
62 — Not used
63 25A** Electronic fan
64 30A** Moonroof
65 20A** Auxiliary power point (instrument panel)
66 20A** Auxiliary power point (rear of center console)
67 40A** Front row climate controlled seats
68 60A** Anti-lock brake system (ABS) valves
69 60A** Anti-lock brake system (ABS) pump
70 30A** Third row power fold seat
71 20A** Auxiliary power point/cigar lighter
72 20A** Auxiliary power point (right rear quarter panel)
73 — Not used
74 30A** Driver power seat
75 20A* Vehicle power 1 – powertrain control module
76 20A* Vehicle power 2 – powertrain control module
77 15A* Vehicle power 4 – ignition coils
78 — Not used
79 20A* Vehicle power 3 – powertrain control module (PCM)
80 — Not used
81 — Not used
82 — Not used
83 — Not used
84 — Not used
85 — Wiper motor relay

* Mini Fuses ** Cartridge Fuses

Passenger Compartment Fuse Panel


The fuse panel is located under the right-hand side of the instrument panel.

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Box Location

To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.
To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off.
To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.

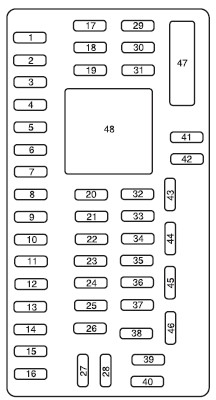

Passenger Compartment Fuse Panel Diagram
Passenger Compartment Fuse Panel Diagram

The fuses are coded as follows:

Fuse or relay location ... Fuse amp rating ... Protected circuits
1 30A Driver window
2 15A Driver side memory module
3 15A Audio rear seat controls, Satellite radio, SYNC
4 30A Not used (spare)
5 10A Keypad illumination, 3rd row seat enable, Brake shift interlock, Smart fuse panel logic power
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights
10 15A Switch backlighting, Puddle lamps

11 10A Not used (spare)
12 7.5A Power mirrors, Driver seat memory switch
13 5A Not used (spare)
14 10A Power liftgate module – keep-alive power
15 10A Climate control, Global positioning satellite module
16 15A Not used (spare)
17 20A Door locks, Liftgate release, Liftglass release
18 20A Second row heated seats
19 25A Rear wiper
20 15A Adjustable pedals, Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps, Glove box, Visor
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Airbag module
33 10A Trailer brake logic  (2012 Model - Not Used Spare)
34 5A Not used (spare)
35 10A Rear park assist, 4x4, rear video camera, 2nd row heated seats
36 5A Passive anti-theft system
37 10A Climate control
38 20A Subwoofer
39 20A Radio
40 20A Navigation amplifier
41 15A Power windows, Power vents, Power moonroof, Auto dimming rear view mirror, 110 volt AC power point
42 10A Not used (spare)
43 10A Rear wiper logic, Rain sensor
44 10A Trailer tow battery charge relay coil
45 5A Front wiper logic
46 7.5A Climate control, Auxiliary relay control
47 30A Circuit Breaker Power windows, Moonroof
48 — Delayed accessory relay
