2022 Subaru Impreza Fuse Box Diagram


2022 Subaru Impreza
2022 Subaru Impreza


Fuses and Relays


CAUTION
Never replace a fuse with one having a higher rating or with material other than a fuse because serious damage or a fire could result.

NOTE
Fuse rating and using circuit are described on each behind the fuse box cover.

The fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment. The fuses are located in two fuse boxes.

Instrument panel Fuse Box Location
Instrument panel Fuse Box Location

One is located under the instrument panel behind the fuse box cover on the driver’s seat side. To remove the cover, pull it out.

Spare Fuses
Spare Fuses

 The other one (main fuse box) is housed in the engine compartment. Also, the spare fuses are stored in the fuse box cover.

Fuse Puller Location
Fuse Puller Location

The fuse puller is stored in the main fuse box in the engine compartment.
Pinch the upper part of the fuse puller when removing it from the main fuse box.

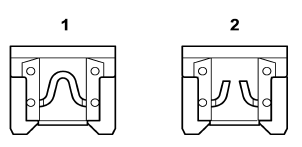

1) Good  Fuse  ,  2) Blown Fuse
1) Good  Fuse  ,  2) Blown Fuse

If any lights, accessories or other electrical controls do not operate, inspect the corresponding fuse. If a fuse has blown, replace it.
1. Turn the ignition switch to the “LOCK”/ “OFF” position and turn off all electrical accessories.
2. Remove the cover.
3. Determine which fuse may be blown.

Fuse Puller
Fuse Puller


4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a spare fuse of the same rating.
6. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs.
