FUSES
 |
| Fuse Types - Left side : Normal , Right side : Blown |
A vehicle’s electrical system is protected from electrical overload damage by fuses.

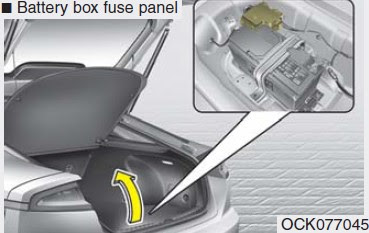

This vehicle has 4 (or 5) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
WARNING - Fuse replacement
• Never replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly a fire.
• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.
• Do not arbitrarily modify or add-on electric wiring to the vehicle.
• Never replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly a fire.
• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.
• Do not arbitrarily modify or add-on electric wiring to the vehicle.
CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a
short circuit and damage the system.
Do not use a screwdriver or any other metal object to remove fuses because it may cause a
short circuit and damage the system.
NOTICE
• When replacing fuse, turn the ignition “OFF” and turn off switches of all electrical devices then remove battery (-) terminal.
• The actual fuse/relay panel label may differ from equipped items.
• When replacing fuse, turn the ignition “OFF” and turn off switches of all electrical devices then remove battery (-) terminal.
• The actual fuse/relay panel label may differ from equipped items.
WARNING - Electrical Fire
Always ensure replacements fuses and relays are securely fastened when installed. Failure to do so can result in a vehicle fire.
CAUTION
• When replacing a blown fuse or relay, make sure the new fuse or relay fits tightly into the clips. Failure to tightly install the fuse or relay may cause damage to the wiring and electric systems.
• Do not remove fuses, relays and terminals fastened with bolts or nuts.The fuses, relays and terminals may not be fastened correctly which may cause vehicle damage.
CAUTION
• Do not input any other objects except fuses or relays into fuse/relay terminals such as a driver or wiring. It may cause contact failure and system malfunction.
• Do not plug in screwdrivers or aftermarket wiring into the terminal originally designed for fuse and relays only. The electrical system and wiring of the vehicle interior may be damaged or burned due to contact failure.
• If you directly connect the wire on the taillight or replace the bulb which is over the regulated capacity to install trailers etc., the inner junction block can get burned.
CAUTION
Visually inspect the battery cap to ensure it is securely closed.
If the battery cap is not securely closed, moisture may enter the system and damage the electrical components.
WARNING - Electrical wiring repairs
All electrical repairs should be performed by authorized Kia dealerships using approved Kia parts. Using other wiring components, especially when retrofitting AVN or theft alarm system, remote engine control, car phone or radio may cause vehicle damage and increase the risk of a vehicle fire.
NOTICE - Remodeling Prohibited
Do not rewire your vehicle in any way as doing so may affect the performance of several safety features in your vehicle. Rewiring your vehicle may also void your warranty and cause you to be responsible for any subsequent vehicle damage which may result.
✽ NOTICE - Window tinting precaution
Window tint(especially metallic film) might cause communication disorder or poor radio reception, and malfunction of the automatic lighting system due to excessive change of illumination inside the vehicle. The solution used might also flow into electric, electronic devices causing disorder and failure.
Inner panel fuse replacement
 |
| Inner panel fuse replacement |
1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.
2. Open the fuse panel cover.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.
 |
| Fuse Puller Location |
3. Pull the suspected fuse straight out. Use the removal tool (Fuse Puller) provided on the engine compartment fuse panel cover.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the power outlet fuse.
If the head lamp, turn signal lamp, stop signal lamp, fog lamp, DRL, tail lamp, HMSL do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.
NOTICE
If the headlamp, fog lamp, turn signal lamp, or tail lamp malfunction even without any problem to the lamps, have the vehicle checked by an authorized Kia dealer for assistance.
If the headlamp, fog lamp, turn signal lamp, or tail lamp malfunction even without any problem to the lamps, have the vehicle checked by an authorized Kia dealer for assistance.
Fuse switch
 |
| Fuse Switch |
Always set the fuse switch to the ON position before using the vehicle.
If you move the switch to the OFF position, some items such as audio and digital clock must be reset and transmitter (or smart key) may not work properly. When the switch is Off, the caution indicator will be displayed on the instrument cluster.
Always place the fuse switch in the ON position while driving the vehicle.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.
CAUTION - Fuse Panel Covers
The contact points of the switches may wear out with excessive use. Please refrain from excessive use of the switches (except for long-term parking for over 1 month).
NOTICE
• Set all switches to ON before driving.
• If the vehicle is going to be unused for over 1 month, set all switches to OFF to prevent the batteries from draining.
If you move the switch to the OFF position, some items such as audio and digital clock must be reset and transmitter (or smart key) may not work properly. When the switch is Off, the caution indicator will be displayed on the instrument cluster.
Always place the fuse switch in the ON position while driving the vehicle.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.
CAUTION - Fuse Panel Covers
The contact points of the switches may wear out with excessive use. Please refrain from excessive use of the switches (except for long-term parking for over 1 month).
NOTICE
• Set all switches to ON before driving.
• If the vehicle is going to be unused for over 1 month, set all switches to OFF to prevent the batteries from draining.
Engine compartment fuse replacement
 |
| Engine compartment fuse replacment |
1. Turn the ignition switch and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine compartment fuse box. Upon removal, securely insert reserve fuse of the same rating.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.
2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine compartment fuse box. Upon removal, securely insert reserve fuse of the same rating.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.
CAUTION
Always securely install the fuse panel cover in the engine compartment to protect against electrical failure which may occur from water contact.
Listen for the audible clicking sound to ensure fuse panel cover is securely fastened.
Multi fuse
 |
| Multi Fuse |
If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the multi fuse.
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the multi fuse.
NOTICE
Do not disassemble nor assemble the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire.
Have the vehicle checked by an authorized Kia dealer.
Main fuse
 |
| Main Fuse |
If the main fuse is blown, it must bezremoved as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the main fuse.
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the main fuse.
Driver’s side fuse panel
 |
| Engine compartment fuse panel |
 |
| Engine compartment fuse panel Diagram |
Fuse Specification Chart
Fuse Name .. Fuse rating .. Circuit Protected
MULTI MEDIA 1 25A Low DC-DC Converter (Audio)
AIR BAG 15A SRS (Supplemental Restraint System) Control Module
INTERIOR LAMP 10A Overhead Console Lamp, Center Room Lamp, Room Lamp, Vanity Lamp Switch Left Handle side/Right Handle side, Luggage Lamp Left Handle side/Right Handle side, Glove Box Lamp, Driver/Passenger Door Mood Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp
STOP LAMP 10A IBU, Stop Lamp Switch
CLUSTER 10A Instrument Cluster, Head-Up Display
E-SHIFTER 2 10A Electronic Auto Transmission Shift Lever (IG1)
IBU 4 10A IBU (IG1)
MULTI MEDIA 3 10A Instrument Cluster, Head-Up Display, Air Conditioner Switch
MULTI MEDIA 2 15A Audio
MEMORY 1 10A Air Conditioner Control Module, Air Conditioner Switch, Security Indicator, Head-Up Display
IBU 3 10A IBU (B+)
E-SHIFTER 1 10A Electronic Auto Transmission Shift Lever (B+)
A/BAG IND. 10A Instrument Cluster, Passenger Air Bag IND.
IBU 1 15A IBU (B+)
DDM 10A Driver Door Module, Driver/Passenger Power Outside Mirror
MODULE 2 10A IBU (IG2)
MODULE 3 10A Auto Transmission Shift Lever Switch, Driver Door Module, Stop Lamp Switch
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay
S/HEATER DRV/PASS 25A Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
TAIL GATE 10A Tail Gate Lid Relay, Fuel Lid Relay, Crash Pad Switch
IBU 2 10A Rain Sensor
SPARE 20A SPARE
MULTI MEDIA 1 25A Low DC-DC Converter (Audio)
AIR BAG 15A SRS (Supplemental Restraint System) Control Module
INTERIOR LAMP 10A Overhead Console Lamp, Center Room Lamp, Room Lamp, Vanity Lamp Switch Left Handle side/Right Handle side, Luggage Lamp Left Handle side/Right Handle side, Glove Box Lamp, Driver/Passenger Door Mood Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp
STOP LAMP 10A IBU, Stop Lamp Switch
CLUSTER 10A Instrument Cluster, Head-Up Display
E-SHIFTER 2 10A Electronic Auto Transmission Shift Lever (IG1)
IBU 4 10A IBU (IG1)
MULTI MEDIA 3 10A Instrument Cluster, Head-Up Display, Air Conditioner Switch
MULTI MEDIA 2 15A Audio
MEMORY 1 10A Air Conditioner Control Module, Air Conditioner Switch, Security Indicator, Head-Up Display
IBU 3 10A IBU (B+)
E-SHIFTER 1 10A Electronic Auto Transmission Shift Lever (B+)
A/BAG IND. 10A Instrument Cluster, Passenger Air Bag IND.
IBU 1 15A IBU (B+)
DDM 10A Driver Door Module, Driver/Passenger Power Outside Mirror
MODULE 2 10A IBU (IG2)
MODULE 3 10A Auto Transmission Shift Lever Switch, Driver Door Module, Stop Lamp Switch
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay
S/HEATER DRV/PASS 25A Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
TAIL GATE 10A Tail Gate Lid Relay, Fuel Lid Relay, Crash Pad Switch
IBU 2 10A Rain Sensor
SPARE 20A SPARE
MODULE 8 10A Cooling Fan Controller (BLDC Motor), Around View Monitor, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module
MODULE 7 10A IBU, ECS Unit, AWD (All Wheel Drive) ECM (Electronic Control Module), Smart Cruise Control Module, Auto Transmission Shift Lever Indicator, Console Switch (Front/Upper), Blind-Spot Collision Warning Unit Left Handle side/Right Handle side, Steering Angle Sensor, Steering Tilt & Telescopic Module, Multi- Function Camera Unit, Crash Pad Switch
POWER HANDLE 15A Steering Tilt & Telescopic Module
MODULE 9 10A Driver Air Lumbar Control Unit
MODULE 1 10A Data Link Connector, Console Switch (Upper), Mood Lamp Control Unit
MODULE 5 10A Air Conditioner Control Module, Air Conditioner Switch, Audio, Head Lamp Left Handle side/Right Handle side, Low DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror, AMP (Amplifier), Driver Integrated memory system Control Module, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module
SUNROOF 20A Sunroof Control Unit (Glass)
P/WINDOW RH 25A Passenger Power Window Module, Rear Power Window Module Right Handle side
CHARGER 10A Front/Rear USB Charger
WASHER 15A Multifunction Switch
MDPS 10A MDPS (Motor Driven Power Steering) Unit (R-MDPS (Motor Driven Power Steering))
P/SEAT (DRV) 30A Driver Integrated memory system Control Module, Drive Seat Module
P/SEAT (PASS) 30A Passenger Seat Module
P/WINDOW LH 25A Driver Power Window Module, Rear Power Window Module Left Handle side
MODULE 6 10A IBU, Low DC-DC Converter (Audio/AMP (Amplifier)), Electronic Auto Transmission Shift Lever (SBW (Shift By Wire)), Engine Room Junction Block (RLY. 4 - Power Outlet Relay)
A/C 10A Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay)
MODULE 4 10A Head Lamp Left Handle side/Right Handle side, AFS Control Unit, Auto Head Lamp Leveling Device Module
MODULE 7 10A IBU, ECS Unit, AWD (All Wheel Drive) ECM (Electronic Control Module), Smart Cruise Control Module, Auto Transmission Shift Lever Indicator, Console Switch (Front/Upper), Blind-Spot Collision Warning Unit Left Handle side/Right Handle side, Steering Angle Sensor, Steering Tilt & Telescopic Module, Multi- Function Camera Unit, Crash Pad Switch
POWER HANDLE 15A Steering Tilt & Telescopic Module
MODULE 9 10A Driver Air Lumbar Control Unit
MODULE 1 10A Data Link Connector, Console Switch (Upper), Mood Lamp Control Unit
MODULE 5 10A Air Conditioner Control Module, Air Conditioner Switch, Audio, Head Lamp Left Handle side/Right Handle side, Low DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror, AMP (Amplifier), Driver Integrated memory system Control Module, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module
SUNROOF 20A Sunroof Control Unit (Glass)
P/WINDOW RH 25A Passenger Power Window Module, Rear Power Window Module Right Handle side
CHARGER 10A Front/Rear USB Charger
WASHER 15A Multifunction Switch
MDPS 10A MDPS (Motor Driven Power Steering) Unit (R-MDPS (Motor Driven Power Steering))
P/SEAT (DRV) 30A Driver Integrated memory system Control Module, Drive Seat Module
P/SEAT (PASS) 30A Passenger Seat Module
P/WINDOW LH 25A Driver Power Window Module, Rear Power Window Module Left Handle side
MODULE 6 10A IBU, Low DC-DC Converter (Audio/AMP (Amplifier)), Electronic Auto Transmission Shift Lever (SBW (Shift By Wire)), Engine Room Junction Block (RLY. 4 - Power Outlet Relay)
A/C 10A Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay)
MODULE 4 10A Head Lamp Left Handle side/Right Handle side, AFS Control Unit, Auto Head Lamp Leveling Device Module
Engine compartment fuse panel
 |
Engine compartment fuse panel |
 |
| Engine compartment fuse panel Diagram |
Fuse Specification Chart
Fuse Name .. Fuse rating ... Circuit Protected
ALT
175A
200A
Alternator, Multi Fuse
- COOLING FAN 1 / B+5 / B+4 / B+3 / OPCU / ESC1 / ESC2 / BLOWER / POWER TAIL GATE
COOLING FAN 2 100A [BLDC (Brushless Direct Current) Motor] Cooling Fan Controller
START 30A Start Relay
COOLING FAN 1 80A [BLDC (Brushless Direct Current) Motor] Cooling Fan Controller
B+5 50A Instrument Panel Junction Block (Fuse - STOP LAMP / Leak Current Autocut Device Fuse / INTERIOR LAMP)
B+4 50A Instrument Panel Junction Block (Fuse - DOOR LOCK / POWER HANDLE / SUNROOF / P/SEAT (DRV) / P/SEAT (PASS))
B+3 50A Instrument Panel Junction Block (Fuse - S/HEATER DRV/PASS / TAIL GATE / MODULE9 / P/WINDOW RH / P/WINDOW LH)
OPCU 50A Electric Oil Pump Inverter
ESC 1 40A ESC (Electronic Stability Control) Control Module
ESC 2 40A ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector
BLOWER 40A Blower Relay
POWER TAIL GATE 30A Power Tail Gate Module
ALT
175A
200A
Alternator, Multi Fuse
- COOLING FAN 1 / B+5 / B+4 / B+3 / OPCU / ESC1 / ESC2 / BLOWER / POWER TAIL GATE
COOLING FAN 2 100A [BLDC (Brushless Direct Current) Motor] Cooling Fan Controller
START 30A Start Relay
COOLING FAN 1 80A [BLDC (Brushless Direct Current) Motor] Cooling Fan Controller
B+5 50A Instrument Panel Junction Block (Fuse - STOP LAMP / Leak Current Autocut Device Fuse / INTERIOR LAMP)
B+4 50A Instrument Panel Junction Block (Fuse - DOOR LOCK / POWER HANDLE / SUNROOF / P/SEAT (DRV) / P/SEAT (PASS))
B+3 50A Instrument Panel Junction Block (Fuse - S/HEATER DRV/PASS / TAIL GATE / MODULE9 / P/WINDOW RH / P/WINDOW LH)
OPCU 50A Electric Oil Pump Inverter
ESC 1 40A ESC (Electronic Stability Control) Control Module
ESC 2 40A ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector
BLOWER 40A Blower Relay
POWER TAIL GATE 30A Power Tail Gate Module
MDPS 100A MDPS (Motor Driven Power Steering) Unit
B+6 60A Engine Control Relay, Fuse - HORN / WIPER1 / H/LAMP H / B/ALARM HORN)
B+1 60A Instrument Panel Junction Block (Fuse - IBU1 / IBU2)
B+2 50A Instrument Panel Junction Block (Fuse - E-SHIFTER1 / MODULE1)
E-CVVT 1 40A [THETA II 2.0L T-GDI Engine] E-CVVT Relay
VACUUM PUMP 20A Vacuum Pump Relay
AWD 20A AWD (All Wheel Drive) ECM (Electronic Control Module)
IG 2 20A IG2 Relay
POWER OUTLET 2 20A Front Power Outlet #2
POWER OUTLET 1 20A Front Power Outlet #1
A/C 10A Air Conditioner Control Module
E-CVVT 3 20A [THETA II 2.0L T-GDI Engine] ECM (Engine Control Module)
B+6 60A Engine Control Relay, Fuse - HORN / WIPER1 / H/LAMP H / B/ALARM HORN)
B+1 60A Instrument Panel Junction Block (Fuse - IBU1 / IBU2)
B+2 50A Instrument Panel Junction Block (Fuse - E-SHIFTER1 / MODULE1)
E-CVVT 1 40A [THETA II 2.0L T-GDI Engine] E-CVVT Relay
VACUUM PUMP 20A Vacuum Pump Relay
AWD 20A AWD (All Wheel Drive) ECM (Electronic Control Module)
IG 2 20A IG2 Relay
POWER OUTLET 2 20A Front Power Outlet #2
POWER OUTLET 1 20A Front Power Outlet #1
A/C 10A Air Conditioner Control Module
E-CVVT 3 20A [THETA II 2.0L T-GDI Engine] ECM (Engine Control Module)
E-CVVT 2 20A [THETA II 2.0L T-GDI Engine] ECM (Engine Control Module)
ESC 3 10A ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector
ECU 3 10A ECM (Engine Control Module)
ECU 2 15A ECM (Engine Control Module)
HORN 20A Horn Relay
WIPER 1 30A Wiper Power Relay
TCU 2 15A TCM (Transmission Control Module)
SENSOR 4 10A Brake Vacuum Switch, Vacuum Pump Relay, Electric Oil Pump Inverter
TCU 1 20A TCM (Transmission Control Module)
WIPER 2 10A IBU (Integrated Body Control Unit), ECM (Electronic Control Module)
SENSOR 1 15A Rear Sub Junction Block (Fuel Pump Relay)
SENSOR5 20A [THETA II 2.0L T-GDI Engine] Ignition Coil #1/#2/#3/#4 [Lambda II PE 3.3L T-GDI Engine] Ignition Coil #1/#2/#3/#4/#5/#6
ESC 3 10A ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector
ECU 3 10A ECM (Engine Control Module)
ECU 2 15A ECM (Engine Control Module)
HORN 20A Horn Relay
WIPER 1 30A Wiper Power Relay
TCU 2 15A TCM (Transmission Control Module)
SENSOR 4 10A Brake Vacuum Switch, Vacuum Pump Relay, Electric Oil Pump Inverter
TCU 1 20A TCM (Transmission Control Module)
WIPER 2 10A IBU (Integrated Body Control Unit), ECM (Electronic Control Module)
SENSOR 1 15A Rear Sub Junction Block (Fuel Pump Relay)
SENSOR5 20A [THETA II 2.0L T-GDI Engine] Ignition Coil #1/#2/#3/#4 [Lambda II PE 3.3L T-GDI Engine] Ignition Coil #1/#2/#3/#4/#5/#6
H/LAMP HI 10A Head Lamp (High) Relay
ECU 1 20A ECM (Engine Control Module)
SENSOR 3 15A [THETA II 2.0L T-GDI Engine] Oxygen Sensor (Up) [Lambda II PE 3.3L T-GDI Engine] Oxygen Sensor #2/#4
SENSOR 2 10A [THETA II 2.0L T-GDI Engine] Electronic Thermostat, Oil Control Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Canister Close Valve [Lambda II PE 3.3L T-GDI Engine] Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), RCV (Recirculation Valve Control) Control Solenoid Valve, Purge Control Solenoid Valve, Canister Close Valve
B/ALARM HORN 15A Burglar Alarm Horn Relay
ECU 1 20A ECM (Engine Control Module)
SENSOR 3 15A [THETA II 2.0L T-GDI Engine] Oxygen Sensor (Up) [Lambda II PE 3.3L T-GDI Engine] Oxygen Sensor #2/#4
SENSOR 2 10A [THETA II 2.0L T-GDI Engine] Electronic Thermostat, Oil Control Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Canister Close Valve [Lambda II PE 3.3L T-GDI Engine] Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), RCV (Recirculation Valve Control) Control Solenoid Valve, Purge Control Solenoid Valve, Canister Close Valve
B/ALARM HORN 15A Burglar Alarm Horn Relay
Relays
Relay Name ... Type
Vacuum Pump Relay ISO HC MICRO
B/Alarm Horn Relay ISO MICRO
Power Outlet Relay ISO HC MICRO
Blower Relay ISO HC MICRO
Start Relay ISO HC MICRO
E-CVVT Relay (G4KL) ISO MICRO
Rear fuse box panel
 |
Rear fuse box panel |
 |
| Rear fuse box panel Diagram (2019 - 2021 Models) |
 |
| Rear fuse box panel Diagram (2018 Model) |
Fuse Table
Fuse Name .. Fuse rating ... Circuit Protected
ECS 15A ECS (Electronic Control Suspension) Unit
S/HEATER REAR 20A Rear Seat Warmer Control Module
HEATED MIRROR 10A Air Conditioner Switch, Driver/Passenger Power Outside Mirror
FUEL PUMP 20A Fuel Pump Relay
SPARE1 10A -
SPARE2 15A -
SPARE3 15A -
REAR HEATED 30A Rear Heated Relay
AMP 2 25A AMP (Amplifier) (MOBIS/PREMIUM)
SPARE4 15A -
AMP 1 30A Low DC-DC Converter (AMP (Amplifier))
IG 1 15A IG1 Relay (2018 Model - IG1/ACC Relay)
ACC 30A ACC Relay (2018 Model - Empty)
ECS 15A ECS (Electronic Control Suspension) Unit
S/HEATER REAR 20A Rear Seat Warmer Control Module
HEATED MIRROR 10A Air Conditioner Switch, Driver/Passenger Power Outside Mirror
FUEL PUMP 20A Fuel Pump Relay
SPARE1 10A -
SPARE2 15A -
SPARE3 15A -
REAR HEATED 30A Rear Heated Relay
AMP 2 25A AMP (Amplifier) (MOBIS/PREMIUM)
SPARE4 15A -
AMP 1 30A Low DC-DC Converter (AMP (Amplifier))
IG 1 15A IG1 Relay (2018 Model - IG1/ACC Relay)
ACC 30A ACC Relay (2018 Model - Empty)
Battery box fuse panel
 |
| Battery box fuse panel |
 |
| Battery box fuse panel Diagram |
No comments:
Post a Comment
